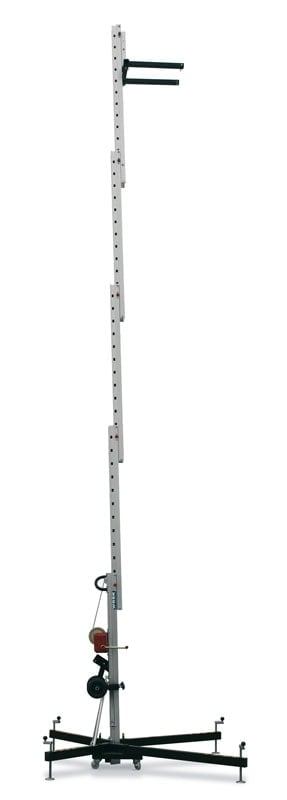

LW 476 R

Maximum convenience
Made of aluminium and composed of four profiles, LW 465 R lifts from the ground loads of 220 kg at 7.6 meters high, without any user effort.

To make transport easier, it features four wheels on its base. Two additional foldiable wheels provide a great solution to handle the tower in horizontal.

Total safety
Like any lifting towers PRO designed by WORK, its features ensure a optimum security:

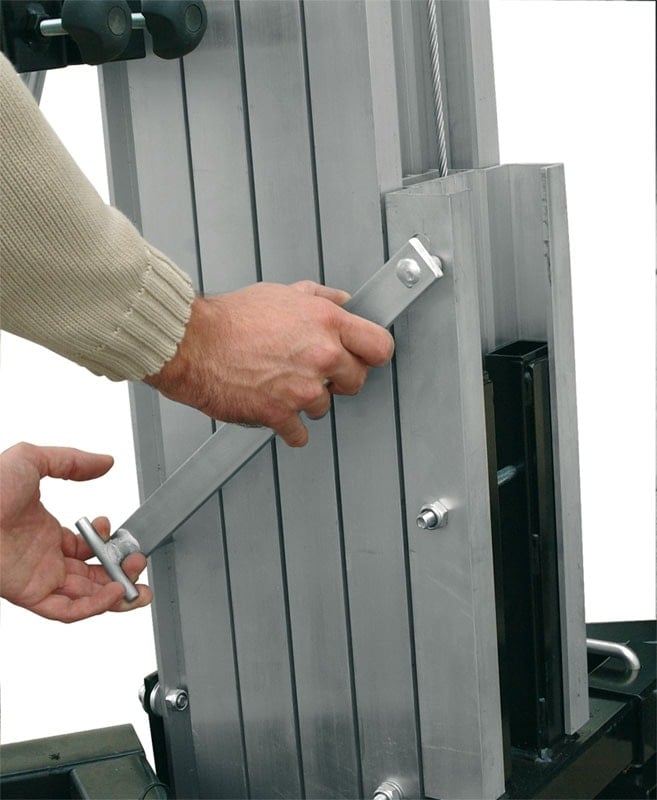

- Powerful autoblocking bolts.

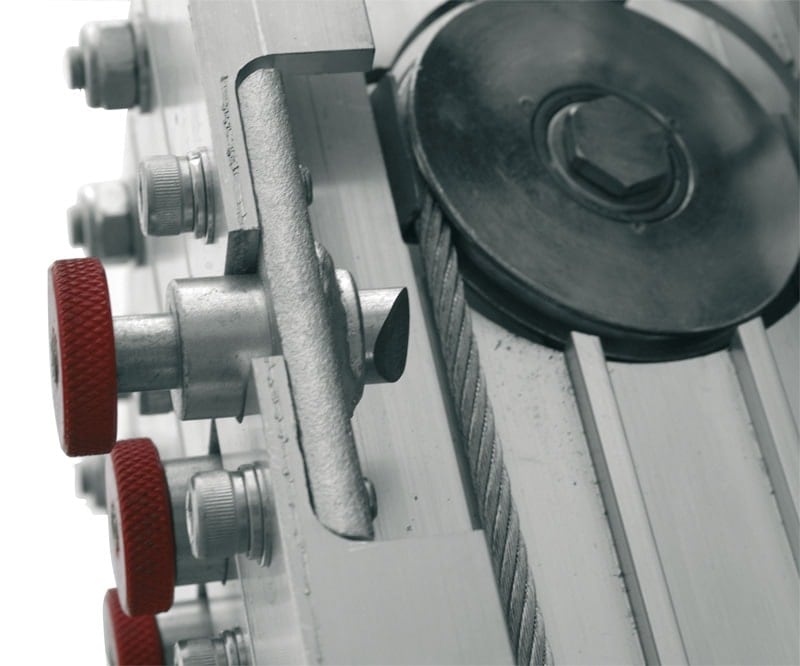

- Steel made pulley.

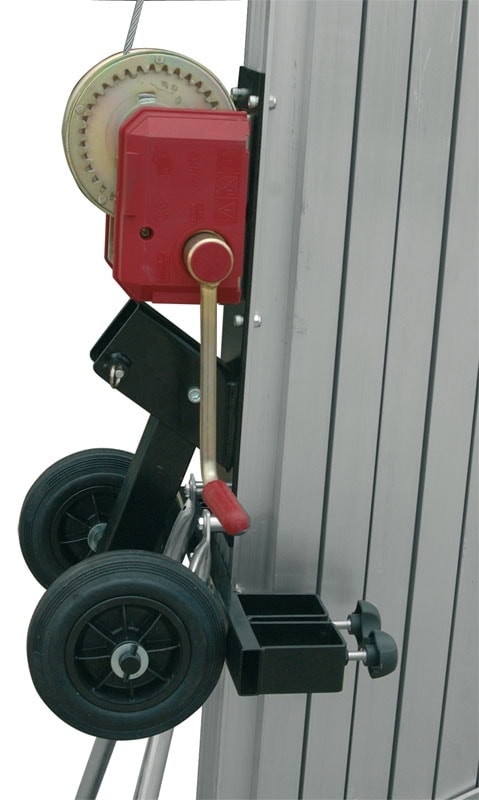

- Automatic brake winch, according to the VBG 8/10.93 norm and the TÜV 9591009 certificate.
- Oversized steel made cable.
- 2 iron bars on the rear side of the tower for reinforcement.
- Bubble level for a perfect stability.
- High resistance legs.

All the components of the tower are manufactured according to the DIN standards and with high quality raw materials.

Features
- Lifting tower with four extensible profiles.
- Safety fastener locks and automatic brake winch.
- Four wheels for an easy transport.

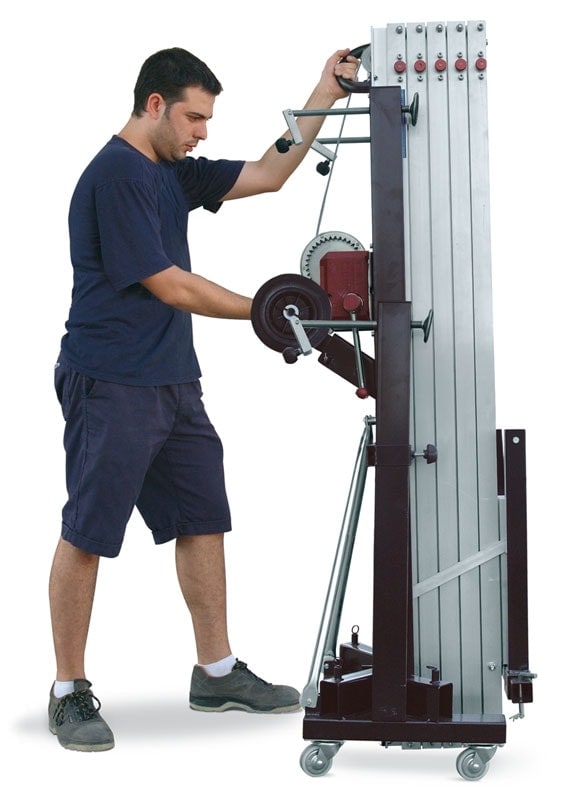

- Two additional large wheels to handle the tower in horizontal position.
- Adjustable, high quality stabilizers on its legs an bubble level for a perfect stability.
- Two iron bars on the rear side of the tower for reinforcement.
- Profiles made of extruded aluminium.

Technical data LW 476 R
- Maximum load: 220 kg.
- Minimum load: 30 kg.
- Maximum height: 7.60m.
- Minimum height: 1.90 m.
- Weight: 163 kg.
- Unfolded base dimensions: 2 x 1.85 m.
- Folded base dimensions: 0.70 x 0.60 m.

Uses
For a safe and convenient lifting (from the ground) of audio and lighting material; to lift heavy loads.

Certificates
BGV-C1_BGG-912_LW476R
