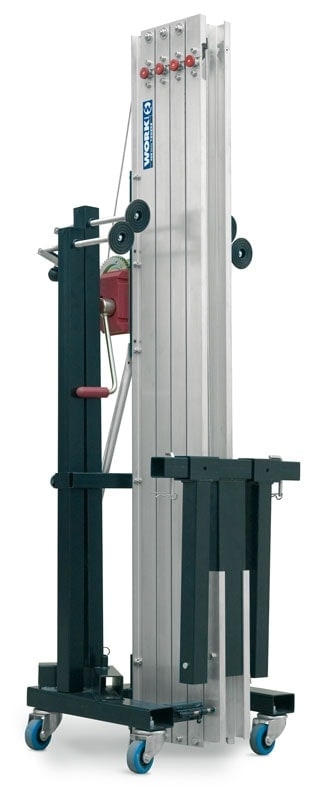

LW 425 R

LW 425 R is one of the smallest version of the 400 series. It is perfectly adequate to lift small weights and ensure an easy use in any situations.

Maximum convenience
Success of the series comes from the way loads are lifted (directly from the ground). This avoids unnecessary efforts. With only 90 kg, LW 425 R can lifts loads of 150 kg up to 6.5 m.
Four wheels ensure an easy use and transport. This is perfect for small/medium size installations.

Total safety
Like any lifting towers PRO designed by WORK, its features ensure a optimum security:

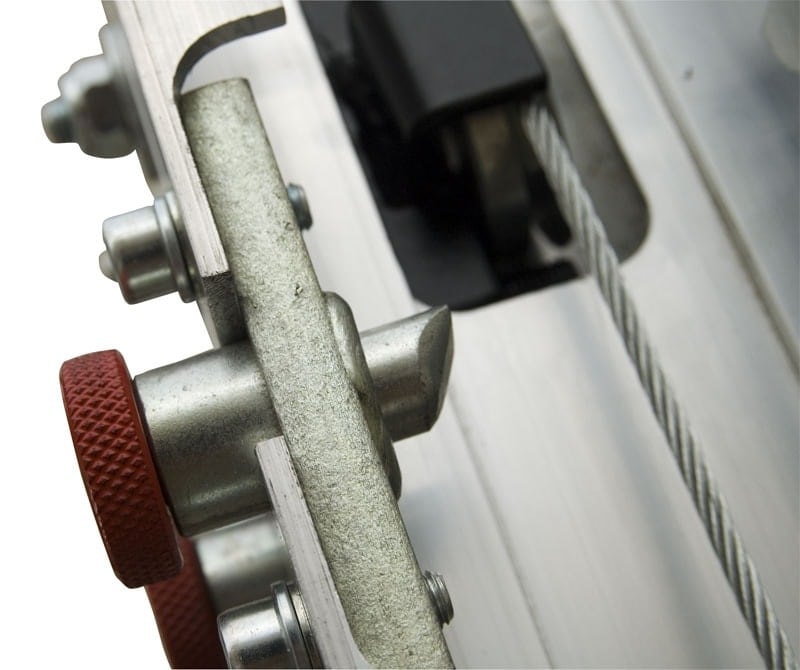

- Powerful autoblocking bolts.
- Steel made pulley.

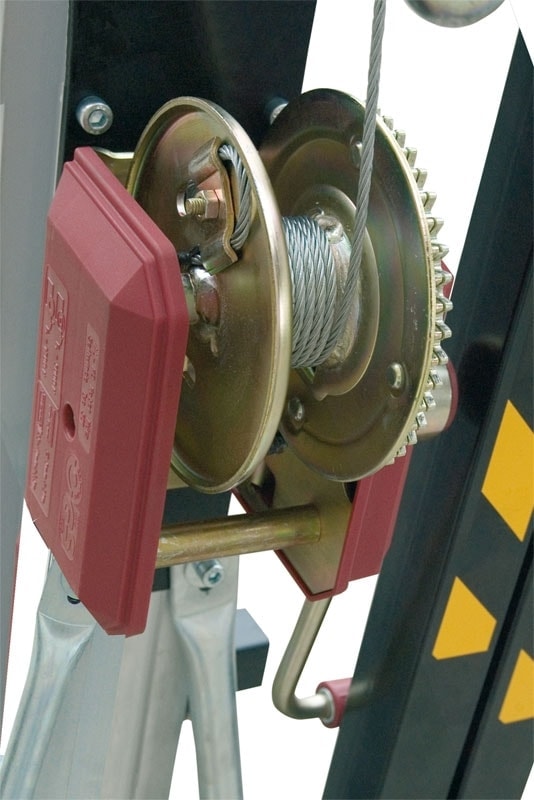

- Automatic brake winch, according to the VBG 8/10.93 norm and the TÜV 9591009 certificate.
- Oversized steel made cable.
- 2 iron bars on the rear side of the tower for reinforcement.

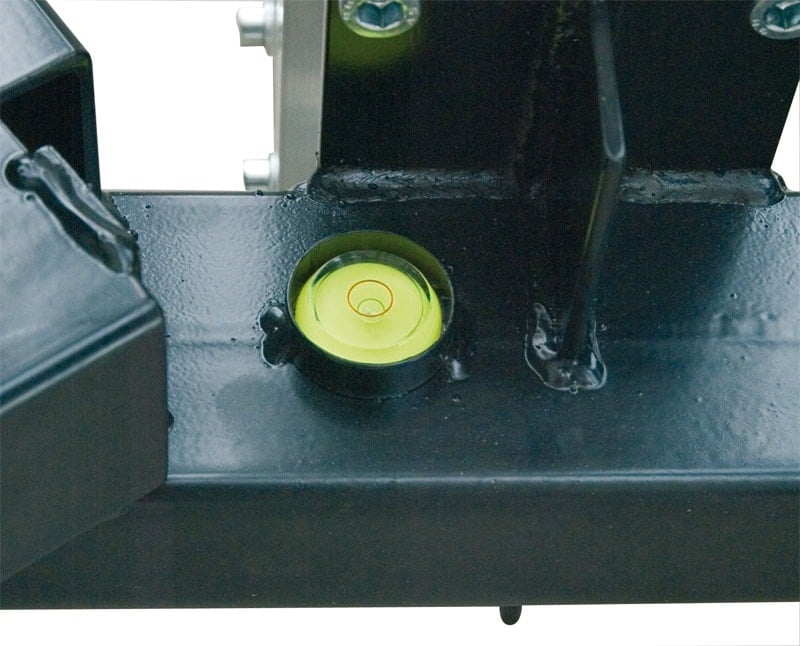

- Bubble level for a perfect stability.
- High resistance legs.

All the components of the tower are manufactured according to the DIN standards and with high quality raw materials.

Features

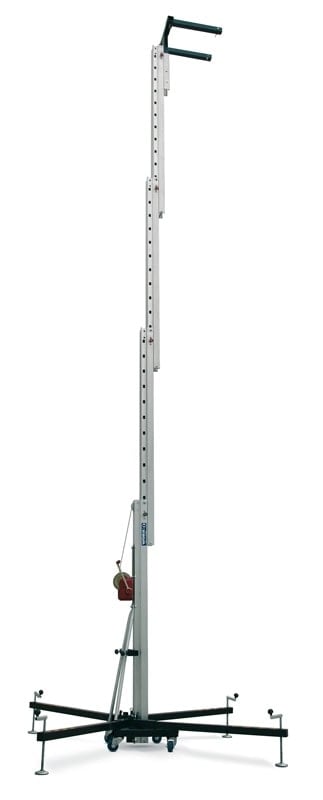

- Lifting tower with three extensible profiles.

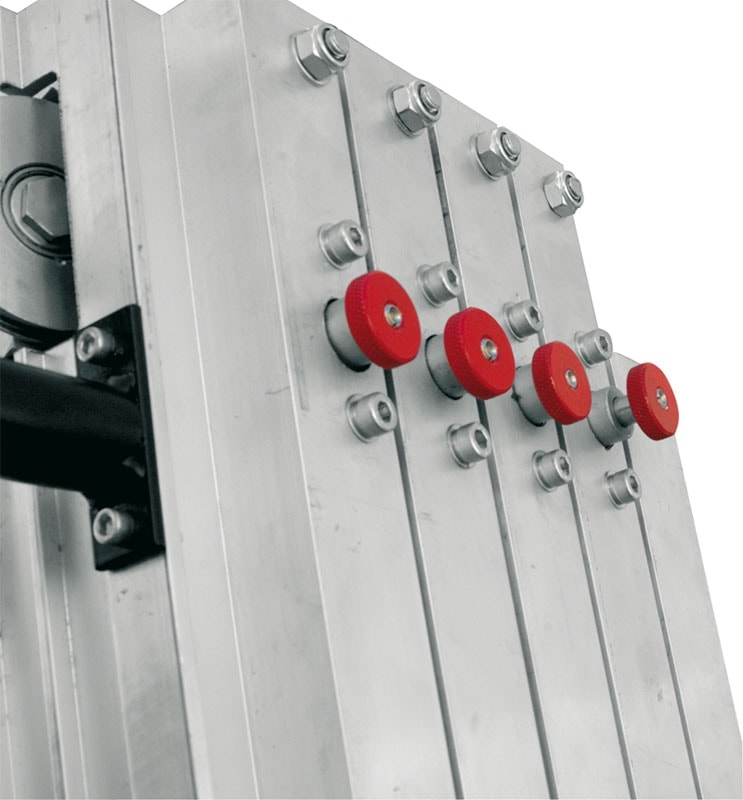

- Safety fastener locks and automatic brake winch.
- Four wheels for an easy transport.
- Adjustable, high quality stabilizers on its legs an bubble level for a perfect stability.

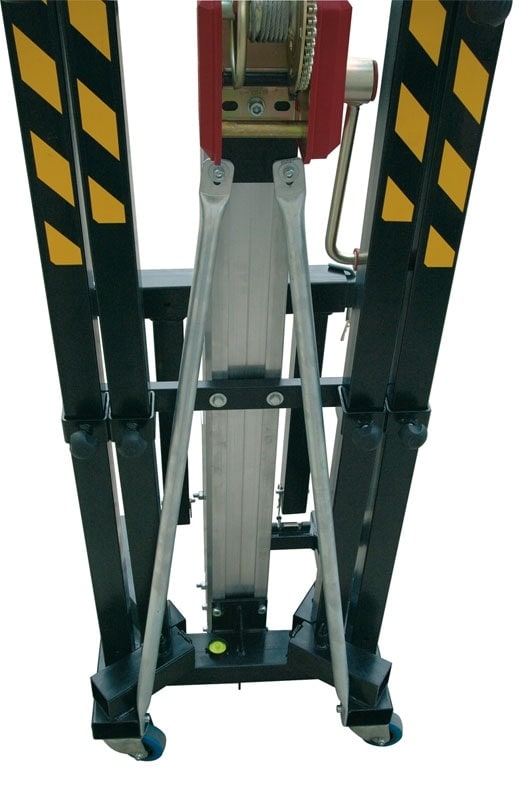

- Two iron bars on the rear side of the tower for reinforcement.
- Profiles made of extruded aluminium.

Technical data LW 425 R
- Maximum load: 150 kg.
- Minimum load: 30 kg.
- Maximum height: 6.5 m.
- Minimum height: 1,89 m.
- Weight: 90 kg.
- Unfolded base dimensions: 2,20 x 1,60 m.
- Folded base dimensions: 0,48 x 0,50 m.

Uses
For a safe and convenient lifting (from the ground) of audio and lighting material in small/medium size applications; to reach high distances.

Certificates
BGV-C1_LW425R
