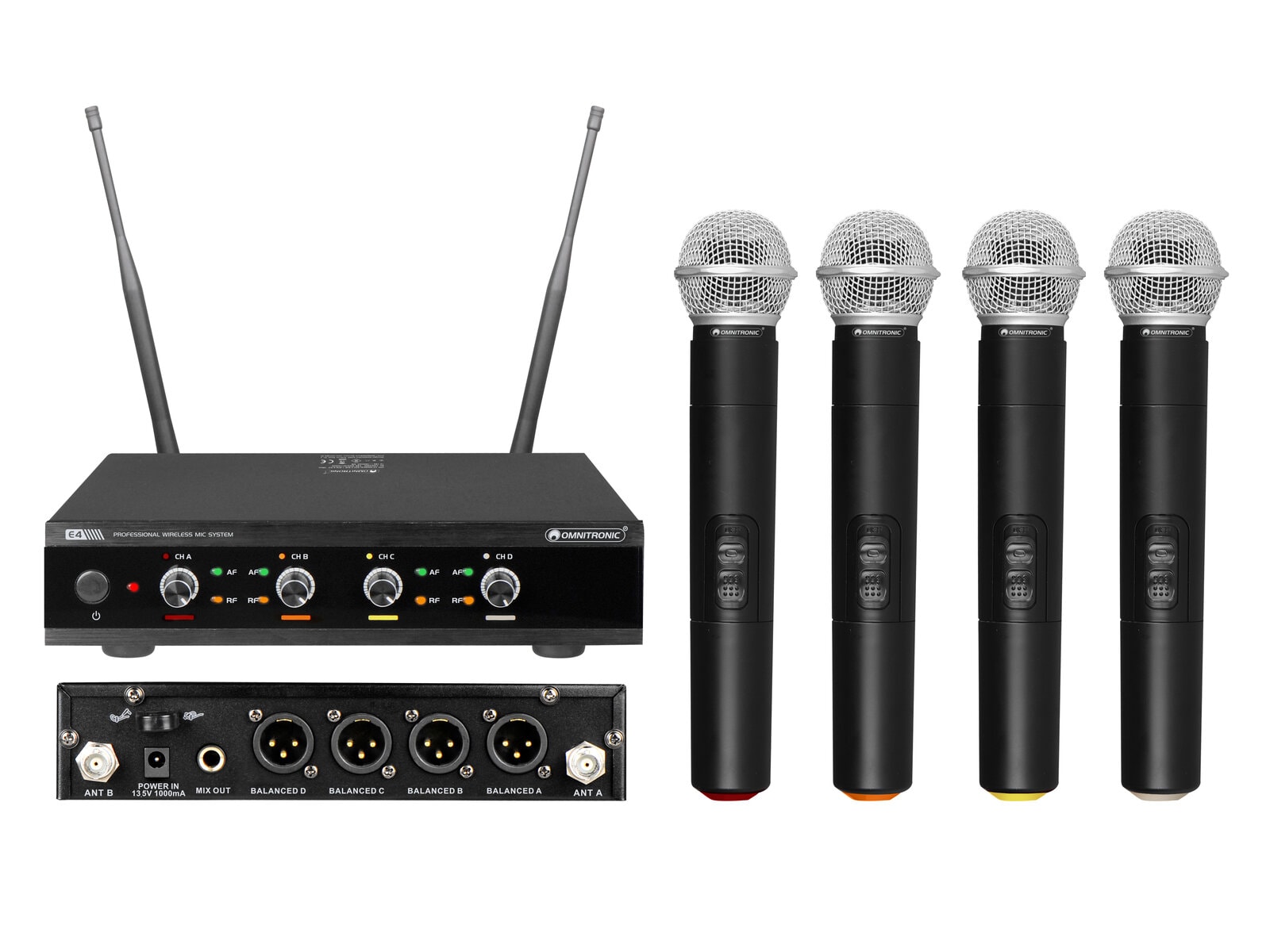

License-free 4-channel wireless microphone system

• 4-channel receiver and 4 hand-held microphones with UHF PLL technology
• Parallel operation of up to 12 transmission channels is possible without any interference
• Easy handling
• 4 separate channels with volume controls and LEDs for carrier signal and audio signal
• Balanced XLR output per channel
• 6.3 mm jack for mixed signal output
• Microphones with color indication
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• Operating range up to 60m with line-of-sight

Receiver

• Desktop console housing
• (19") 48.3 cm rack installation possible 1 U

Microphone

• Polar pattern: Cardioid

Package contents

• 1 x receiver, 2 x antenna, 1 x external mains adapter, 4 x microphone, 1 x jack cable, 3 x mounting bracket, 3 x screw, 4 x foot, 1 x user manual, 1 x declaration of conformity

Type:
Wireless set
Frequency band:
UHF 823 - 832 MHz
Carrier frequency:
823,6; 826,1; 828,6; 831,1
Frequency selection:
Fixed frequencies
Modulation:
FM
Range:
Range up to 60m with line-of-sight
Weight:
2,16 kg
Receiver
Power supply:
100-240 V AC, 50/60 Hz
13,5 V DC 150 mA
Power consumption:
6 W
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:
4
Frequency range:
20 - 20000 Hz
S/N ratio:
>96 dB
THD:
