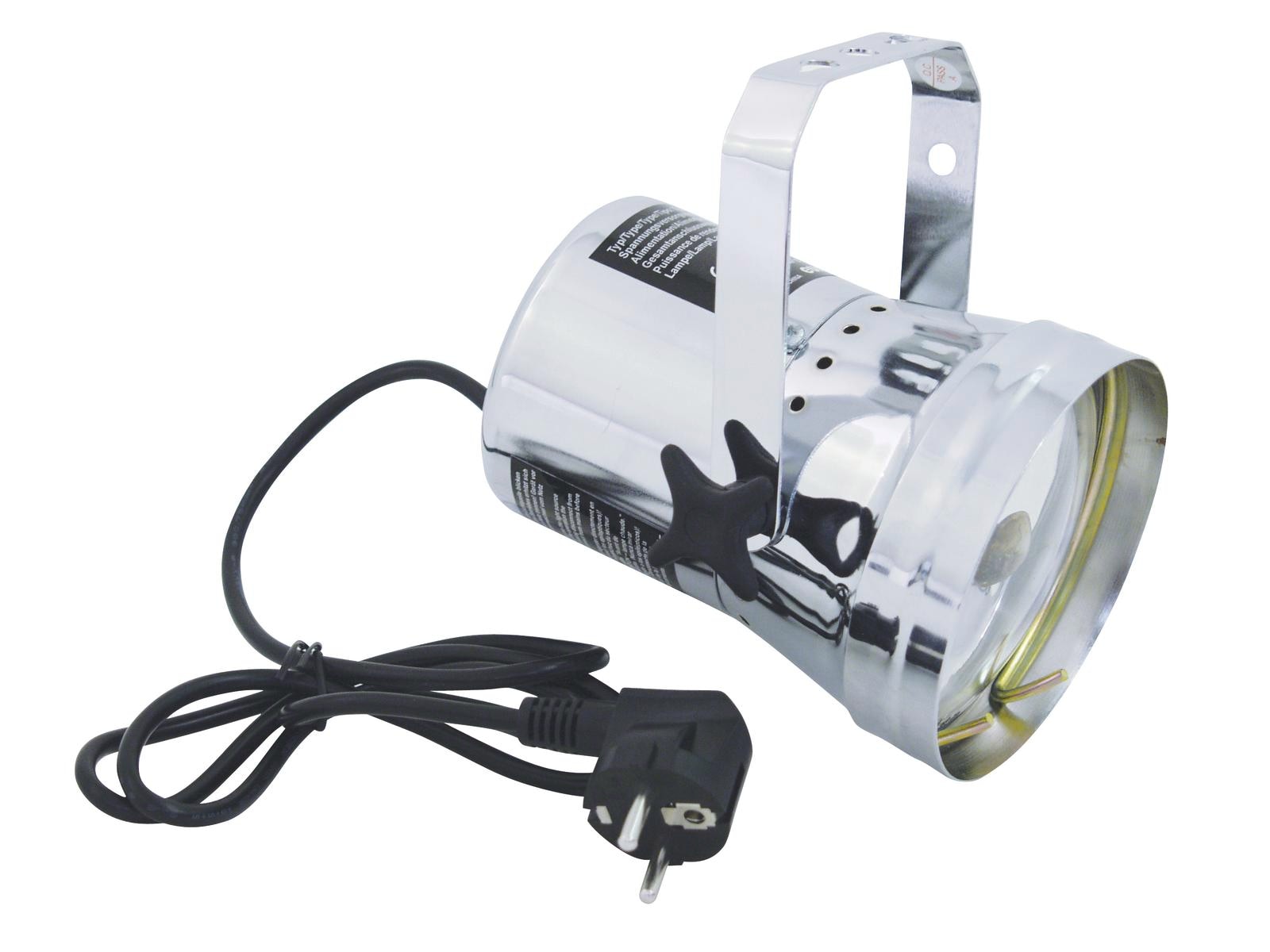

Pinspot with PAR-36 6V/30W lamp
- Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm
- Color caps or color foils can be attached in front of the lens
- For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
- Low power consumption
- Diverse beam angles are possible when using alternative illuminants
- Control via plug and play
- Very high color rendering index (CRI)
- With Mounting bracket
- Available in various colors
illuminant
- Dimmable
Package contents
- 1 x spotlight, 1 x illuminant, 1 x lamp clamping ring, 1 x user manual
Power supply:
230 V AC, 50 Hz
Power consumption:
Max. 30 W
IP classification:
IP20
Protection class:
Protection class I
Suitable lamp:
PAR-36 G-53 STC
Power connection:
Fixed power supply cord with safety plug
Cable construction:
3 x 0,75 mm² H05VV-F
Cable length:
Approx. 0,9 m
Base:
Wires
Control:
Plug and play
Color rendering index (CRI):
99 Ra
Housing color:
Silver
Attachment system:
Mounting bracket
Material:
Metal
Dimensions:
Length: 16 cm
Width: 15,5 cm
Height: 17 cm
Weight:
1,22 kg
Illuminant
Voltage (lamps):
6,4 V
Nominal wattage:
30 W
Base:
G-53 STC
Lamp type:
Halogen lamp; clear lamp
Lamp specification:
Dimmable
Beam angle:
6°
Color temperature:
3000K
Construction:
PAR-36
Mounting bracket
Diameter mounting holes:
3 x Ø10mm; 1 x Ø8mm
Material:
Metal, 2 mm
Lamp clamping ring
Material:
Metal
Color:
Silver
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
