Set with motor, mirror ball, chain, and pinspot

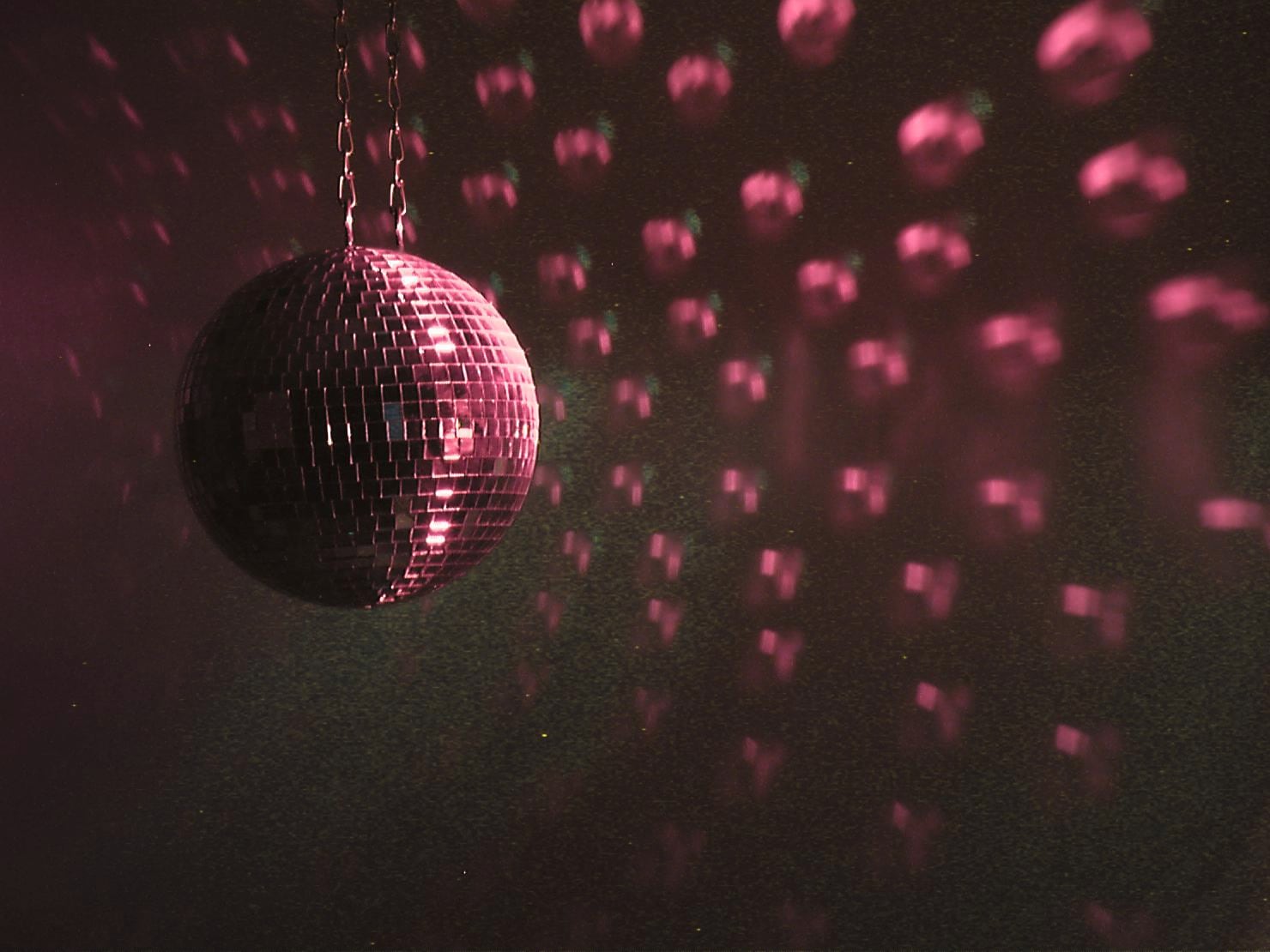

- Mirror ball with a stable plastic core
- High stability due to integrated axle
- Exact alignment
- Additional safety eyelet for safety chain
- Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm
- Color caps or color foils can be attached in front of the lens
- For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
- Low power consumption
- Diverse beam angles are possible when using alternative illuminants
- Easy fixing at the tube rim of the spotlight
- Very high color rendering index (CRI)
- With Mounting bracket
color wheel
- Color wheel with red, green, yellow, blue
illuminant
- Dimmable
Package contents
- 1 x mirror Ball, 1 x motor, 2 x chain, 1 x spotlight, 1 x illuminant, 1 x lamp clamping ring, 1 x color wheel, 1 x motor for color wheel, 2 x nut, 3 x screw, 4 x chain link, 1 x user manual
Color rendering index (CRI):
99 Ra
Attachment system:
Mounting bracket
Weight:
3,45 kg
Color wheel
Color generation:
Color wheel with red, green, yellow, blue
Material:
Plastic, 2 mm
Dimensions:
Diameter: Ø 23 cm
Illuminant
Voltage (lamps):
6,4 V
Nominal wattage:
30 W
Base:
G-53 STC
Lamp type:
Halogen lamp; clear lamp
Lamp specification:
Dimmable
Beam angle:
6°
Color temperature:
3000K
Construction:
PAR-36
Spotlight
Power supply:
230 V AC, 50 Hz
Power consumption:
Max. 30 W
IP classification:
IP20
Protection class:
Protection class I
Suitable lamp:
6 V/30 W PAR-36
Power connection:
Fixed power supply cord with safety plug
Housing color:
Black
Material:
Metal
Motor
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
4 W
IP classification:
IP20
Protection class:
Protection class I
Rotation:
1,5 RPM
Maximum load:
4 kg
Material:
Metal
Dimensions:
Height: 8,50 cm
Diameter: Ø 11,20 cm
Mirror Ball
Mirror Dimensions:
1 cm x 1 cm
Dimensions:
Diameter: Ø 30 cm
Motor for color wheel
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
4 W
IP classification:
IP20
Protection class:
Protection class I
Rotation:
3 RPM
Maximum load:
1 kg
Housing color:
Black
Material:
Plastic
Chain
Material:
Metal
Color:
Black
Dimensions:
Length: 33 cm
Lamp clamping ring
Material:
Metal
Color:
Silver
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
