LED soft displays

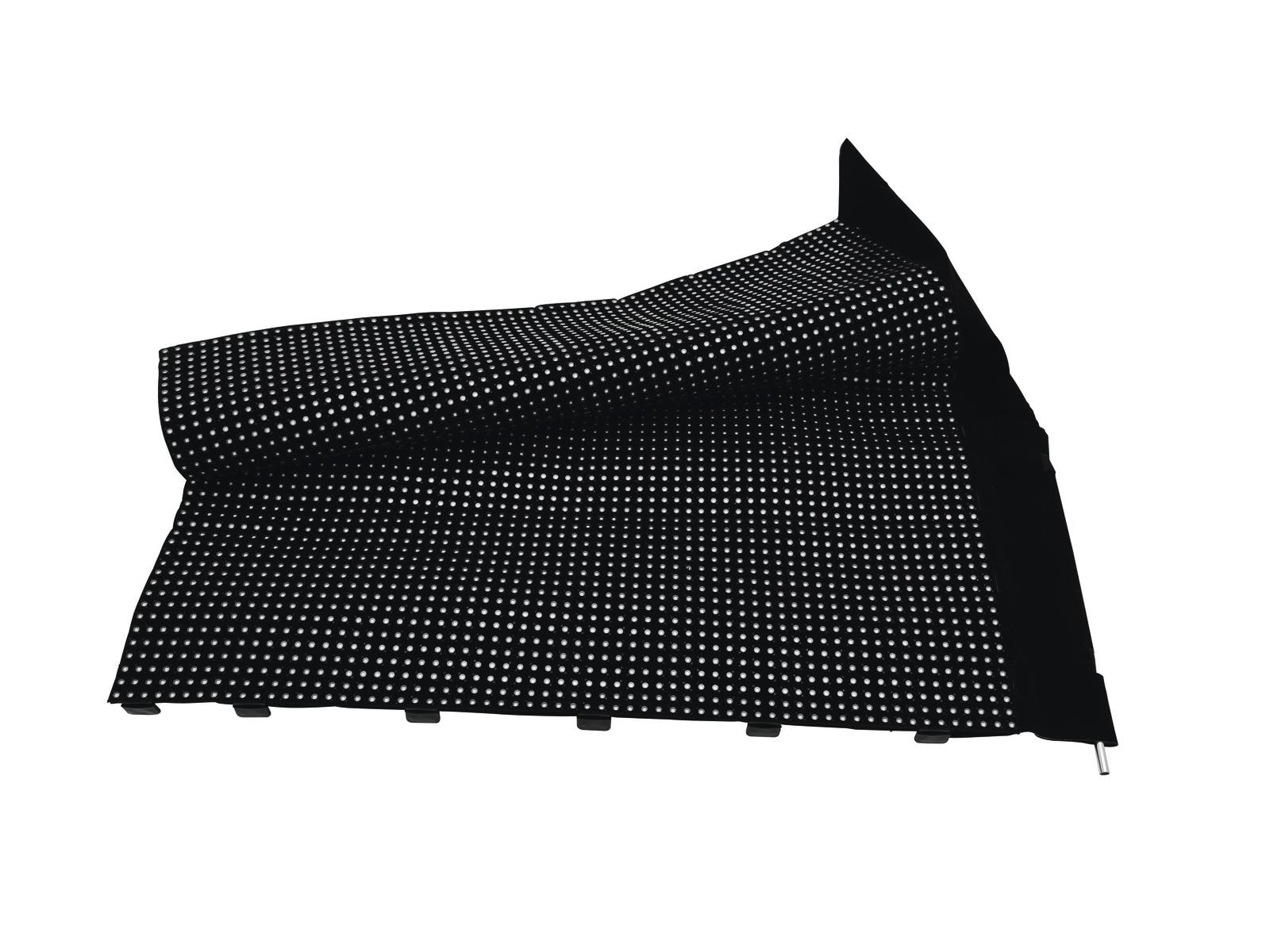

• Flexible displays with tricolor RGB LEDs (type SMD 5050) for bright and colorful projection of videos and graphics
• Improved version with even brighter LEDs and new angled connectors
• Modular display concept allows the build-up of large areas, ideal for outdoor use with large viewing distances
• Bendable and foldable PVC material suitable for various shapes, e.g. columns, circles, angles

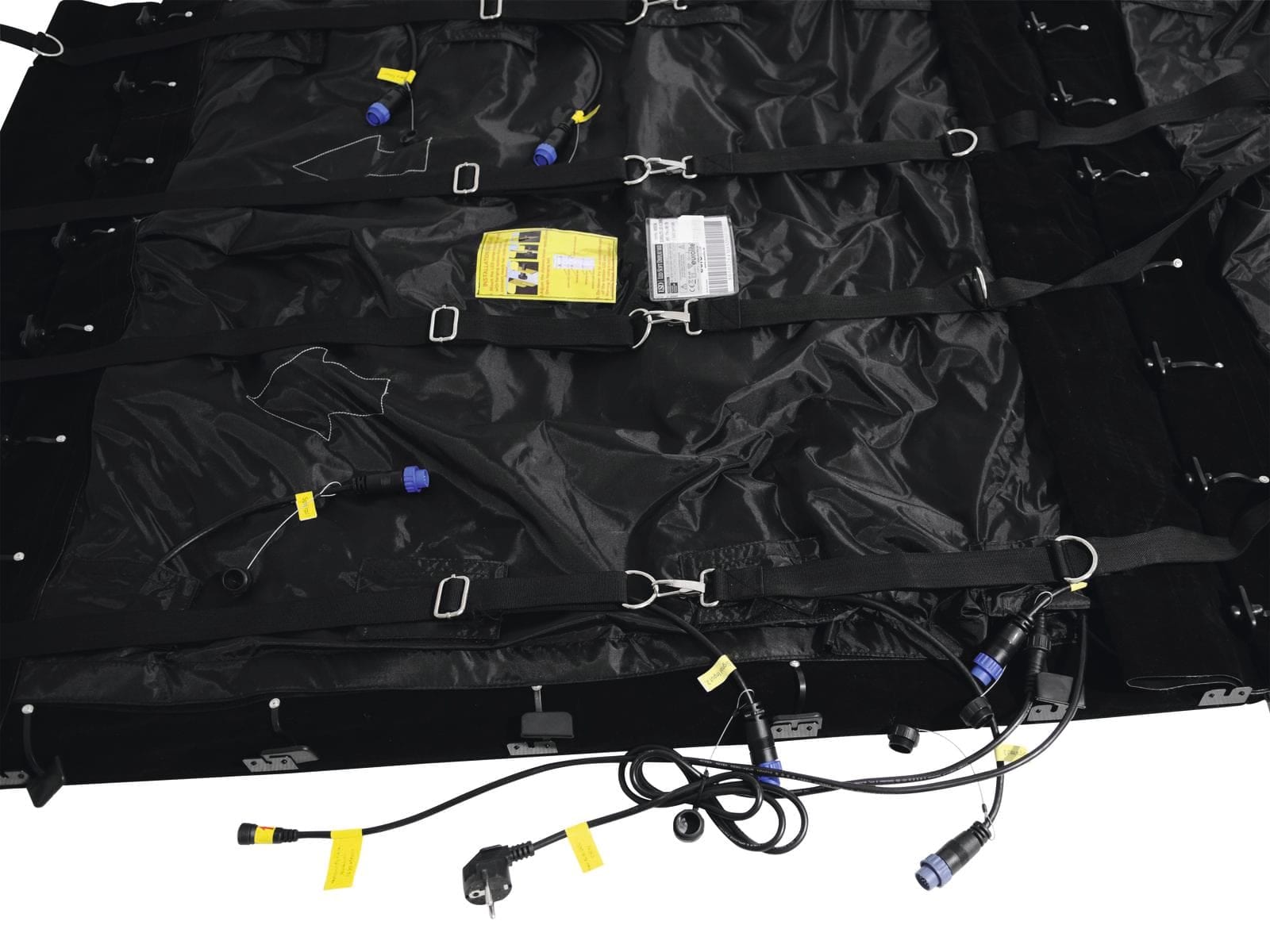

• Truss suspension via built-in belts

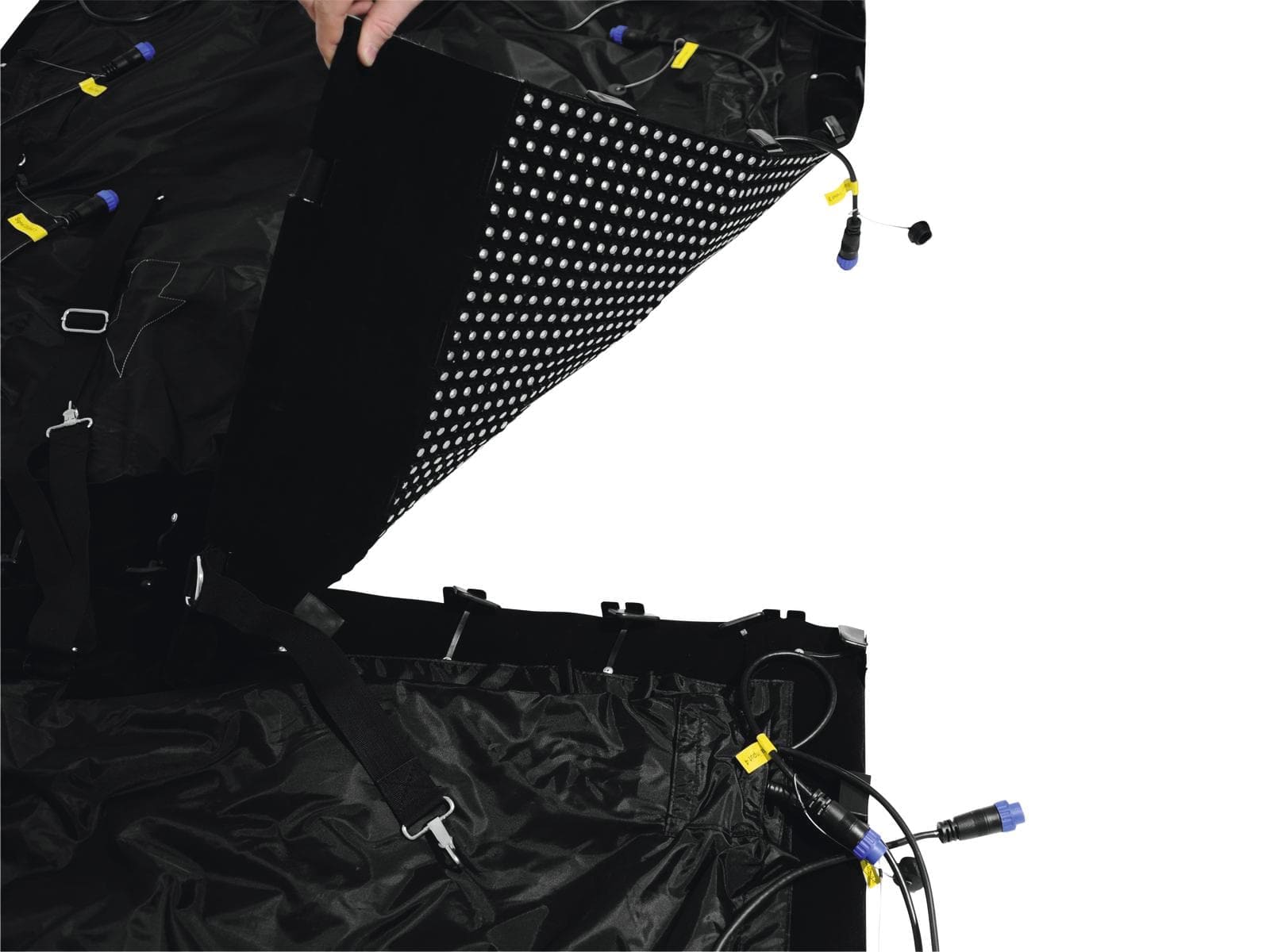

• Easy maintenance - LEDs can be replaced without difficulty
• Controllable via optional network components and PC software
• All-in-one control system T9 (80503301): network interface and software LED Show T9 - ideal system for mobile use with notebooks with 1-gigabit NIC
• Control system LED studio: receiver interface (80503311), PCI sending card and software LED Studio (80503130)
• Custom sizes available upon request (in 0.32 m units)
• 8192 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
• Easy to assemble
• Various versions available
• B1 low flammability
• Space-saving construction
• Space-saving storing
• Water repellent
• Mains input and output for power linking up to 8 units

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
68,00 W
IP classification:
IP44
LED:
8192 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Setup:
Easy to assemble; Space-saving construction; Space-saving storing
Beam angle (1/2 peak):
110°
Image:
Max. 64x124 px
Pixel pitch 20 mm
Pixeldensity 2500/m²
Brightness 3600cd/m²
Lamp life:
100000 h
Material:
, water repellent
Dimensions:
Width: 1,28 m
Height: 2,56 m
Weight:
31,72 kg
Display port:
DVI/RJ45
Display mode:
synchronous to video source
Drive mode:
1/8 scan
Screen resolution:
max. 1280 x 1024 (LED Studio)
max. 1024 x 896 (LED Show T9)
Frame rate:
60 Hz
Data refresh rate:
600 Hz
Colors:
16.7 million (R 256, G 256, B 256)
Operating temperature:
-10 to 45 °C
Humidity:
10 to 90 %
