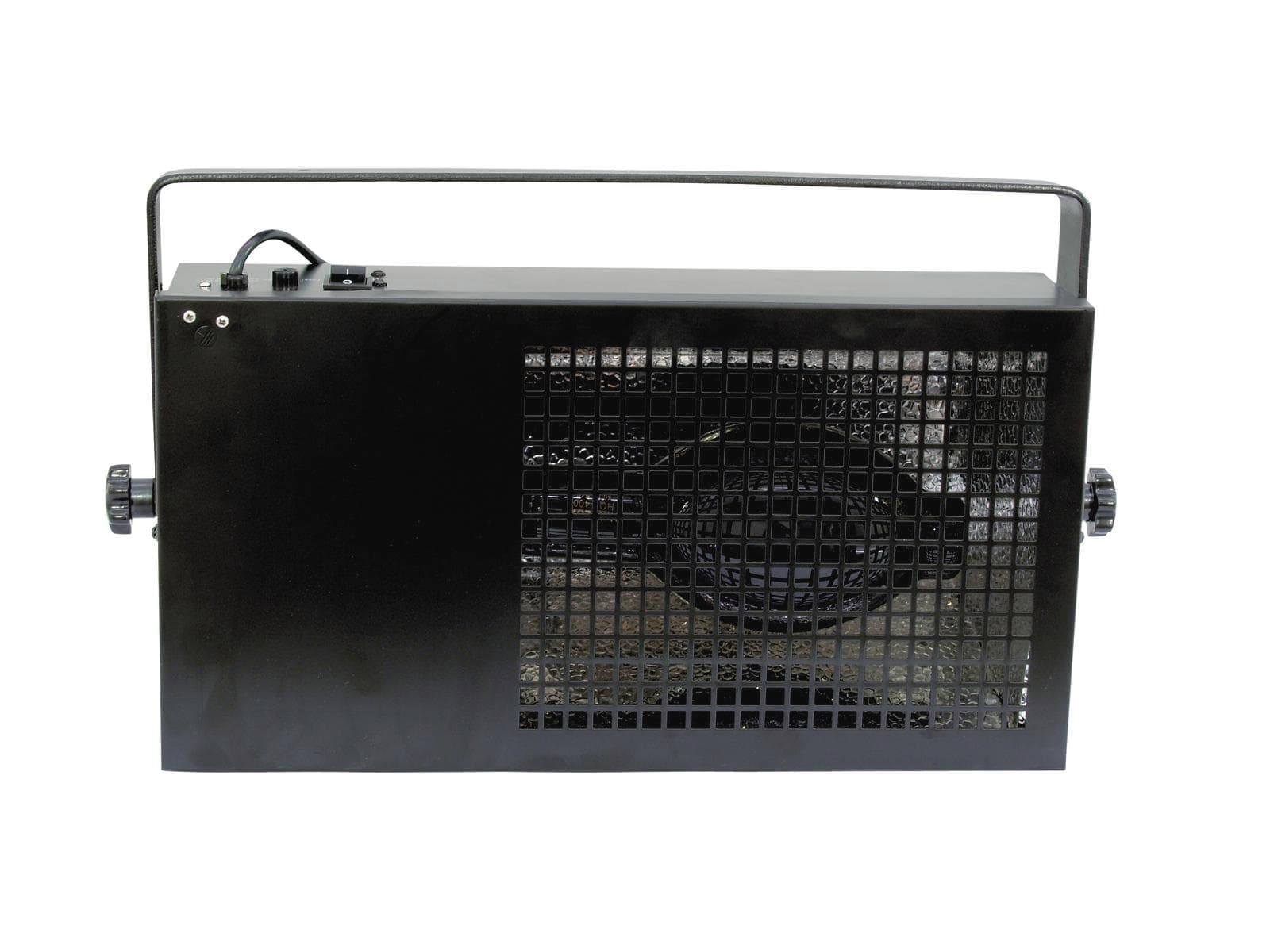

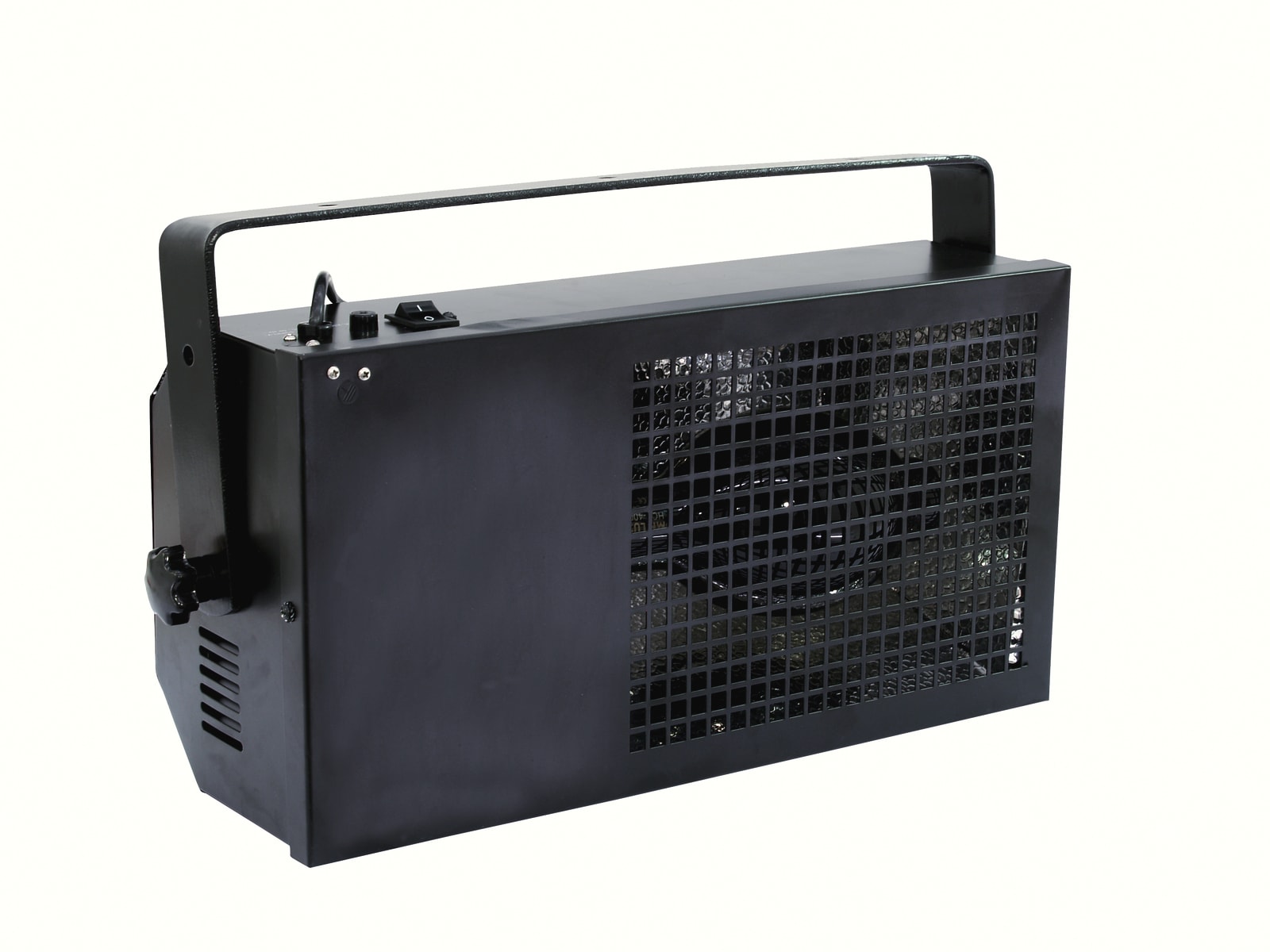

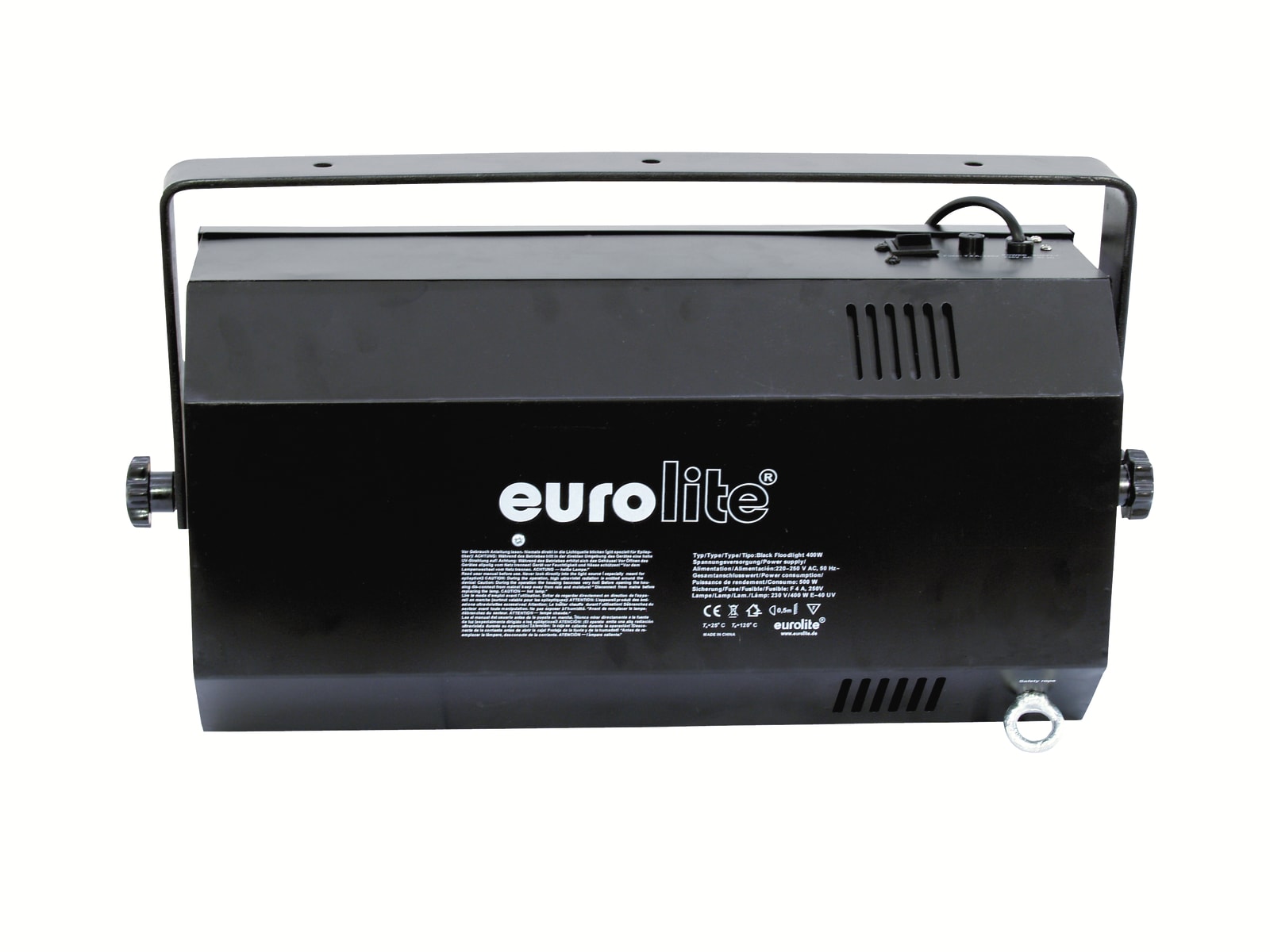

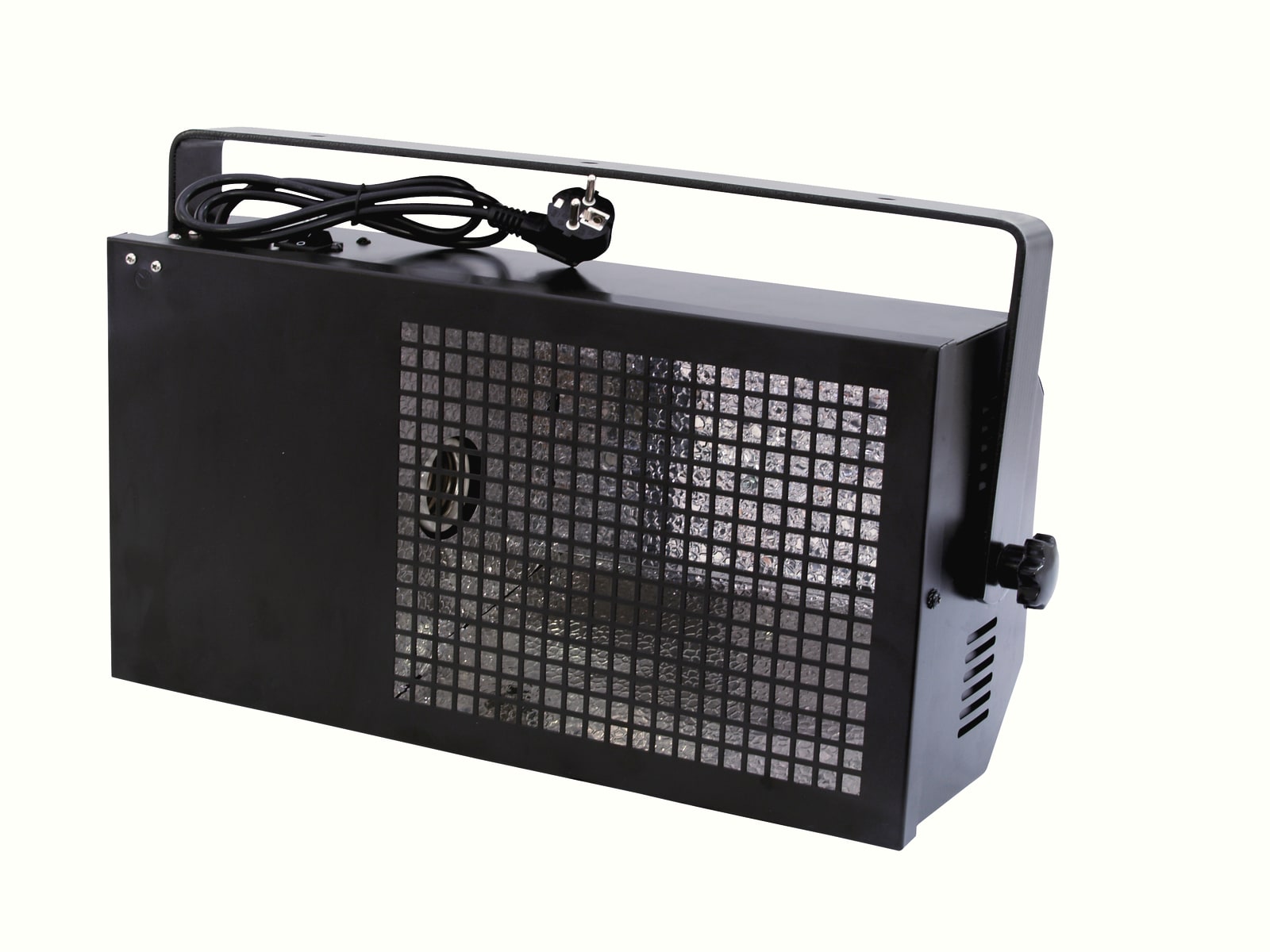

Black light housing with wide beam for E-40/400 W UV lamp

• Compact UV spot in a rugged metal housing
• The device is cooled by passive convection cooling
• Control via on/off switch on device
• With a beam angle of 80°
• With Mounting bracket
• For application areas such as: Party room; Clubs/dancing school; restaurants, bars and hotels; Stage

Package contents

• 1 x spotlight, 1 x user manual, 1 x mounting bracket

Power supply:
230 V AC, 50 Hz
Power consumption:
500 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Fixed power supply cord with safety plug
Cable construction:
3 x 1,0 mm² H05SS-F
Cable length:
Approx. 0,8 m

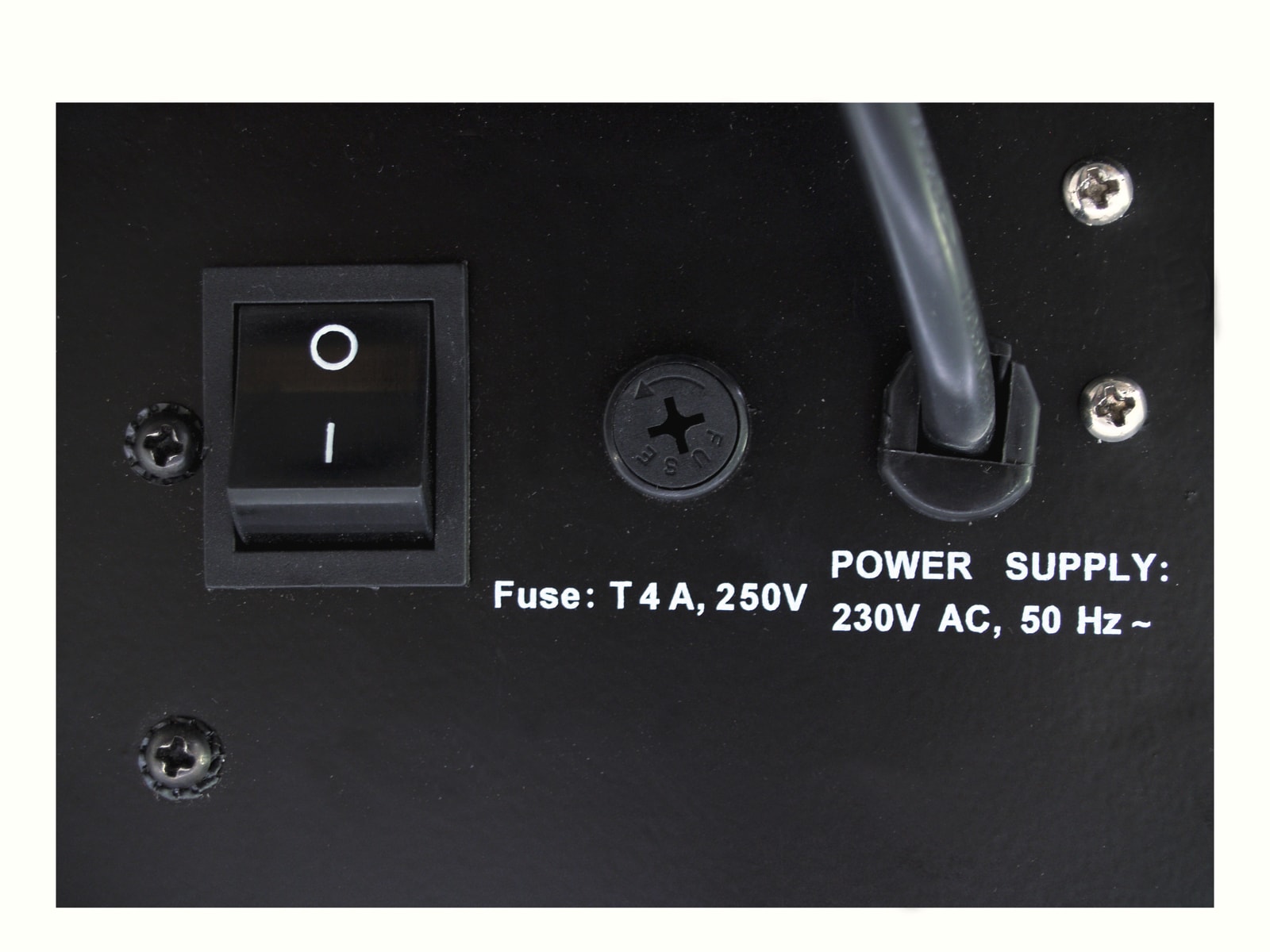

Fuse:
5 x 20 mm, T 4 A Fuse replaceable
Base:
E40
Lamp type:
Mercury lamp; high pressure lamp
Cooling:
Passive convection cooling
Control:
On/off switch on device
Beam angle:
80°
Beam angle (1/2 peak):
80°
Burning position:
S30 (vertikal ±30°)
Housing color:
Black
Attachment system:
Mounting bracket
Material:
Metal
Dimensions:
Width: 30,5 cm
Depth: 15,5 cm
Height: 58 cm
Weight:
9,05 kg
Mounting bracket
Diameter mounting holes:
3 x Ø10mm
Material:
Metal, 5 mm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
