Weather-proof (IP54), simple logo projector with 6 patterns

• Logo projector in small design for projecting the desired motifs or advertising logos

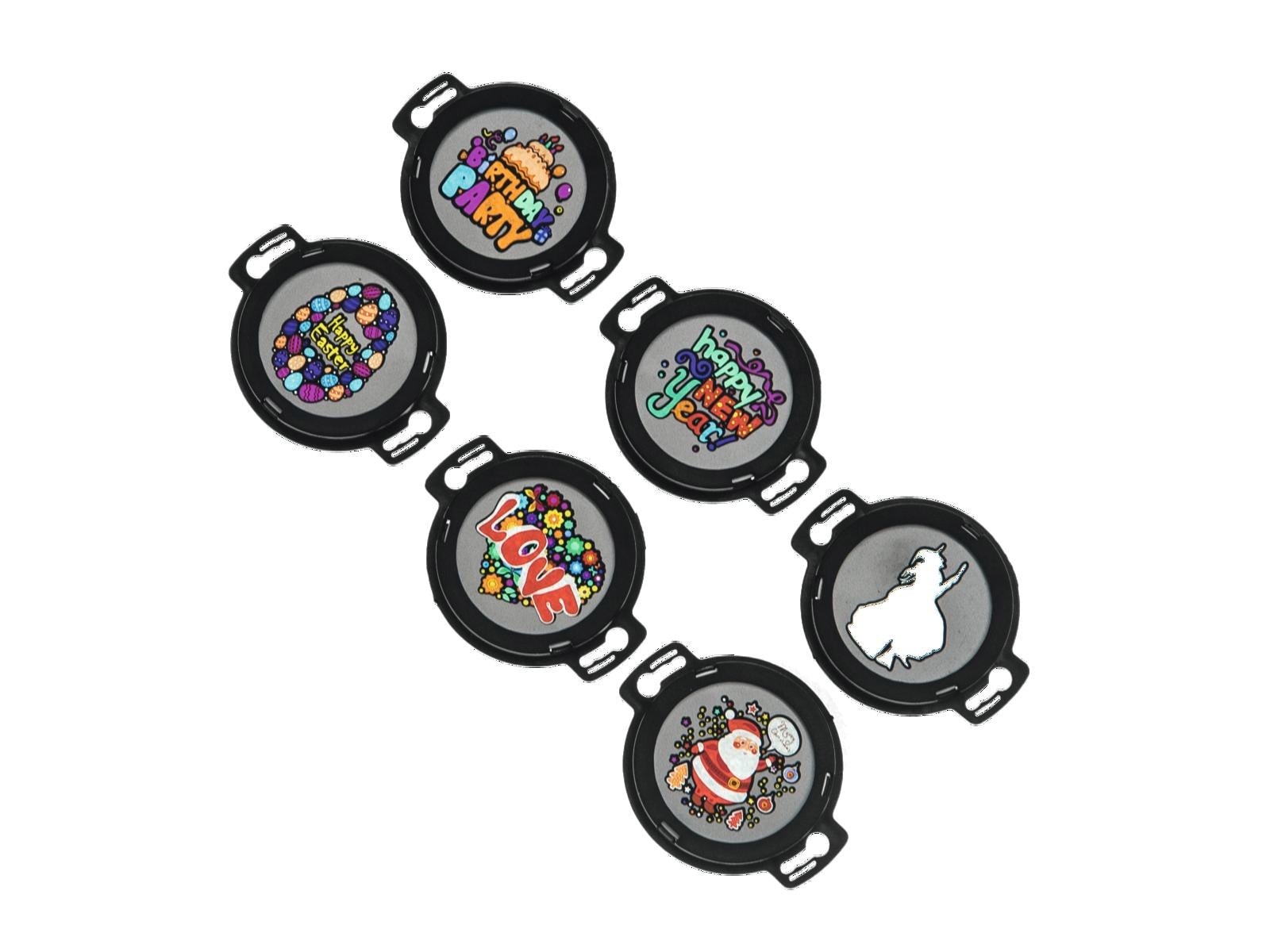

• Delivery includes 6 gobos with designs for Easter, Christmas, Halloween, New Year, wedding and birthday
• Easy changing of the gobo foil
• Gobos can be produced by one's own hand (for example with a foil)
• 6-hour or 12-hour timer with automatic daily repetition
• Rugged plastic housing
• 1 powerful LED 7 W high-power cold white (CW) (homogenous color mix)
• Gobo wheel with rotating gobos; Focus manual
• Gobo effect
• The device is cooled by passive convection cooling
• Control via Timer; stand-alone
• With a beam angle of 19°
• With Mounting bracket
• Suitable for outdoor use
• For application areas such as: Wedding/gala/events; Gift idea
• Very quiet working noise
• Rotation speed adjustable
• Suitable for a range of use from 1 to 15 meters

Package contents

• 1 x device, 1 x external mains adapter, 6 x gobos, 3 x knurled screw, 1 x stake, 1 x holder, 1 x user manual

Power supply:
12 V DC
Power consumption:
10 W
IP classification:
IP54
Power connection:
Mains input power supply cord with AC adapter
Cable length:
Approx. 2,8 m
Lamp type:
LED lamp
LED:
1 x 7 W high-power cold white (CW) (homogenous color mix)
Color temperature:
6500K
Rotation:
0 RPM - 2 RPM , 360 ° forward
Equipment:
Gobo wheel with rotating gobos; Focus manual
Gobos:
Outside diameter 35mm
Image diameter 26mm
Cooling:
Passive convection cooling
Control:
Timer; stand-alone
Beam angle:
19°
Beam angle (1/2 peak):
19°
Housing color:
Black
Attachment system:
Mounting bracket
Range of use:
1m - 15m
Dimensions:
Width: 13,6 cm
Depth: 17,7 cm
Height: 17,1 cm
Weight:
800 g
Noise classification:
Class 1 (very slight noise, suitable for noise-sensitive environments)
Mounting bracket
Diameter mounting holes:
1 x Ø6mm
Material:
Metal, 1,5 mm
Holder
Material:
Plastic
Color:
Black
External mains adapter
Power supply:
100-240 V AC, 50/60 Hz
IP classification:
IP44
Output:
12 V DC; 1 A; 12 W
Stake
Material:
Plastic
Color:
Black
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
