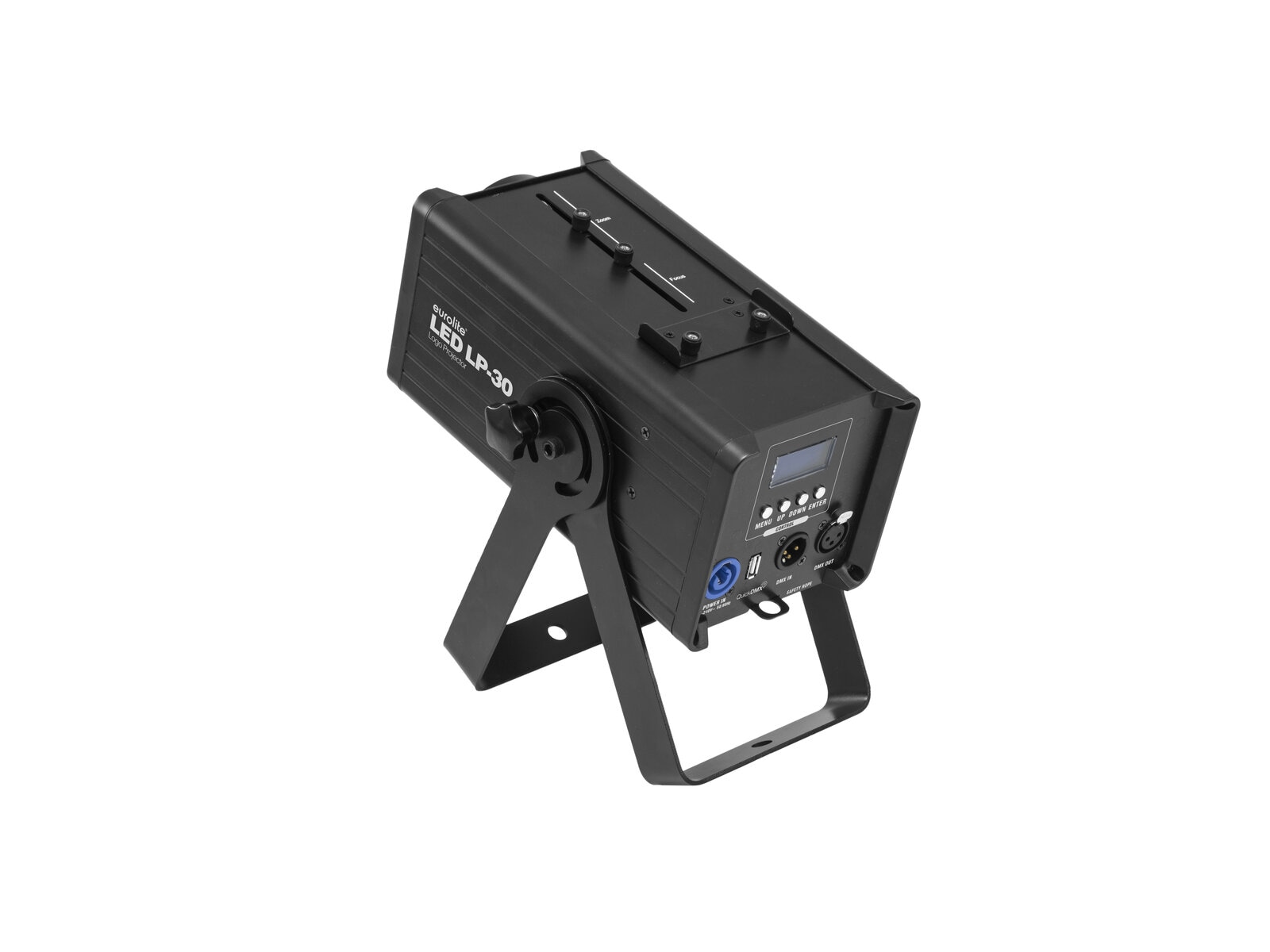

LED logo projector with 30 W LED, strobe, dimmer and gobo rotation, incl. IR remote control

• Delivery includes a gobo, motive "bubbles"
• Clear projection
• 1 powerful LED 30 W COB (chip-on-board) cold white (CW)
• Gobo wheel with rotating gobos; Focus manual; Zoom manual; gobo wheel with static gobos
• Gobo effect; Strobe effect
• The device is cooled by passive convection cooling
• Control via DMX; IR remote control; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Flicker-free
• With a beam angle of 11° - 16°
• With double bracket
• For application areas such as: Small lender; Wedding/gala/events
• Silent operation
• Dimmer electronic; color macros adjustable
• Preprogrammed in Light Captain; Light´J
• Mains input and output for power linking up to 8 units

Gobos

• Gobos changeable

Package contents

• 1 x device, 2 x mounting bracket, 1 x power cord, 1 x remote control, 1 x battery, 1 x gobos, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
35 W
IP classification:
IP20
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Lamp type:
LED lamp
LED:
1 x 30 W COB (chip-on-board) cold white (CW)
Equipment:
Gobo wheel with rotating gobos; Focus manual; Zoom manual; gobo wheel with static gobos
DMX channels:
2; 3; 4
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
DMX; IR remote control; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light Captain; Light´J
Beam angle:
11° - 16°
Beam angle (1/2 peak):
11 - 16°
Beam angle (1/10 peak):
11 - 16°
Housing color:
Black
Attachment system:
Double bracket
Material:
Aluminum
Dimensions:
Length: 25,2 cm
Width: 12 cm
Height: 24,8 cm
Weight:
3,34 kg
Noise classification:
Class 0 (no noise at all)
Power cord
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
2 x Ø10mm
Material:
Metal, 2,5 mm
Gobos
Gobos:
Outside diameter 27mm
Image diameter 18mm
Gobos changeable
Remote control
Battery:
1 x Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
