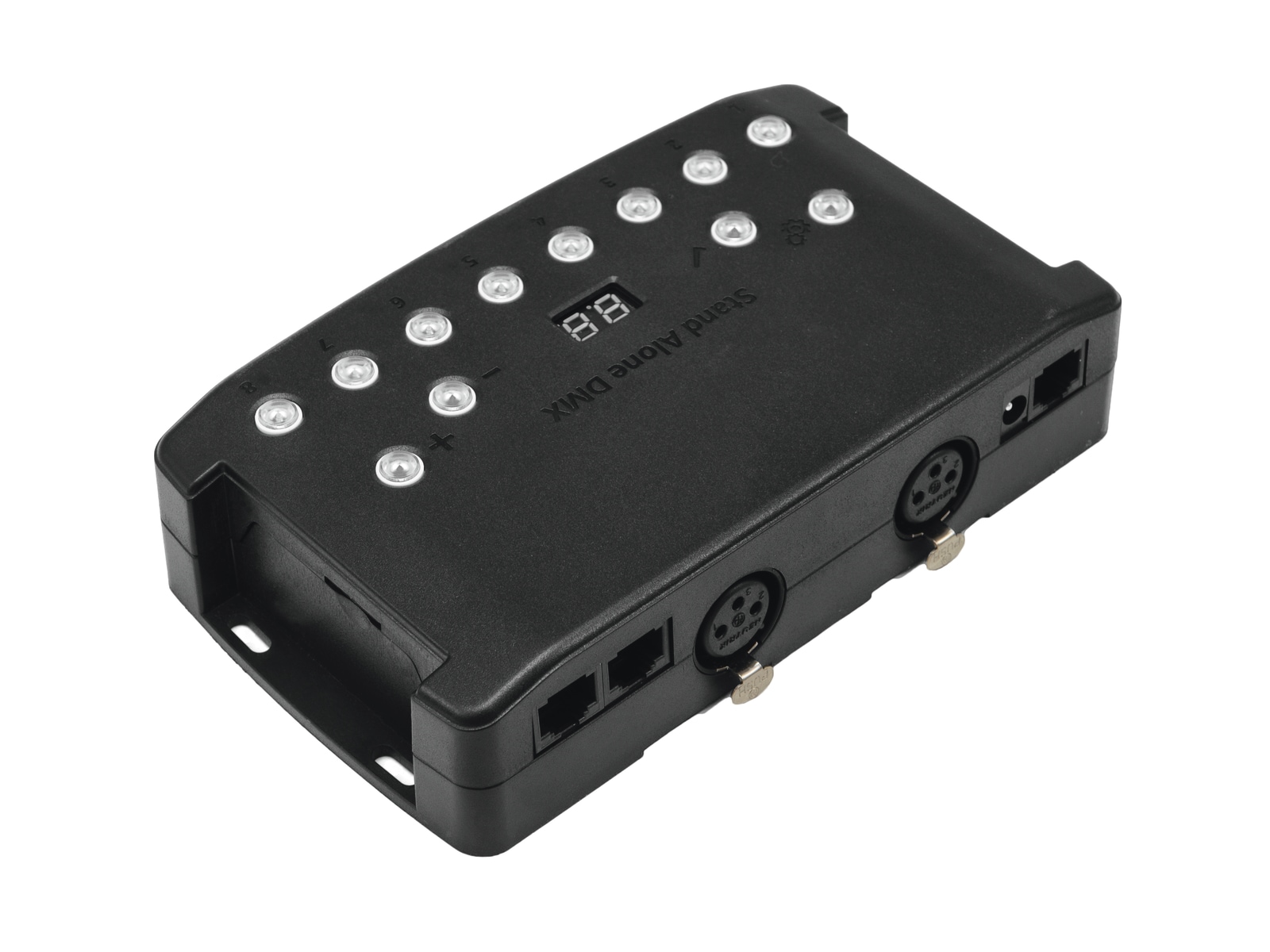

USB-interface with software for lighting programming and control with the computer

• Stand-alone player for creating and controlling light shows
• Write a show in to the stand-alone memory of the player and play back sequences without a computer
• 4 MB of internal memory (min. capacity: 4000 steps/512 channels)
• 8 illuminated trigger buttons, blue backlit
• Scene selection with next and previous buttons
• Speed and dimmer adjustment for each scene in stand-alone mode
• Real-time clock triggering for each scene (day, week, month, year)
• Applicable for serial connection of 32 players in Master/Slave mode
• Automatic Scene Recovery if the power is accidently cut off
• Can transmit up to 512 DMX channels
• Control via DMX; Master/slave function
• 2 digit 7-segment LED display
• The device can be connected via USB to the PC in connection with LED PC-Control 512
• Interface
• Compatible with Linux, Win Vista, Win 7, Win 10, OS X 10,6 or better

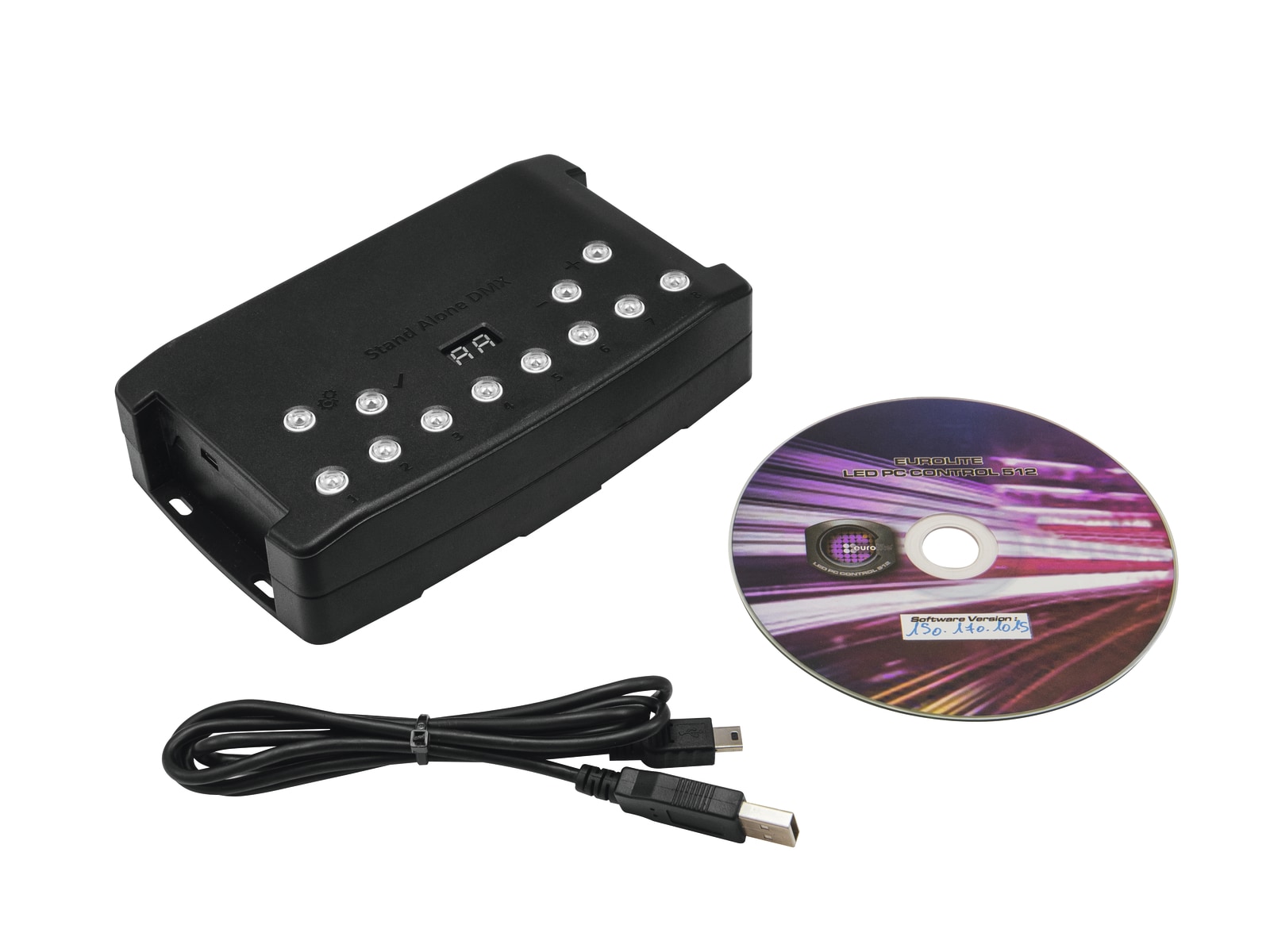

Package contents

• 1 x device, 1 x uSB cable

IP classification:
IP20
Protection class:
Protection class III
Power connection:
Mains input via Mini USB (F) mounting version power supply cord for USB A mains connection (provided)
DMX channels:
Output 512
Control:
DMX; Master/slave function
Display type:
2 digit 7-segment LED display
USB port:
USB 2.0, Typ Mini USB (F) mounting version
Color:
Black
PC connect:
LED PC-Control 512 via USB
Housing design:
Interface
Dimensions:
Width: 16,5 cm
Depth: 10 cm
Height: 4 cm
Weight:
240 g
Operating system:
Linux, Win Vista, Win 7, Win 10, OS X 10,6 or better
