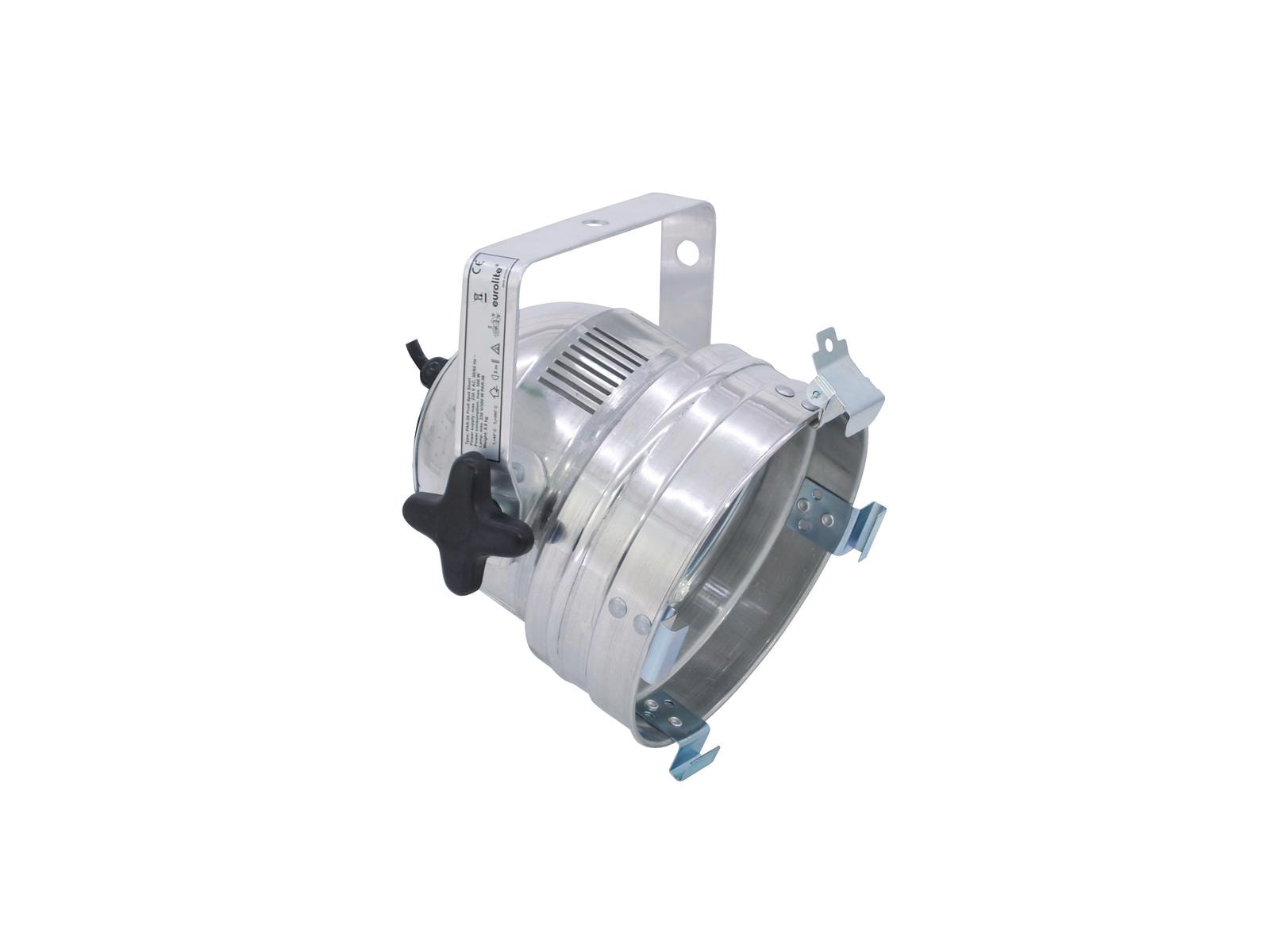

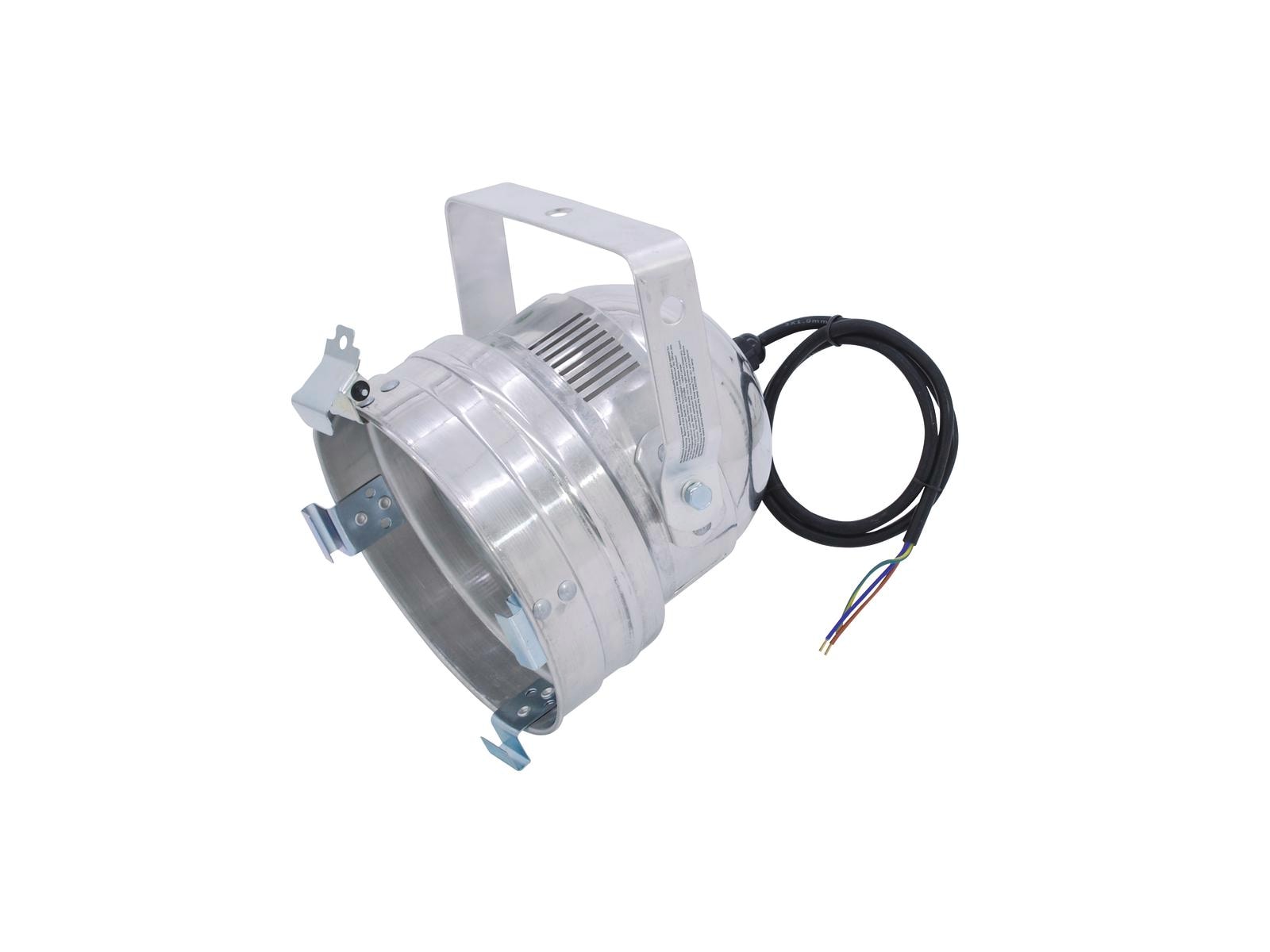

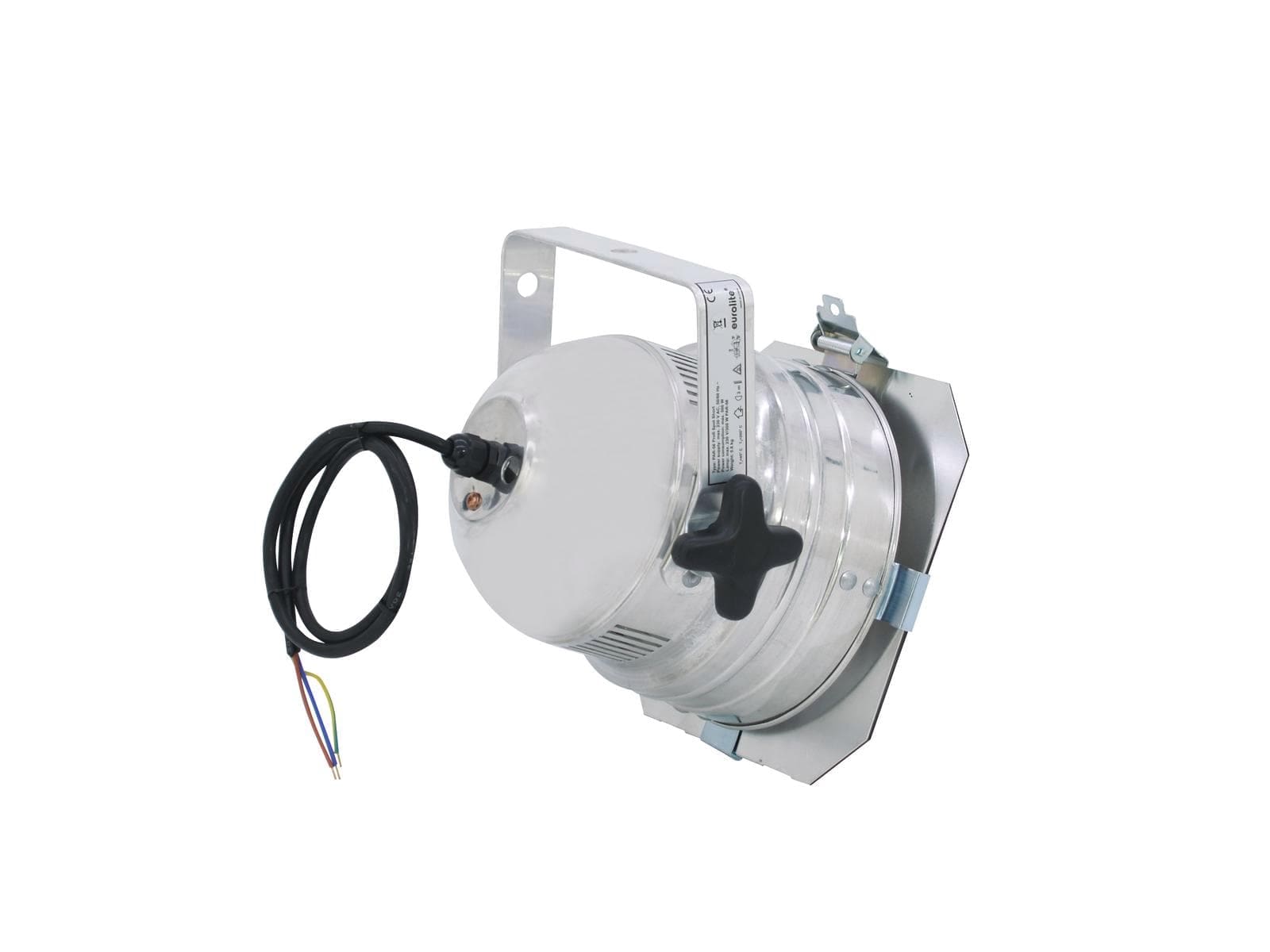

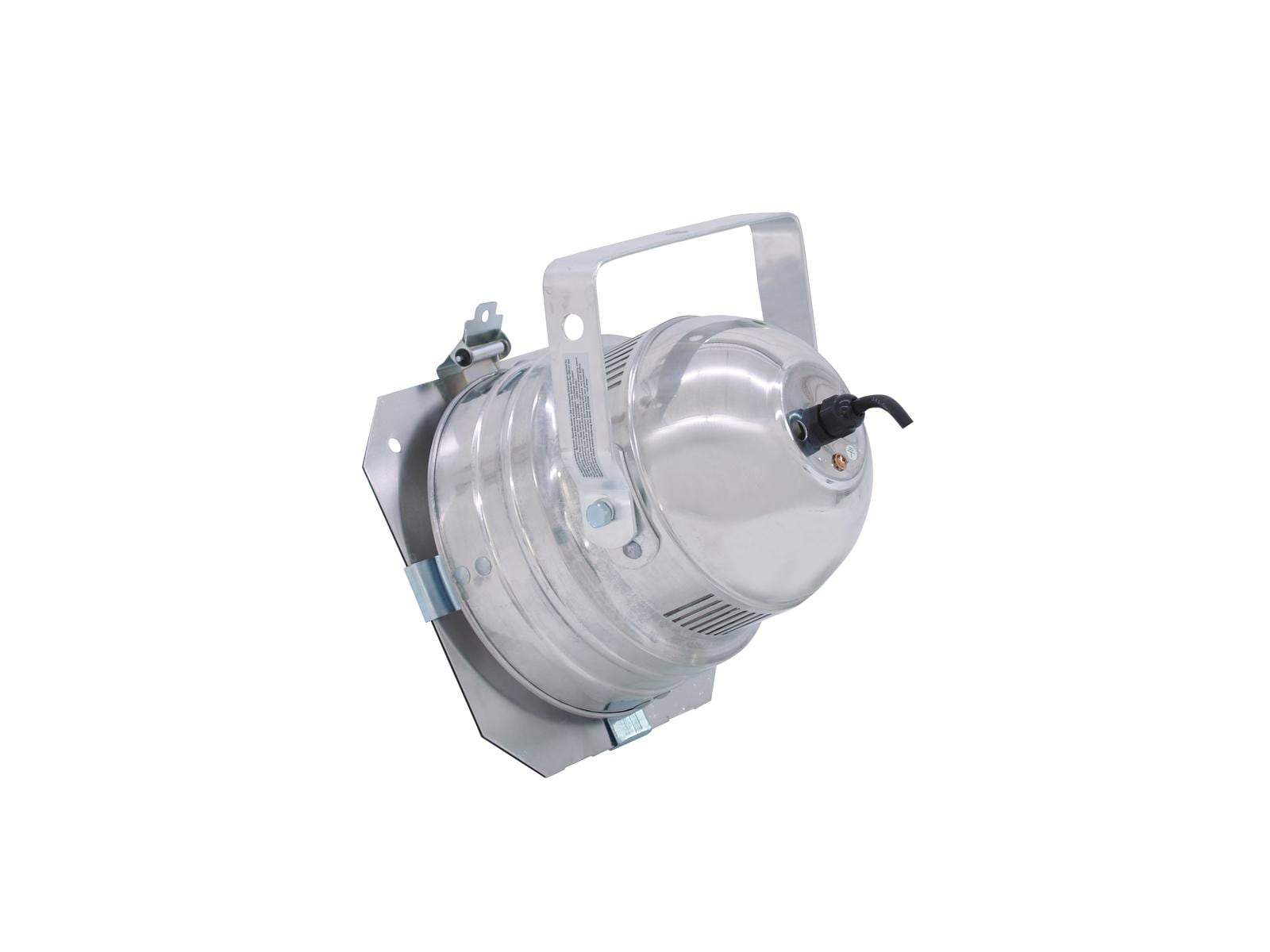

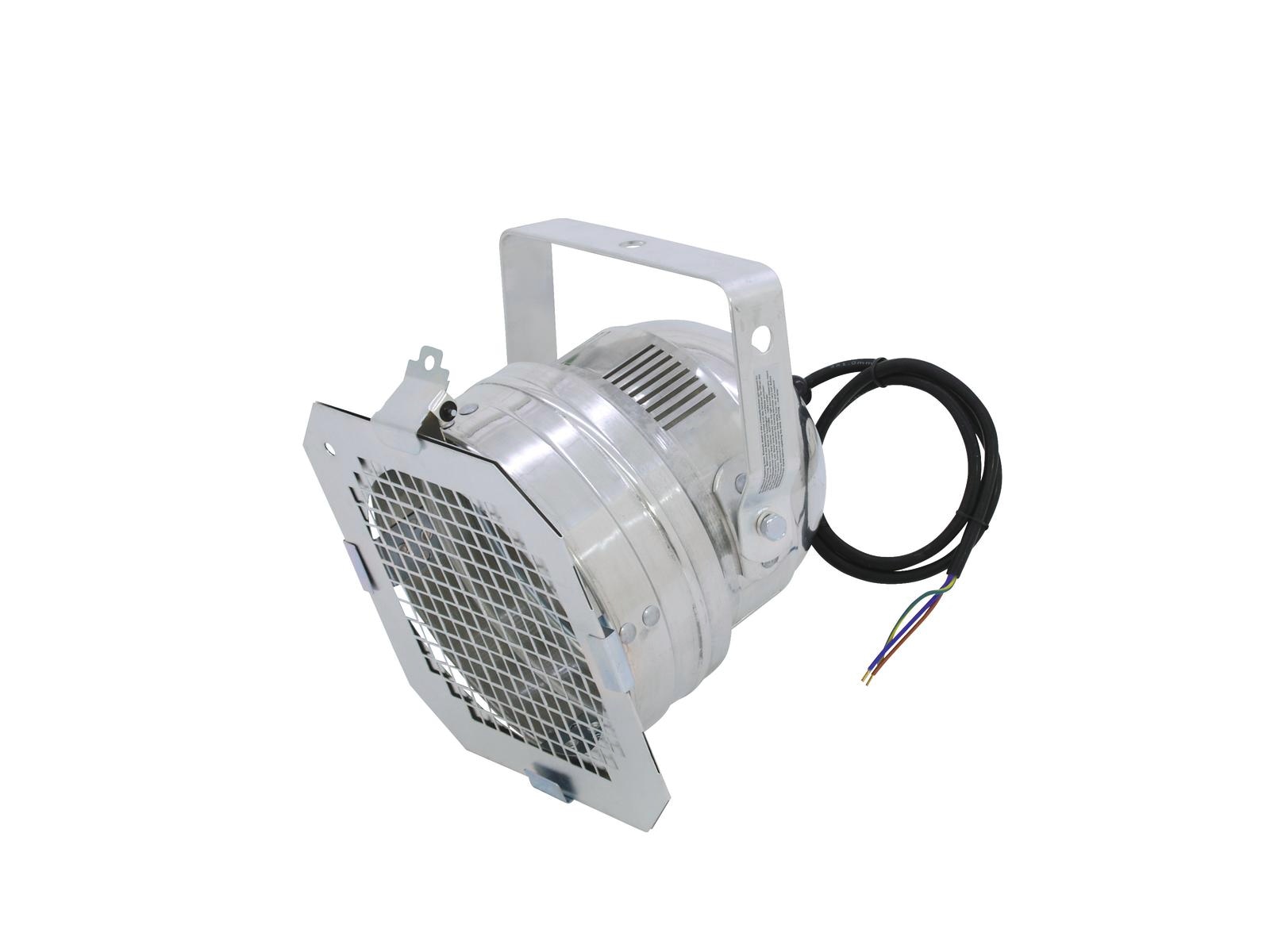

PAR-56 housing with silicone cable and open cable ends

• Heat-resistant fixing screw
• The screw is protected against turning it too far out
• 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
• Strong cable tension relief
• The device is cooled by passive convection cooling
• With Mounting bracket
• For PAR 56

Package contents

• 1 x spotlight, 1 x filter frame, 1 x lamp clamping ring, 1 x user manual

Power supply:
230 V AC, 50 Hz
Power consumption:
Max. 500 W
IP classification:
IP20
Protection class:
Protection class I
Suitable lamp:
Max. 230 V/500 W PAR-56
Power connection:
Fixed Supply cord with open wires
Cable construction:
3 x 0,75 mm² H05SS-F
Cable length:
Approx. 0,8 m
Base:
GX16d
Lamp type:
Selectable
Color generation:
Via color filter frame
Cooling:
Passive convection cooling
Housing color:
Silver
Attachment system:
Mounting bracket
Material:
Aluminum
Slot for spot length:
21,4 cm x 21,8 cm
Dimensions:
Length: 26 cm
Width: 23,5 cm
Height: 22 cm
Weight:
800 g
Mounting bracket
Diameter mounting holes:
2 x Ø13mm
Material:
Metal, 2 mm

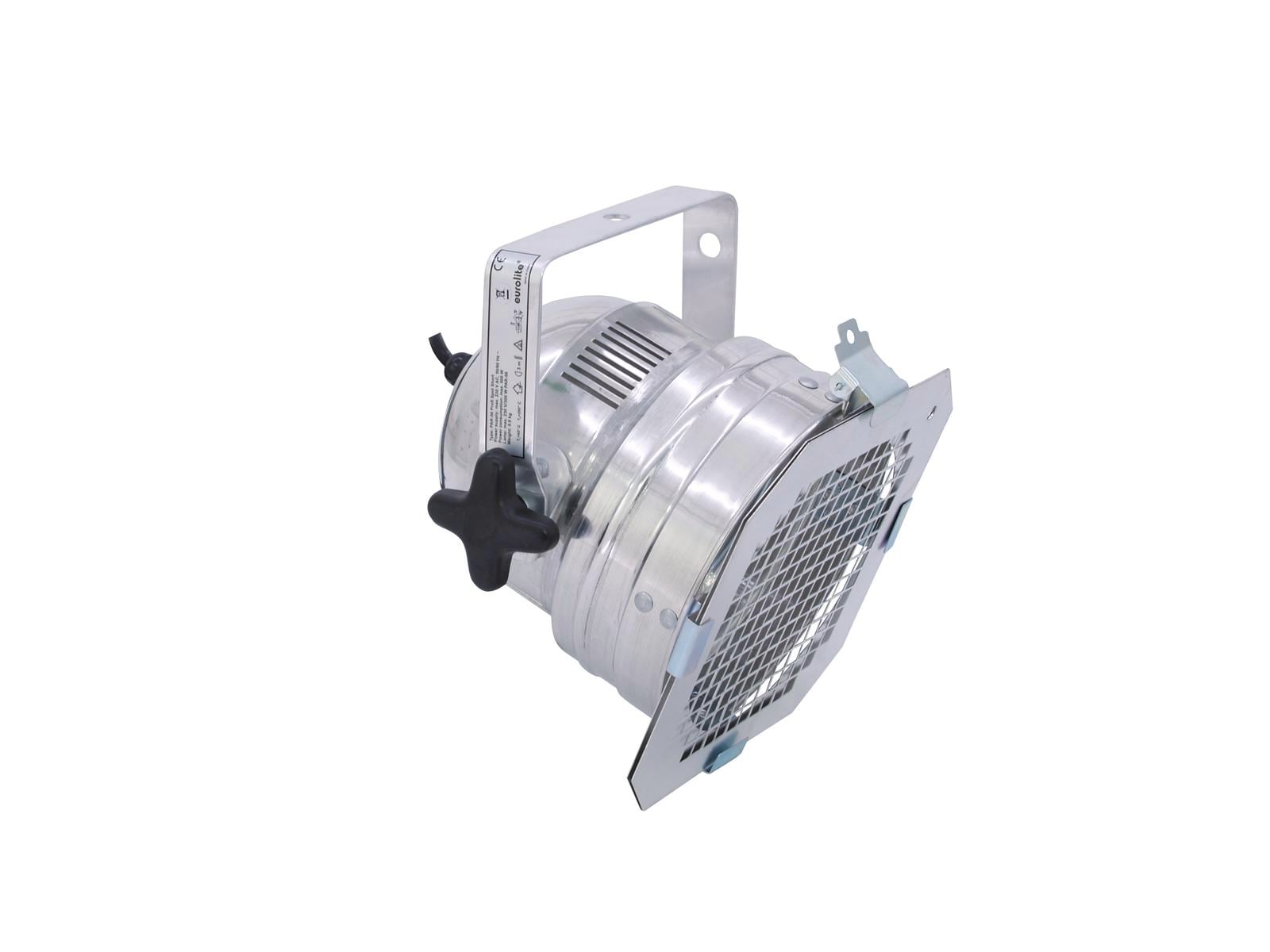

Filter frame
Diameter mounting holes:
4 x Ø8mm
Shape:
Octagonal
Grid size:
10 x 10 mm
Material:
Aluminum, 0,6 mm
Dimensions:
Length: 21,5 cm
Width: 21,5 cm
Diameter: Ø 17,1 cm
Lamp clamping ring
Material:
Steel, 4 mm
Color:
Silver
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
