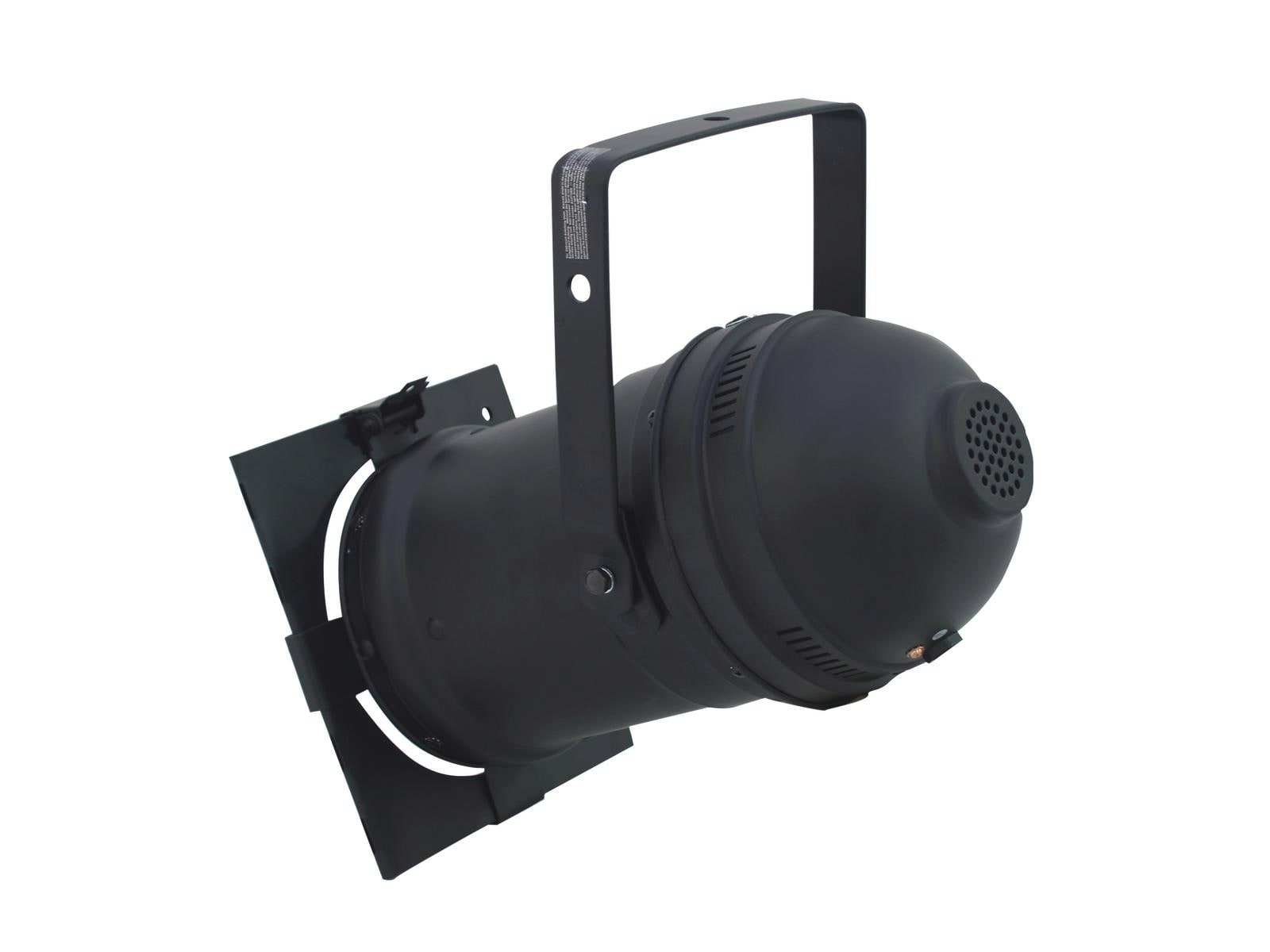

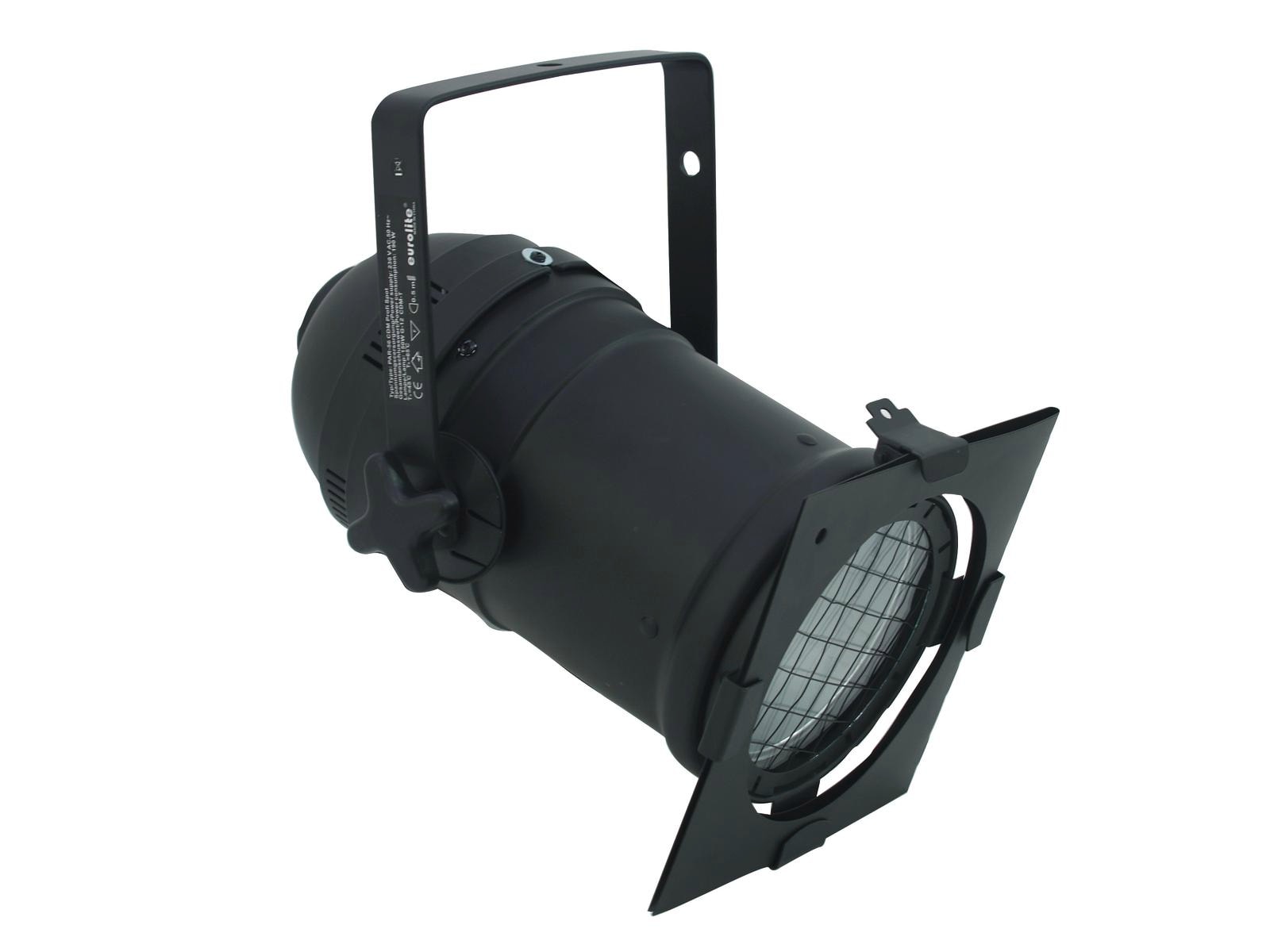

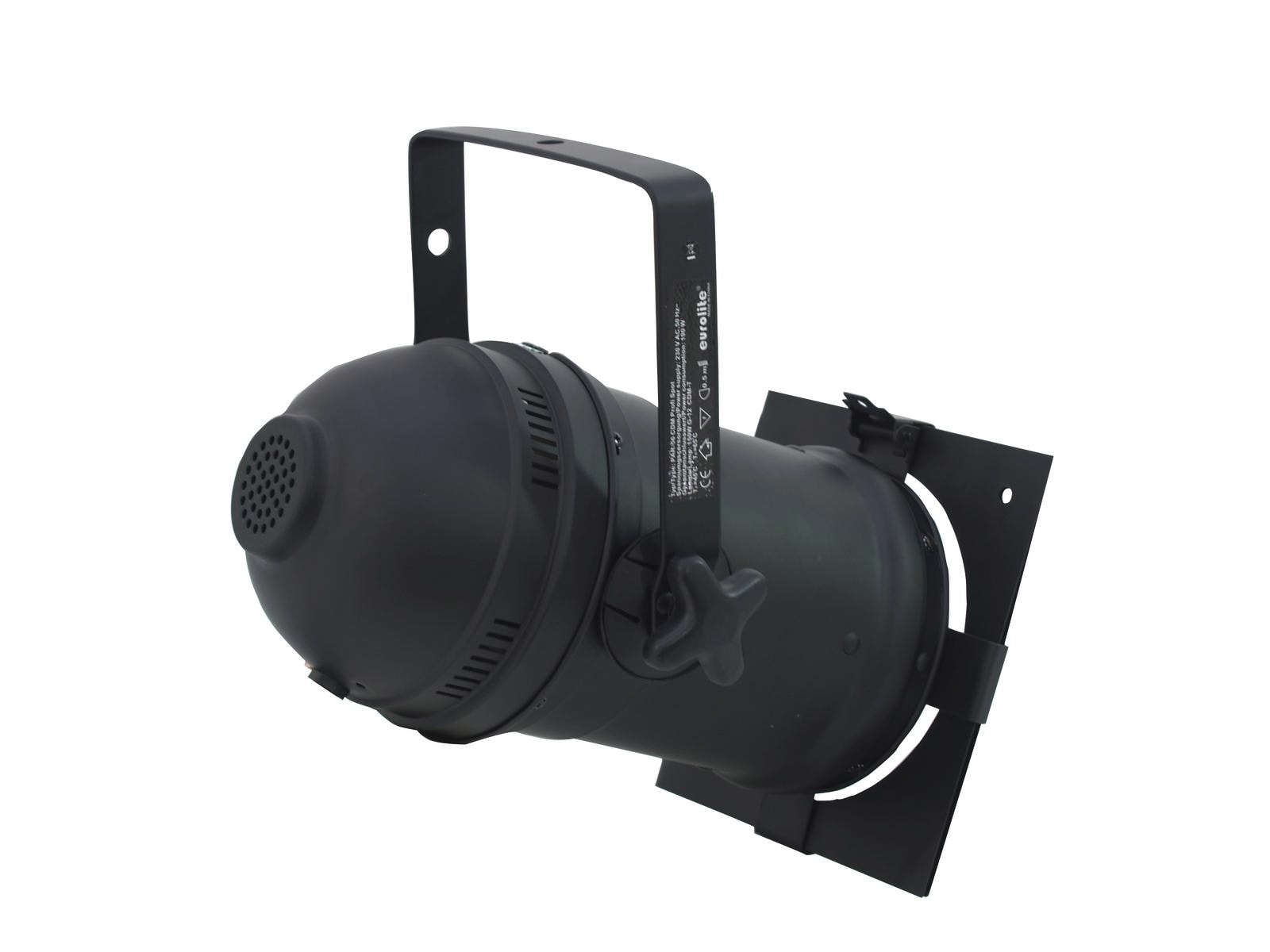

Long PAR-56 housing for CDM-T 150 discharge lamps

• Rugged metal housing
• 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
• Protective shield is integrated in the tube
• Control via plug and play
• With a beam angle of 55°
• With Mounting bracket
• For PAR 56

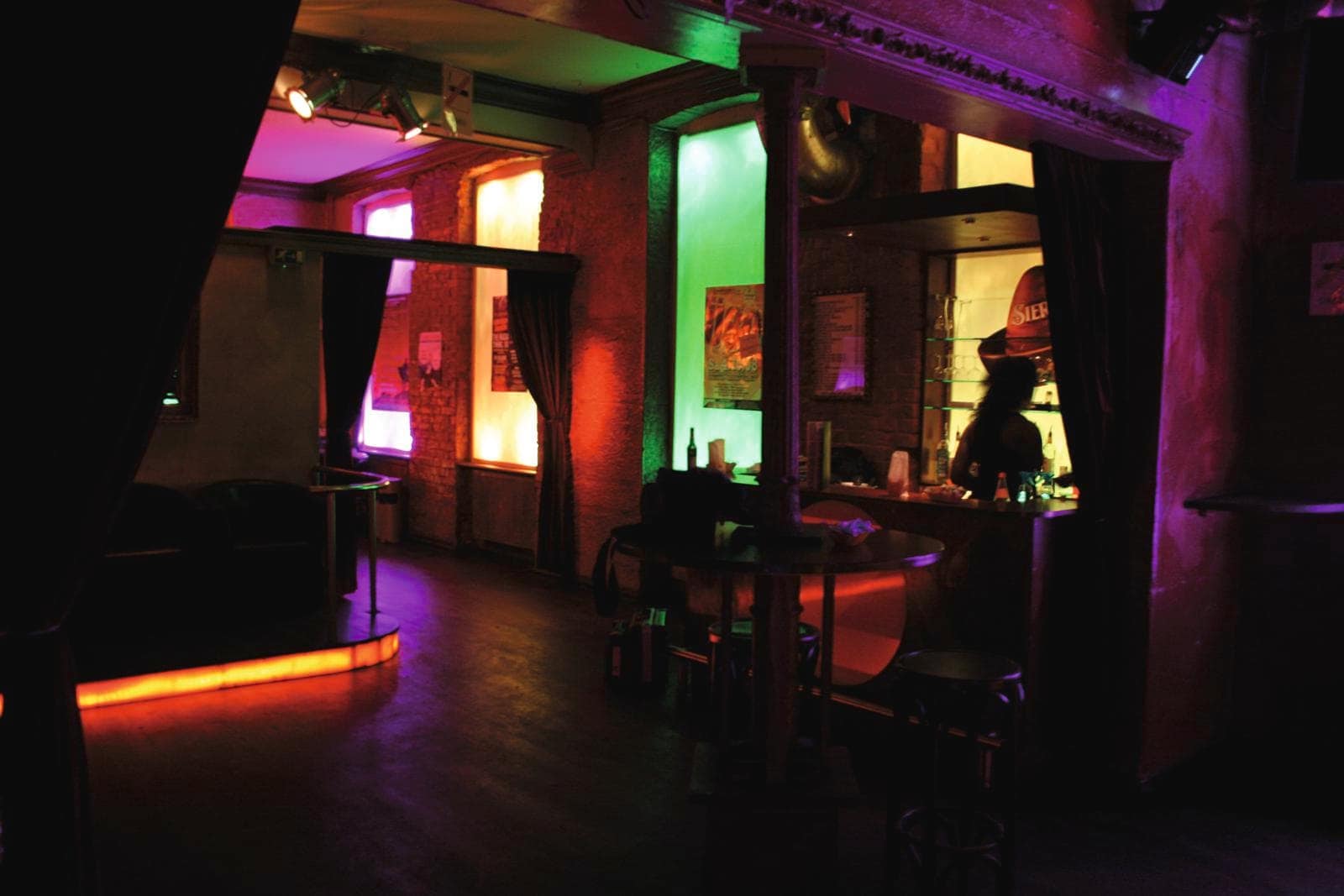

• For application areas such as: Theater; mobile use; Trade fair and shop fitting

Package contents

• 1 x spotlight, 1 x filter frame, 1 x user manual

Power supply:
230 V AC, 50 Hz
Power consumption:
210 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Fixed power supply cord with safety plug
Cable length:
Approx. 0,8 m
Base:
G-12
Lamp type:
Discharge lamp
Color generation:
Via color filter frame (optional)
Control:
Plug and play
Beam angle:
55°
Beam angle (1/2 peak):
55°
Housing color:
Black
Attachment system:
Mounting bracket
Dimensions:
Length: 36 cm
Width: 24 cm
Height: 32 cm
Weight:
4,05 kg
Filter frame
Dimensions:
Length: 22,8 cm
Width: 22,8 cm
Diameter: Ø 18 cm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
