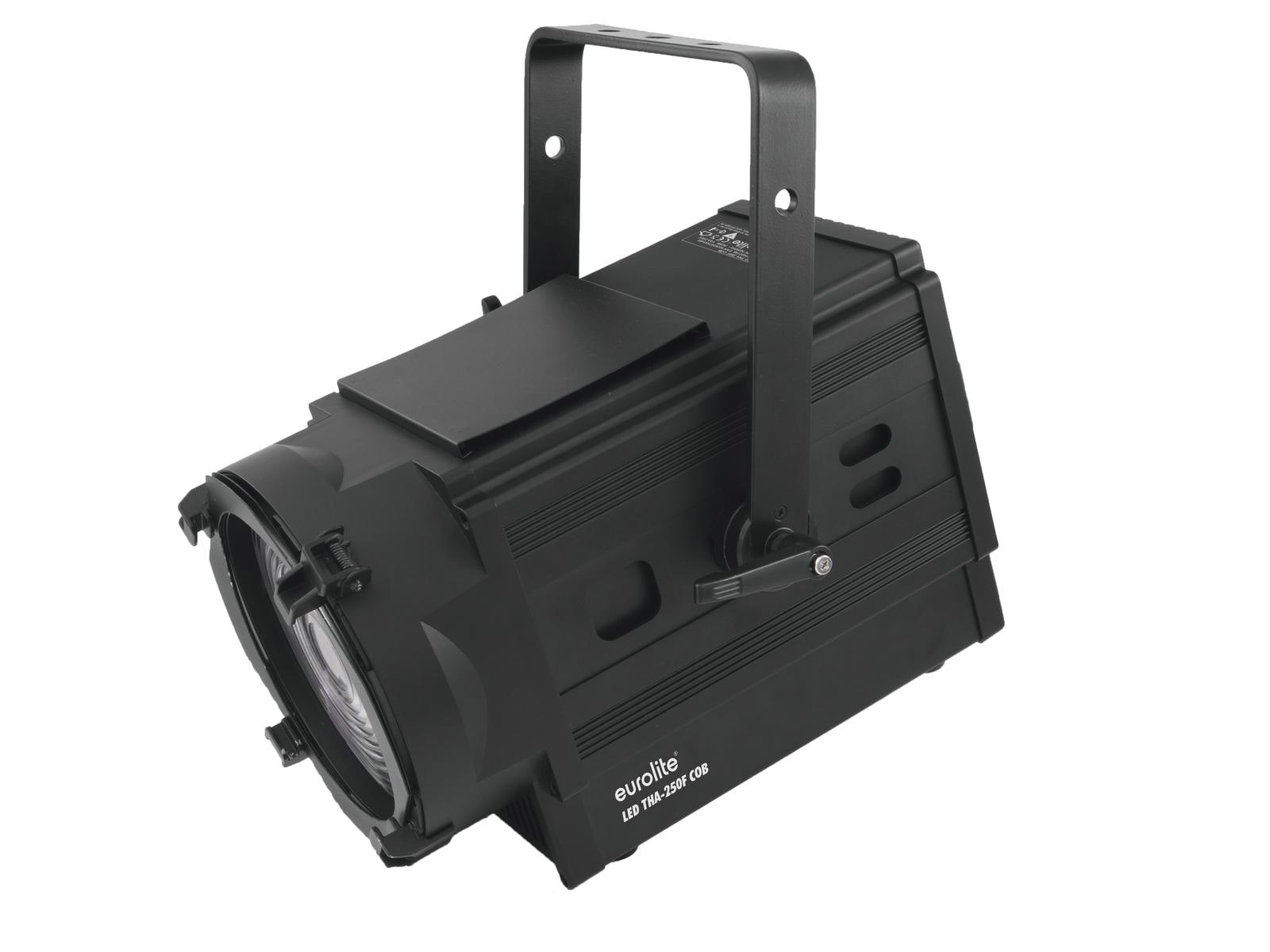

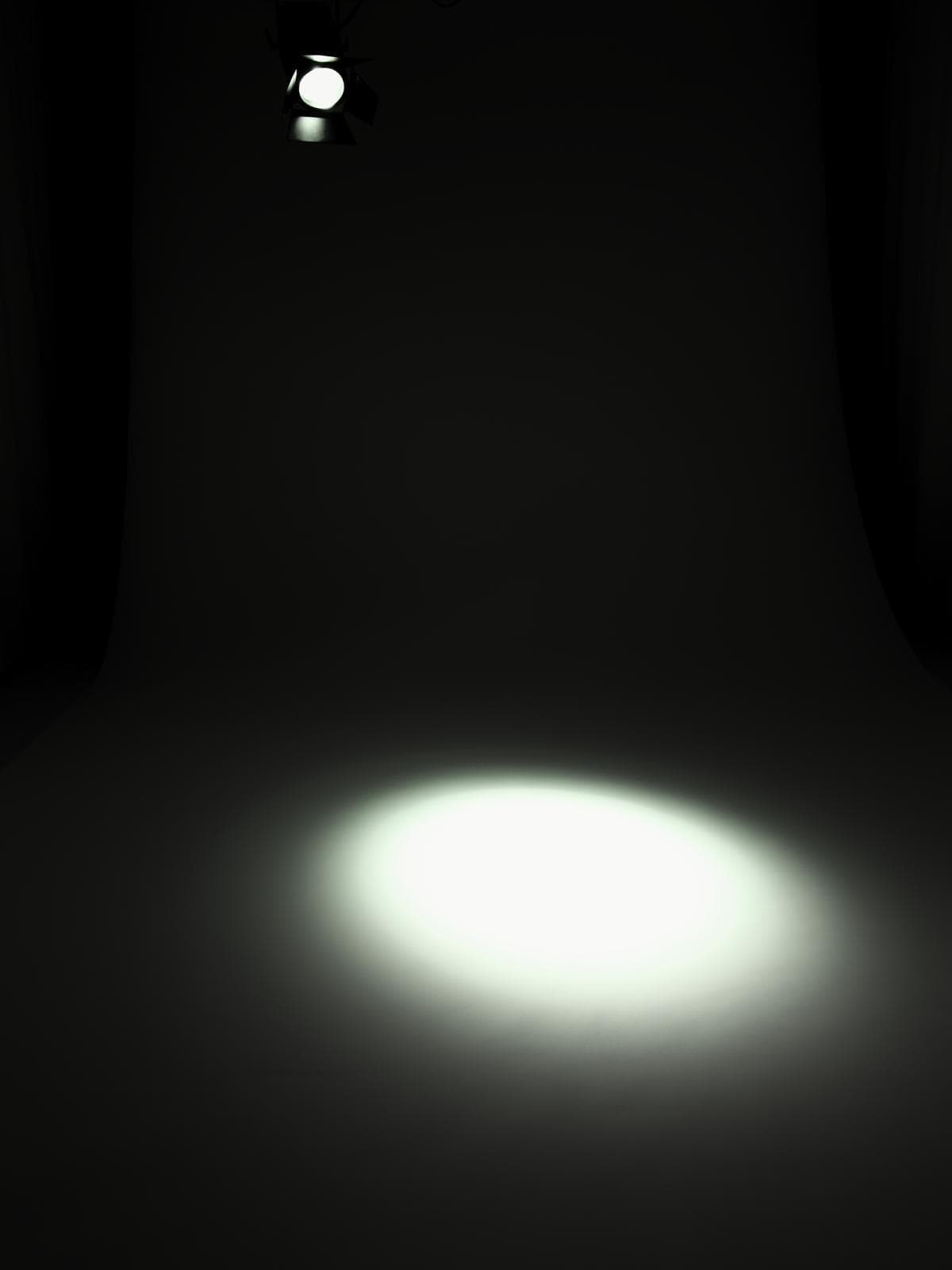

Fresnel spotlight (fresnel lens), 200 W warm white LED, CRI >90, quiet, DMX

• 1 powerful LED 200 W COB (chip-on-board) warm white (WW)
• Zoom motor-driven; Focus manual
• Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response) adjustable
• Strobe effect
• The device is cooled by temperature-controlled fan
• Control via RDM; stand-alone; DMX
• Flicker-free
• With a beam angle of 5° - 38°
• Very high color rendering index (CRI)
• With Mounting bracket
• LCD display
• Preprogrammed in LED PC-Control 512; Light Captain; Light´J
• Rubber feet
• Mains input and output for power linking up to 8 units

Package contents

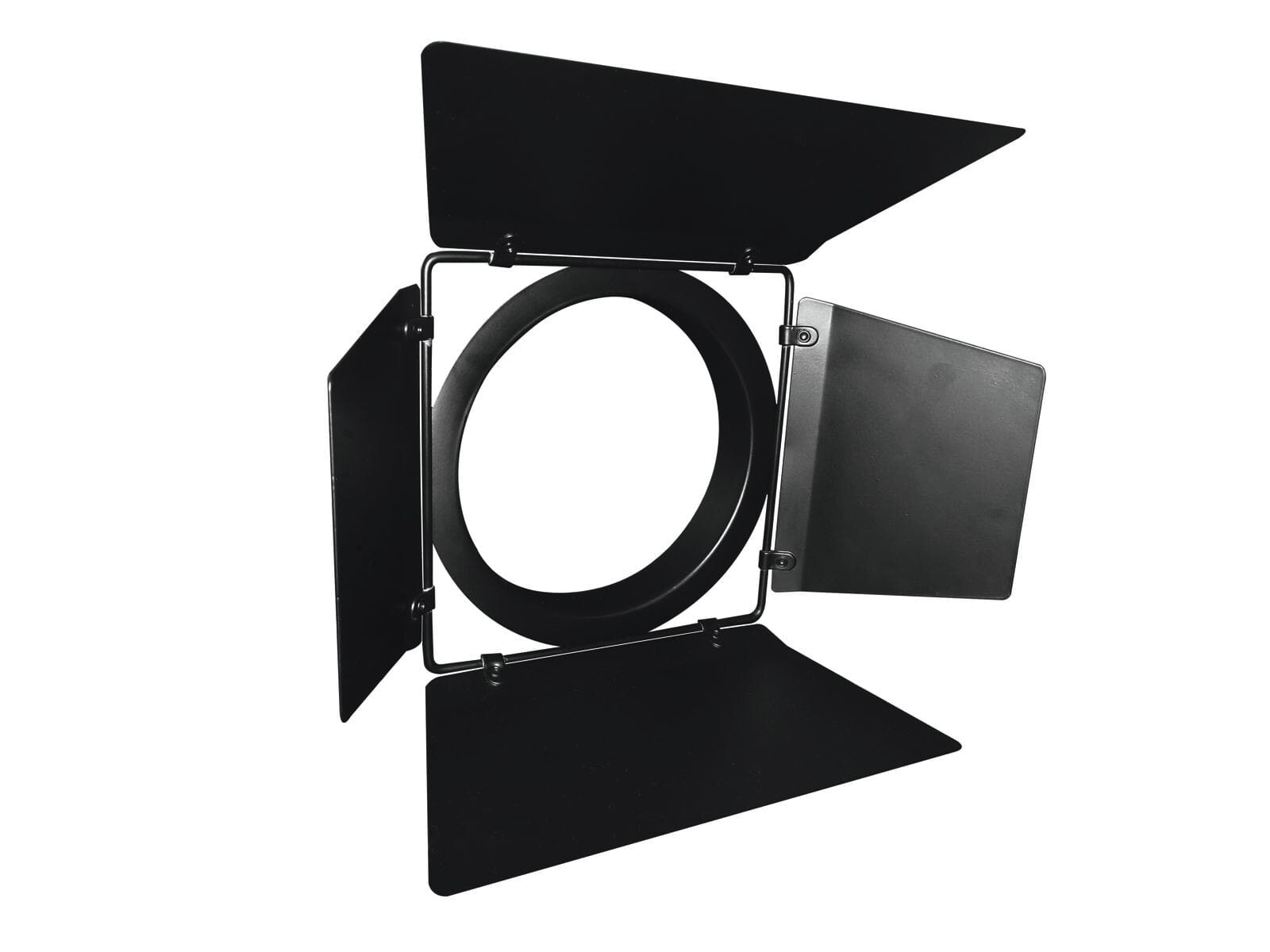

• 1 x spotlight, 1 x user manual, 1 x power cord, 1 x barndoor, 1 x filter frame

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
265 W
IP classification:
IP20
Protection class:
Protection class I

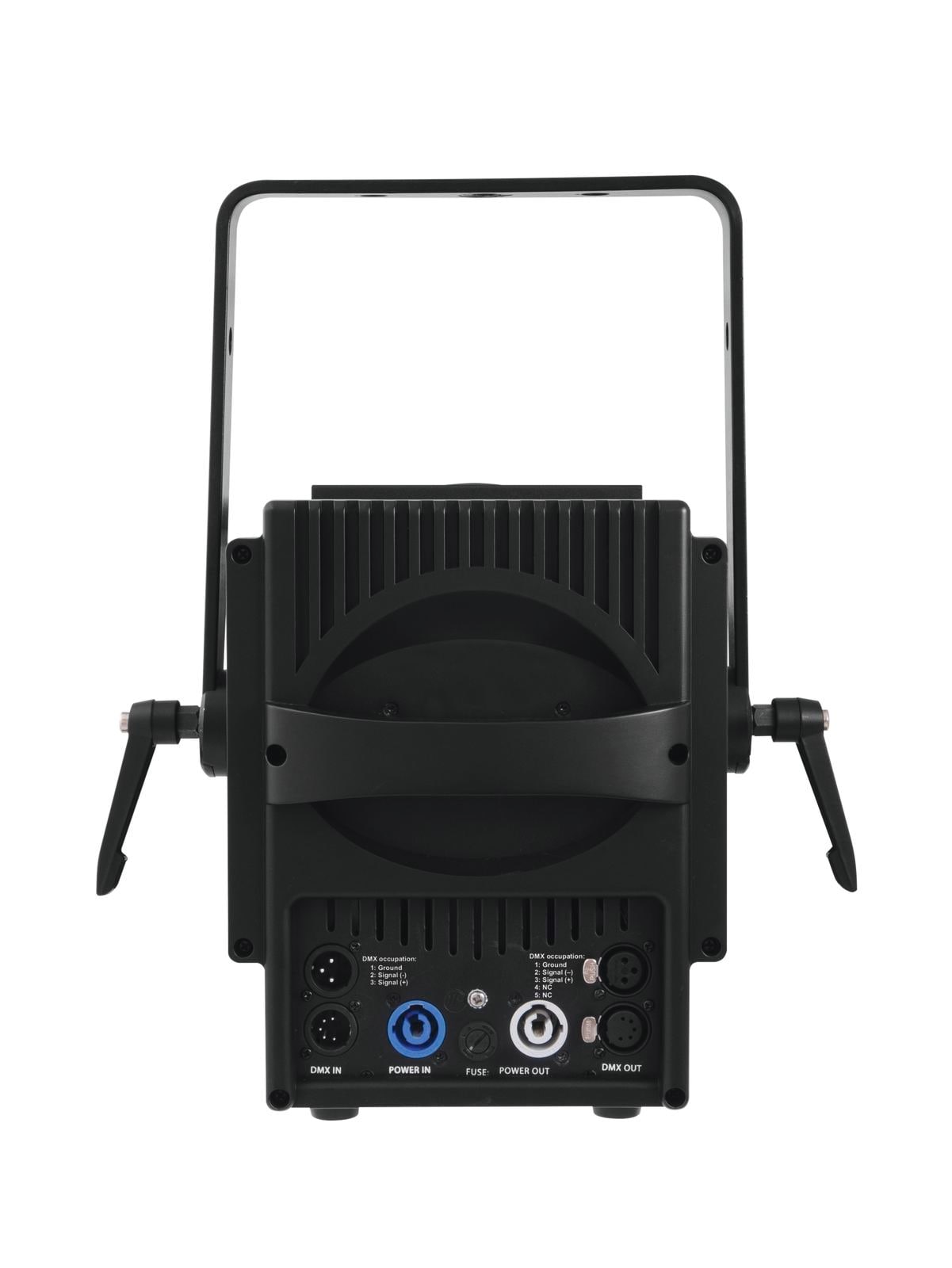

Power connection:
Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:
1 x PowerCON (gray), mounting version
Device fuse:
5 x 20 mm, T 3 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 200 W COB (chip-on-board) warm white (WW)
Color temperature:
2800K
Equipment:
Zoom motor-driven; Focus manual
DMX channels:
3
DMX input:
1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
RDM; stand-alone; DMX
Preprogrammed in:
LED PC-Control 512; Light Captain; Light´J

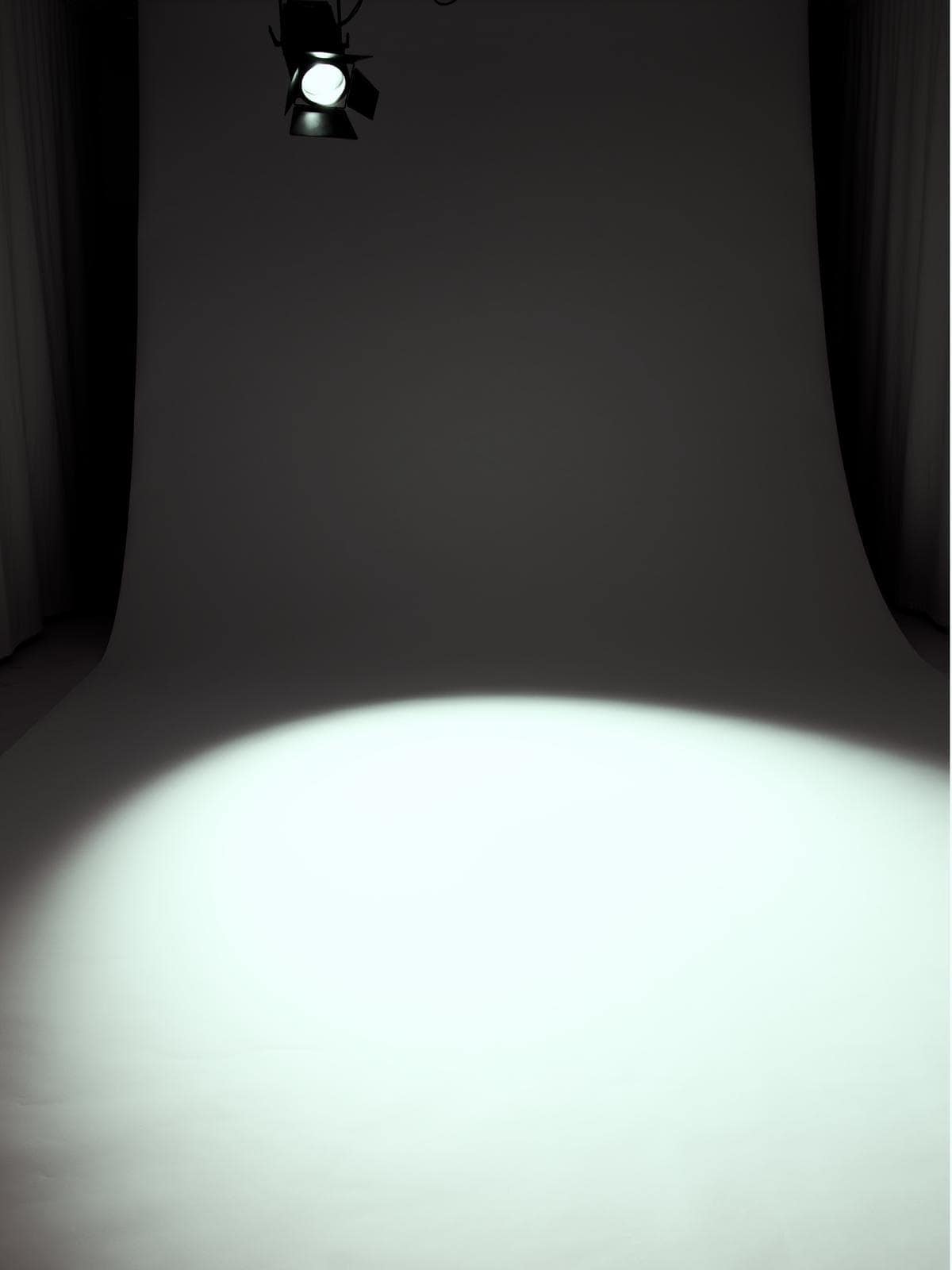

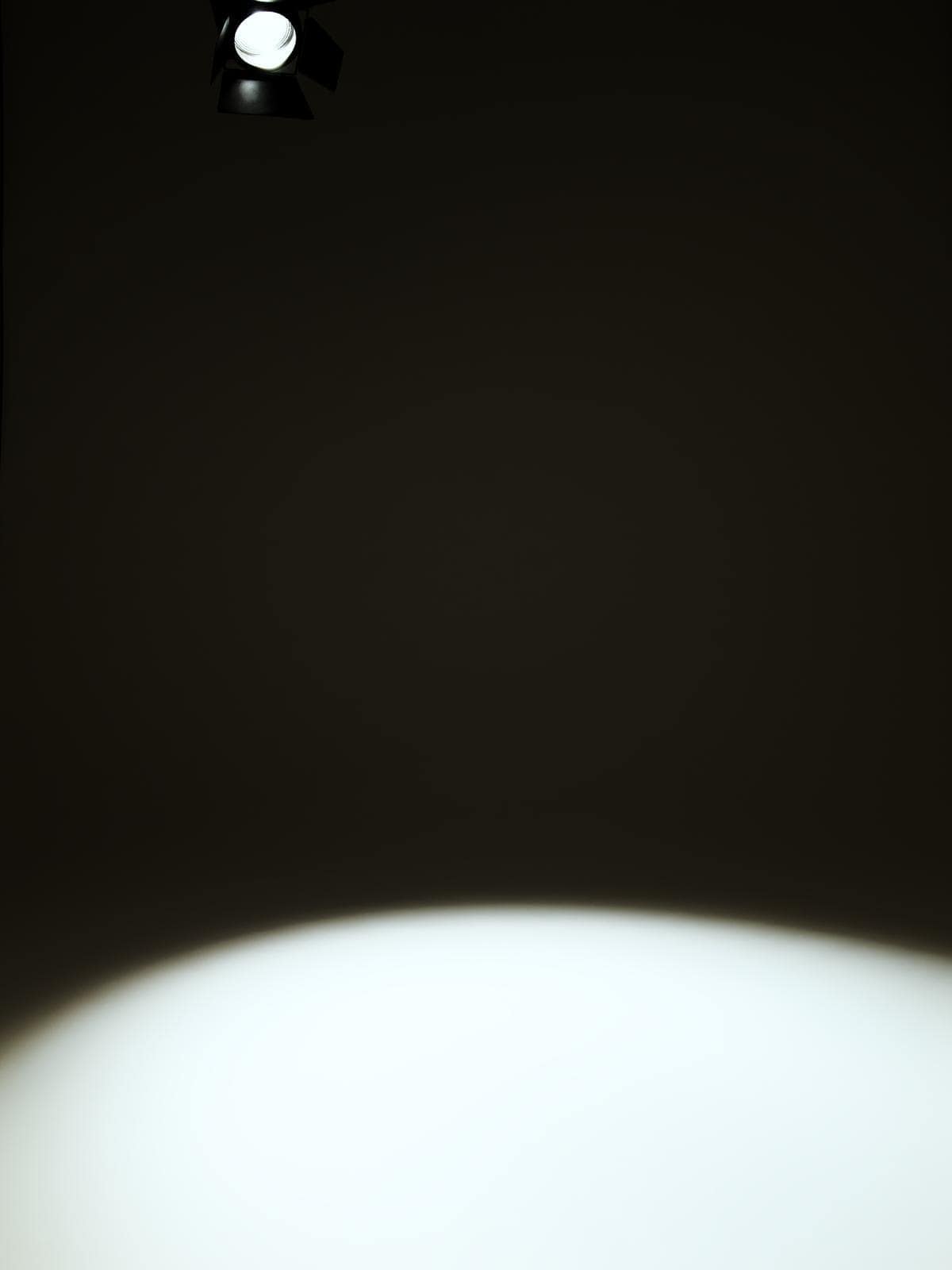

Beam angle:
5° - 38°
Beam angle (1/2 peak):
5 - 28°
Beam angle (1/10 peak):
12 - 38°
Color rendering index (CRI):
92 Ra
Housing color:
Black
Attachment system:
Mounting bracket

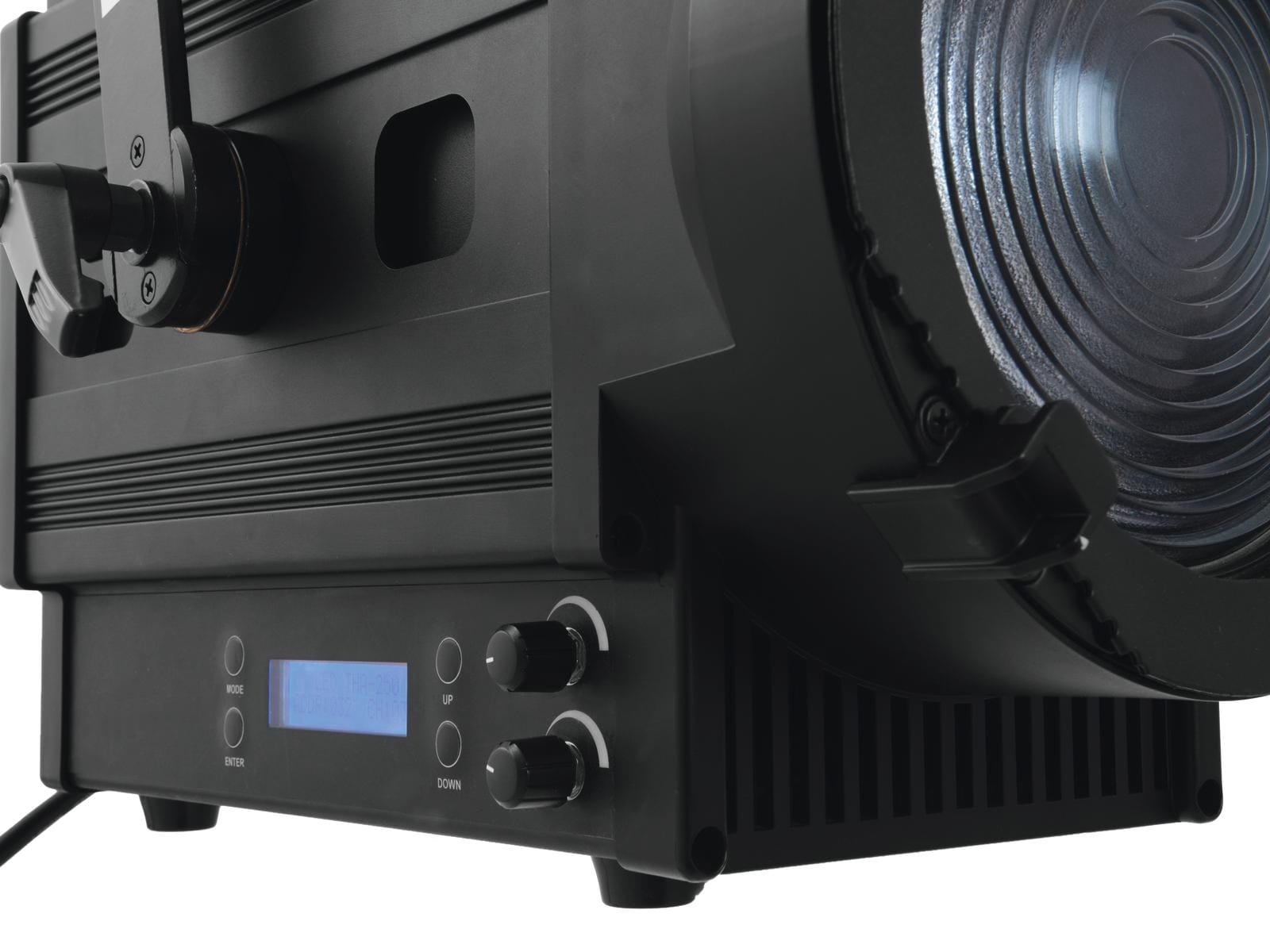

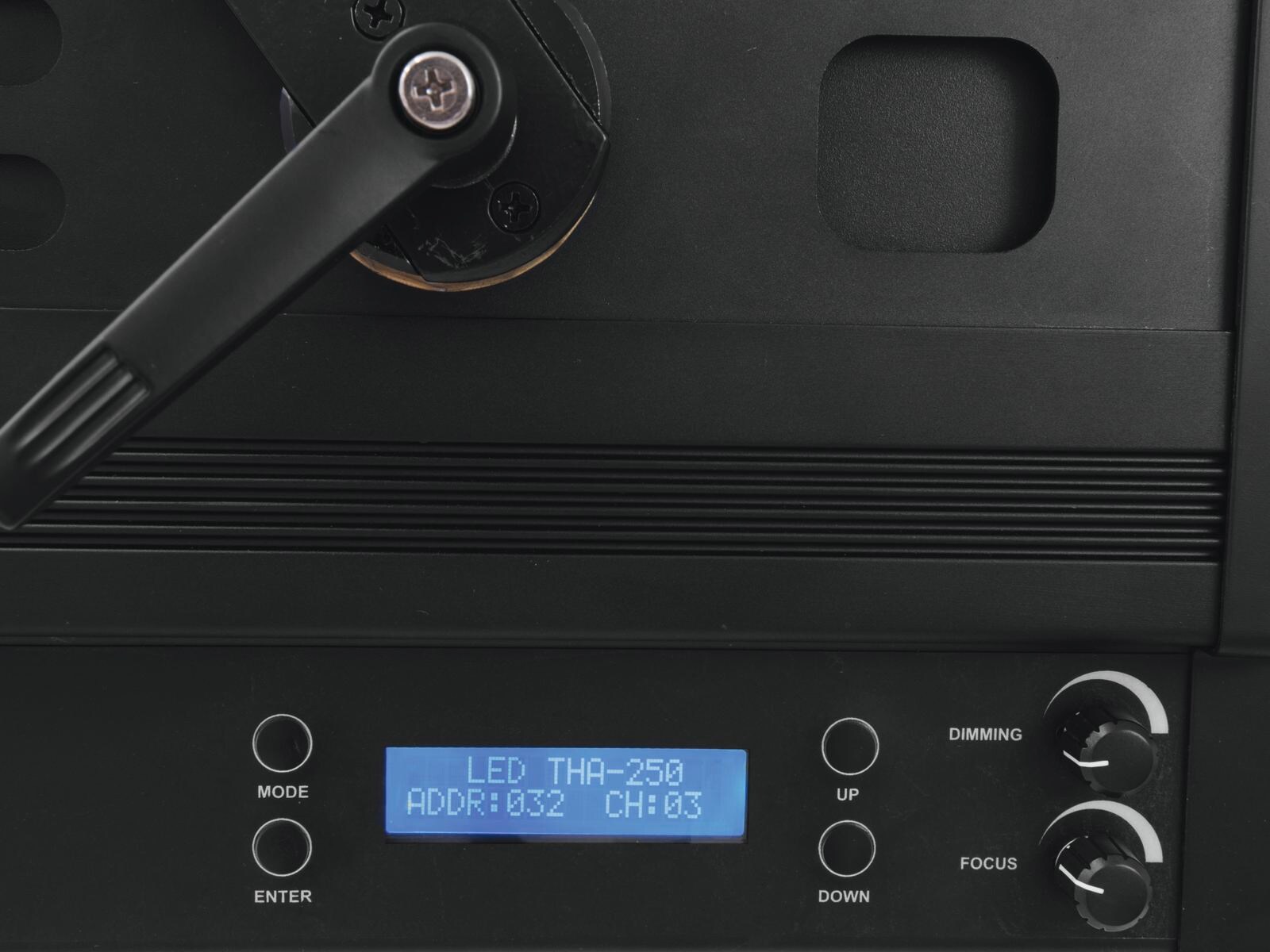

Display type:
LCD display
Transport aid:
Rubber feet
Dimensions:
Length: 45,7 cm
Width: 33,6 cm
Height: 39,9 cm
Weight:
10,00 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
