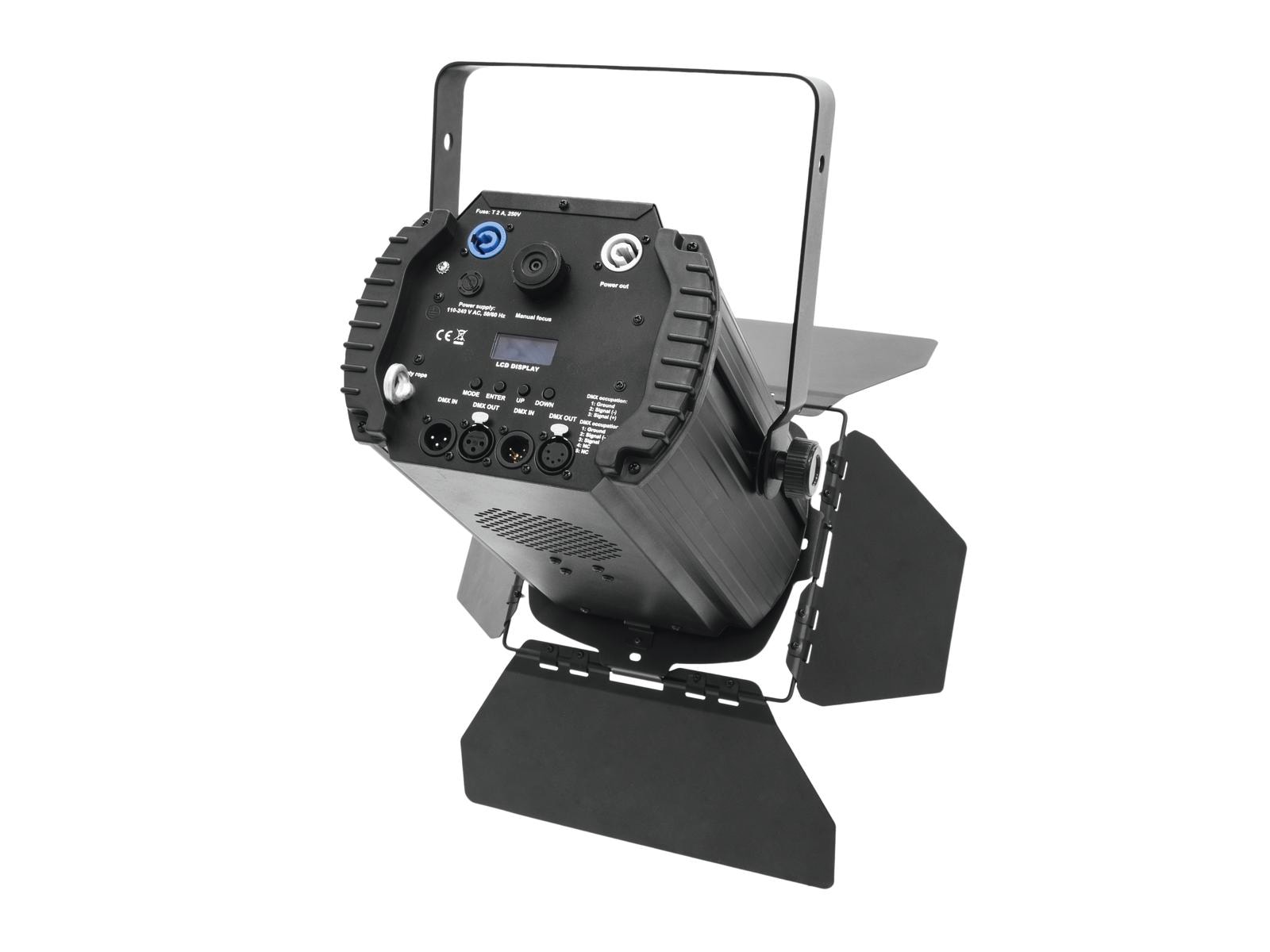

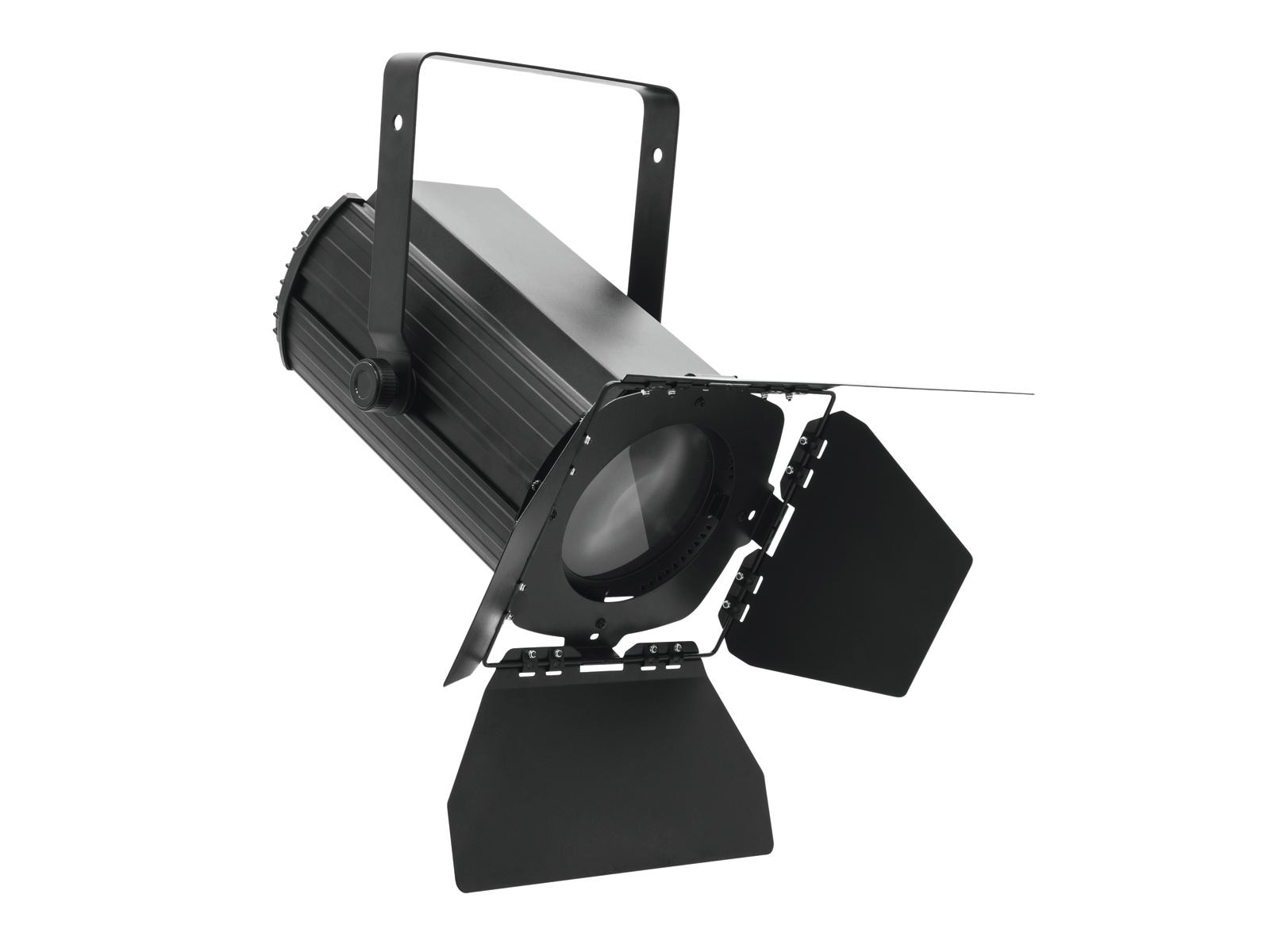

Fresnel spotlight (fresnel lens), 120 W COB LED (RGBW), extremely quiet, DMX

• Compact design
• 1 powerful LED 120 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
• Dimmer electronic; color change adjustable; color fade adjustable; Dimmer speed (step response) adjustable
• Strobe effect
• The device is cooled by temperature-controlled fan
• Control via stand-alone; DMX; Sound to light via Microphone
• Flicker-free
• With a beam angle of 3° - 43°
• With Mounting bracket
• Preprogrammed in LED PC-Control 512; Light´J; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
• Mains input and output for power linking up to 8 units

Package contents

• 1 x spotlight, 1 x user manual, 1 x power cord, 1 x filter frame

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
135 W
IP classification:
IP20

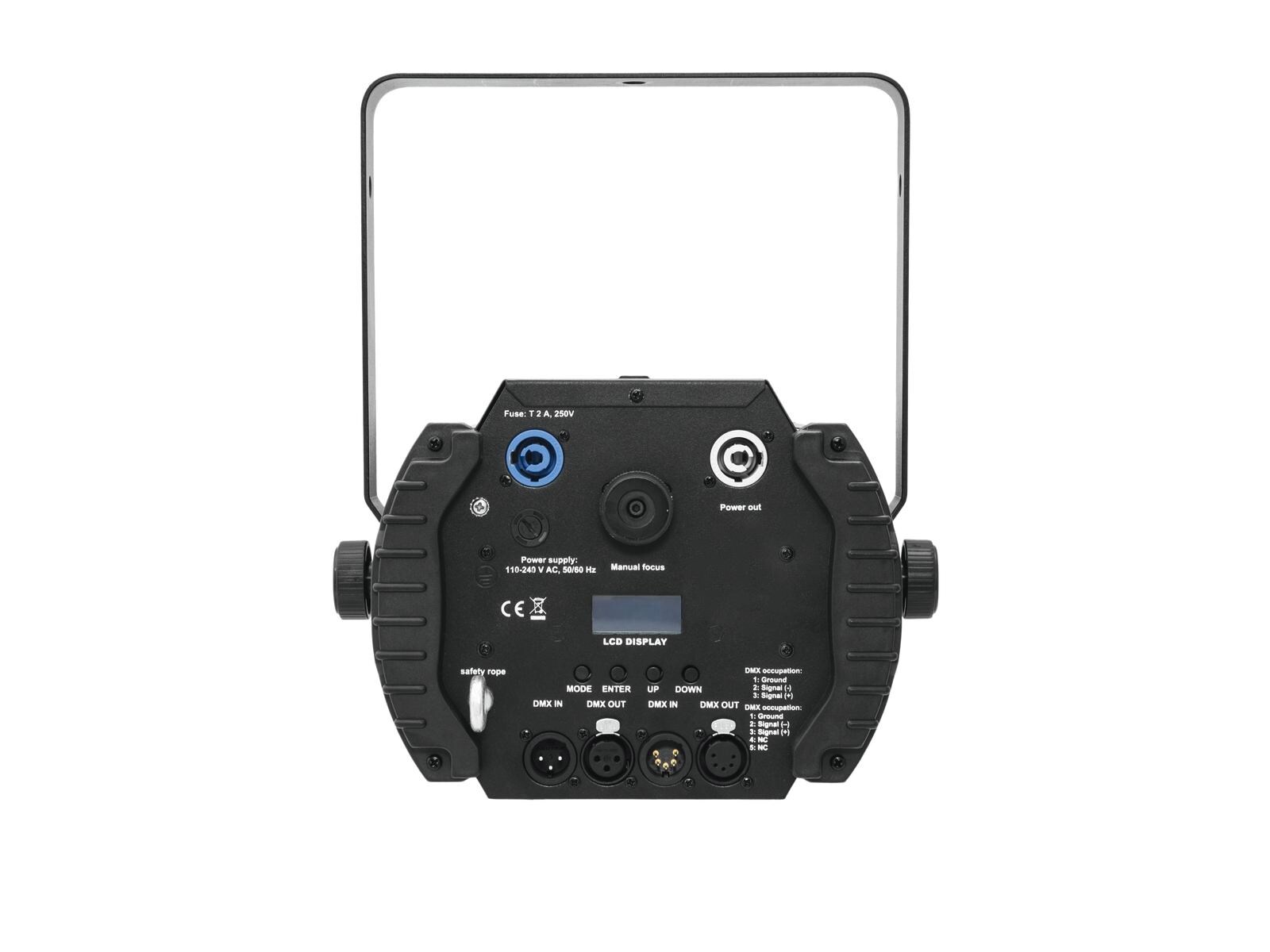

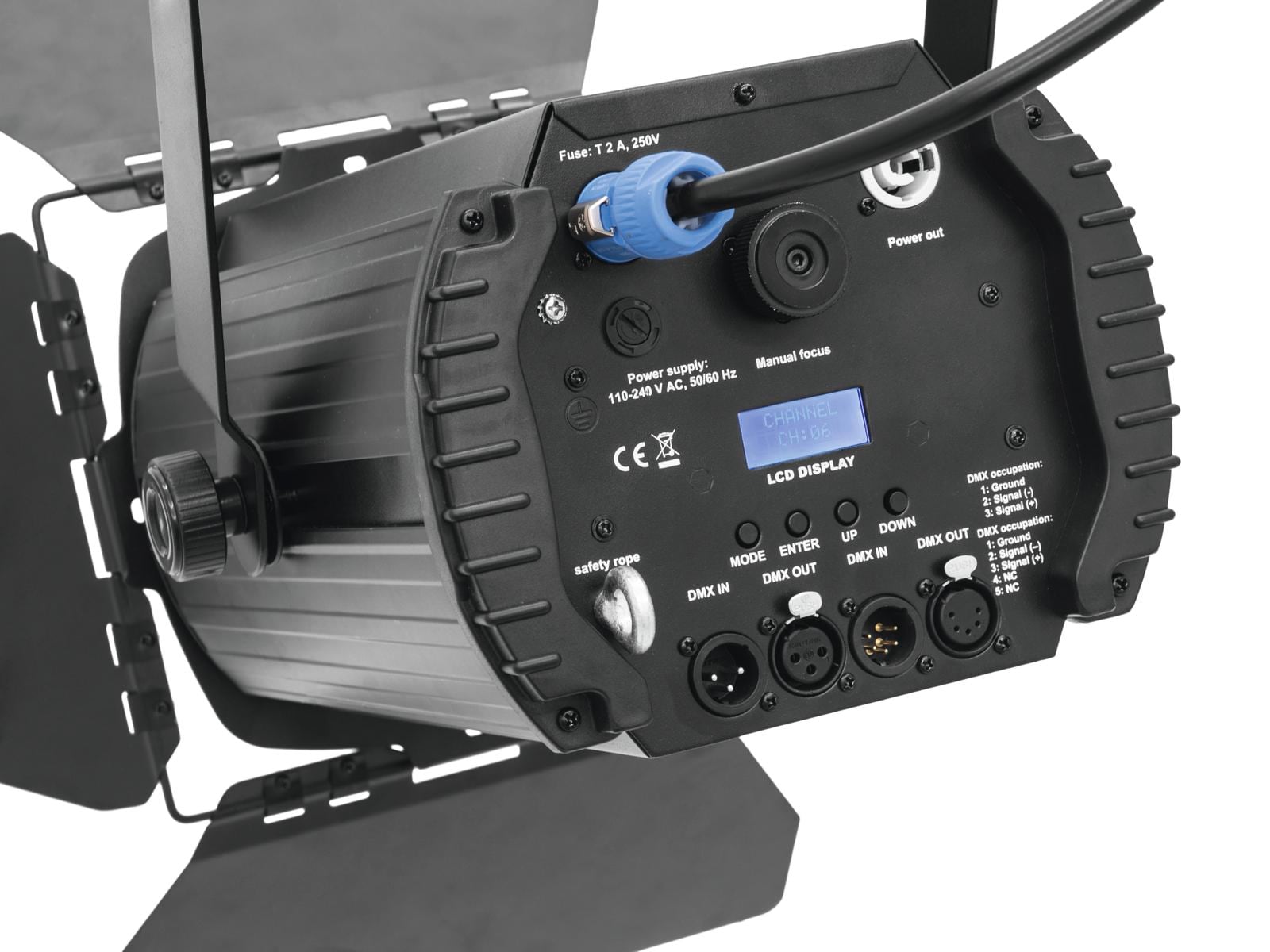

Power connection:
Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:
1 x PowerCON (gray), mounting version
LED:
1 x 120 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
DMX channels:
4; 6; 7
DMX input:
1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
Stand-alone; DMX; Sound to light via Microphone
Preprogrammed in:
LED PC-Control 512; Light´J; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
3° - 43°
Beam angle (1/2 peak):
3 - 32°
Beam angle (1/10 peak):
9 - 43°
Housing color:
Black
Attachment system:
Mounting bracket
Dimensions:
Length: 37 cm
Width: 25,6 cm
Depth: 36 cm
Weight:
5,85 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
