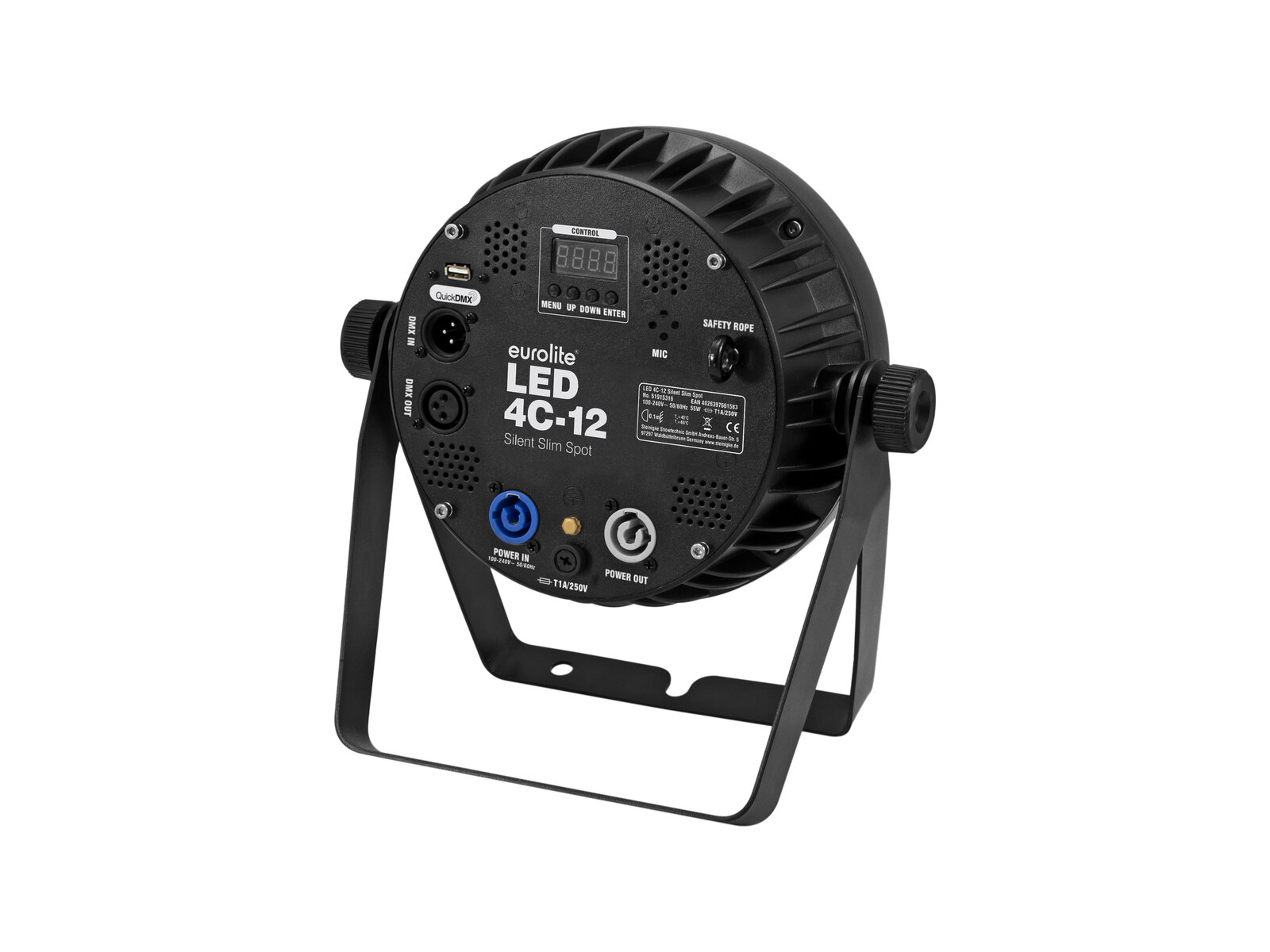

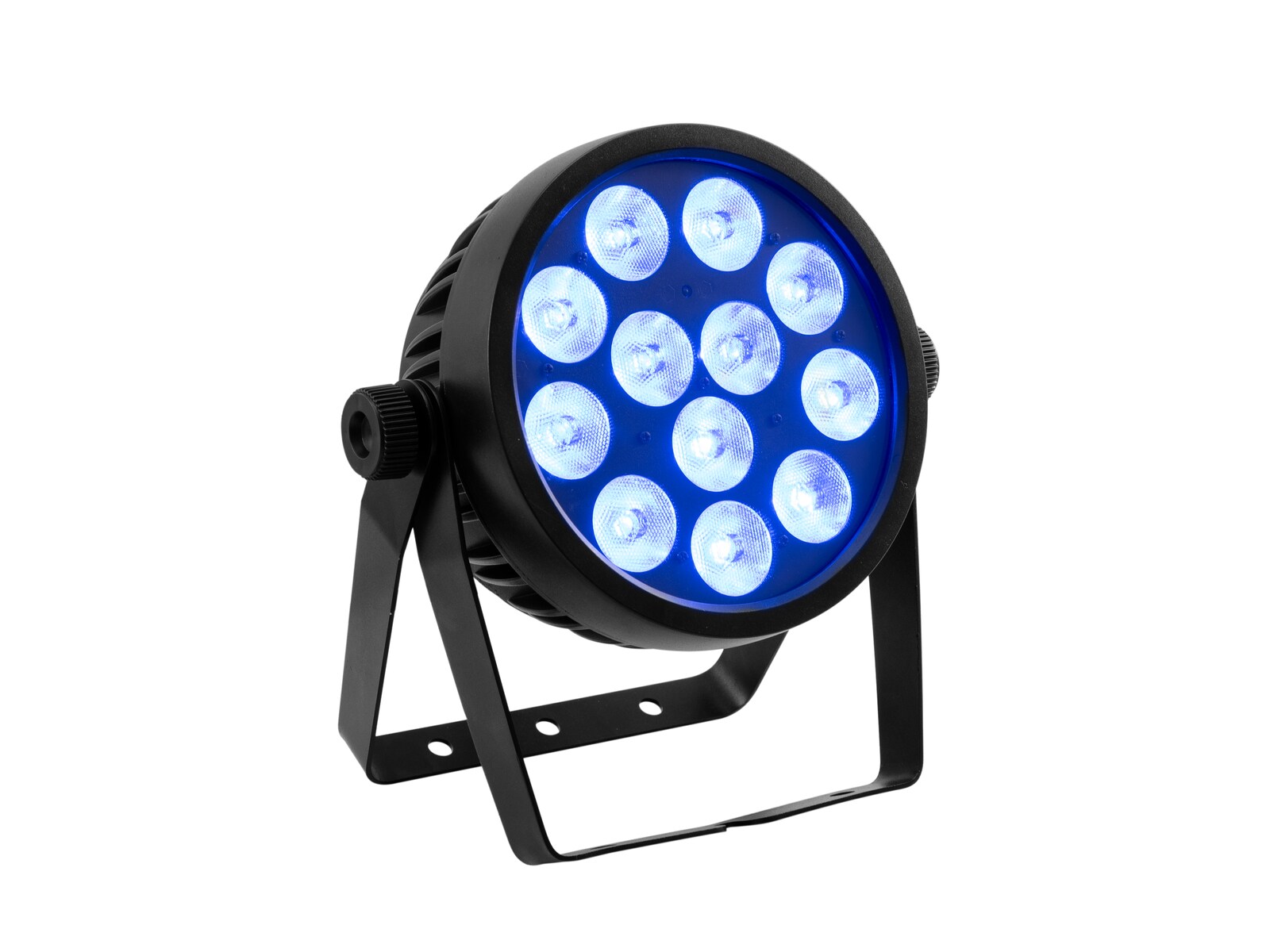

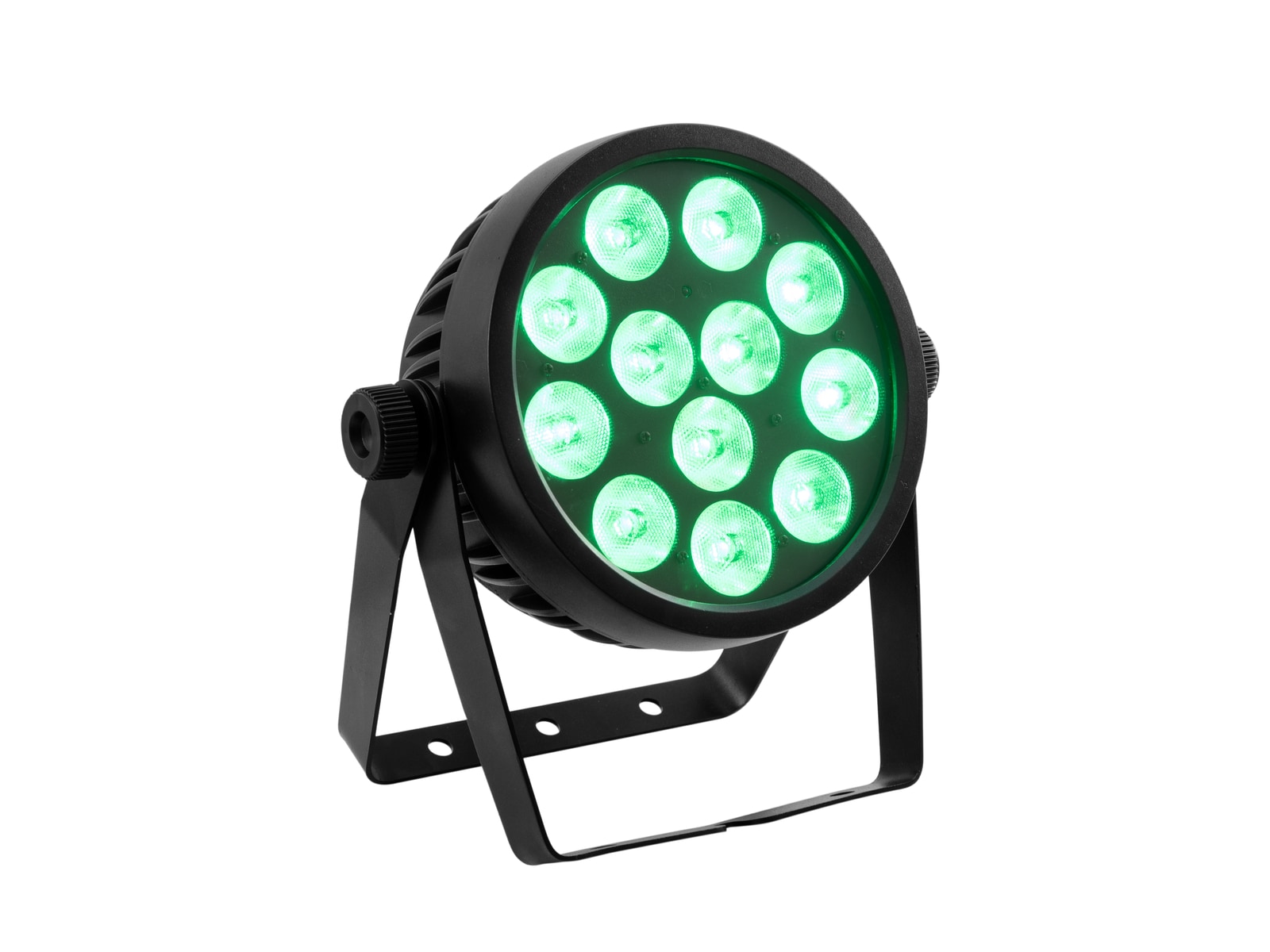

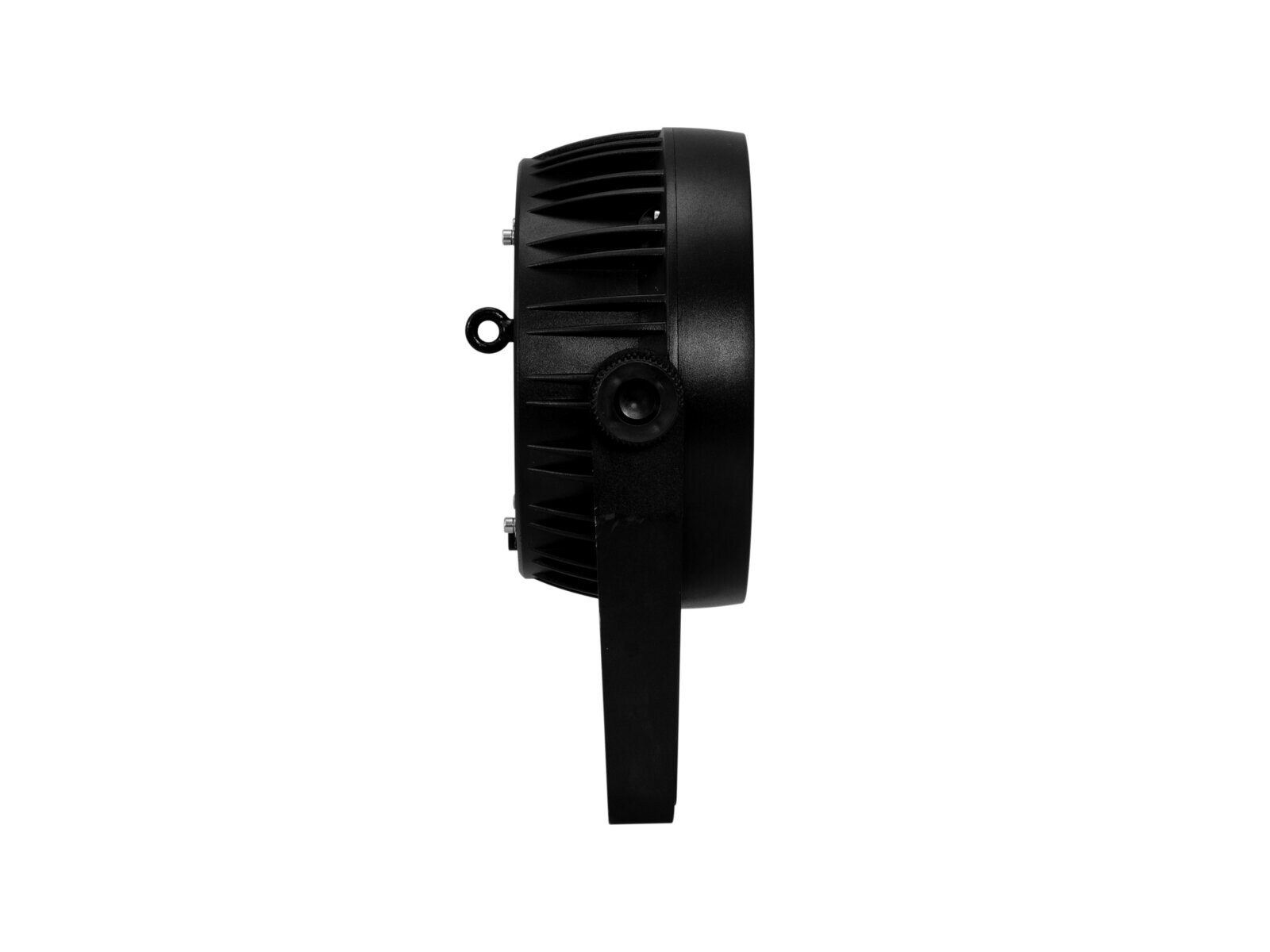

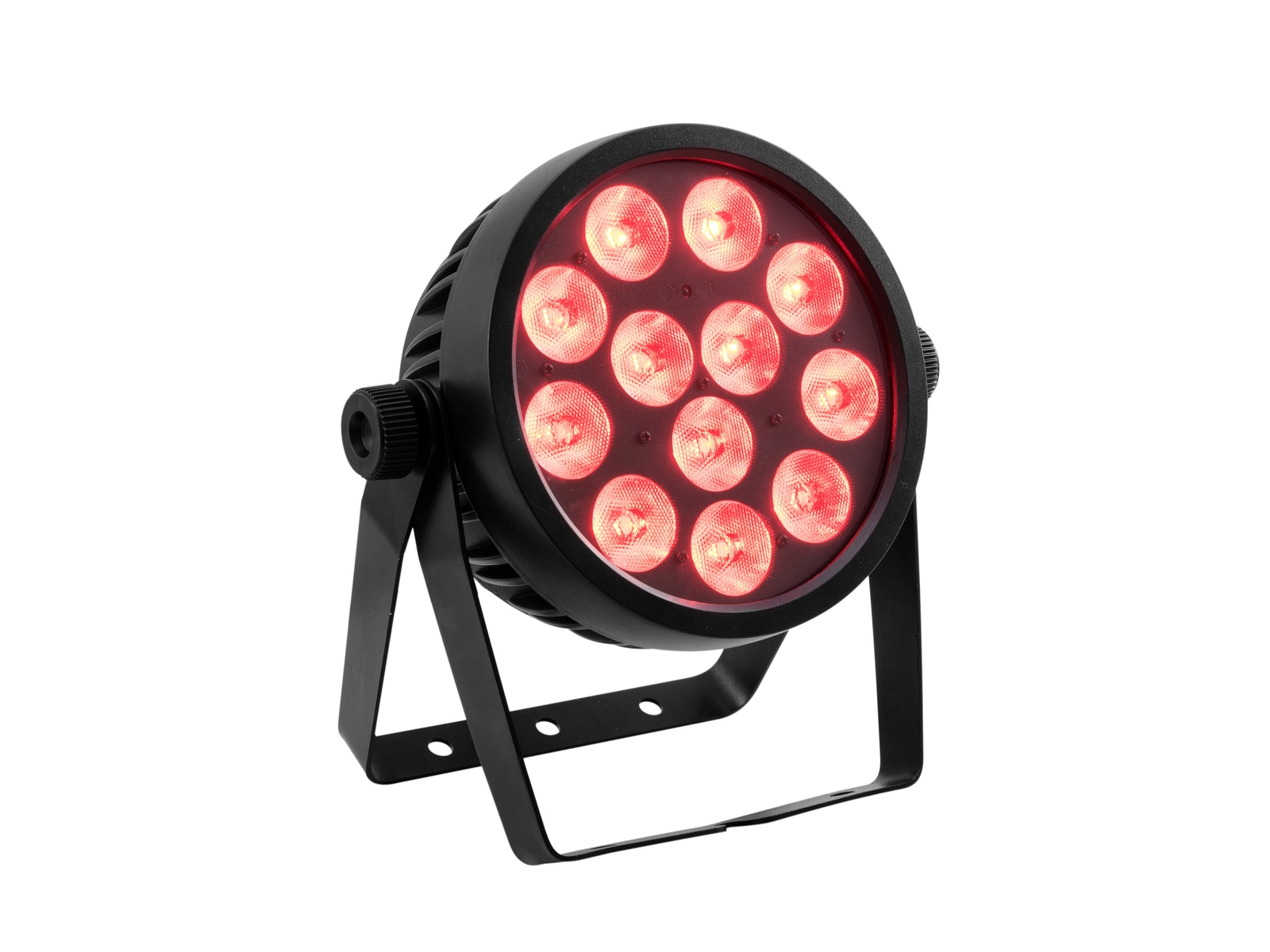

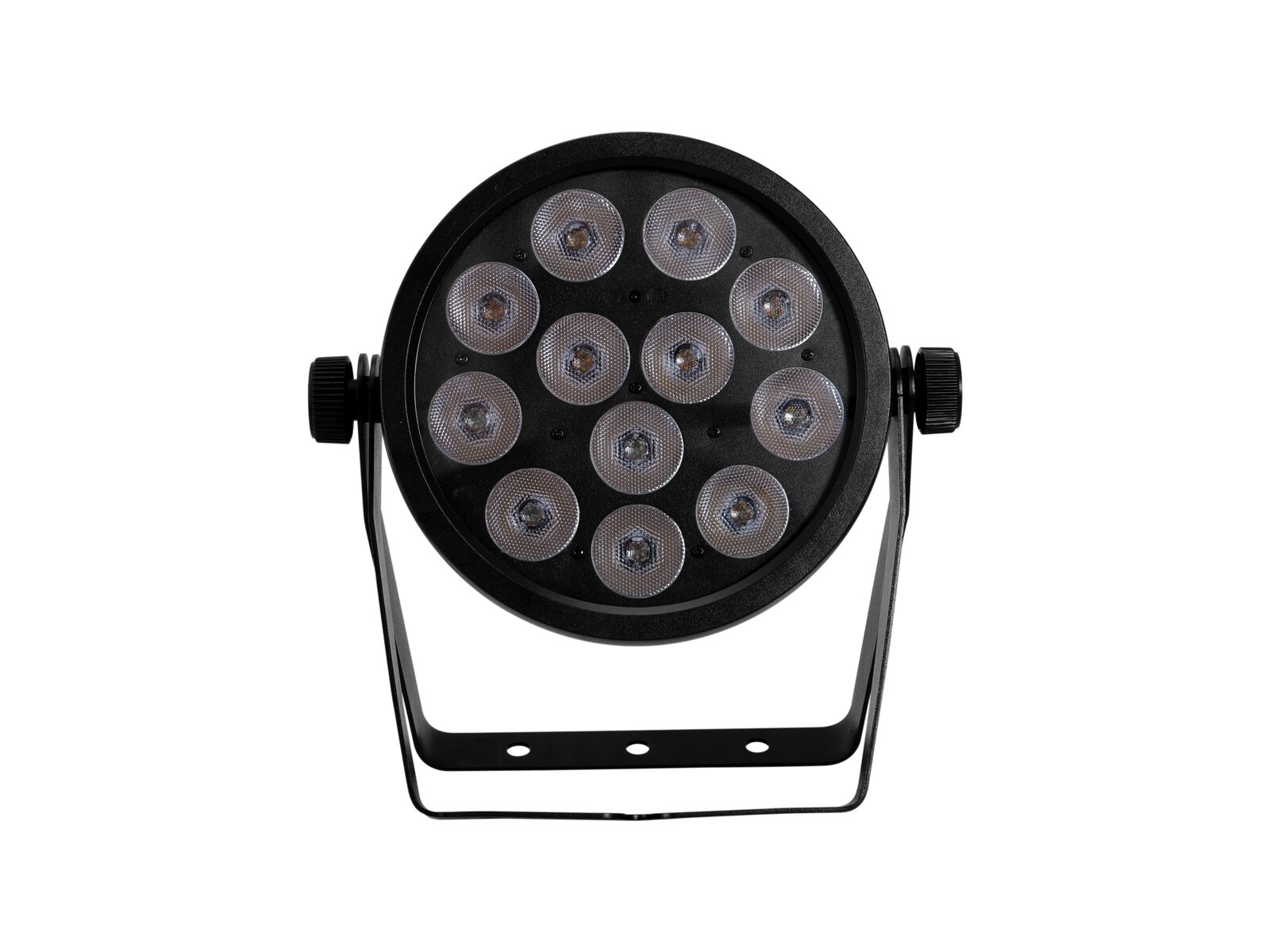

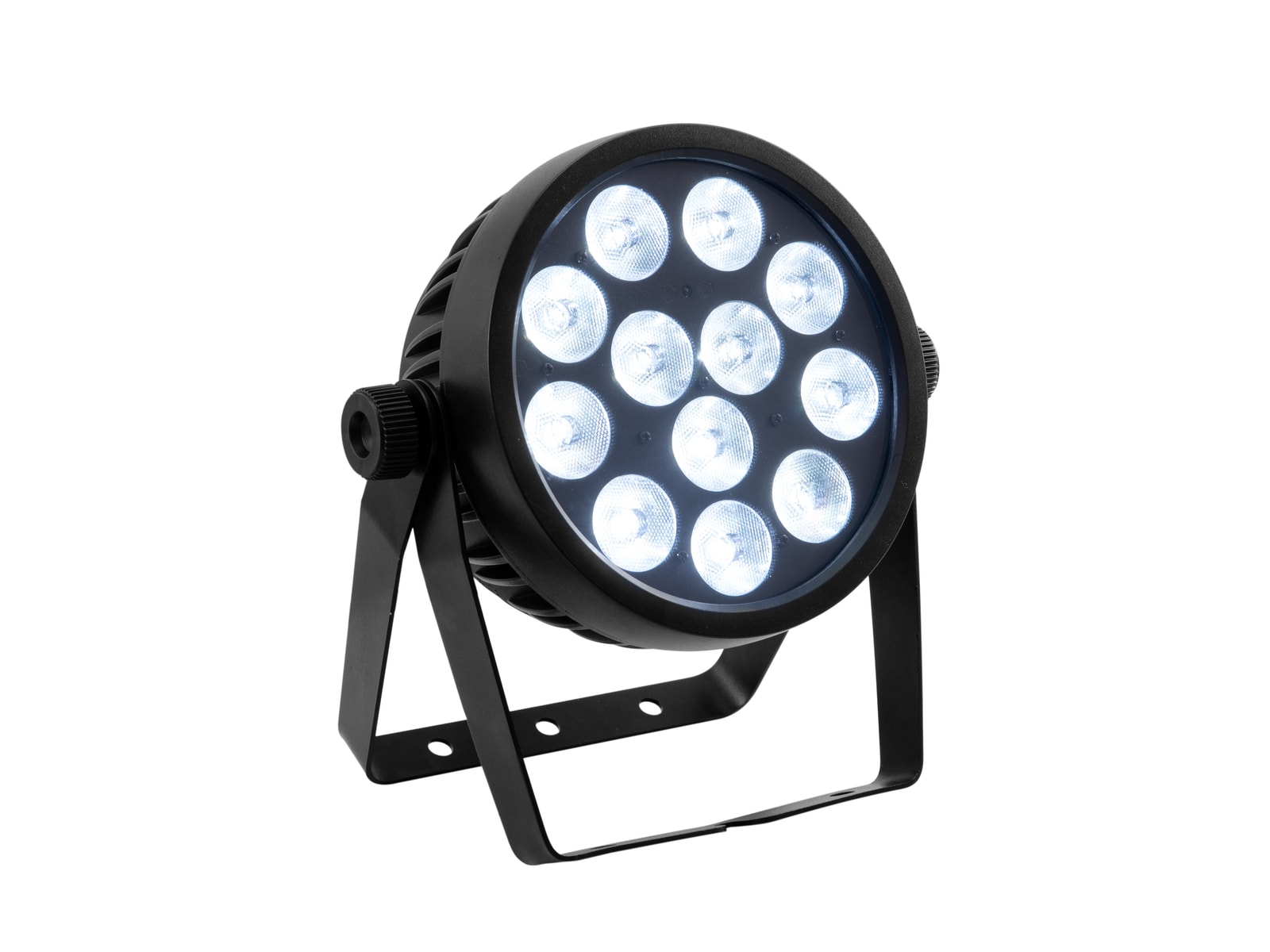

Silent 4in1 LED spotlight with RGBW color mixture

• Flat version requires minimal space when mounting
• 12 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
• Integrated show programs
• Direct color selection for 19 preset colors
• The device is cooled by passive convection cooling
• Control via DMX; IR remote control; stand-alone; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
• With a beam angle of 16°
• With double bracket
• Monochrome 4 digit 7-segment LED display
• Color blend stepless; Dimmer stepless
• Strobe effect
• Silent operation
• Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; Light´J; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
• Mains input and output for power linking up to 8 units

Package contents

• 1 x spotlight, 1 x power cord, 1 x remote control, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
55 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Lamp type:
LED lamp
LED:
12 x 8 W high-power 4in1 QCL RGBW (homogenous color mix)
Flash rate:
1 - 20 Hz
DMX channels:
3; 4; 5; 6; 9
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
DMX; IR remote control; stand-alone; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; Light´J; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
16°
Beam angle (1/2 peak):
16°
Beam angle (1/10 peak):
35°
Housing color:
Black
Attachment system:
Double bracket
Display type:
Monochrome 4 digit 7-segment LED display
Material:
Aluminum casting; metal
Dimensions:
Width: 28,5 cm
Depth: 10,5 cm
Height: 29,5 cm
Weight:
3,50 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 1,0 mm² H05VV-F
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
3 x Ø11mm
Material:
Metal, 3 mm
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
