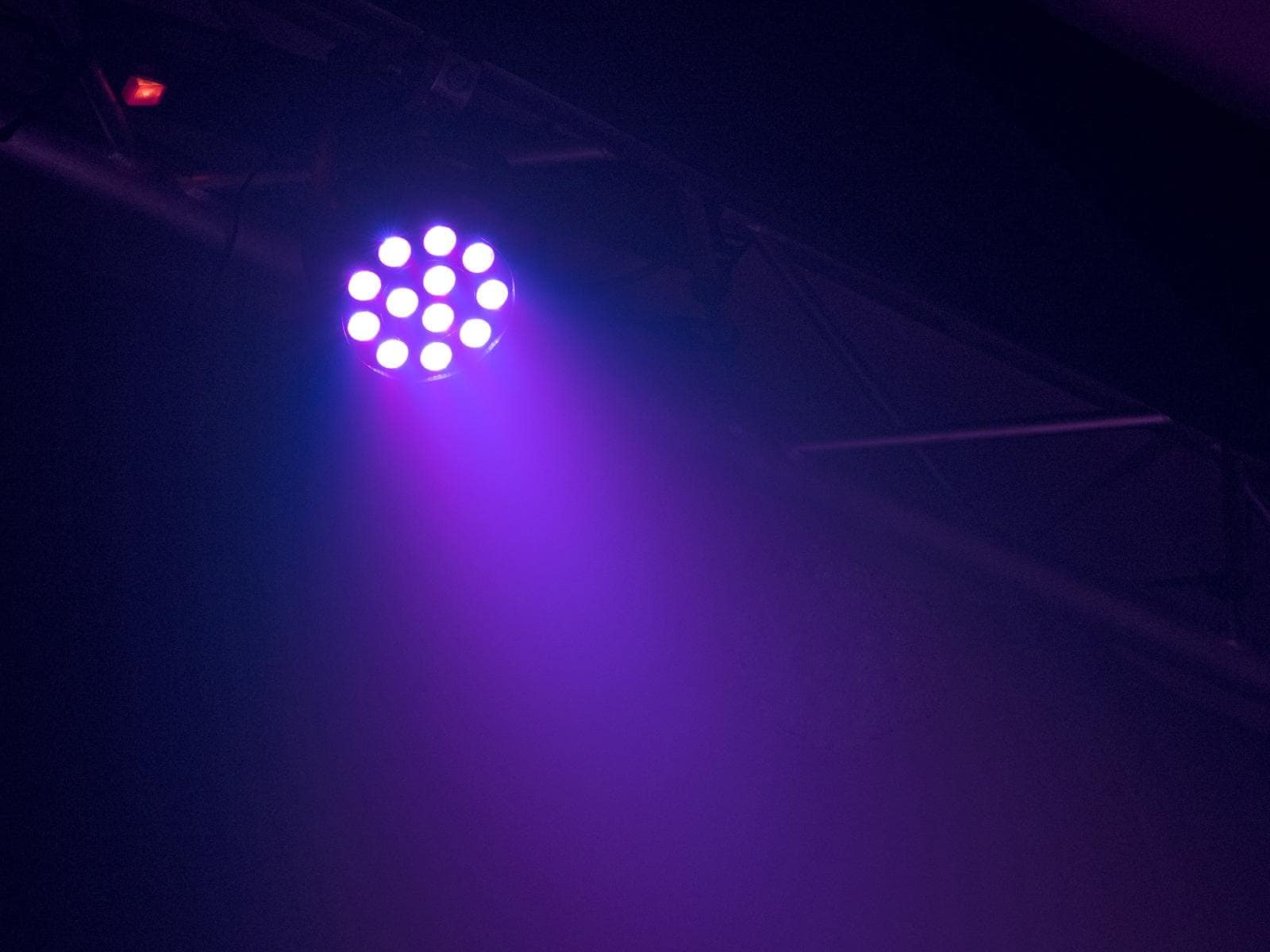

Compact spotlight with 12 x 3 W 3in1 LED in RGB and DMX control

• 12 powerful LEDs 3 W high-power 3in1 TCL RGB (homogenous color mix)
• Strobe effect
• Direct color selection for 18 preset colors
• The device is cooled by cooling fan
• Control via stand-alone; DMX; Sound to light via Microphone
• Flicker-free
• With a beam angle of 17°
• With Mounting bracket
• 4 digit 7-segment LED display
• For application areas such as: Carnival; Party room; Gift idea
• Color change Programs; color blend stepless; pulse effect adjustable; Dimmer electronic
• Preprogrammed in LED PC-Control 512; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; Light´J

Package contents

• 1 x light effect, 1 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
10 W
IP classification:
IP20
Protection class:
Protection class II
Power connection:
Fixed power supply cord with Euro plug
Cable construction:
2 x 0,75 mm² H03VVH2-F
Cable length:
Approx. 0,9 m
Lamp type:
LED lamp
LED:
12 x 3 W high-power 3in1 TCL RGB (homogenous color mix)
DMX channels:
5
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
1 x cooling fan
Control:
Stand-alone; DMX; Sound to light via Microphone
Preprogrammed in:
LED PC-Control 512; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; Light´J
Beam angle:
17°
Beam angle (1/2 peak):
17°
Beam angle (1/10 peak):
38°
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Width: 15 cm
Depth: 9 cm
Height: 16 cm
Weight:
430 g
Mounting bracket
Diameter mounting holes:
1 x Ø12mm; 2 x Ø8mm
Material:
Metal, 1 mm, painted
Color:
Black, matte
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
