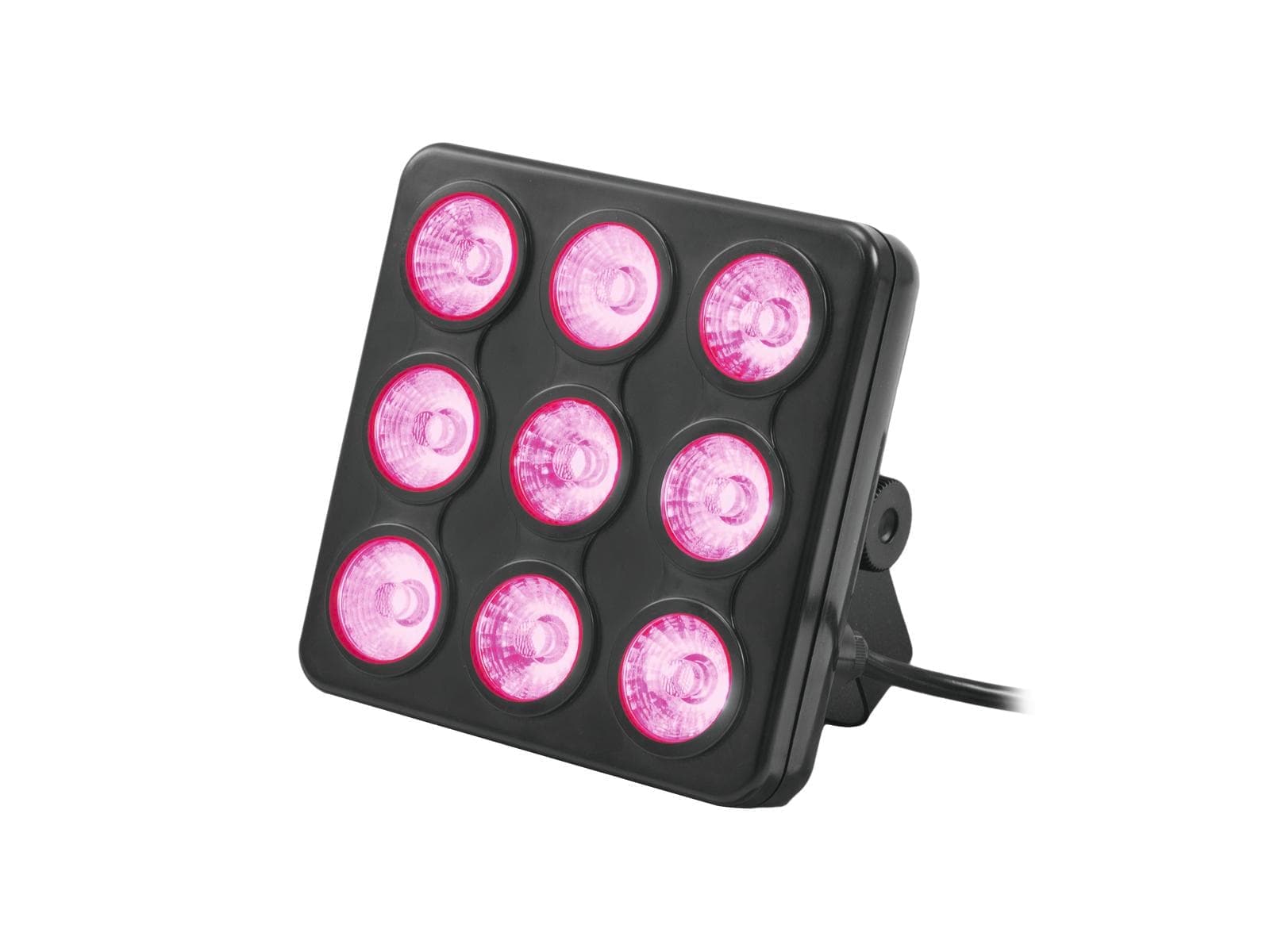

LED party panel with RGB+UV color mixing and DMX
- 9 powerful LEDs 4 W high-power 4in1 QCL RGB/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; UV effect
- Integrated show programs
- Direct color selection for 17 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; Sound to light via Microphone; IR remote control
- Flicker-free
- With double bracket
- 4 digit 7-segment LED display
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x spotlight, 1 x remote control, 1 x battery, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
13 W
IP classification:
IP20
Protection class:
Protection class II
Power connection:
Fixed power supply cord with Euro plug
Fuse:
Fuse serviceable
Lamp type:
LED lamp
LED:
9 x 4 W high-power 4in1 QCL RGB/UV (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
3; 4; 4; 8
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; Sound to light via Microphone; IR remote control
Preprogrammed in:
Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
Housing color:
Black
Attachment system:
Double bracket
Display type:
4 digit 7-segment LED display
Material:
Plastic
Dimensions:
Width: 15 cm
Depth: 5,1 cm
Height: 15 cm
Weight:
750 g
Power cord
Cable construction:
2 x 0,75 mm² H05VVH2-F
Cable length:
Approx. 1,1 m
Mounting bracket
Diameter mounting holes:
1 x Ø11mm
Material:
Metal, 1,4 mm
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
