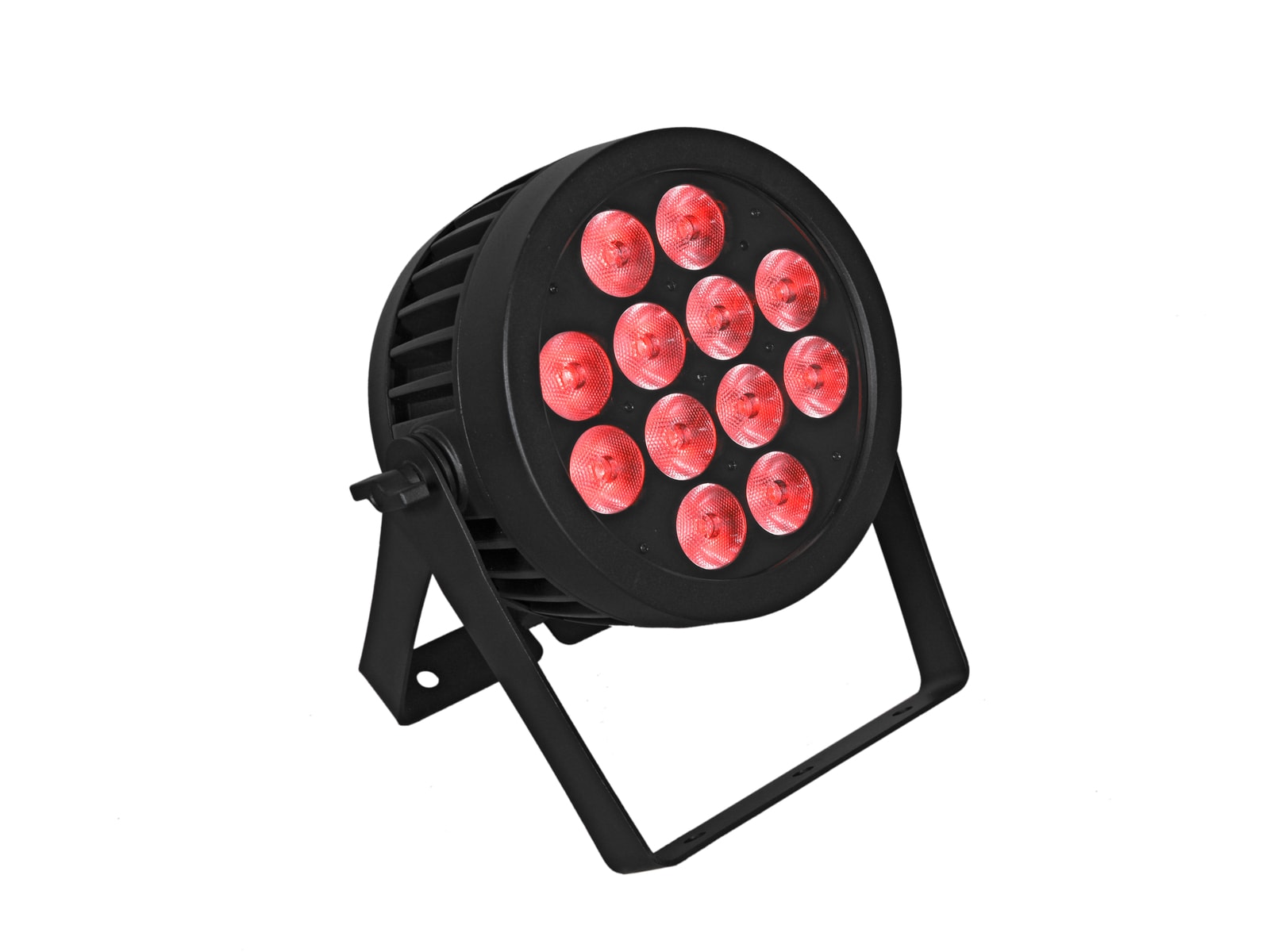

Weather-proof (IP65) spotlight with 12 x 9 W LED and 7in1 SCL RGB/CW/WW/A/UV color mixing

• 12 powerful LEDs 9 W COB (chip-on-board) 7in1 SCL RGB/CW/WW/A/UV (homogenous color mix)
• Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
• Strobe effect
• Direct color selection for 28 preset colors
• The device is cooled by passive convection cooling
• Control via DMX; IR remote control; stand-alone
• Flicker-free
• With a beam angle of 15°
• With double bracket
• LCD display
• Suitable for outdoor use IP65
• Silent operation
• Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
• Mains input and output for power linking up to 8 units
• With pressure compensation membrane

Package contents

• 1 x device, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
75 W
IP classification:
IP65
Protection class:
Protection class I
Power connection:
Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Power output:
IP T-Con (F) mounting version
Lamp type:
LED lamp
LED:
12 x 9 W COB (chip-on-board) 7in1 SCL RGB/CW/WW/A/UV (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
3; 5; 7; 9; 13
DMX input:
3-pin XLR (M) mounting version IP
DMX output:
3-pin XLR (F) mounting version IP
Cooling:
Passive convection cooling
Control:
DMX; IR remote control; stand-alone
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
15°
Beam angle (1/2 peak):
15°
Beam angle (1/10 peak):
29°
Housing color:
Black
Attachment system:
Double bracket
Display type:
LCD display
Material:
Aluminum casting
Dimensions:
Width: 28,5 cm
Depth: 15,3 cm
Height: 31,35 cm
Weight:
5,20 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 1,0 mm² H05RN-F
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
3 x Ø11mm
Material:
Metal, 2,5 mm
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
