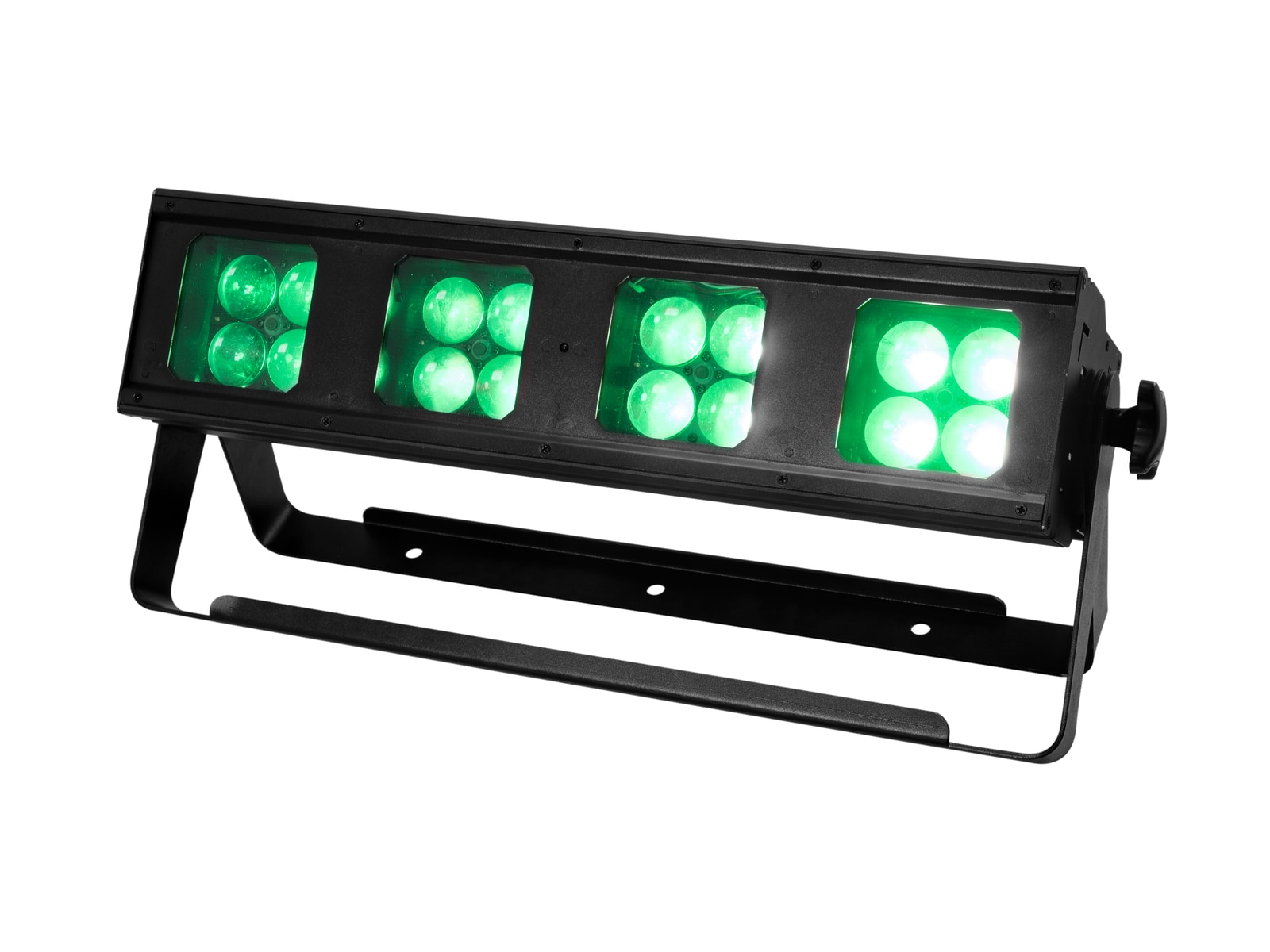

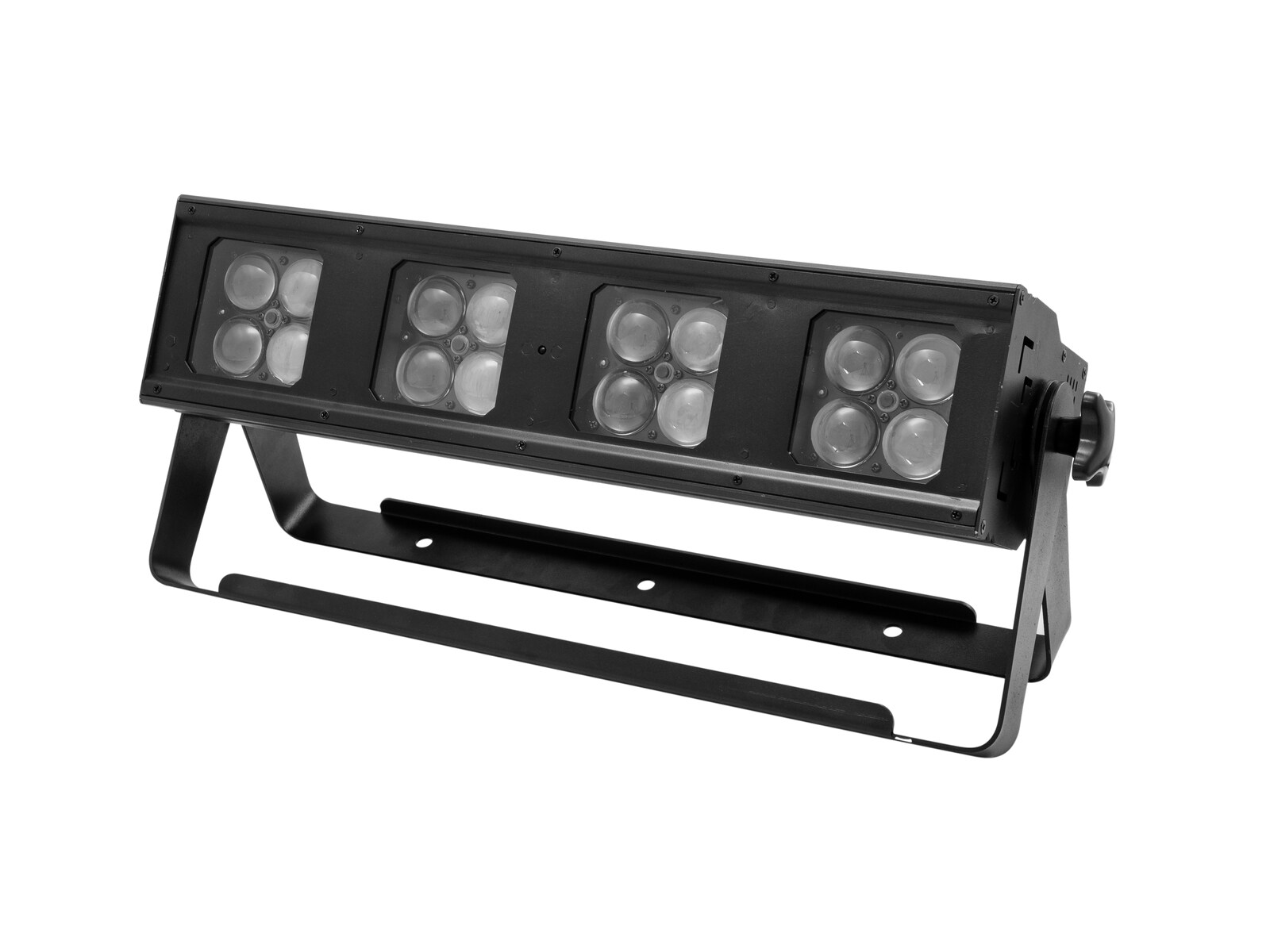

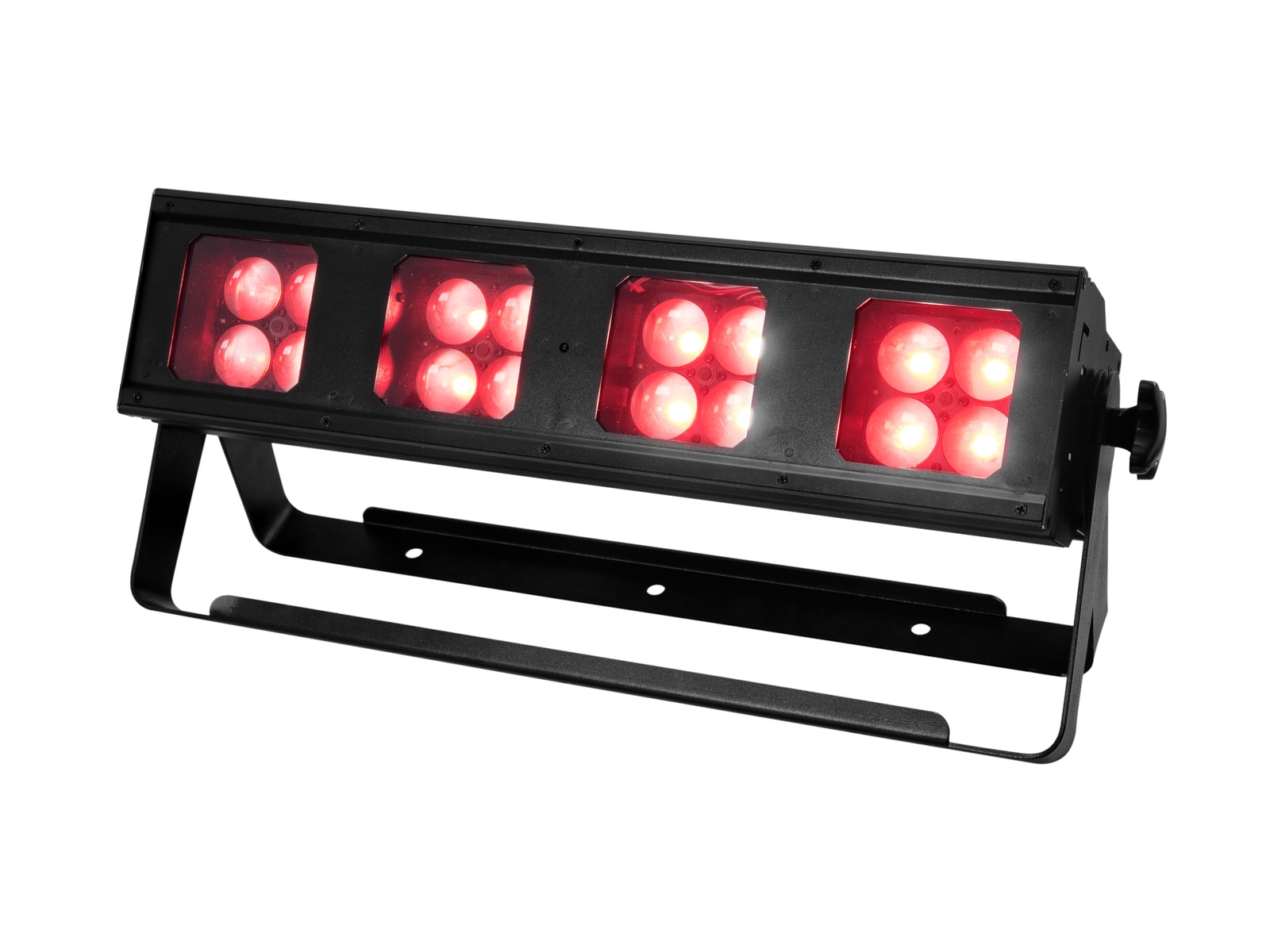

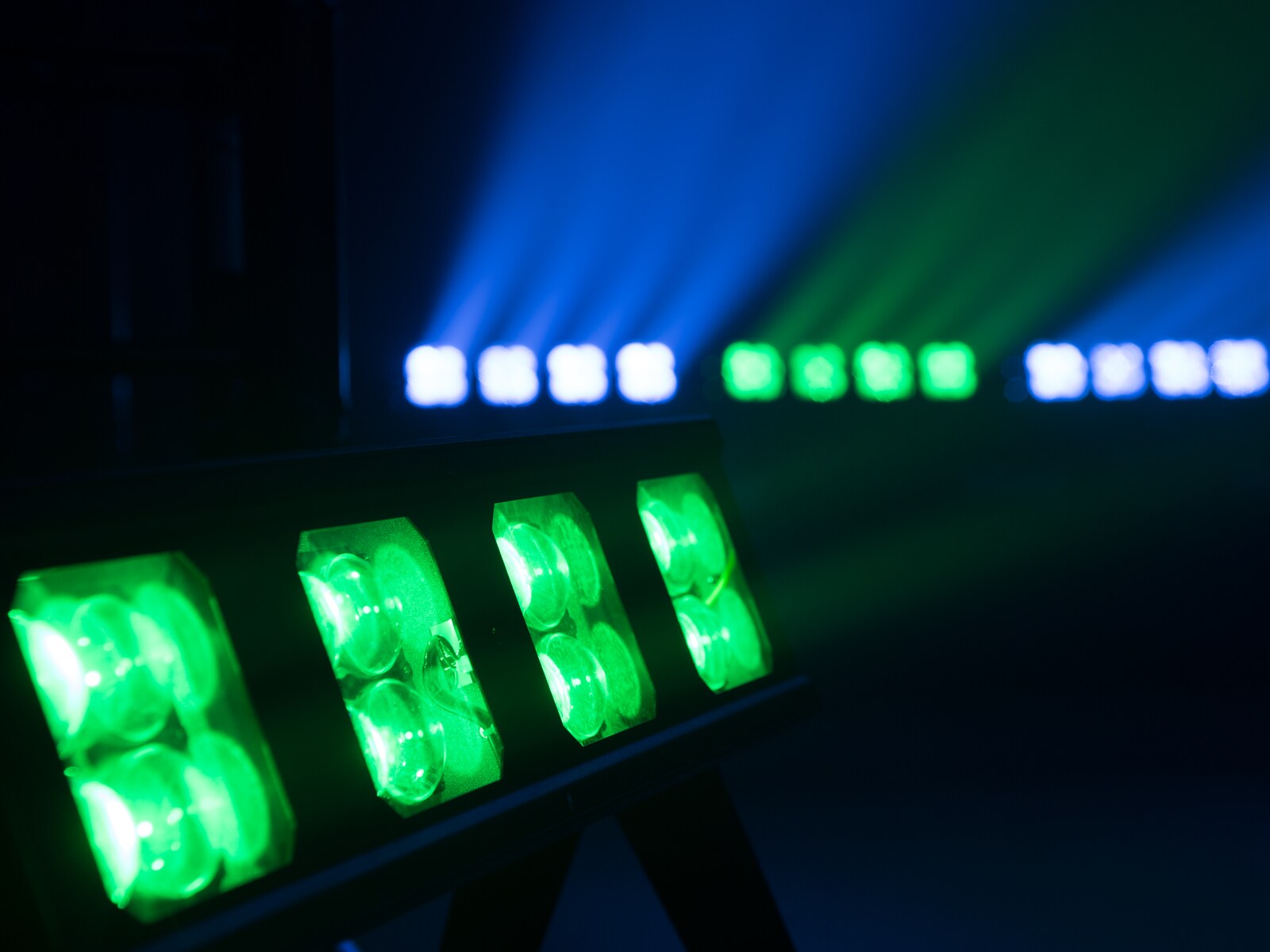

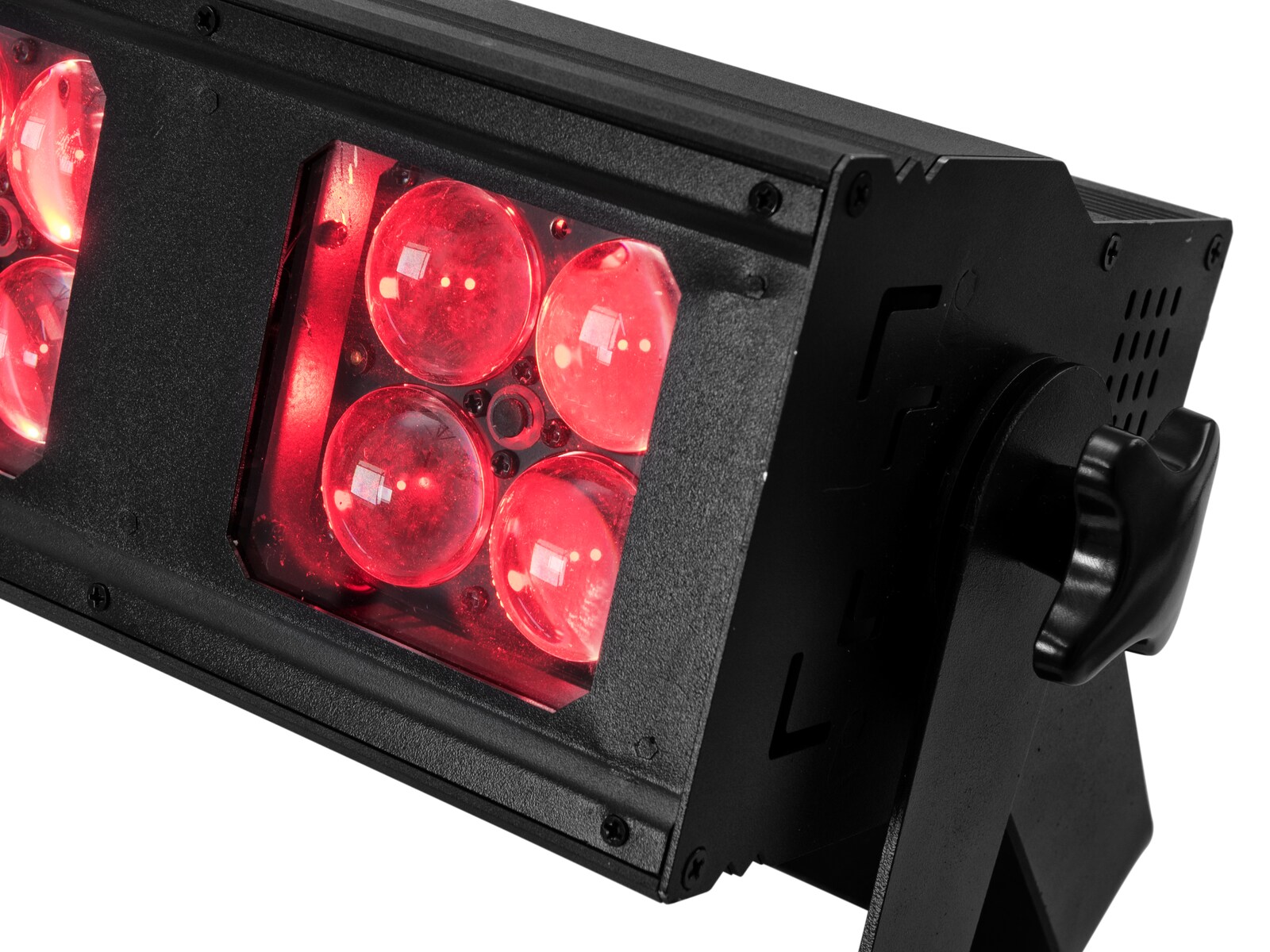

LED zoom effect bar with RGBW color mixing, incl. IR remote control
- 4 segments for dynamic running lights
- 16 powerful LEDs 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
4 segments separate controlling - Zoom motor-driven
- Strobe effect
- Integrated show programs
- Direct color selection for 17 preset colors
- The device is cooled by cooling fan
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); Master/slave function
- Flicker-free
- With a beam angle of 5° - 80°

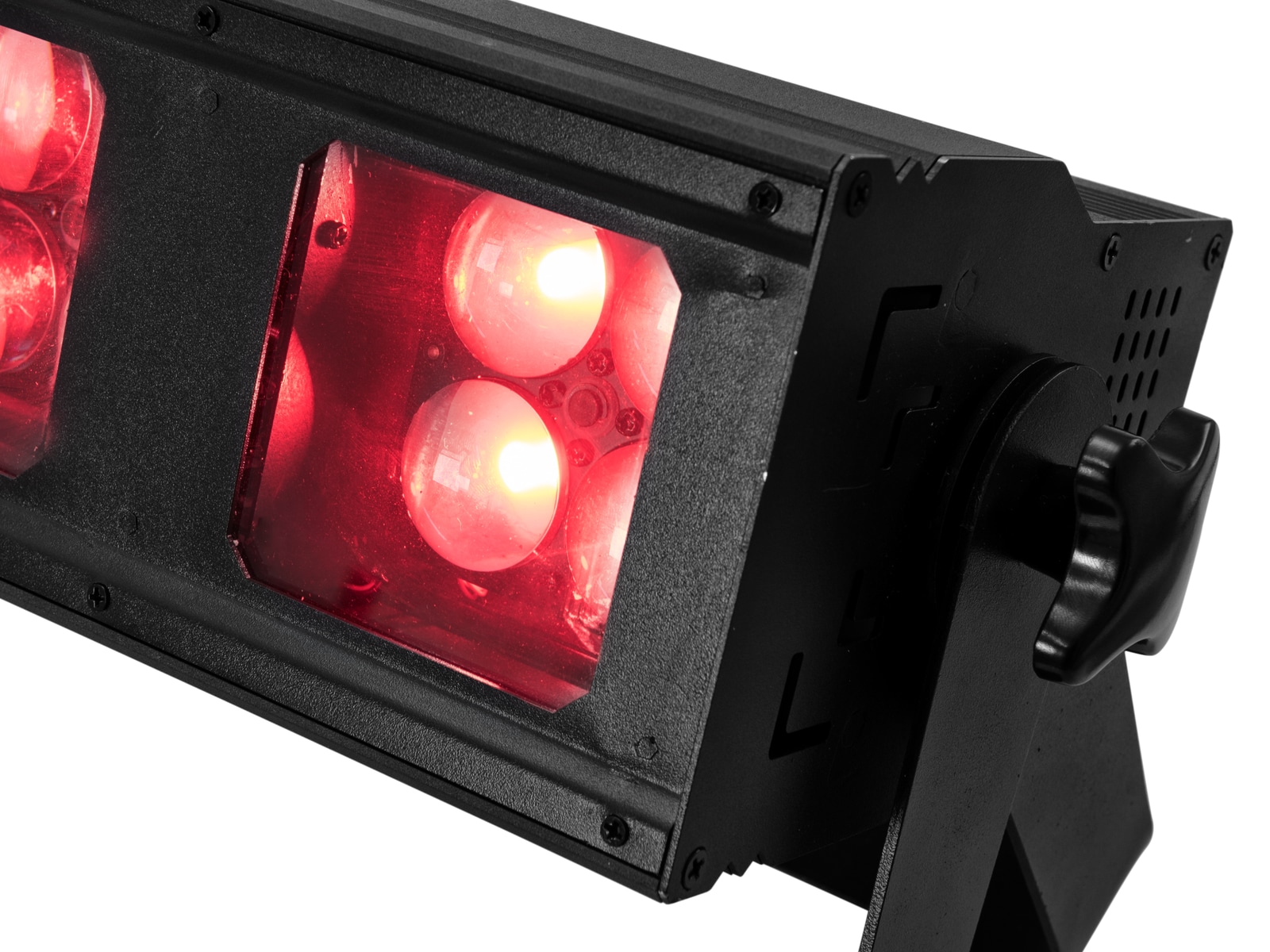

- With double bracket
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
Package contents
- 1 x remote control
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
140 W
IP classification:
IP20
Protection class:
Protection class I

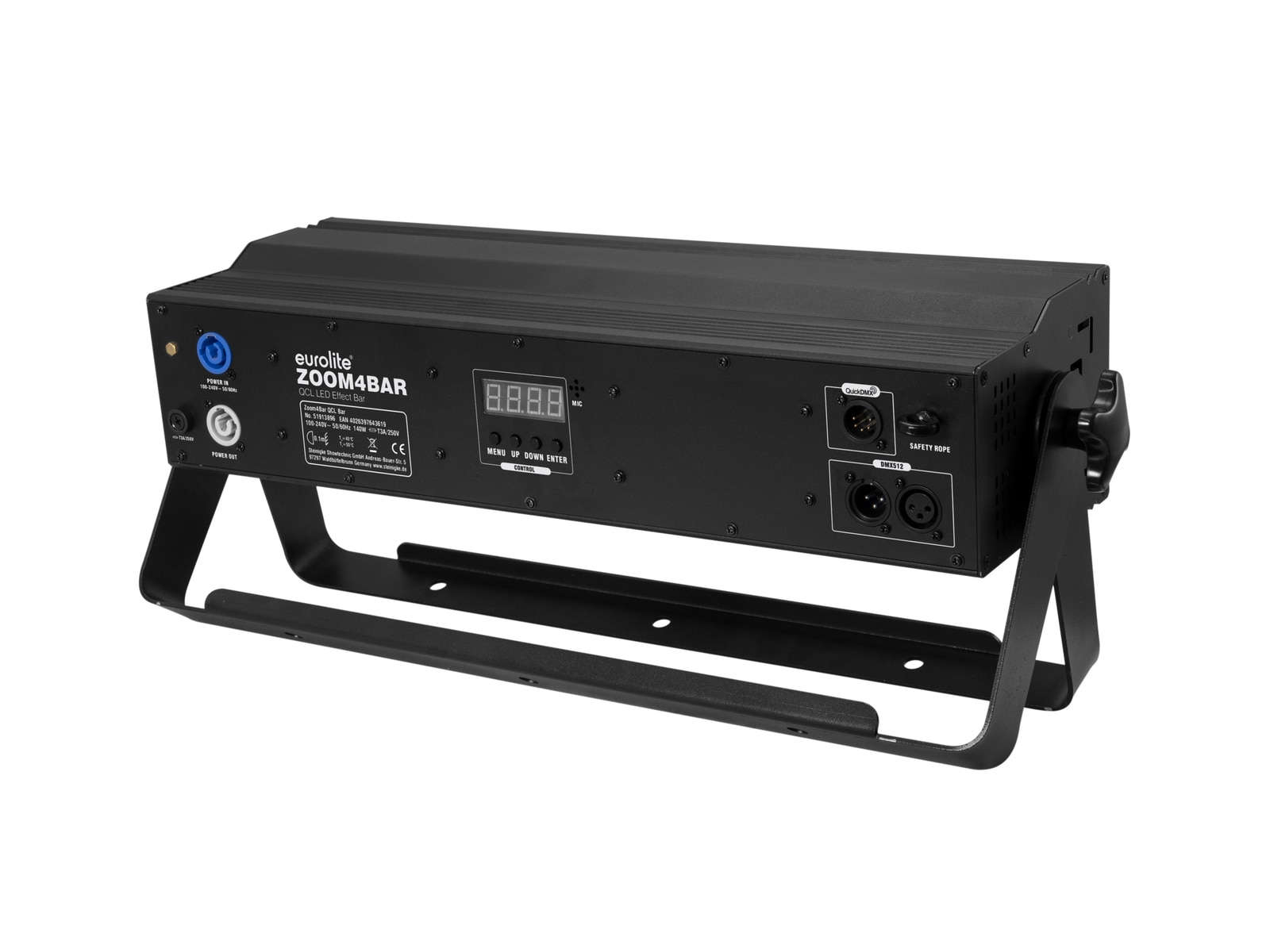

Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
1 x P-Con (gray), mounting version
Lamp type:
LED lamp
LED:
16 x 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
Flash rate:
0 - 20 Hz
Equipment:
Zoom motor-driven
DMX channels:
5; 7; 9; 20; 26
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); Master/slave function
Preprogrammed in:
Light´J; LED PC-Control 512; Light Captain
Beam angle:
5° - 80°
Beam angle (1/2 peak):
5 - 75°
Beam angle (1/10 peak):
10 - 80°
Housing color:
Black
Attachment system:
Double bracket
Dimensions:
Width: 57,5 cm
Depth: 19,5 cm
Height: 23 cm
Weight:
8,95 kg
Photobiological safety:
Risk Group 0
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
