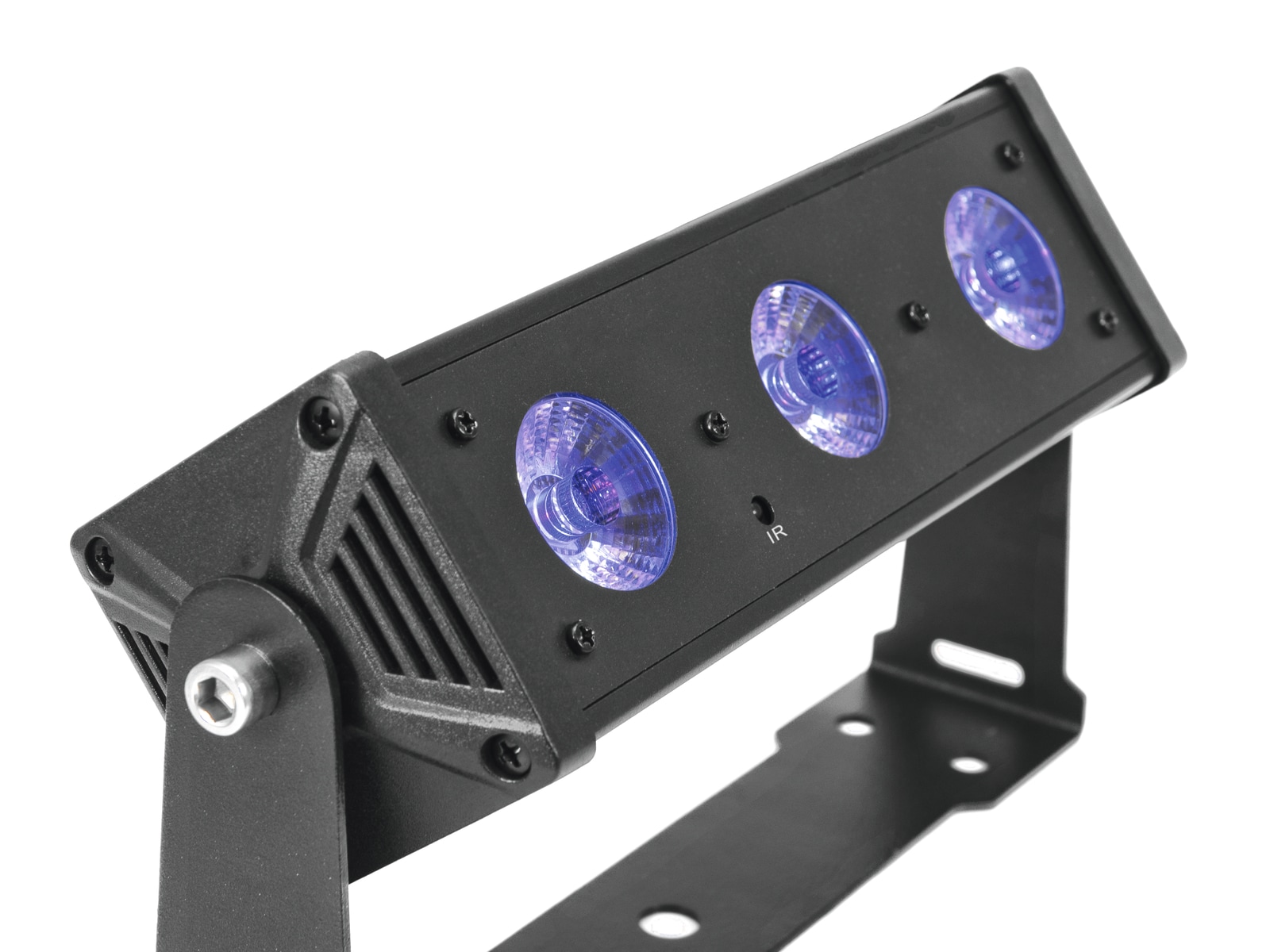

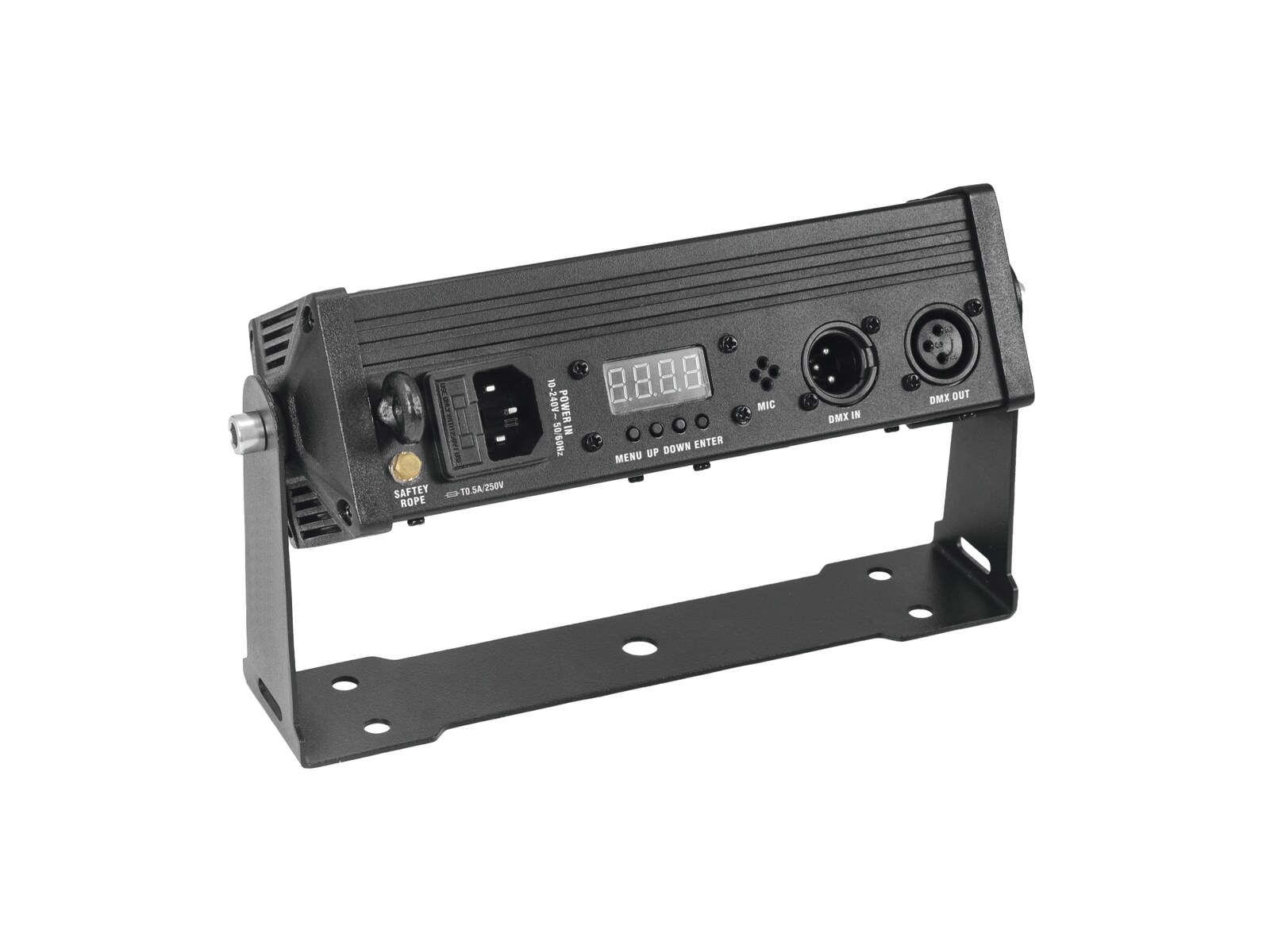

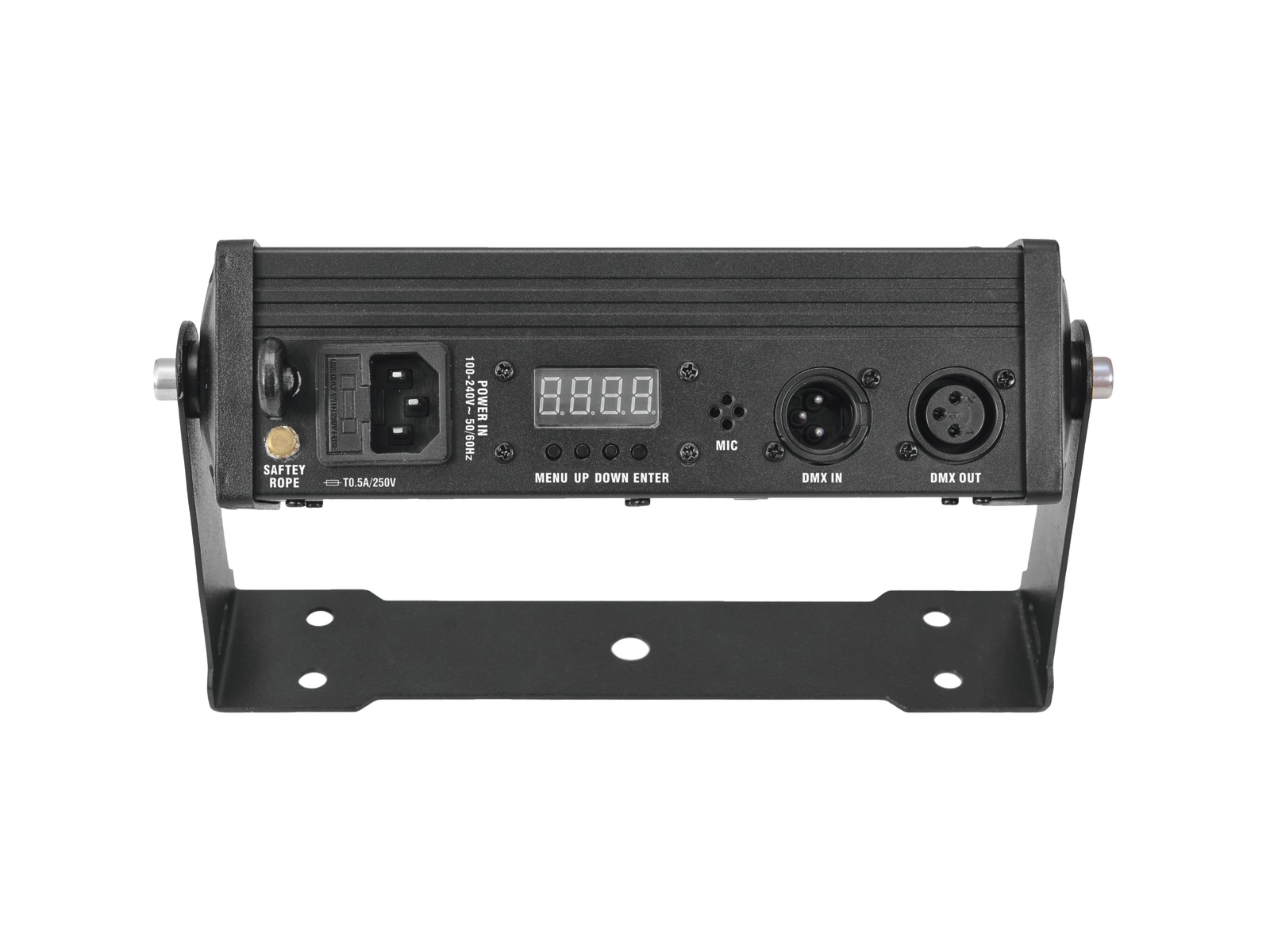

Compact (26 cm) bar with 3 x 12 W 6in1 LED and RGBWA+UV color mixing

• 3 powerful LEDs 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
• Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
• Strobe effect; UV effect
• Integrated show programs
• Direct color selection for 19 preset colors
• The device is cooled by passive convection cooling
• Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function
• Flicker-free
• With a beam angle of 20°
• With Mounting bracket
• 4 digit 7-segment LED display
• Preprogrammed in EASY SHOW 3; EASY SHOW 2; Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
• Silent operation

Package contents

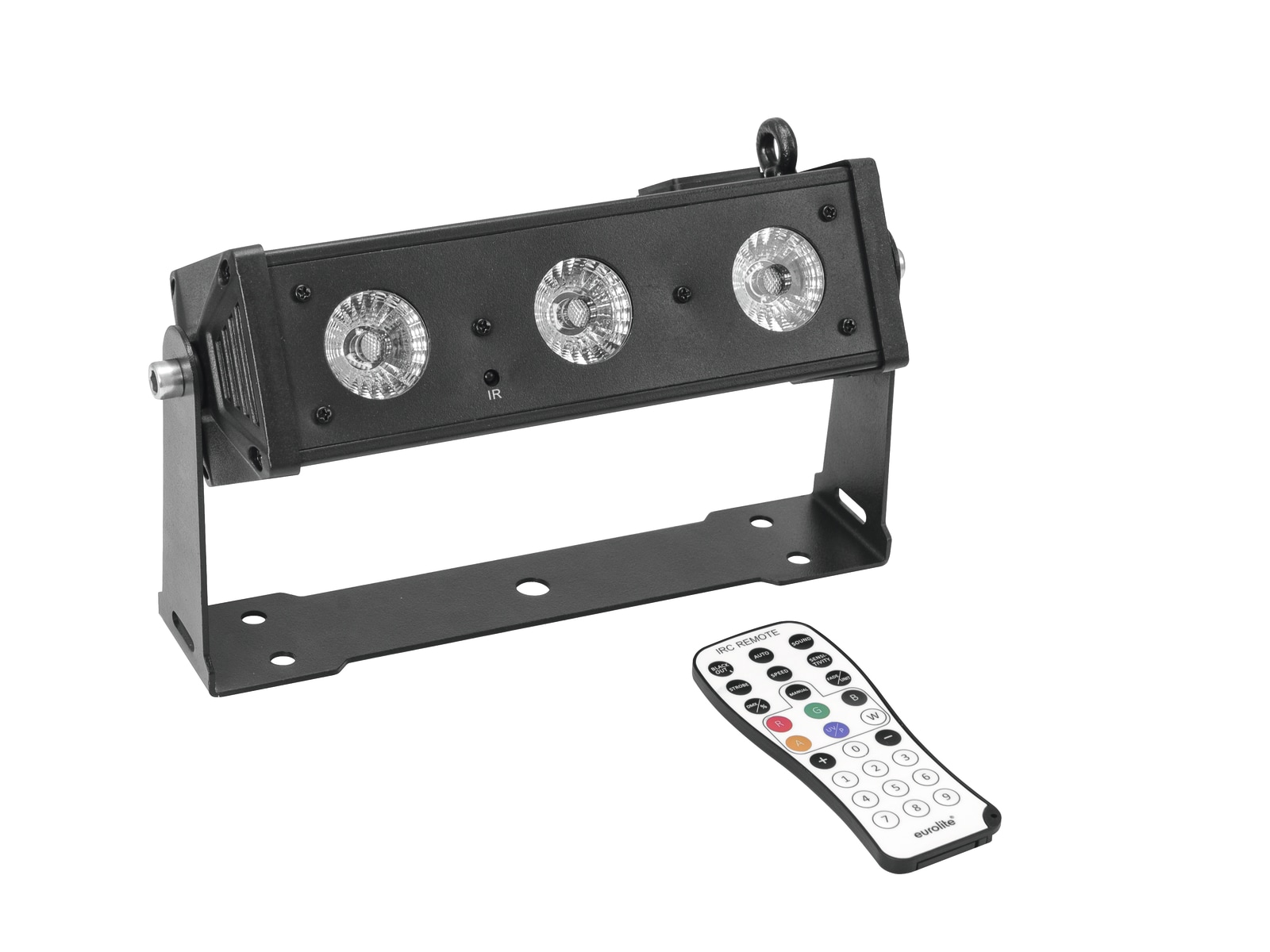

• 1 x light effect, 1 x power cord, 1 x remote control, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
12 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Fuse:
5 x 20 mm, T 0,5 A Fuse replaceable
Lamp type:
LED lamp
LED:
3 x 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
2; 3; 4; 6; 10
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function
Preprogrammed in:
EASY SHOW 3; EASY SHOW 2; Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
20°
Beam angle (1/2 peak):
20°
Beam angle (1/10 peak):
40°
Wavelength:
Ultra violet (UV) 400 nm
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
Material:
Aluminum casting; metal; Plastic hard
Dimensions:
Length: 26,5 cm
Depth: 8,7 cm
Height: 12,9 cm
Weight:
1,13 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 0,75 mm² H05VV-F
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
1 x Ø11mm; 4 x Ø8mm; 2 x Ø5mm
Material:
Metal, 2 mm
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
