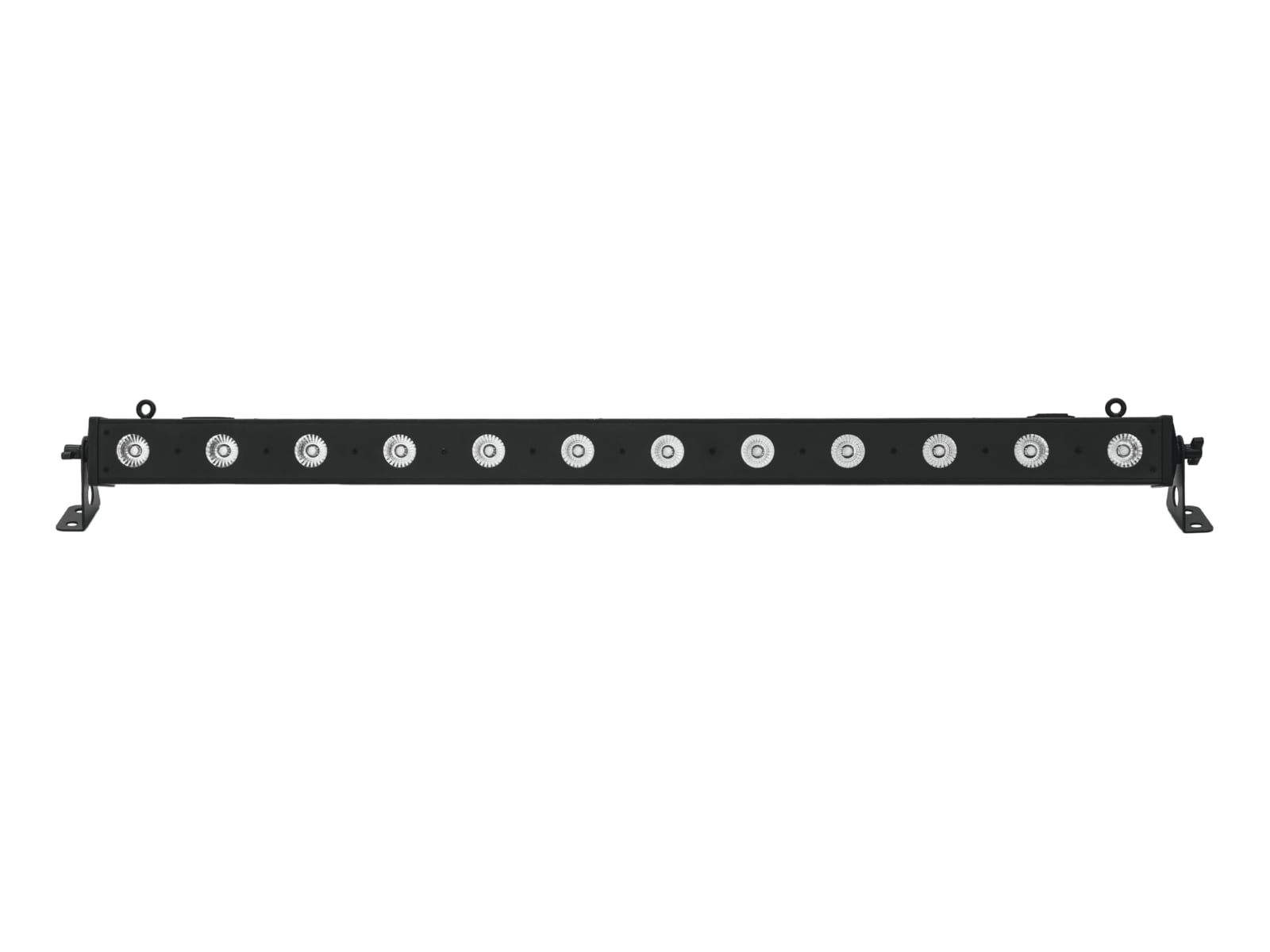

Light effect bar (1 m) with UV LEDs

• 12 powerful LEDs 1 W high-power ultra violet (UV)
• Dimmer electronic

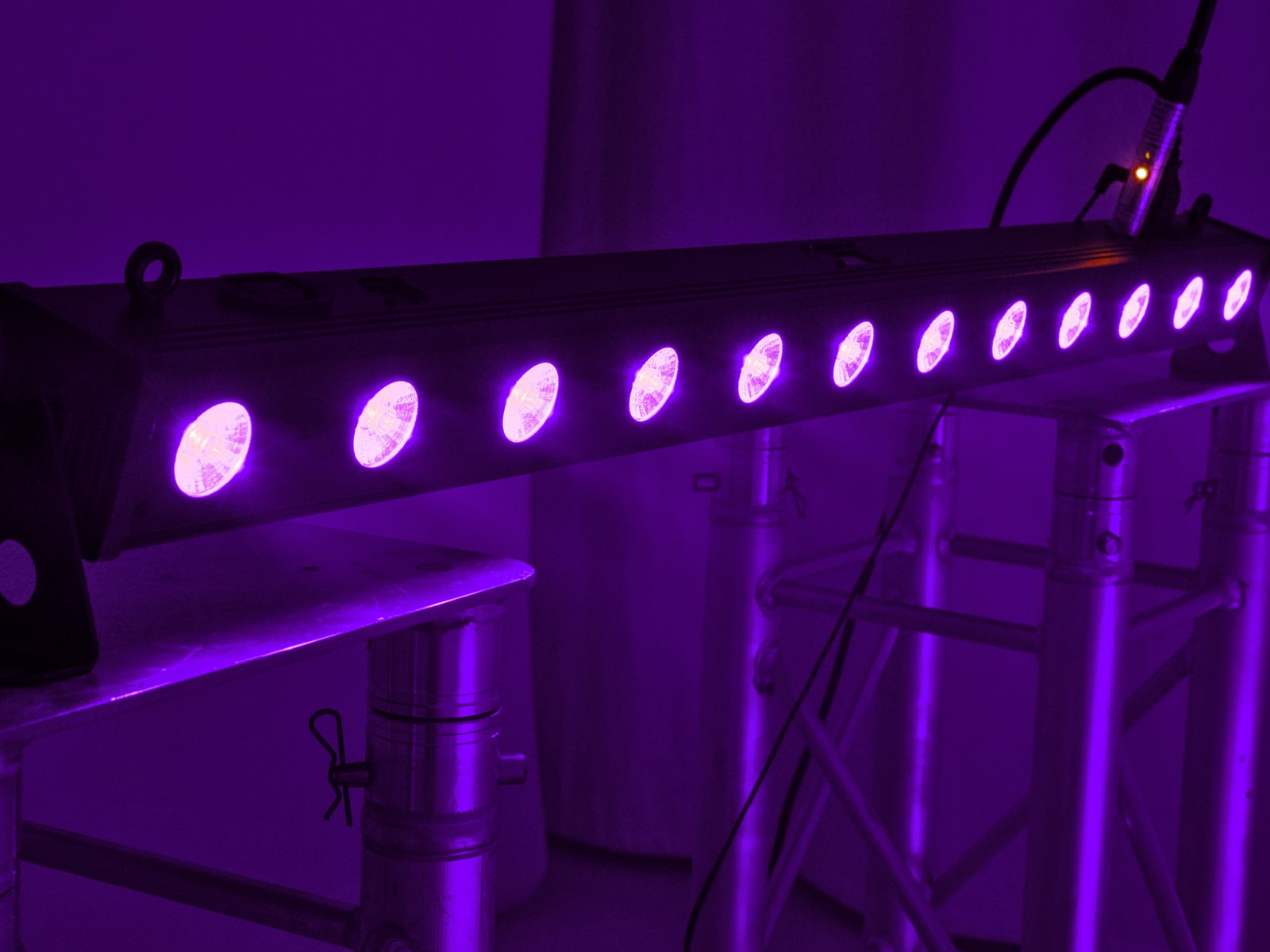

• UV effect
• The device is cooled by passive convection cooling
• Control via DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Flicker-free

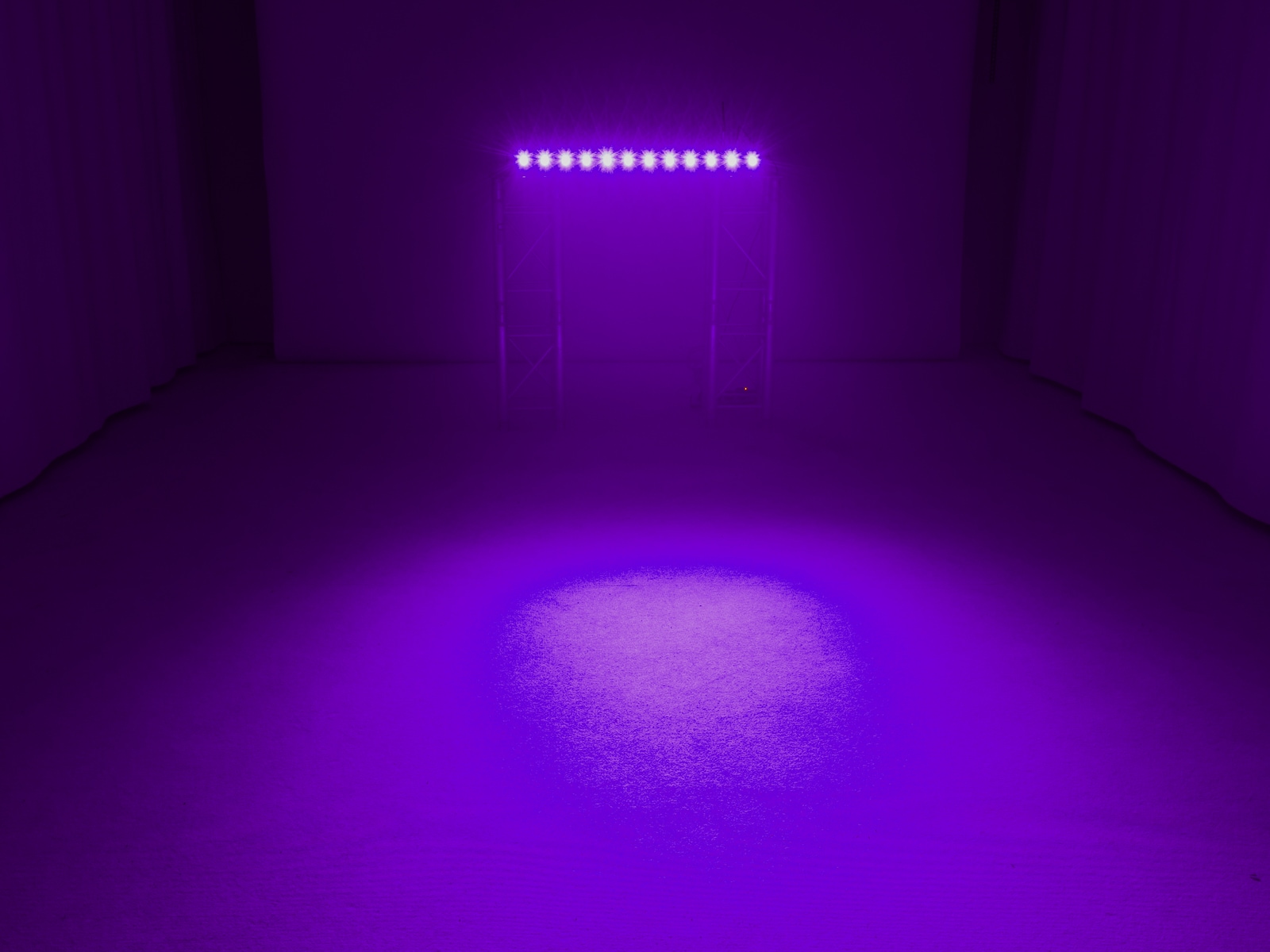

• With a beam angle of 14°
• With Mounting bracket

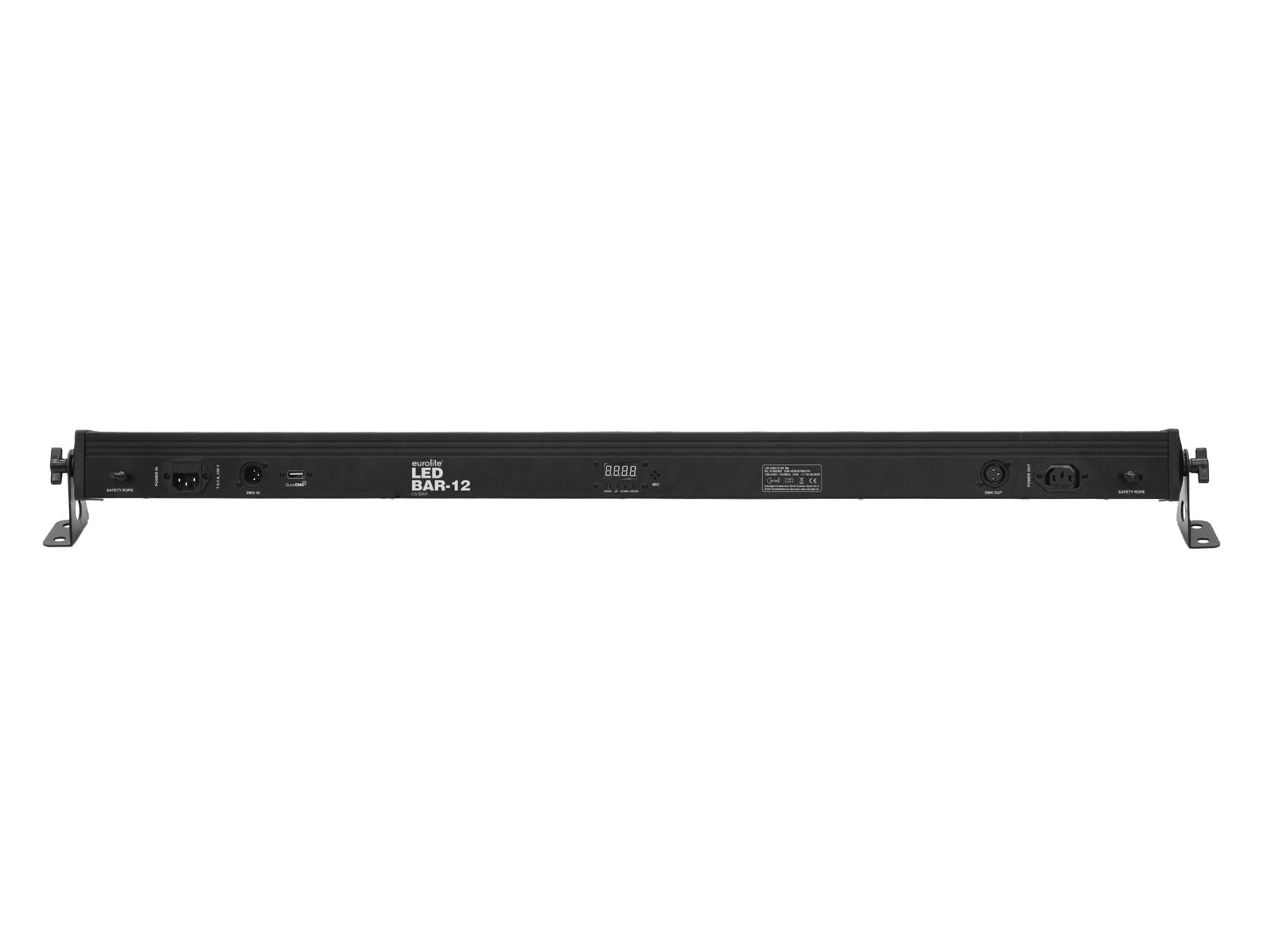

• 4 digit 7-segment LED display
• Silent operation
• Mains input and output for power linking up to 8 units

Package contents

• 1 x light effect, 1 x power cord, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
25 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
IEC connector (F) mounting version
Lamp type:
LED lamp
LED:
12 x 1 W high-power ultra violet (UV)
DMX channels:
1; 2
Cooling:
Passive convection cooling
Control:
DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Beam angle:
14°
Beam angle (1/2 peak):
14°
Beam angle (1/10 peak):
24°
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Length: 1,06 m
Depth: 8,5 cm
Height: 11,5 cm
Weight:
2,65 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 0,75 mm² H05VV-F
Cable length:
Approx. 1,1 m
Mounting bracket
Diameter mounting holes:
1 x Ø20mm; 1 x Ø11mm; 1 x Ø8mm; 2 x Ø7mm
Material:
Metal, 2 mm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
