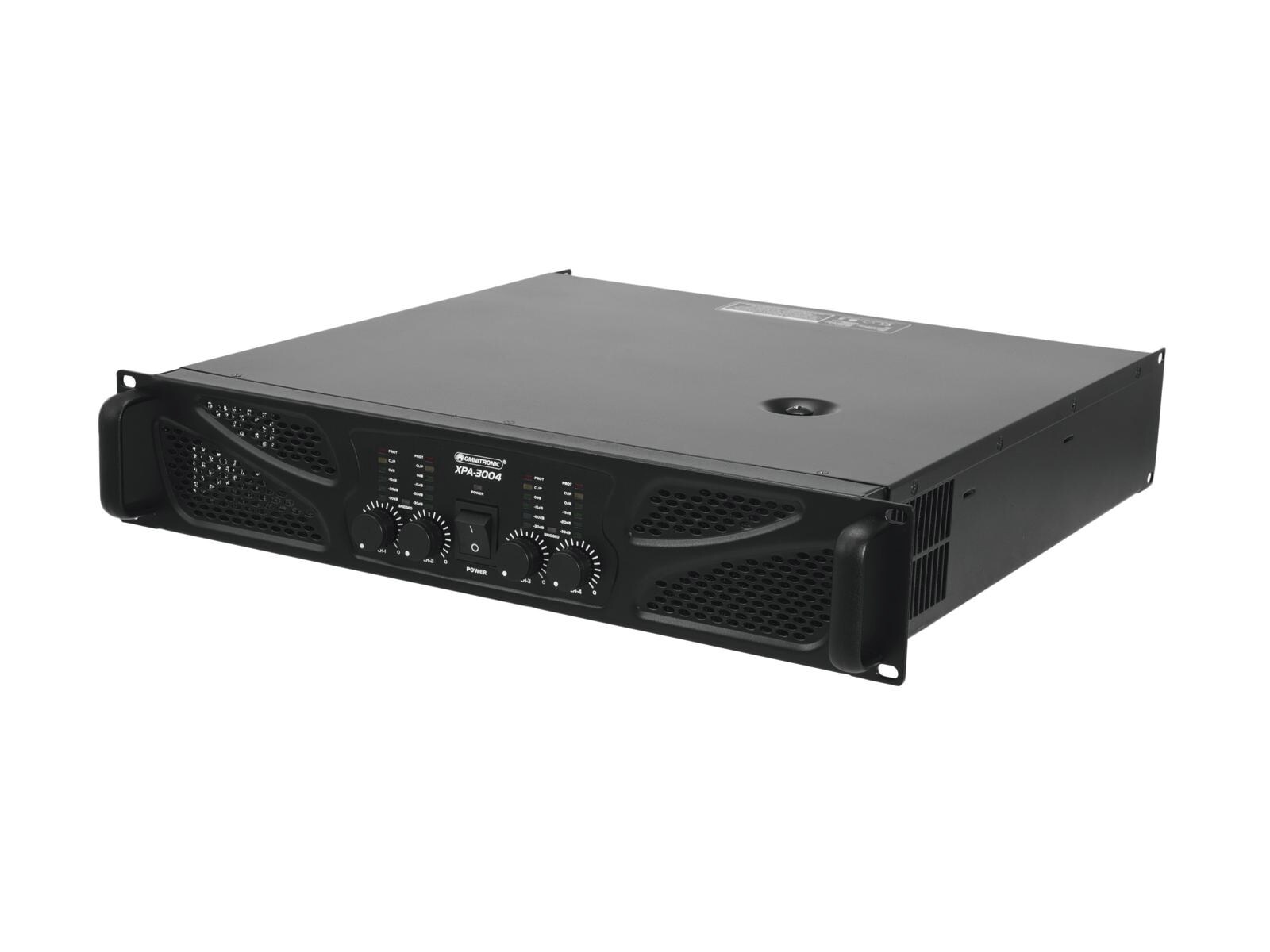

4-channel PA amplifier with integrated limiter, 4 x 750 W / 4 ohms, 4 x 500 W / 8 ohms

• 3 operating modes can be selected (stereo, parallel or bridged)
• Input sensitivity adjustable
• Level control per channel
• Each channel with LED for activated protective circuit (protect) and output meter with clip LED
• Signal inputs via XLR connectors
• Speaker outputs via lockable Speaker plugs
• Class H circuitry
• Highly efficient Air flow from front to rear
• The device is cooled by temperature-controlled fan
• (19") 48.3 cm rack installation 2 U

Package contents

• 1 x amplifier, 1 x user manual, 4 x foot, 4 x screw, 1 x power cord

Power supply:
230 V AC, 50 Hz
Power consumption:
700 W 1/8 power
Output power:
4 x 750 W RMS (4 ohms)
4 x 500 W RMS (8 ohms)
2 x 1500 W RMS bridged (8 ohms)
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>100 dB
THD:
10 V/µs
Damping factor:
>200
Control elements:
Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
Controls:
Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient
Status LED:
Power, level meter, clip, bridged, protect
Connections:
Input: line via 4 x 3-pin XLR
Output: speaker via 4 x speaker built-in socket (F)
Output: Speaker (bridge) via 2 x speaker built-in socket (F)
Input sensitivity:
0,775 V; 1,4 V , switchable
Housing design:
(19") 48.3 cm rack installation 2 U
Dimensions:
Width: 48,3 cm
Depth: 41,5 cm
Height: 8,9 cm
Weight:
19,20 kg
