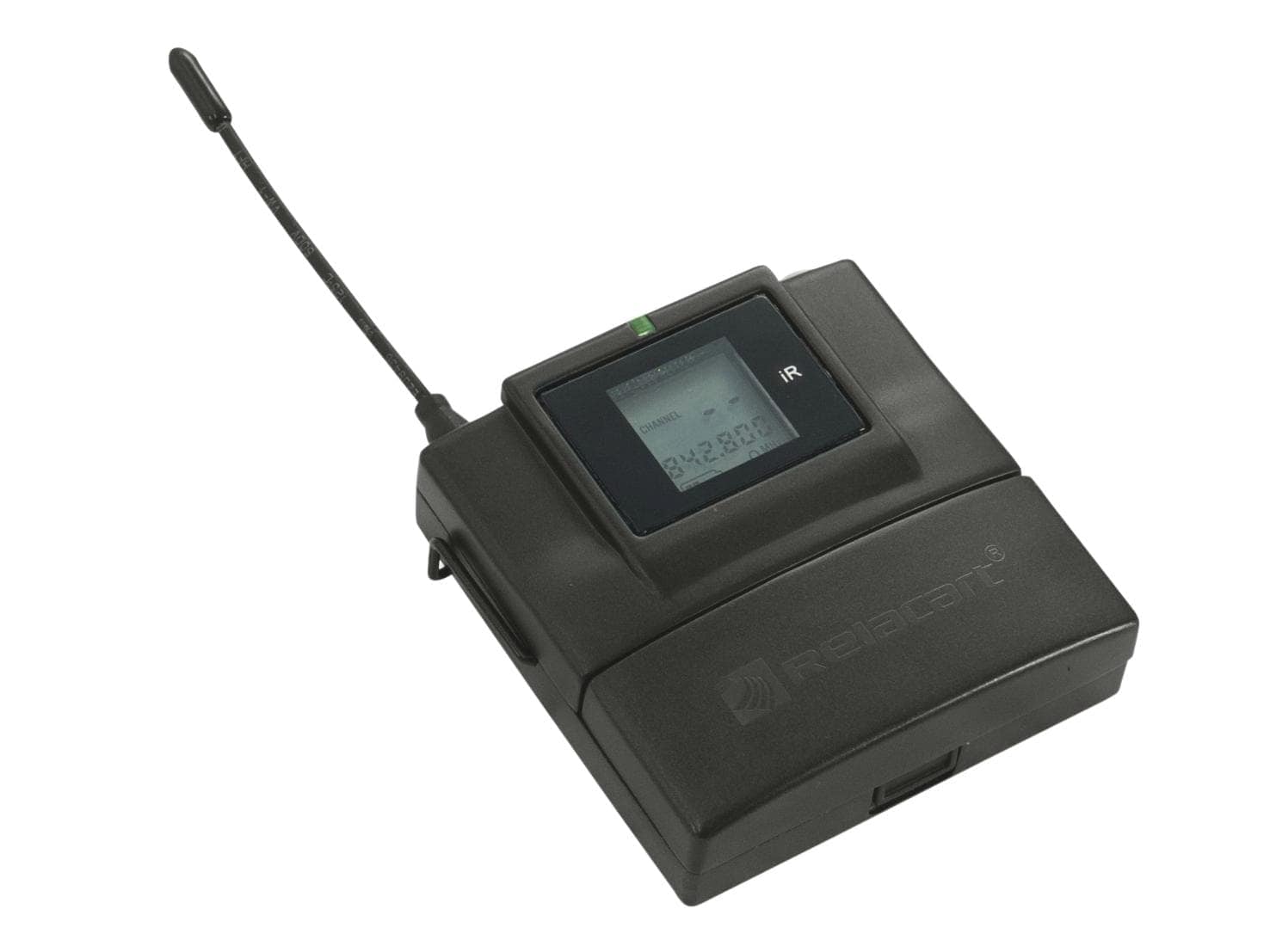

Bodypack transmitter with PLL multifrequency transmitter, 731-790 + 823-832 MHz

• Durable aluminum alloy housing, applicable for touring
• Lavalier microphone LM-C400 optional
• Pilot frequency squelch technology delete wireless RF interference
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• LCD for battery status, frequency and channel
• Mute mode
• Switchable between microphone and instrument input
• License-free and approved in large parts of the EU (please check on a country-by-country basis)

transmitter

• Operating range up to 80m with line-of-sight

Microphone

• Polar pattern: Omnidirectional

Package contents

• 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity

Type:
Bodypack with microphone
Switching bandwidth:
68 MHz
Weight:
120 g
Transmitter
Type:
Pocket transmitter
Power supply:
1,5 V DC
Battery:
1 x Mignon (AA) (not included)
Frequency range:
45 - 18000 Hz
Connections:
Input: Microphone via 1 x Mini XLR (M) 4-pin mounting version 5 V
Frequency band:
UHF 731 - 790 MHz; UHF 823 - 832 MHz
Frequency selection:
292 Switchable frequencys
In 10 groups with up to 25 preset frequencies each and
In 8 groups with up to 7 preset frequencies each
Modulation:
FM
RF power output:
50 mW
Range:
80 m with line-of-sight
Switch:
Mute control; on/off switch
Material:
Aluminum
Color:
Black
Dimensions:
Width: 6,3 cm
Depth: 2 cm
Height: 7,1 cm
Microphone
Type:
Headset
Power supply:
2-10 V DC
Power connection:
Via Mini XLR (F) 4-pin
Cable length:
1 m
Capsule type:
Condenser
Size: Ø 5 mm x 6 mm
Polar pattern:
Omnidirectional
Sensitivity:
-47 dB
Impedance:
2200 Ohm
Material:
Metal
Color:
Skin-colored
Weight:
20 g
