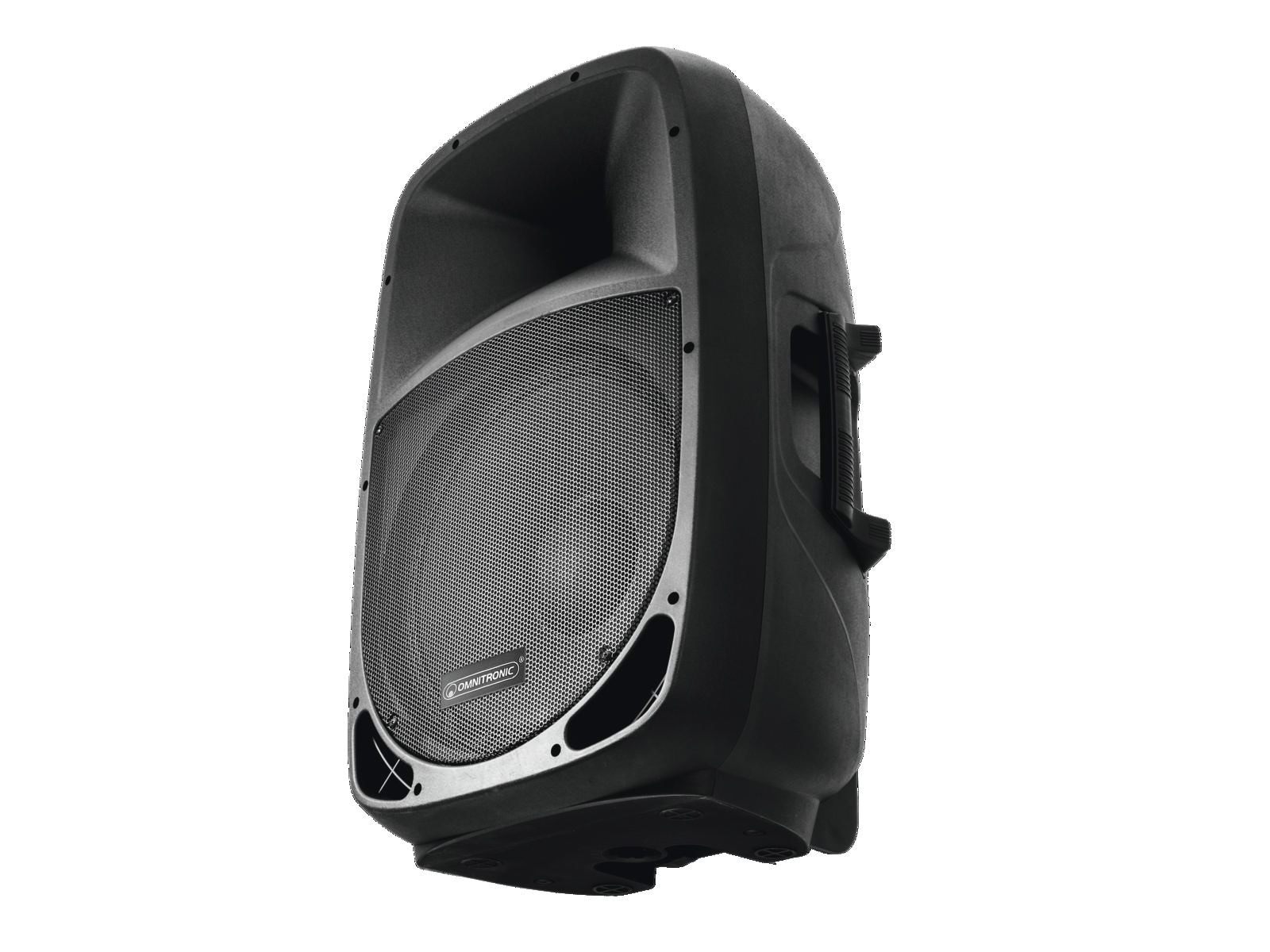

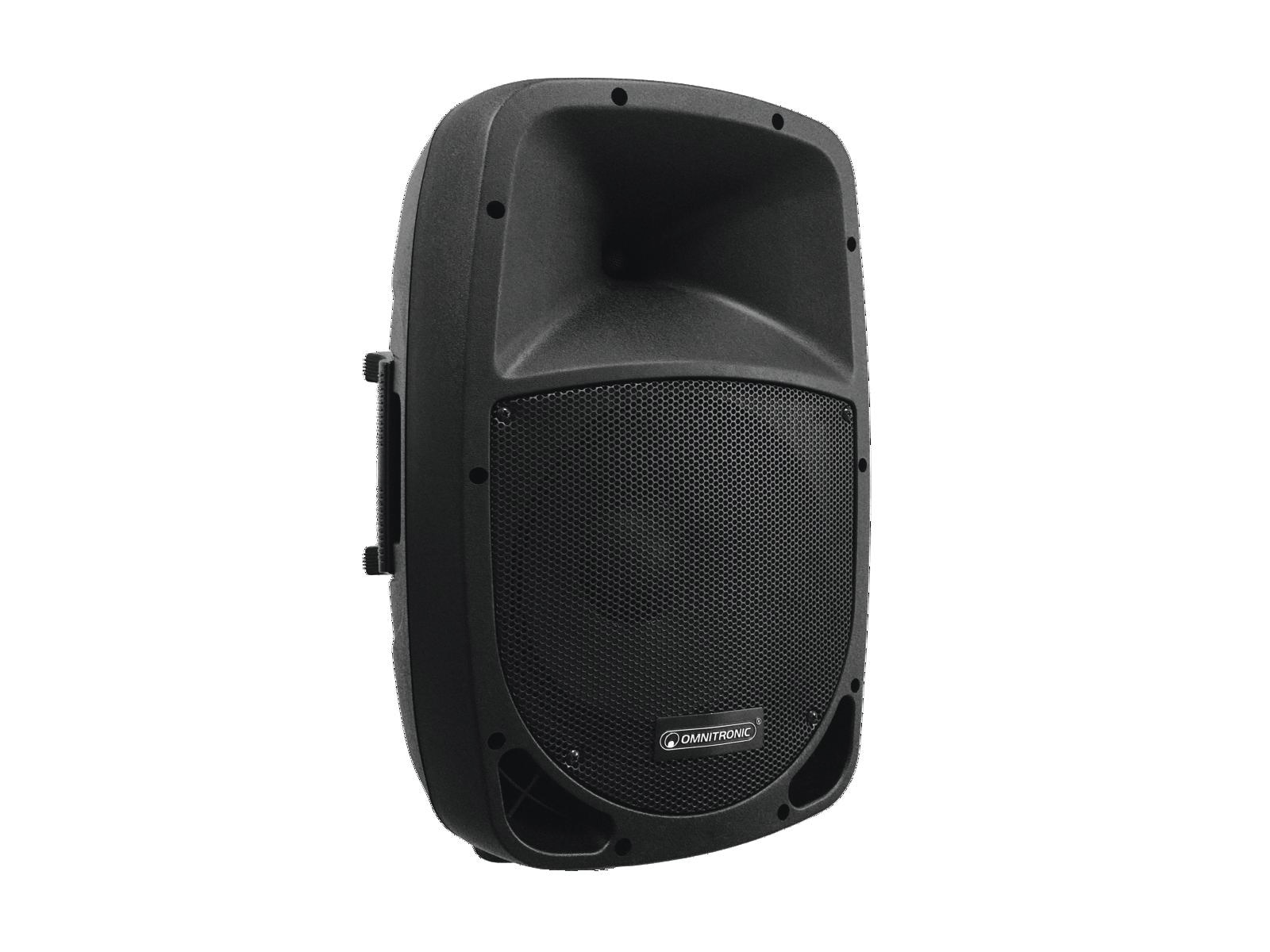

Aktive speaker, 12" woofer, 1" driver, 140 W RMS

• Class A/B circuitry: optimum sound and power at low weight and compact dimensions
• 2-way bass-reflex system with 30 cm woofer and 2.5 cm tweeter
• 2 mic inputs with separate level controls
• Line input, RCA
• Master control with 2-band EQ
• For application areas such as: Mobile djs/entertainer
• Black metal grille

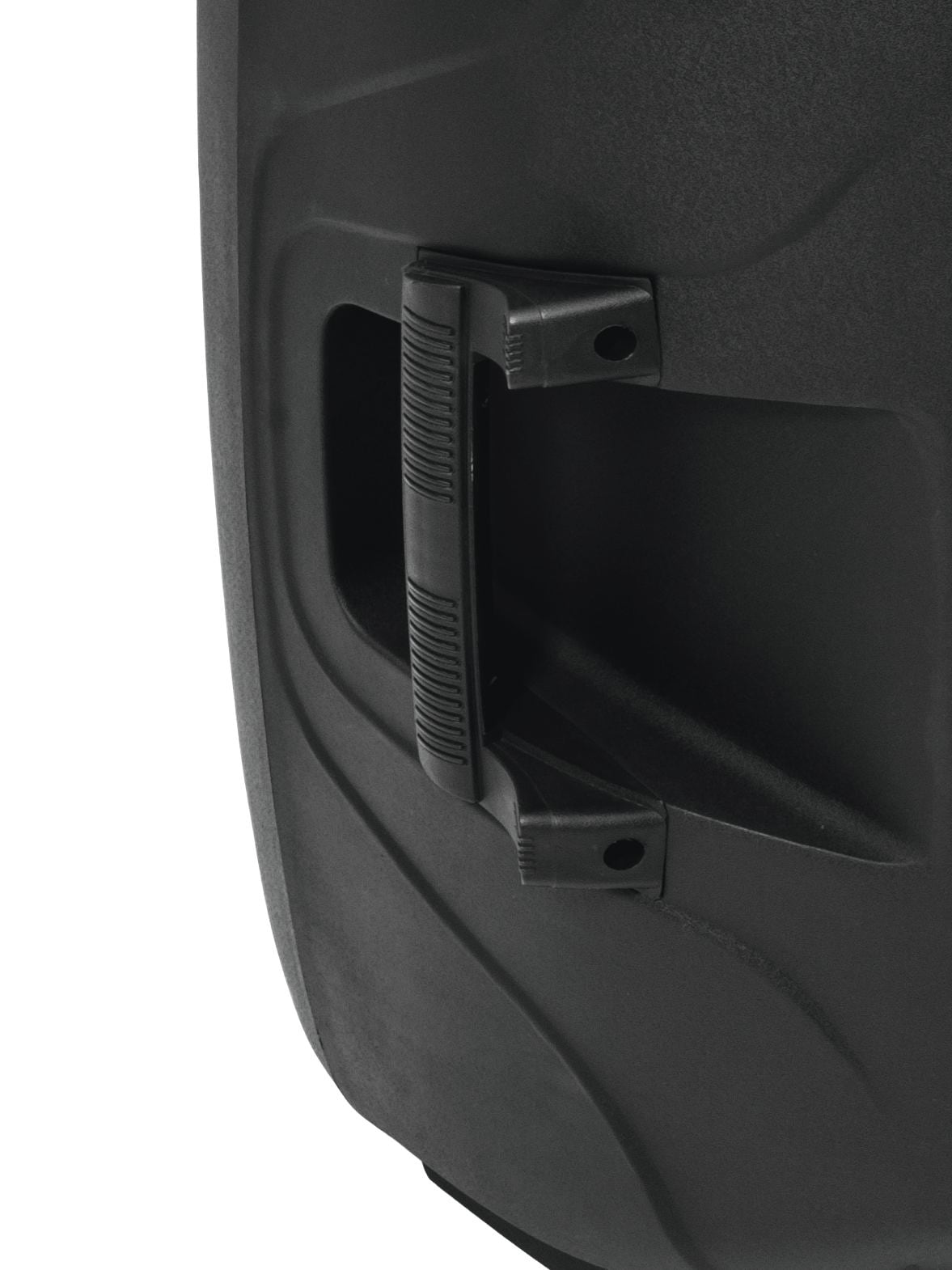

• 2 Rugged carrying handles
• Application possibility: Standing; monitoring; on tripod

Package contents

• 1 x compact cabinet speaker, 1 x user manual, 1 x power cord

Power supply:
230 V AC, 50 Hz
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:
Program: 280W
Rated: 140W RMS
Frequency range:
50 - 20000 Hz
Max. SPL:
120 dB
Attachment system:

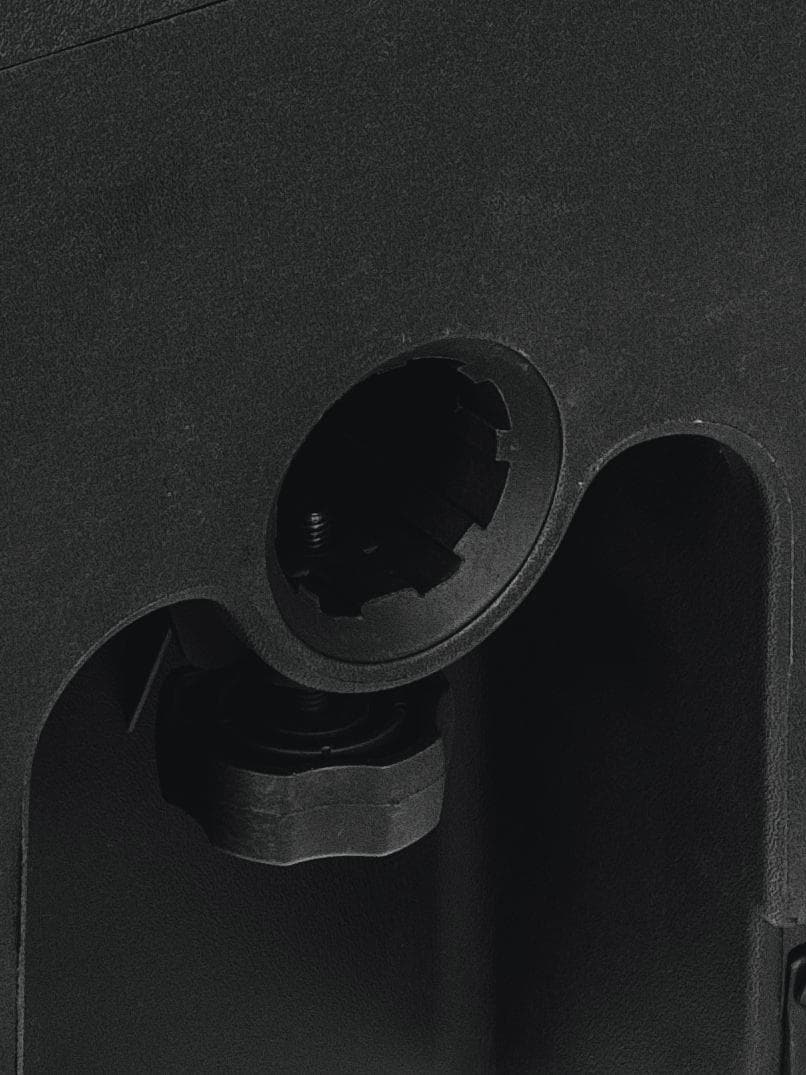

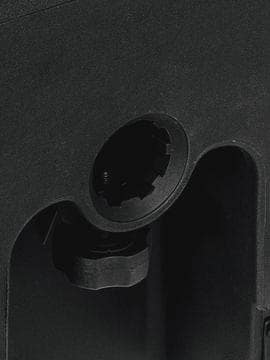

Flange: Ø 35mm

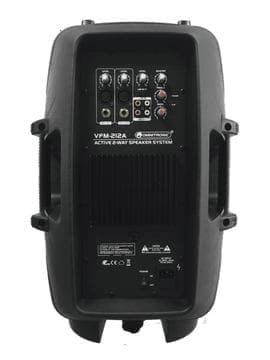

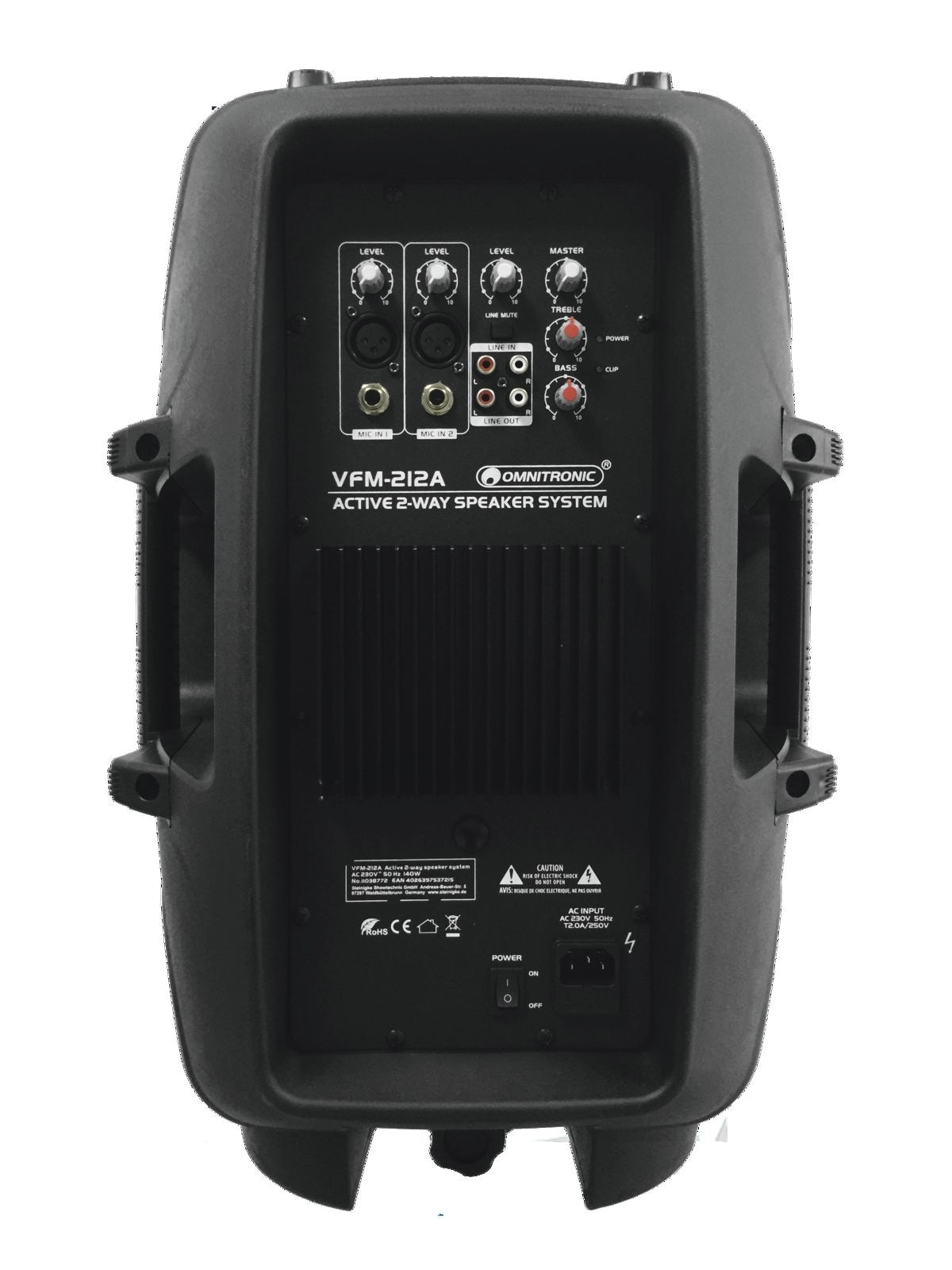

Connections:
Input: Microphone via 2 x 3-pin XLR
Input: Microphone via 2 x 6.3 mm plug (unbal.)
Input: line via 1 x stereo RCA
Output: line via stereo RCA
Input channels:
2 x mono via XLR or jack, channel control via Rotary dial
1 x stereo with Line-player switch via RCA or player, channel control via Rotary dial
Equalizer:
Master: 1 x 2-band tone control
Speaker:
1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet
Voice coil compression tweeter highs (1") approx. 2.5 cm
Horn vent (1") approx. 2.5 cm
1 x woofer (12") approx. 30 cm with ferrit magnet
Voice coil lows (1.5") approx. 4 cm
Type of speaker:
Compact cabinet speaker

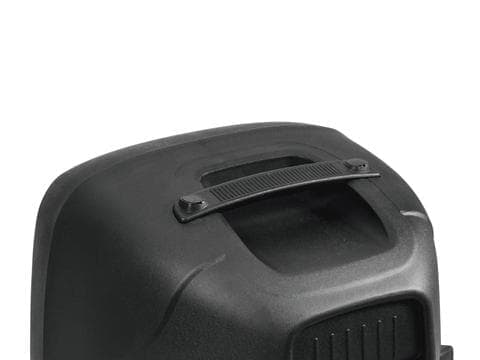

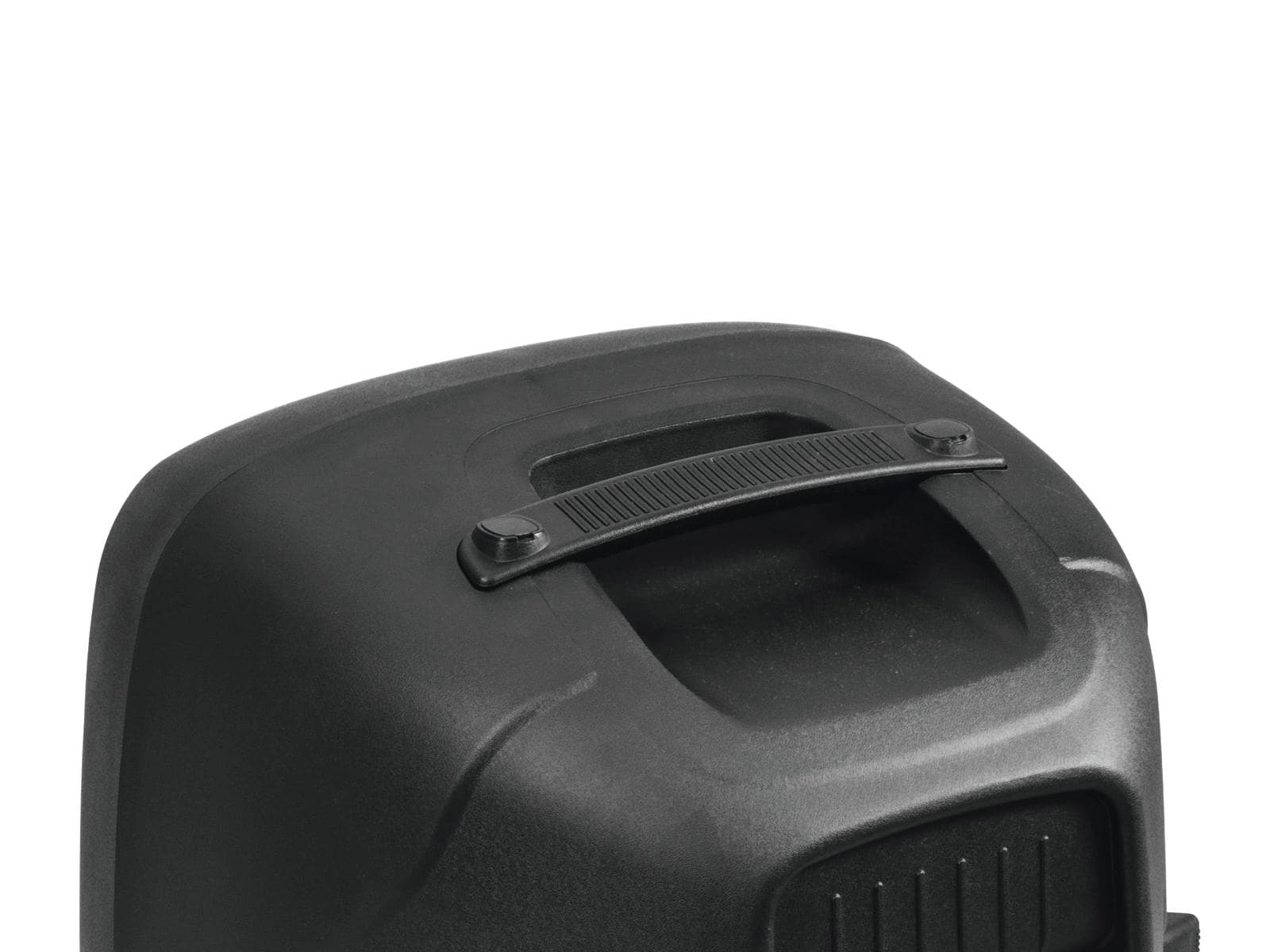

Carrying handle:
2 pc/pcs
Dimensions:
Width: 42 cm
Depth: 34,2 cm
Height: 63 cm
Weight:
10,50 kg
