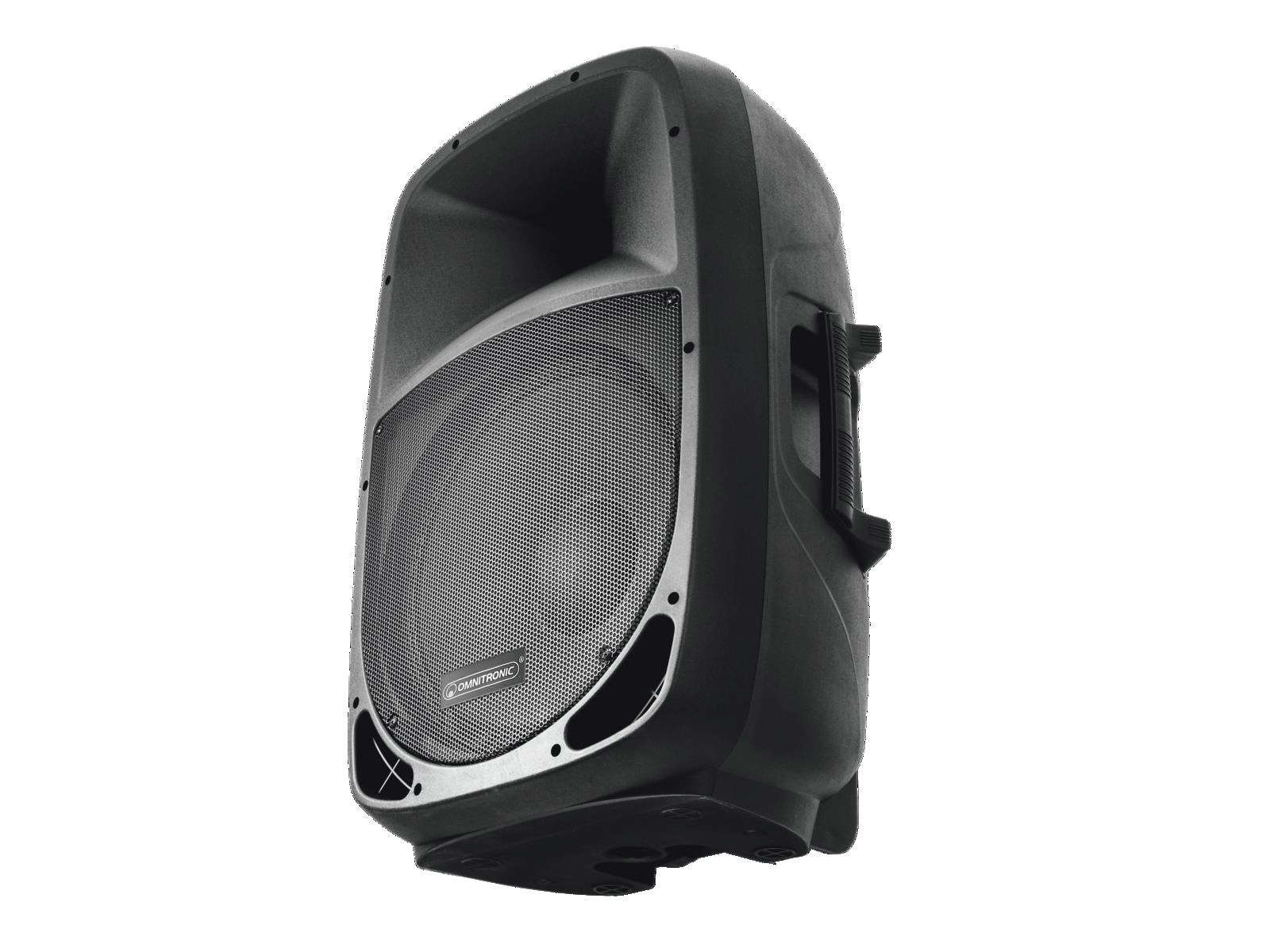

Aktive speaker, 8" woofer, 1" driver, 80 W RMS

• Class A/B circuitry: optimum sound and power at low weight and compact dimensions
• 2-way bass-reflex enclosure with 20 cm woofer and 2.5 cm driver
• 1 mic input with separate level controls
• Line input, RCA
• 3.5 mm AUX input
• Master control with 2-band EQ
• For application areas such as: Mobile djs/entertainer
• Black metal grille

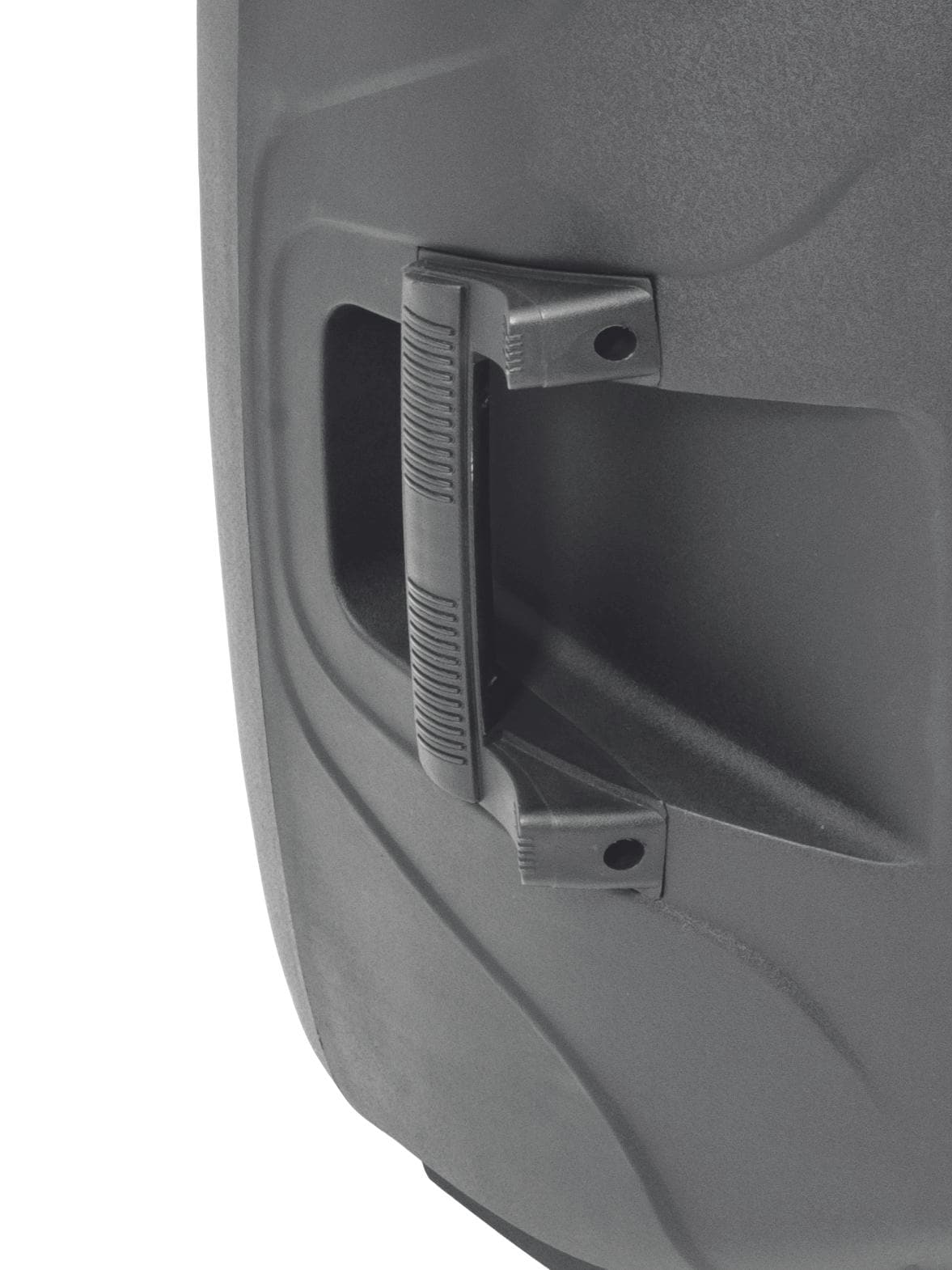

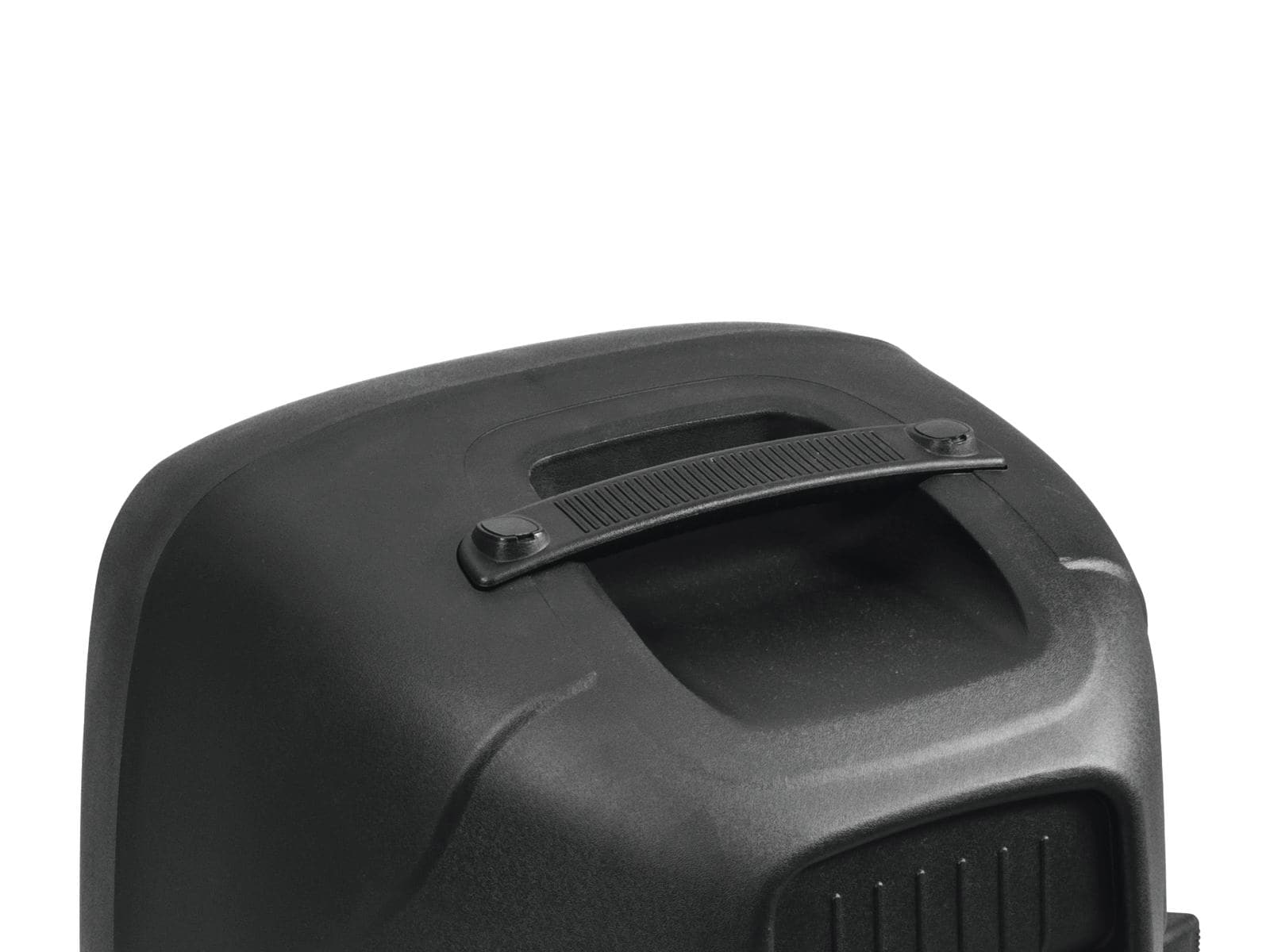

• 2 Rugged carrying handles
• Application possibility: Standing; monitoring; on tripod

Package contents

• 1 x compact cabinet speaker, 1 x user manual, 1 x power cord

Power supply:
230 V AC, 50 Hz
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:
Program: 160W
Rated: 80W RMS
Frequency range:
75 - 20000 Hz
Max. SPL:
111 dB
Attachment system:

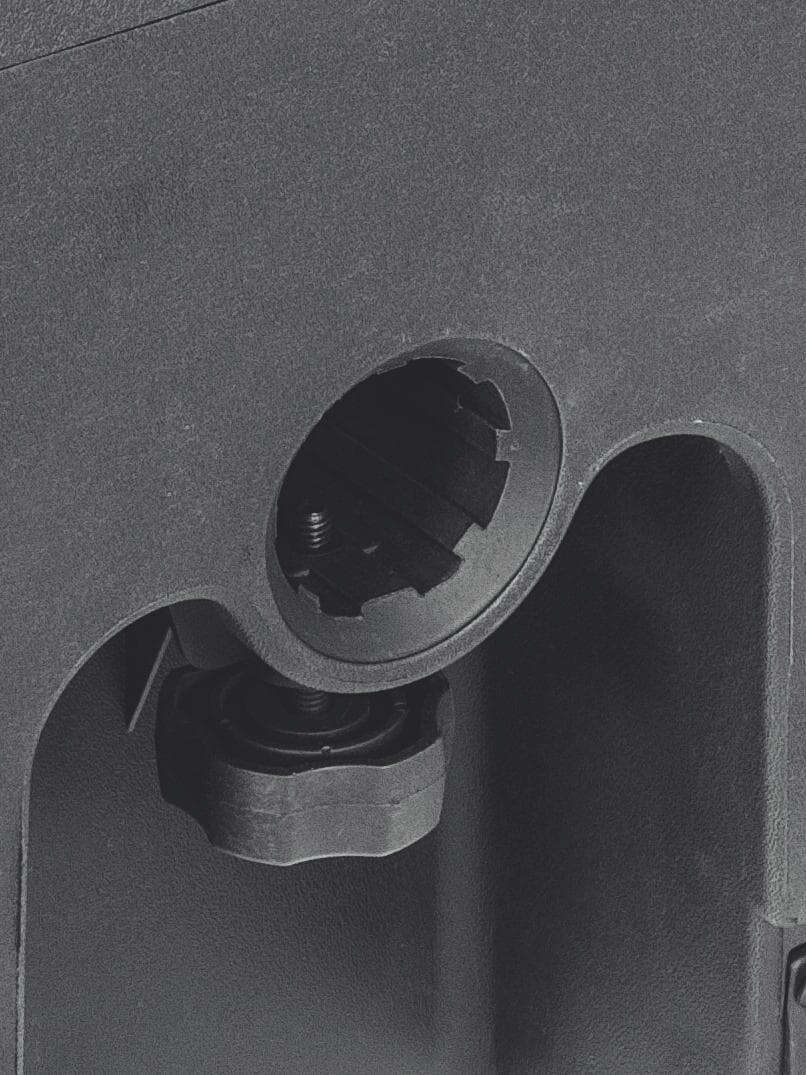

Flange: Ø 35mm
Status LED:
Power, clip

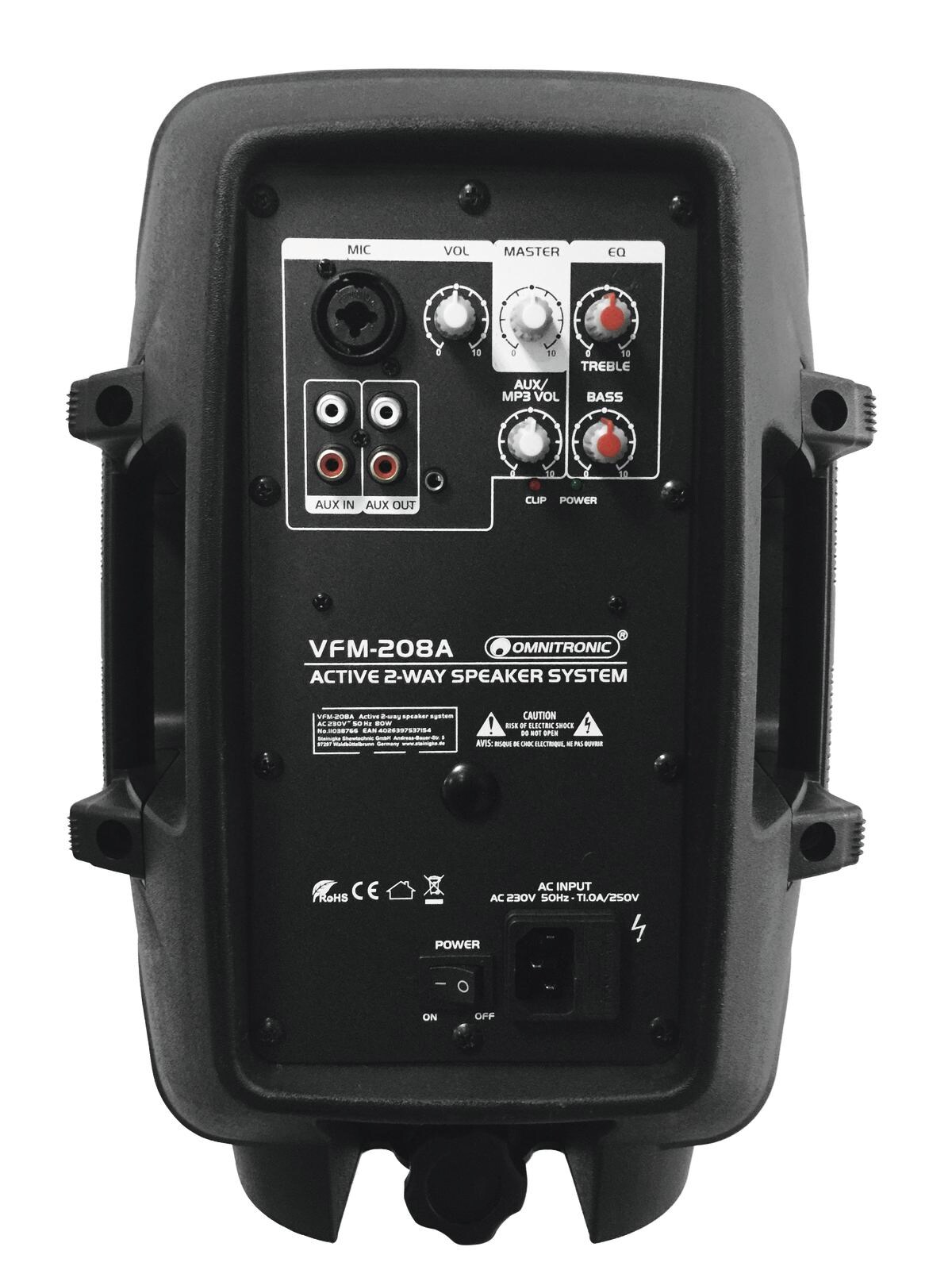

Connections:
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x 3.5 mm jack (stereo) mounting version
Input: line via 1 x stereo RCA
Output: line via stereo RCA
Input channels:
1 x mono via XLR or jack, channel control via Rotary dial
1 x stereo via RCA or jack plug, channel control via Rotary dial
Equalizer:
Master: 1 x 2-band tone control
Speaker:
1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet
Voice coil compression tweeter highs (1") approx. 2.5 cm
Horn vent (1") approx. 2.5 cm
1 x woofer (8") approx. 20 cm with ferrit magnet
Voice coil lows (1.5") approx. 4 cm
Type of speaker:
Compact cabinet speaker
Carrying handle:
2 pc/pcs
Material:
Plastic
Dimensions:
Width: 29,5 cm
Depth: 24,5 cm
Height: 43,8 cm
Weight:
5,05 kg
