Self-powered subwoofer. Woofer 12''. 200W. Inputs: full range and LFE. Adjustable phase from 0° to 180° ARC SUB 12" MKII is a self-powered subwoofer which integrates a 200W power amplifier and a 12'' high performance woofer. The amplifier features several controls, allowing to configure parameters such as output gain, bass enhancer, crossover frequency or phase inverting. The built-in Standby function offers the possibility to shutdown the amplifier in absence of audio input. ARC SUB 12 MKII incorporates 2 input types: full-range LINE mono input and stereo High Level input for direct connection between external amplifiers and satellites system. Its robust design, elegant finish (made of high density wood) and shape are very suitable in reinforcement appliances like conference rooms, schools or home cinema installations.

200W self-powered subwoofer.
Suitable for bass reinforcement appliances.
Standby function (Auto power on when receiving audio signal).
Full range and High Level inputs for different installation requirements.
Made of high density wood.
Several configuration parameters.

Transducer	12'' woofer
Amplifier (Power output)	200 W @ 4?
Sensitivity	Line: 500 mV High Level: 8V
Frequency response	35 Hz - 200 Hz
Crossover range	Between 50 Hz - 150 Hz (selectable)
Bass enhancer	Up to +6 dB gain (50 Hz)
Phase inverting	From 0º to 180º (selectable)

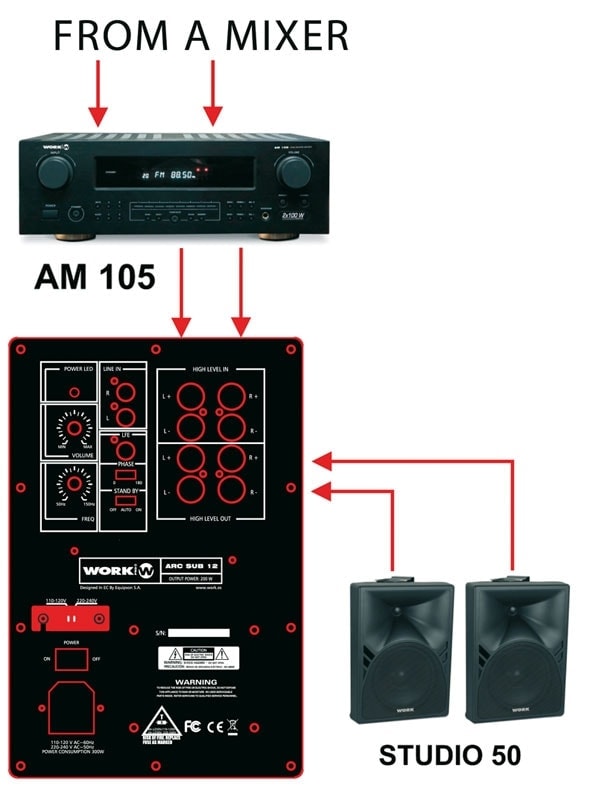

Connections	RCA: full-range or mono subwoofer LINE input & output Binding-post: Stereo High Level inputs and outputs
Main Supply	230V Ac - 50/60 Hz
Consumption	240 W
Dimensions (WxHxD)	380x400x434 (mm)
Weight	24.2 Kg
