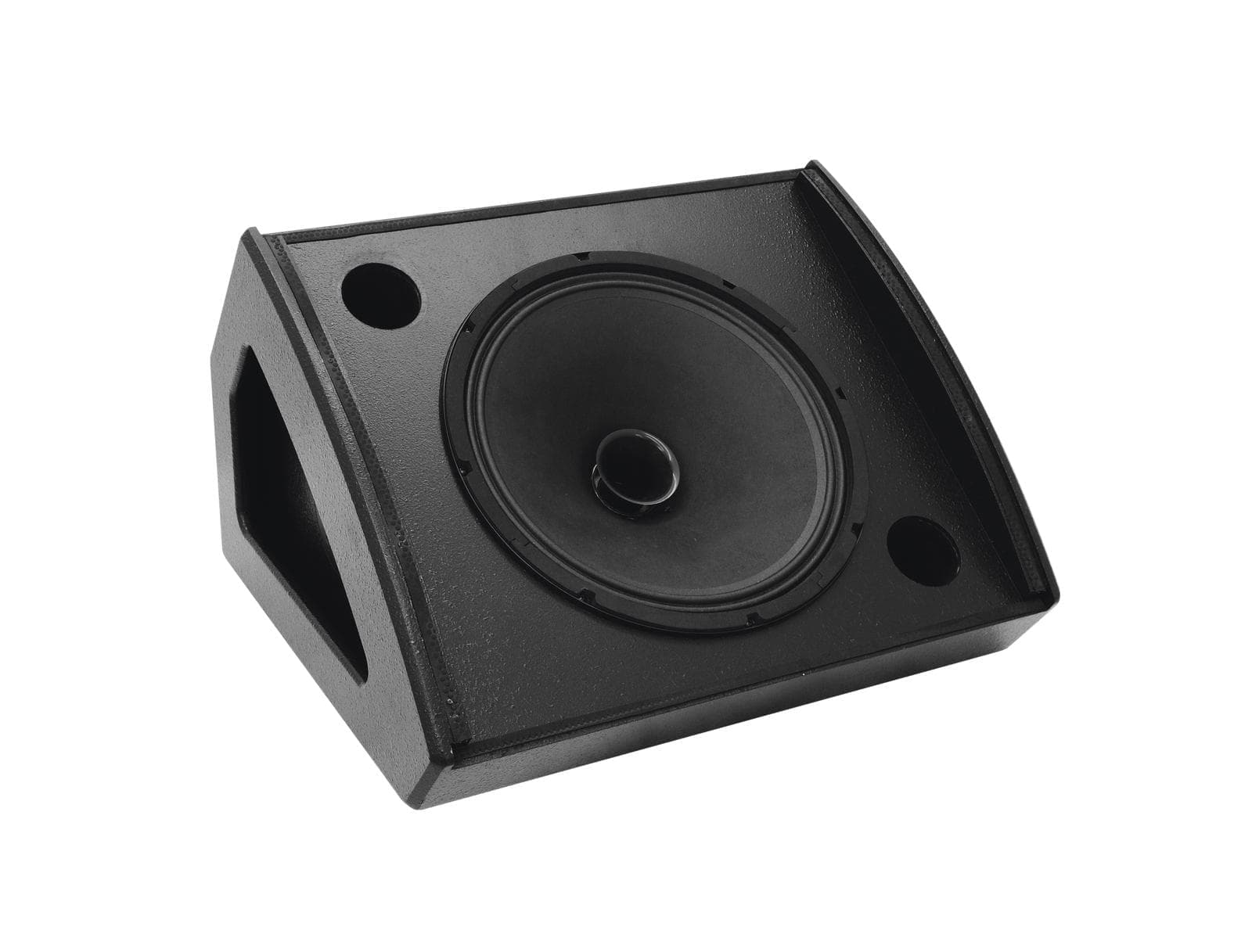

Monitor, 15" woofer, 1.35" driver, LF: 250 W RMS, HF: 50 W RMS

• Active 2-way coaxial stage monitor for live and playback applications
• Class D/AB biamp power amplifier
• 38 cm bass speaker (15") and 3.5 cm compression driver (1.35")
• Bassreflex cabinet provides deep bass and high SPL
• Low cut, volume control
• Black metal grille
• Application possibility: Standing; monitoring; on tripod

Package contents

• 1 x compact cabinet speaker, 1 x user manual, 1 x power cord

Power supply:
115/230 V AC, 50/60 Hz
Power consumption:
300 W
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:
Program: 500W
Rated: 50W RMS HF
Rated: 250W RMS LF
Frequency range:
45 - 20000 Hz
Max. SPL:
124 dB
Dispersion angle:
60° x 60°
Attachment system:
Flange: Ø 35mm
Controls:
Overload; limiter
Connections:
Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR
Input channels:
1 x mono via XLR or jack, channel control via Rotary dial
Speaker:
1 x woofer (15") approx. 38 cm with ferrit magnet
1 x Voice coil compression tweeter highs (1.35") approx. 3.5 cm
Type of speaker:
Compact cabinet speaker; Coaxial speaker; stage monitor
Material:
MDF (Medium-density fibreboard)
Color:
Black, textured coating, painted
Dimensions:
Width: 60 cm
Depth: 37 cm
Height: 54 cm
Weight:
22,90 kg
