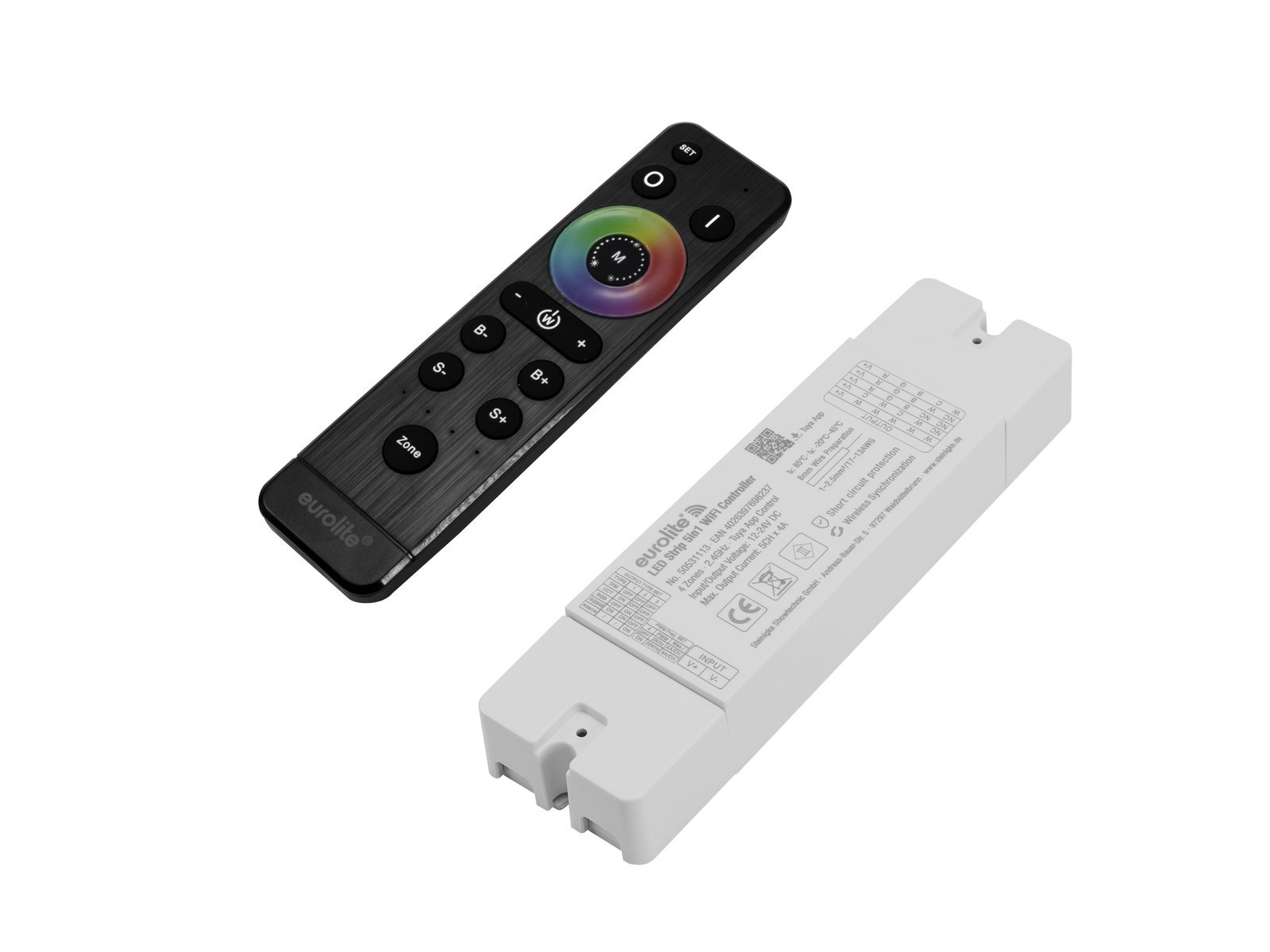

EUROLITE LED Strip 5in1 WiFi Controller

Smart 5-channel WiFi controller for RGB/W+CCT LEDs with app, Alexa & Google control

• LED controller with WiFi technology for a smart home
• 5-in-1 function to control multi-colored (CCT, RGB, RGBW, RGB+CCT) and single-colored LED strips
• Works without a bridge or hub
• Control multiple WiFi controllers at the same time
• Excellent signal transmission with 2.4 GHz - no perceptible difference to a wired system
• Innovative wireless technology allows multiple controllers to be controlled synchronously and asynchronously with just one remote control
• Synchronous color sequences even over several hours with multiple controllers and different LED types
• All controllers communicate with each other and cover a large range
• PWM outputs make it ideal for use with modern LED strips
• Memory function saves last setting when switching off
• Control via W-Lan; Amazon Alexa; Google Assistant; IFTTT; Tuya Smart app; Sound to light
• Variable color temperature 3000 K - 6500 K
• Dimmer electronic; color change adjustable; pulse-width modulation variable; scenes adjustable; program speed adjustable

Package contents

• 1 x controller, 1 x user manual, 1 x declaration of conformity, 2 x screw

EUROLITE LED Strip Remote Control Zone for 5in1 Controller

RF remote control for 5 colors (RGB/W and dual white) and zone selection

• Controls multi-colored (CCT, RGB, RGBW, RGB+CCT) and single-colored LED strips as desired
• Controls 4 zones
• Multiple remote controls possible in one zone
• Independent control for RGB and white channels
• Color selection via touch-sensitive color wheel
• Memory function saves last setting when switching off
• Program speed adjustable; Dimmer electronic
• 8 integrated show programs
• Operating range up to 20m
• Powered by a battery/battery pack

Package contents

• 1 x transmitter, 1 x declaration of conformity, 1 x user manual, 2 x battery, 1 x mounting material

Weight:
260 g
EUROLITE LED Strip 5in1 WiFi Controller
Power supply:
12/24V DC
Power consumption:
Max. 240 W 12 V DC
Max. 480 W 24 V DC
Output current:
Max. 5 x 4 A per channal
Power connection:
Via screw terminal
Power output:
Screw terminal
WiFi:
Standard: IEEE 802.11 b/g/n
Color temperature:
3000K - 6500K adjustable
Control:
W-Lan; Amazon Alexa; Google Assistant; IFTTT; Tuya Smart app; Sound to light
Carrier frequency:
2,4 GHz
Dimensions:
Length: 16,4 cm
Width: 4,4 cm
Height: 2,5 cm
Weight:
120 g
EUROLITE LED Strip Remote Control Zone for 5in1 Controller
Battery:
2 x 1.5 V AAA Micro LR03 alkaline manganese included
Housing color:
Black
Carrier frequency:
2,4 GHz
Range:
Range up to 20m
Dimensions:
Length: 15 cm
Width: 4 cm
Height: 2 cm
Weight:
100 g
