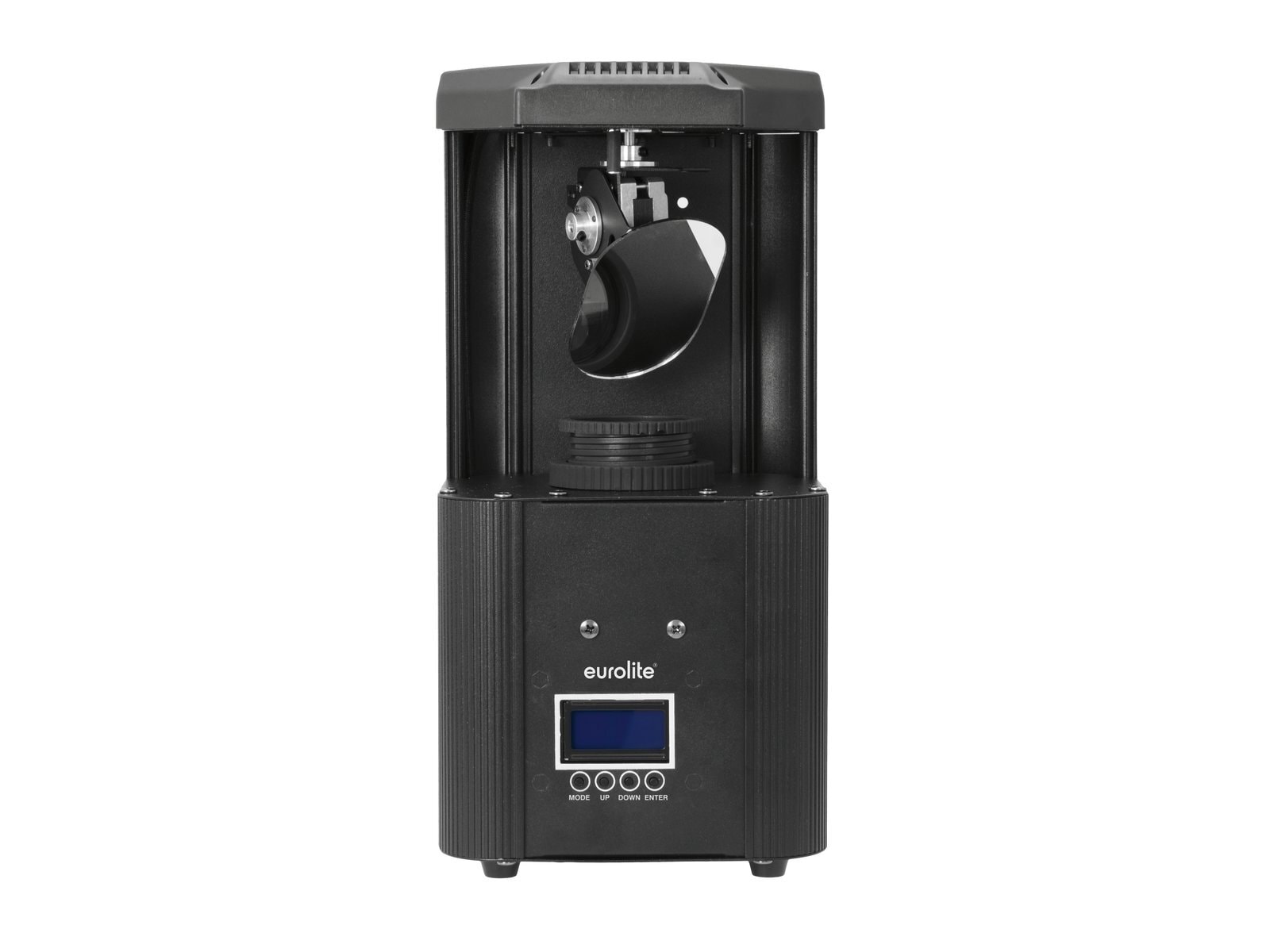

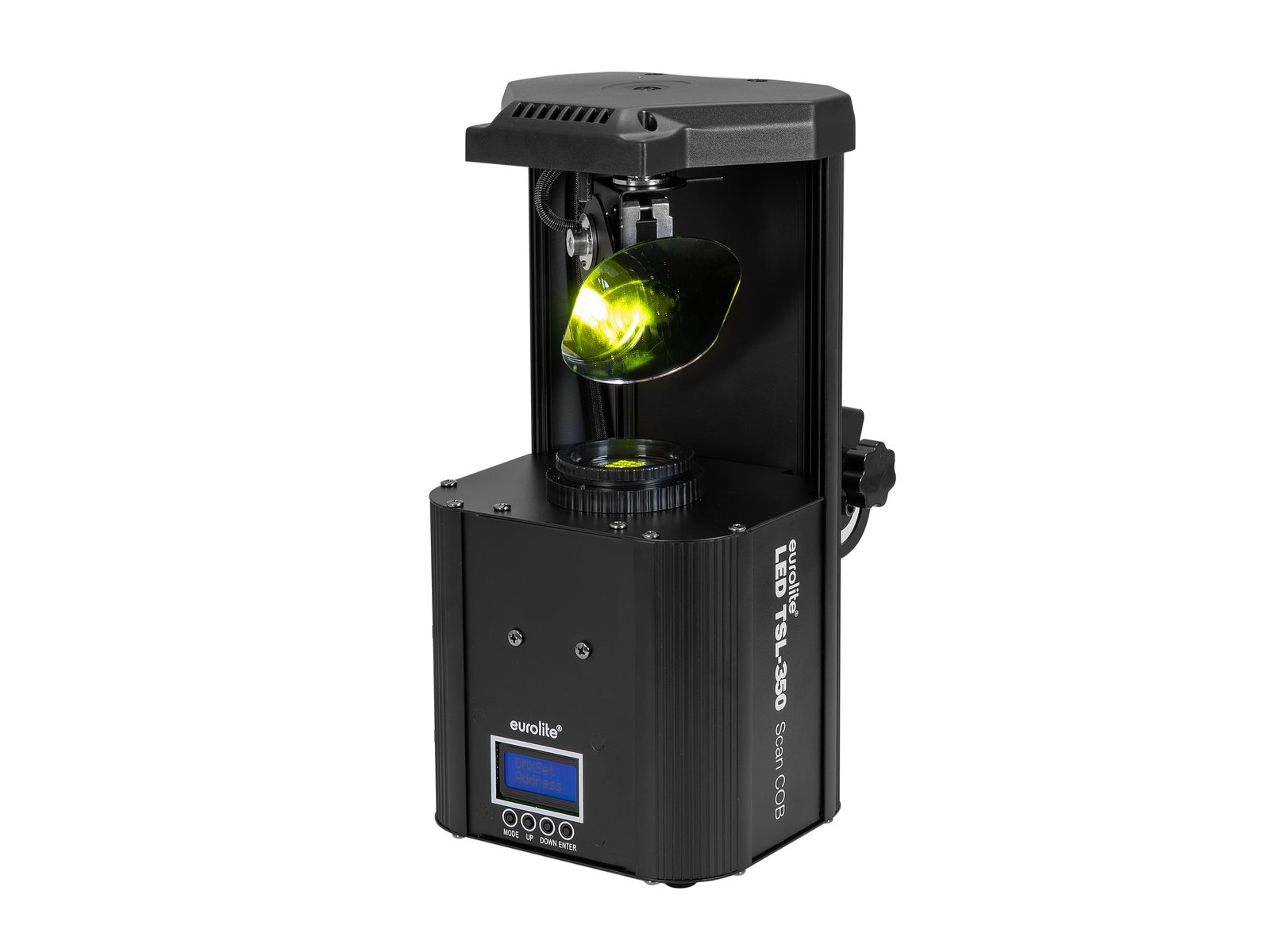

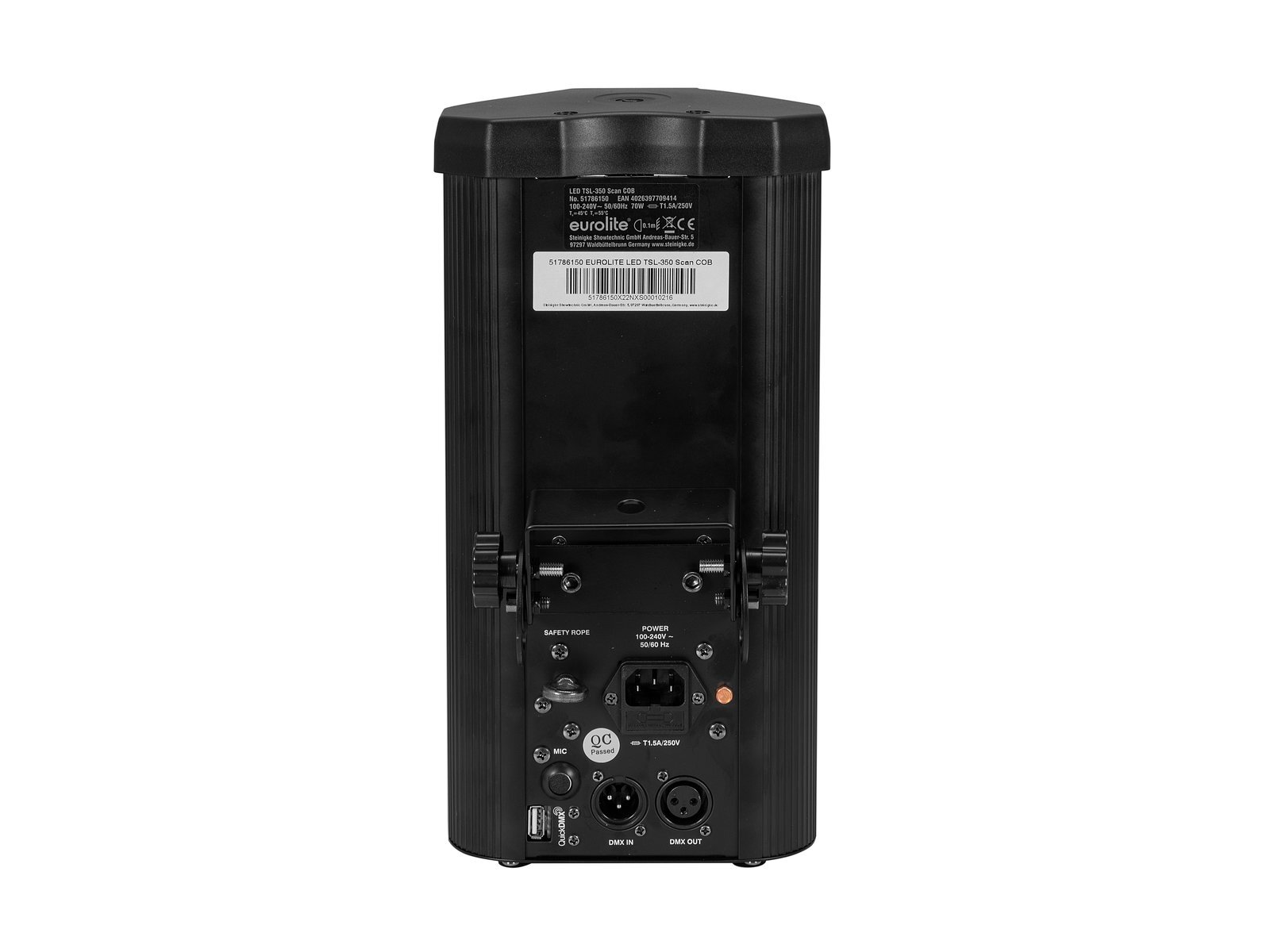

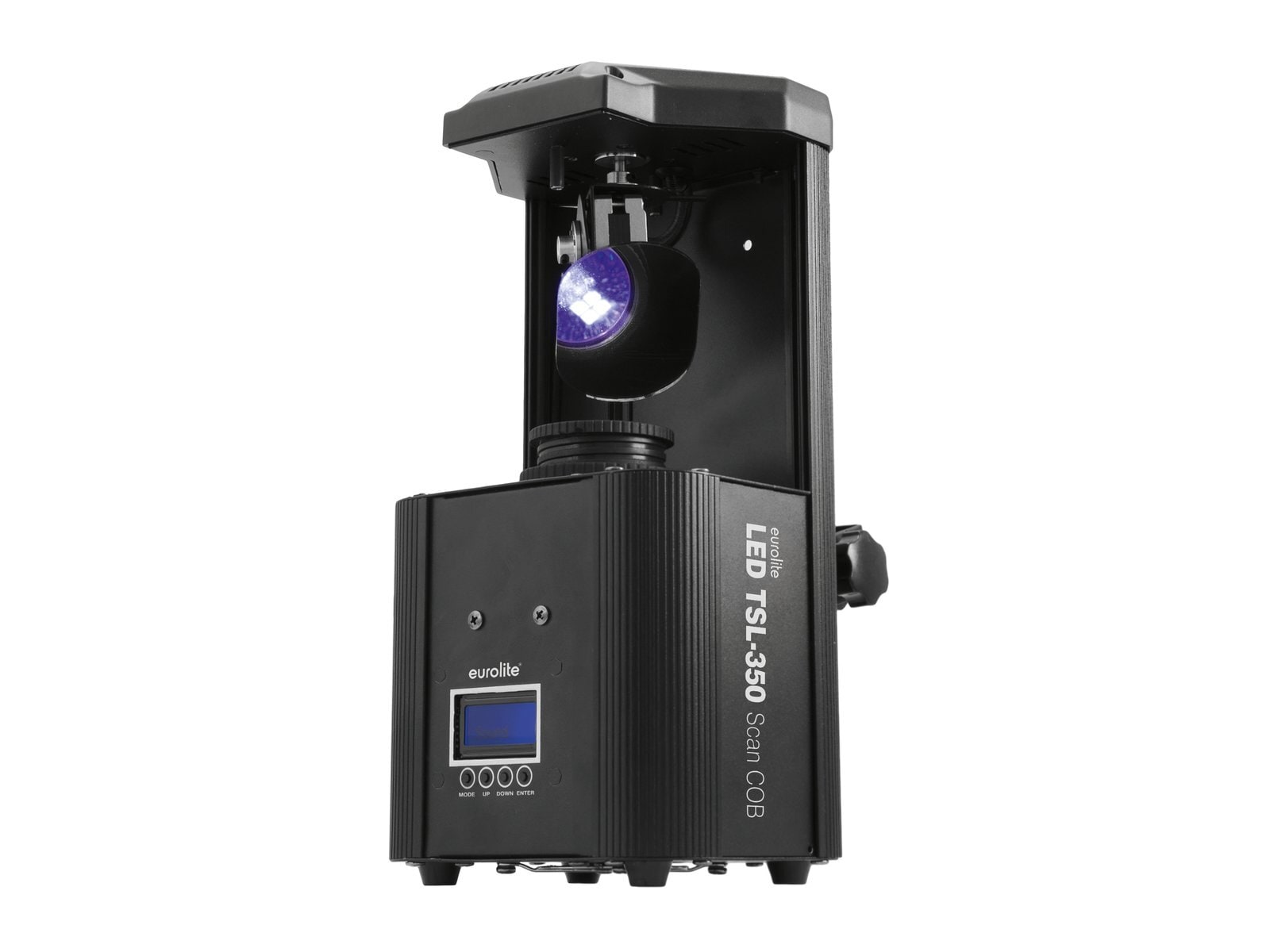

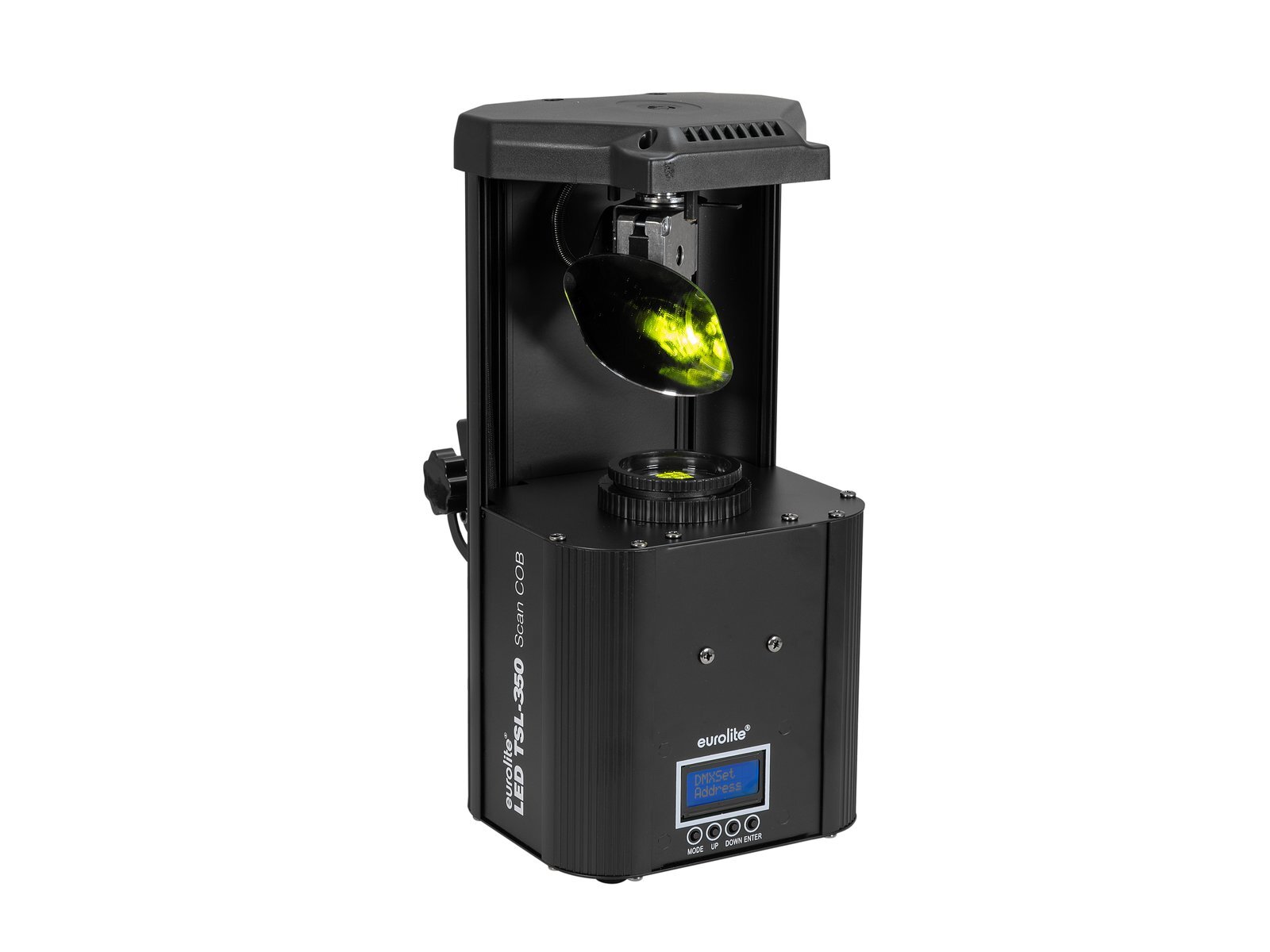

Handy scanner with 60 W COB LED, gobo and color wheel

• Compact design
• 1 powerful LED 60 W COB (chip-on-board) cold white (CW)
• Positioning within PAN and TILT
• Color wheel; gobo wheel with rotating gobos; Focus manual
• Color wheel with 7 dichroic filters plus open
  half colors selectable, Rainbow effect with adjustable speed
• Gobo wheel with rotating gobos, 7 gobos and open
  gobos changeable
• Slot-in gobo system for easy gobo replacement
• Shake effect
• Integrated show programs
• The device is cooled by cooling fan
• Control via stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Flicker-free
• With a beam angle of 11°
• LCD display
• Available in various colors
• Dimmer electronic
• Preprogrammed in Light Captain; Light´J
• Rubber feet

Package contents

• 1 x moving light, 1 x user manual, 1 x power cord, 1 x mounting bracket, 3 x gobos

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
70 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Fuse:
5 x 20 mm, T 1,5 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 60 W COB (chip-on-board) cold white (CW)
Equipment:
Color wheel; gobo wheel with rotating gobos; Focus manual
Color generation:
Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 14mm
Image diameter 10mm
Gobos changeable
Slot-in gobo system for easy gobo replacement
Shake effect
DMX channels:
10
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light Captain; Light´J
Beam angle:
11°
Beam angle (1/2 peak):
11°
Illuminance in Lux (lx):
Cold white (CW) 1m: 12034 lx, 3m: 1489 lx, 6m: 388 lx
Housing color:
Black
Display type:
LCD display
Transport aid:
Rubber feet
Dimensions:
Width: 16,0 cm
Depth: 15,0 cm
Height: 33,0 cm
Weight:
3,22 kg
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
