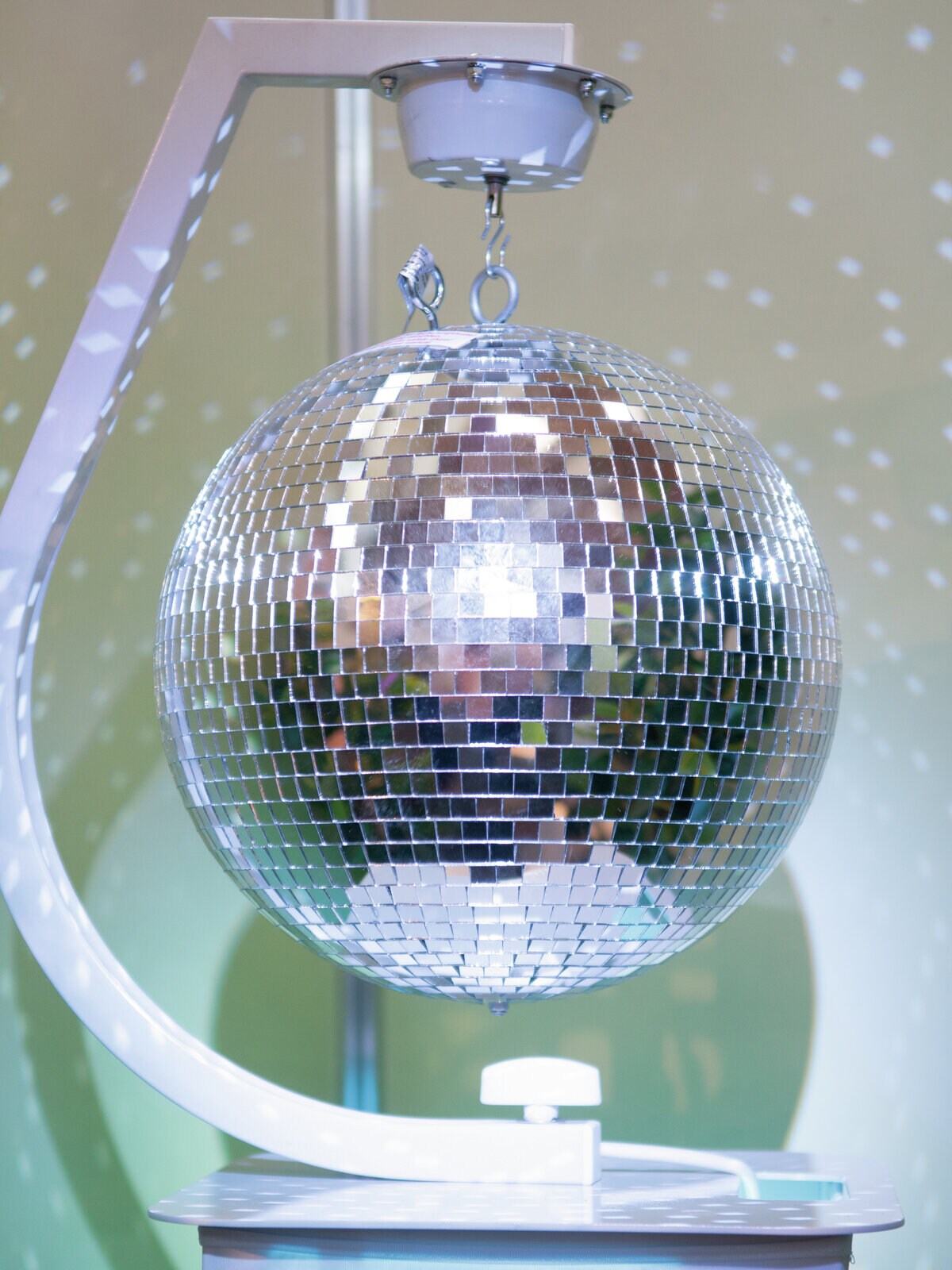

Curved stand mount with motor for mirror balls up to 50 cm

• Adapter (Ø 35 mm) for mounting on stands, podiums DJ booths
• Smooth-running motor (1 RPM)
• Fast assembly without any tools
• Solid metal version
• Suitable for a mirror ball with a diameter of up to 50 cm
• Available in various colors
• For application areas such as: Party room; Wedding/gala/events

chain link

• Complies with DIN 56927:2009-03

Package contents

• 1 x holder, 1 x adapter, 1 x chain link, 1 x knurled screw, 1 x washer, 1 x user manual

Power supply:
230 V AC, 50 Hz
Power consumption:
5 W
Power connection:
Fixed power supply cord with safety plug
Rotation:
1 RPM
Maximum load:
10 kg
Max. mirror ball diameter:
50 cm (EUROLITE)
Housing color:
White
Diameter mounting holes:
1 x Ø12mm
Material:
Metal
Dimensions:
Length: 38 cm
Width: 12 cm
Height: 88 cm
Weight:
1,83 kg
Power cord
Cable construction:
3 x 0,75 mm² H05VV-F
Cable length:
Approx. 3 m
Color:
White
Chain link
Standard:
DIN 56927:2009-03,
Shape:
A - small opening
Opening:
0-5,5 mm
Dimensions:
Length: 3,10 cm
Width: 4,10 cm
Depth: 2,20 cm
Diameter: Ø 4 mm
Weight:
10 g
Adapter
Material:
Aluminum casting, 3,5 mm
Color:
White, painted
Inside diameter:
Ø 3,6 cm
Dimensions:
Height: 5 cm
Knurled screw
Color:
White
