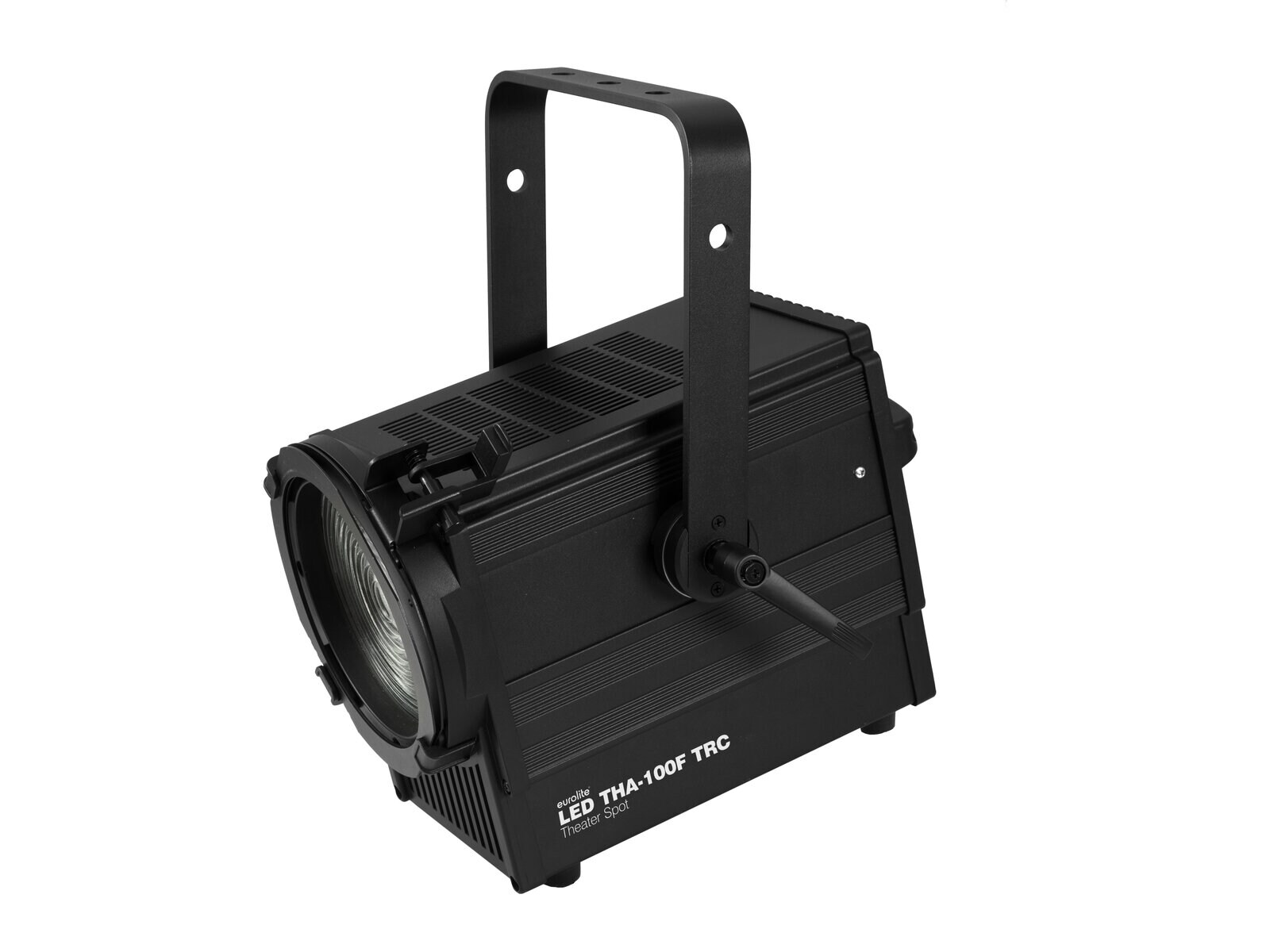

Fresnel spot with 100 W white light LED, color rendering index (CRI) >90

• Rugged metal housing
• 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
• The device is cooled by temperature-controlled fan
• Control via Quick select potentiometer for brightness; stand-alone
• Flicker-free
• With a beam angle of 9° - 60°
• Very high color rendering index (CRI)
• With Mounting bracket
• For application areas such as: Theater; Trade fair and shop fitting; Wedding/gala/events
• Dimmer electronic
• Rubber feet

Package contents

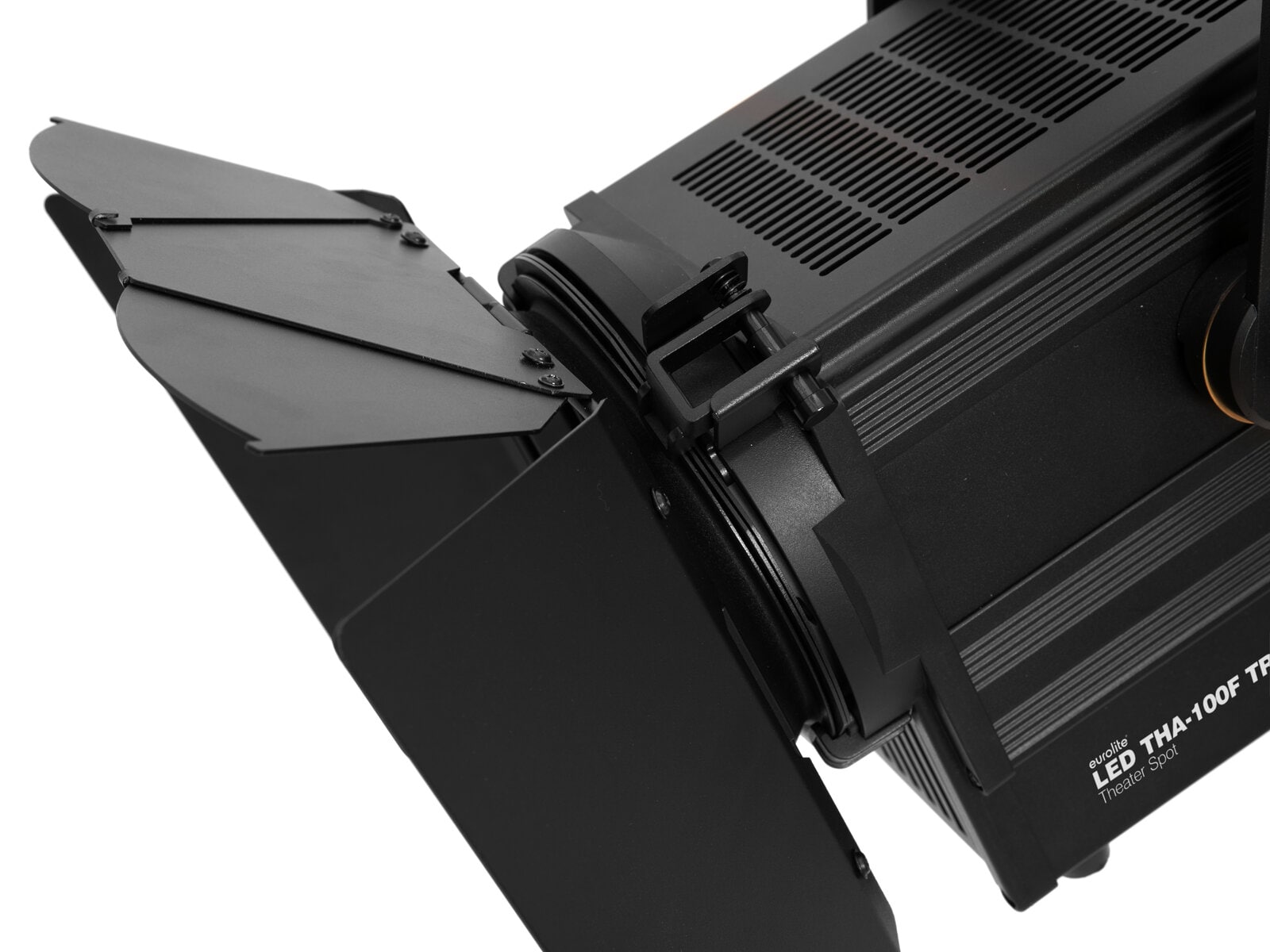

• 1 x spotlight, 1 x user manual, 1 x filter frame, 1 x barndoor

Power supply:
230 V AC, 50 Hz
Power consumption:
120 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Fixed power supply cord with safety plug
Fuse:
5 x 20 mm, T 2 A Fuse replaceable
LED:
1 x 100 W COB (chip-on-board) warm white (WW)
Color temperature:
3200K
Cooling:
Temperature-controlled fan
Control:
Quick select potentiometer for brightness; stand-alone
Beam angle:
9° - 60°
Beam angle (1/2 peak):
9 - 40°
Beam angle (1/10 peak):
18 - 60°
Color rendering index (CRI):
97 Ra
Illuminance in Lux (lx):
Narrow warm white (WW) 1m: 34719 lx, 3m: 4497 lx, 6m: 1151 lx
Wide warm white (WW) 1m: 5802 lx, 3m: 700 lx, 6m: 210 lx
Luminous flux:
5833 lm
Housing color:
Black
Attachment system:
Mounting bracket
Transport aid:
Rubber feet
Dimensions:
Length: 47 cm
Width: 31 cm
Height: 39 cm
Weight:
7,15 kg
Energy efficiency class (A - G):
G
