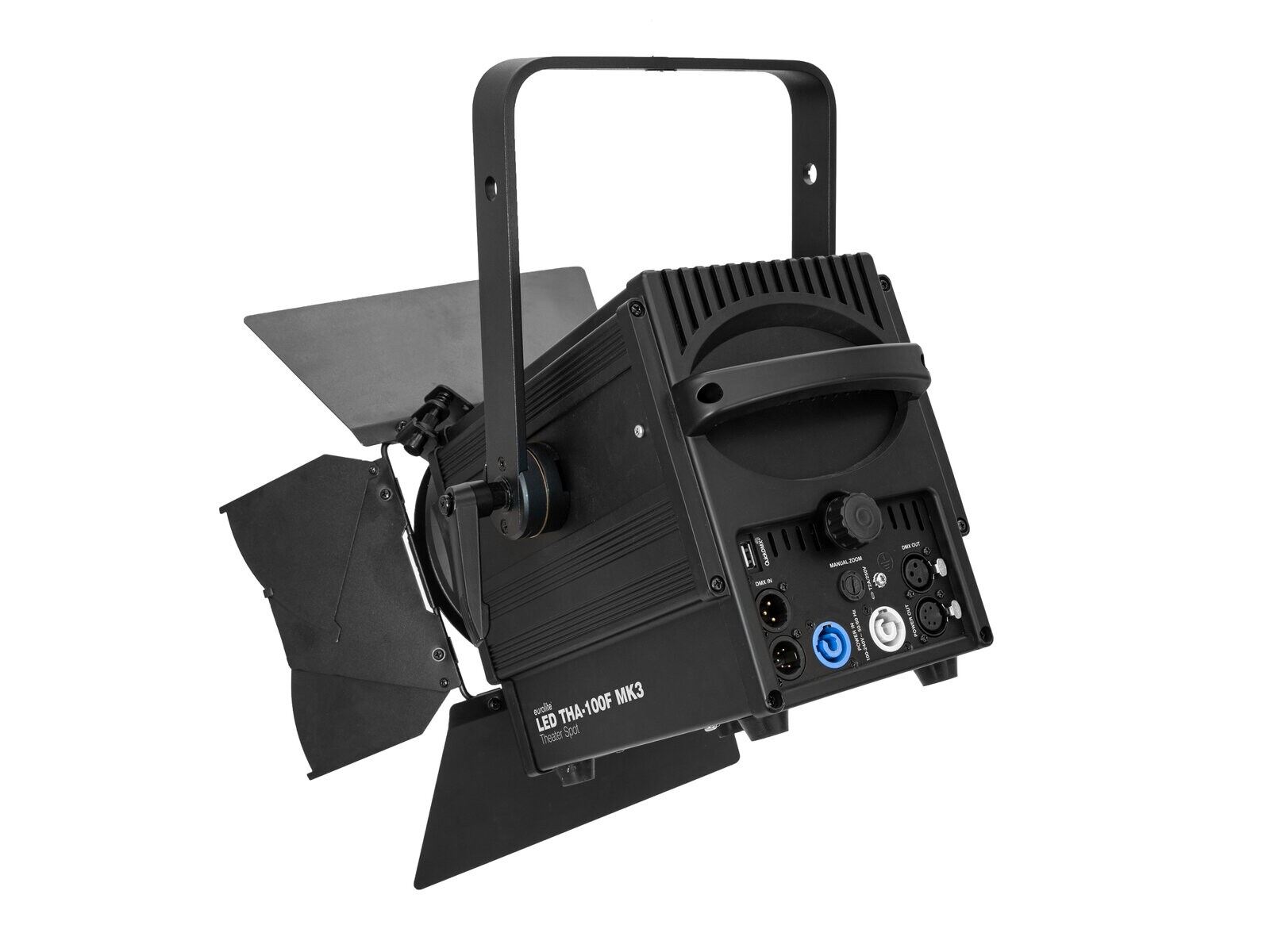

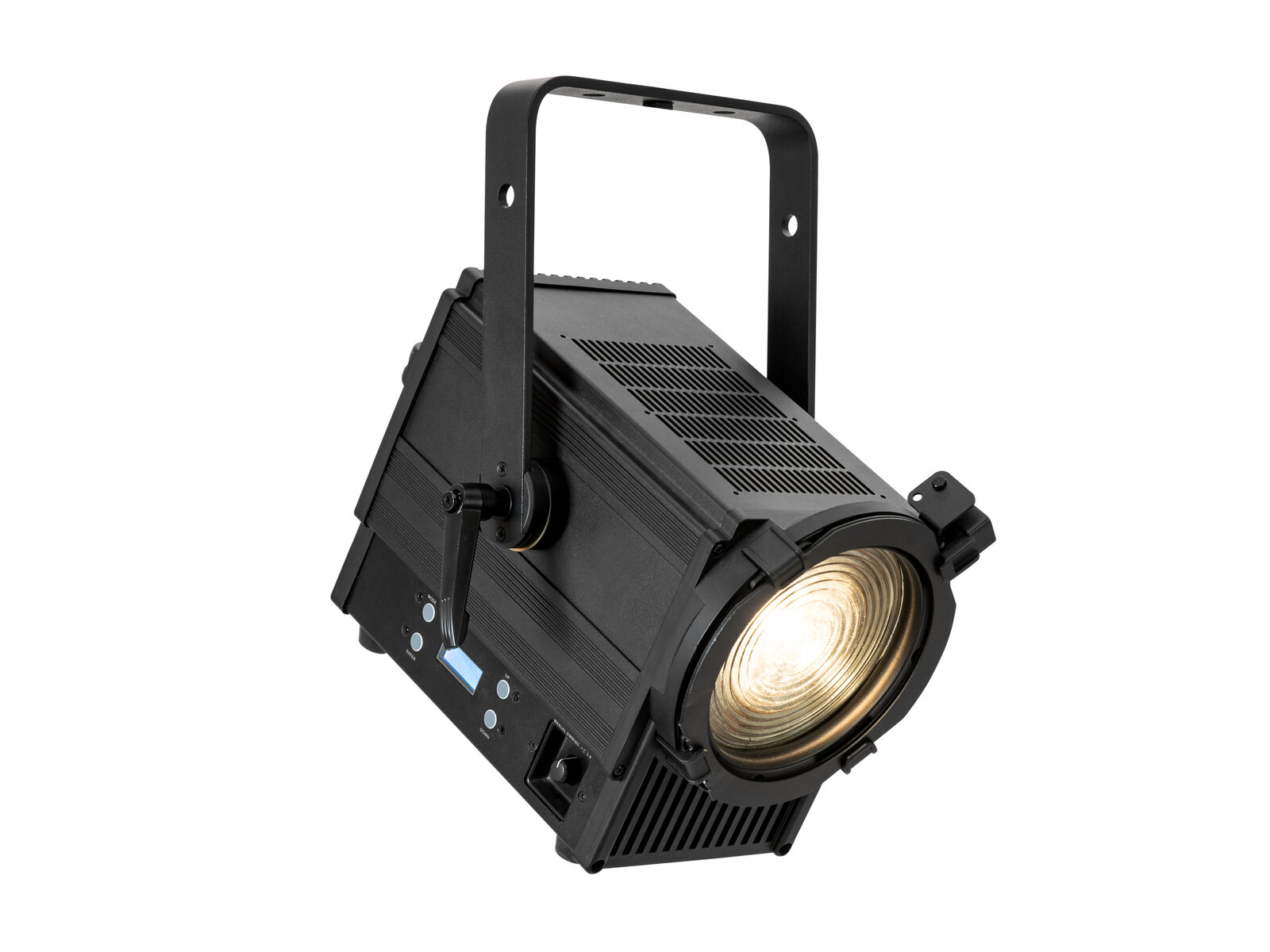

Fresnel spotlight (fresnel lens), 100 W warm white LED, CRI >90, quiet, DMX

• 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
• Strobe effect
• The device is cooled by low-noise cooling fan
• Control via stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Flicker-free
• With a beam angle of 8° - 55°
• Very high color rendering index (CRI)
• With Mounting bracket
• LCD display
• Dimmer electronic; dimmer curves with adjustable response; pulse-width modulation variable; Dimmer speed (step response) adjustable
• Preprogrammed in Light Captain
• Rubber feet
• Mains input and output for power linking up to 8 units

Package contents

• 1 x spotlight, 1 x user manual, 1 x power cord, 1 x barndoor, 1 x filter frame

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
95 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version
Cable length:
Approx. 1,1 m
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 2 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 100 W COB (chip-on-board) warm white (WW)
Color temperature:
3000K
Flash rate:
20 Hz
DMX channels:
1; 3
DMX input:
3-pin XLR (M) mounting version
5-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
5-pin XLR (F) mounting version
Cooling:
Low-noise cooling fan
Control:
Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light Captain
Beam angle:
8° - 55°
Beam angle (1/2 peak):
8 - 40°
Beam angle (1/10 peak):
16 - 55°
Color rendering index (CRI):
96 Ra
Luminous flux:
5384 lm
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
LCD display
Transport aid:
Rubber feet
Dimensions:
Length: 35,0 cm
Width: 31,5 cm
Height: 39,5 cm
Weight:
7,15 kg
Energy efficiency class (A - G):
G
