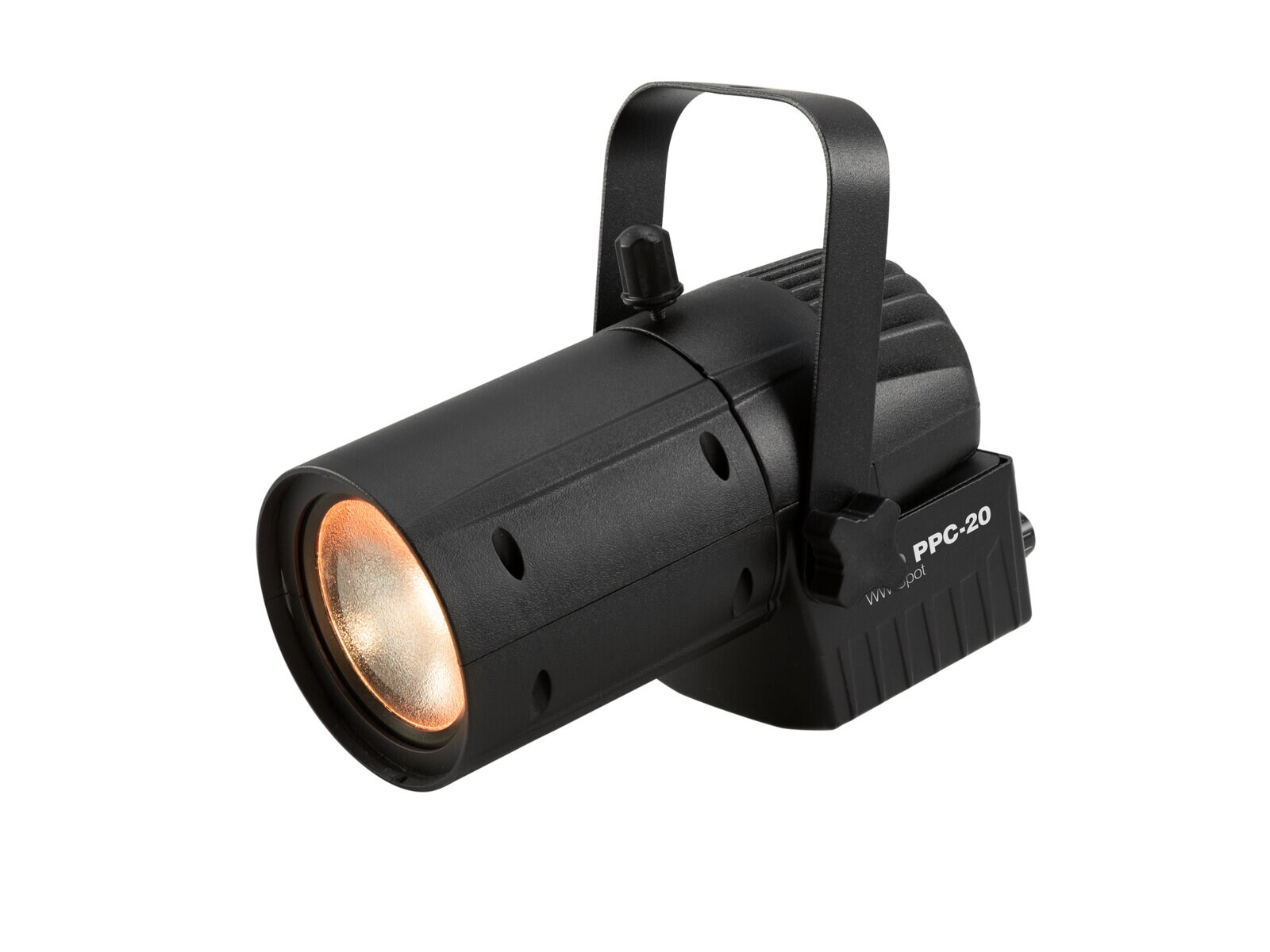

Fanless spotlight with 20 W COB LED, adjustable beam angle, color rendering index (CRI) >95

• Four beam angles adjustable via lens settings within the housing
• With plano-convex lens
• 1 powerful LED 20 W COB (chip-on-board) warm white (WW)
• The device is cooled by passive convection cooling
• Control via Rotary dial for brightness
• Flicker-free
• With a beam angle of 10°
• Very high color rendering index (CRI)
• For application areas such as: Trade fair and shop fitting; Wedding/gala/events

Package contents

• 1 x spotlight, 1 x user manual, 1 x power cord

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
15 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via 3-pin screw plug connector (M) mounting version power supply cord with safety plug (provided)
Device fuse:
5 x 20 mm, T 0,5 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 20 W COB (chip-on-board) warm white (WW)
Color temperature:
3000K
Cooling:
Passive convection cooling
Control:
Rotary dial for brightness
Beam angle:
10°
Beam angle (1/2 peak):
10°
15°
18°
22°
Beam angle (1/10 peak):
19°
27°
30°
34°
Color rendering index (CRI):
97 Ra
Illuminance in Lux (lx):
Narrow warm white (WW) 1m: 6073 lx, 3m: 742 lx, 6m: 194 lx
Wide warm white (WW) 1m: 2718 lx, 3m: 350 lx, 6m: 92 lx
Housing color:
Black
Dimensions:
Length: 19,5 cm
Width: 11,5 cm
Height: 16,5 cm
Weight:
1,12 kg
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
