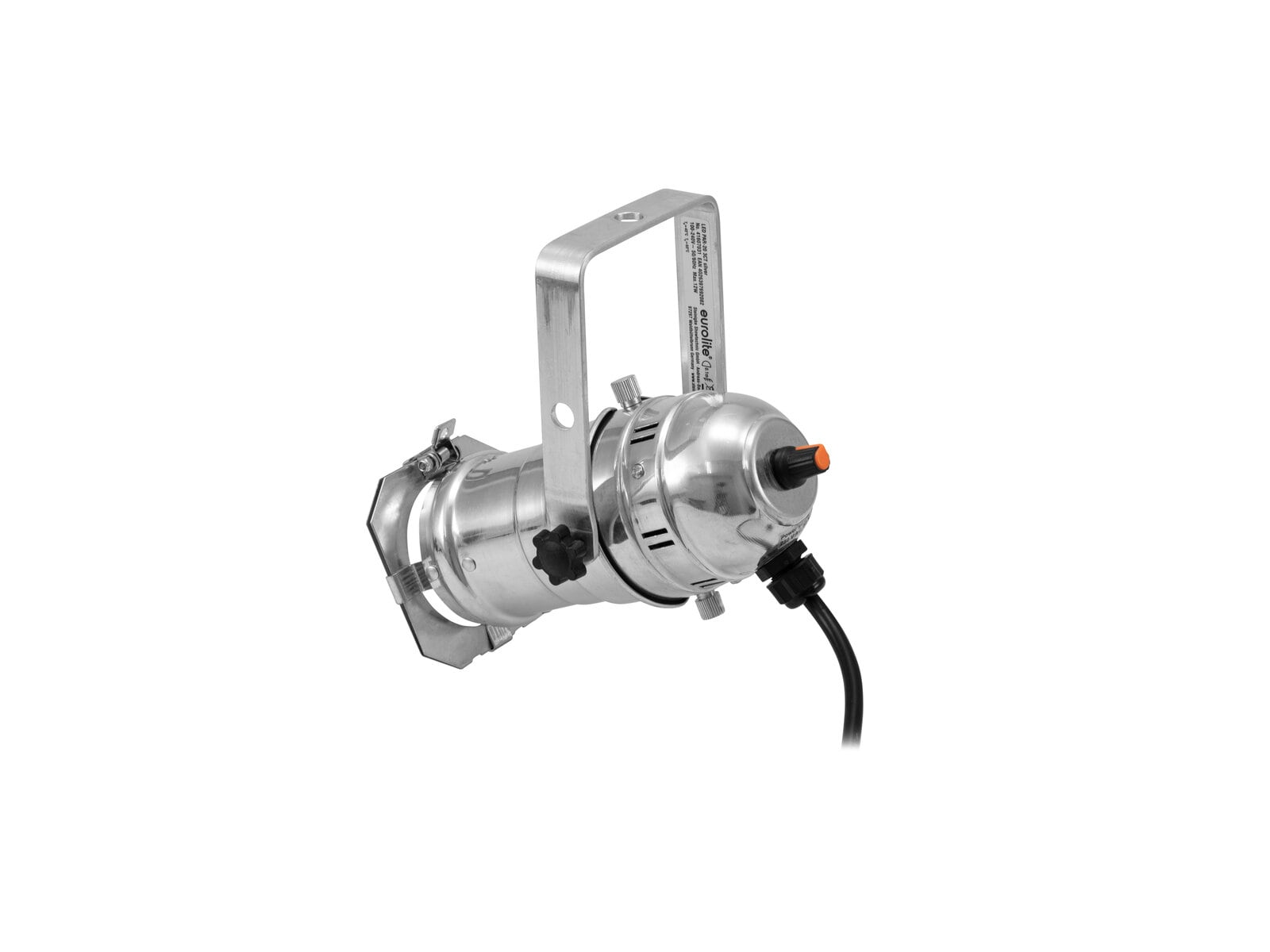

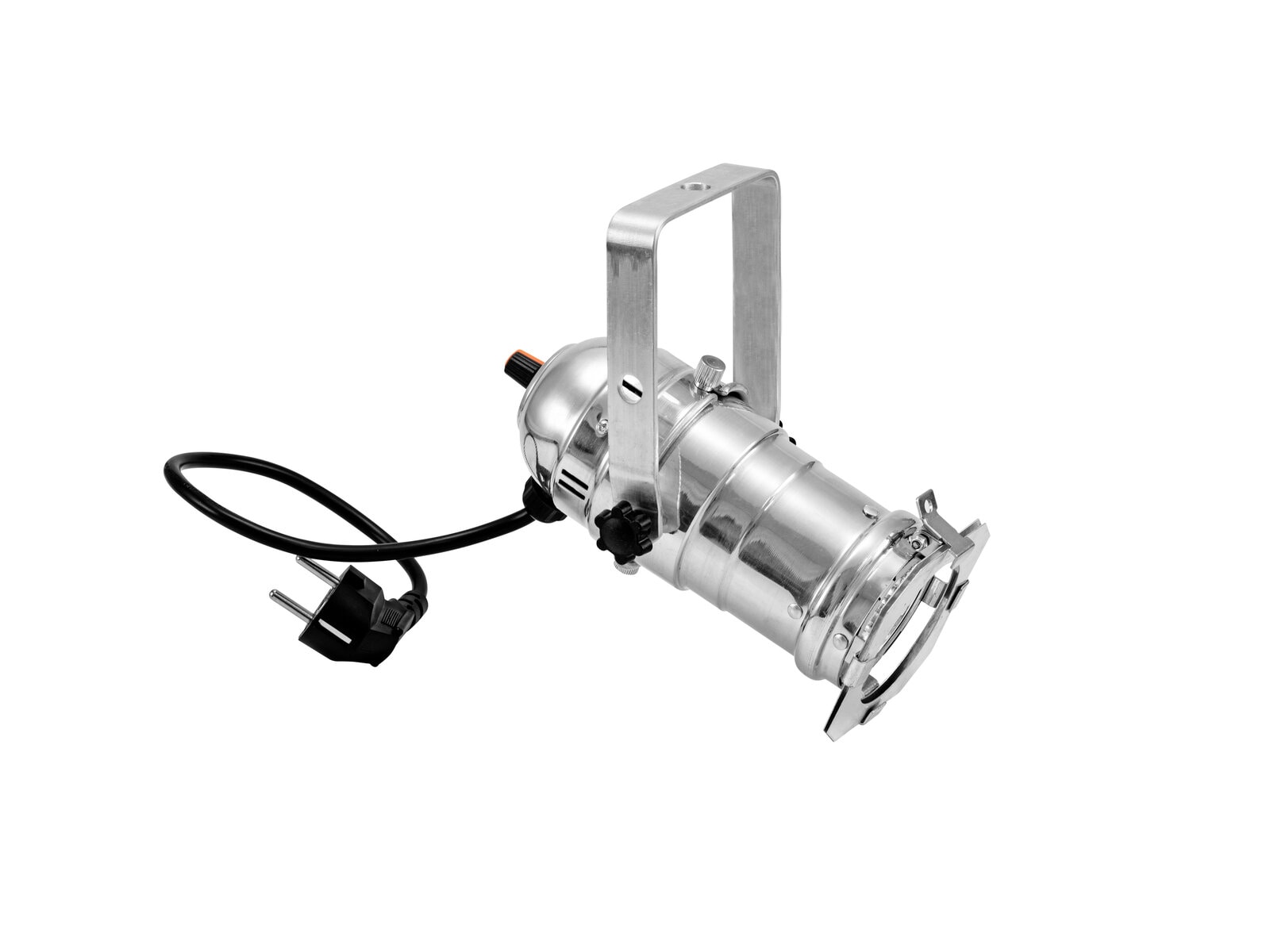

LED spotlight with three adjustable color temperatures and high color rendering index

• 1 powerful LED 16 W COB (chip-on-board) 2in1 BCL CW/WW
• The device is cooled by passive convection cooling
• Control via Quick select potentiometer for brightness and color temperature
• Flicker-free
• With a beam angle of 25°
• Very high color rendering index (CRI)
• With Mounting bracket
• Available in various colors
• Silent operation
• For application areas such as: Trade fair and shop fitting; Wedding/gala/events
• Dimmable
• Direct color temperature selection for 3 preset values
• Dimmer electronic

Package contents

• 1 x spotlight, 1 x filter frame, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
Max. 12 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Fixed power supply cord with safety plug
Cable length:
Approx. 0,4 m
Lamp type:
LED lamp
Lamp specification:
Dimmable
LED:
1 x 16 W COB (chip-on-board) 2in1 BCL CW/WW
Color temperature:
3000K; 4000K; 5000K
Cooling:
Passive convection cooling
Control:
Quick select potentiometer for brightness and color temperature
Beam angle:
25°
Beam angle (1/2 peak):
25°
Beam angle (1/10 peak):
50°
Color rendering index (CRI):
90 Ra
Illuminance in Lux (lx):
3000 K 1m: 2078 lx, 3m: 266 lx, 6m: 74 lx
4000 K 1m: 2427 lx, 3m: 299 lx, 6m: 80 lx
5000 K 1m: 2593 lx, 3m: 322 lx, 6m: 87 lx
Lamp life:
15000 h
Luminous flux:
800 lm
Housing color:
Silver
Attachment system:
Mounting bracket
Material:
Aluminum
Slot for spot length:
8,6 cm x 8,6 cm
Dimensions:
Length: 19,2 cm
Width: 11,5 cm
Height: 16,0 cm
Weight:
520 g
Noise classification:
Class 0 (no noise at all)
Energy efficiency class (A - G):
G
Mounting bracket
Diameter mounting holes:
2 x Ø10mm
Material:
Aluminum, 3 mm
Dimensions:
Width: 9,4 cm
Depth: 2 cm
Height: 12,4 cm
Filter frame
Shape:
Octagonal
Material:
Aluminum
Dimensions:
Width: 8,3 cm
Height: 8,3 cm
Diameter: Ø 6,1 cm
