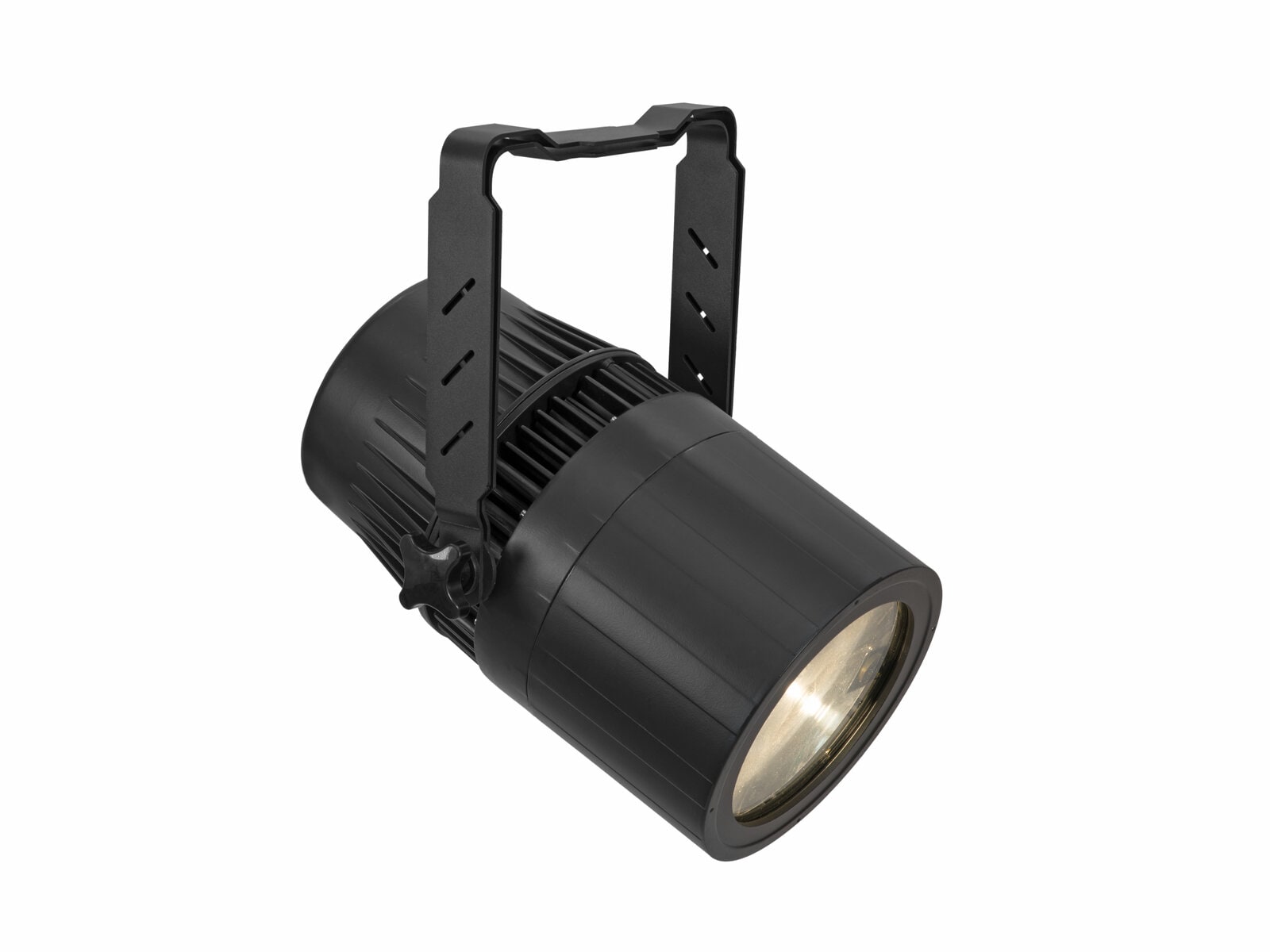

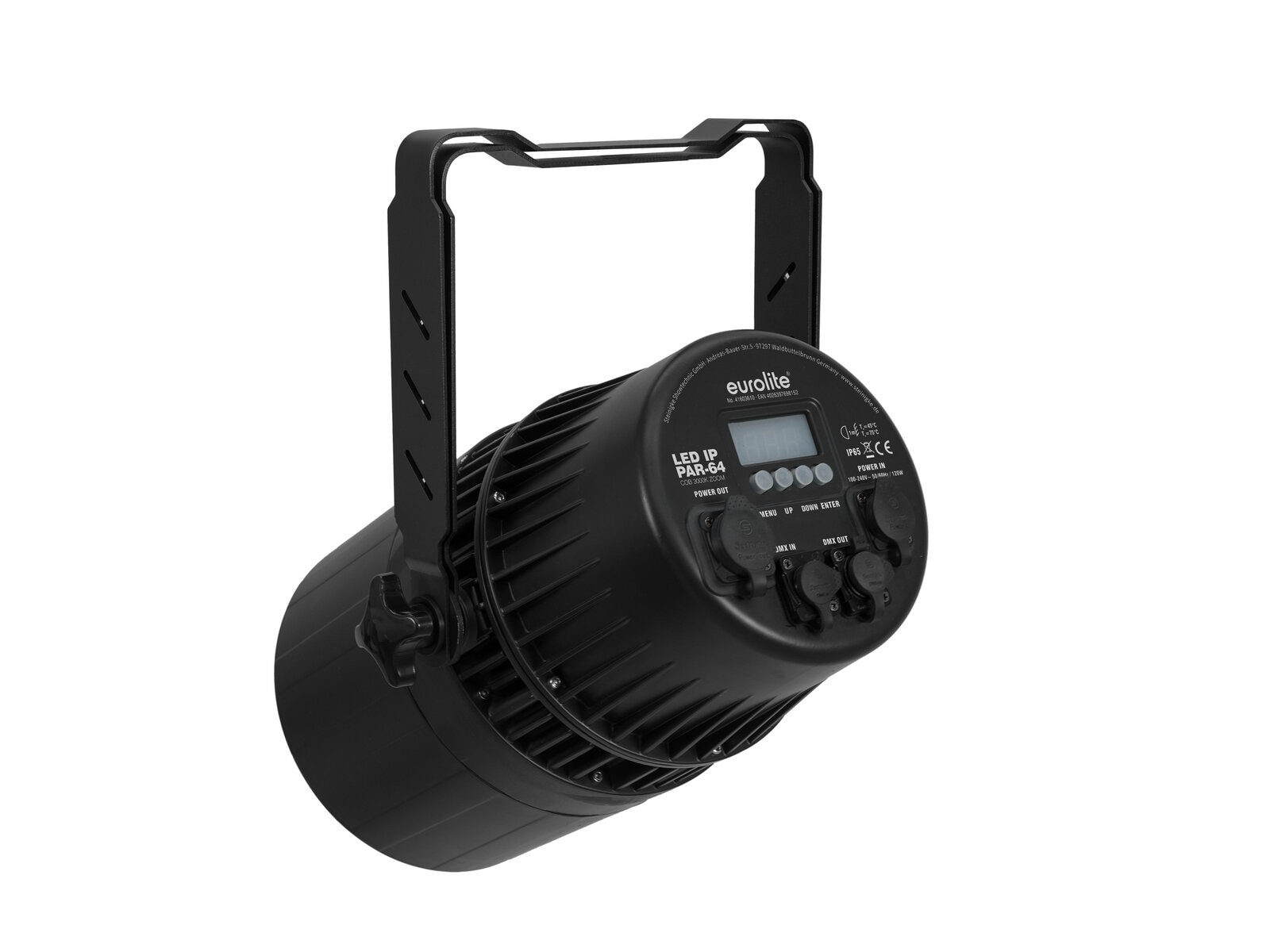

Weather-proof PAR spot, IP65, with warm white 100 W COB LED and motorized zoom

• Light performance comparable to a traditional 1000 W halogen spot light
• Homogeneous light distribution
• 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
• Zoom motor-driven
• Dimmer curves with adjustable response; pulse-width modulation variable; Gamma correction adjustable; Dimmer speed (step response) adjustable
• Strobe effect
• The device is cooled by temperature-controlled fan
• Control via DMX; stand-alone; Master/slave function
• Flicker-free
• With a beam angle of 7° - 53°
• Very high color rendering index (CRI)
• With double bracket
• 4 digit 7-segment LED display
• Suitable for outdoor use IP65
• For application areas such as: Theater
• Mains input and output for power linking up to 8 units
• Preprogrammed in Light Captain

Package contents

• 1 x device, 1 x power cord, 1 x xLR cable, 2 x mounting bracket, 2 x knurled screw, 4 x washer, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
120 W
IP classification:
IP65
Protection class:
Protection class I
Power connection:
Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Power output:
IP T-Con (F) mounting version
Fuse:
T 6,3 A Fuse fix in power supply
Lamp type:
LED lamp
LED:
1 x 100 W COB (chip-on-board) warm white (WW)
Color temperature:
3000K
Flash rate:
0 - 20 Hz
Equipment:
Zoom motor-driven
DMX channels:
1; 2; 3; 4
DMX input:
3-pin XLR (M) mounting version IP
DMX output:
3-pin XLR (F) mounting version IP
Cooling:
Temperature-controlled fan
Control:
DMX; stand-alone; Master/slave function
Preprogrammed in:
Light Captain
Beam angle:
7° - 53°
Beam angle (1/2 peak):
7 - 36°
Beam angle (1/10 peak):
9 - 53°
Color rendering index (CRI):
90 Ra
Housing color:
Black matte
Attachment system:
Double bracket
Display type:
4 digit 7-segment LED display
Material:
Aluminum casting
Dimensions:
Length: 36 cm
Width: 29 cm
Height: 35 cm
Weight:
8,40 kg
Noise classification:
Class 2 (slight noise)
Power cord
Cable construction:
3 x 1,5 mm² H07RN-F
Cable length:
Approx. 1,5 m
XLR cable
Cable length:
Approx. 1 m
Connector type:
3-pin XLR (M); 3-pin XLR (F)
Mounting bracket
Diameter mounting holes:
1 x Ø10mm
Material:
Metal, 2,5 mm
