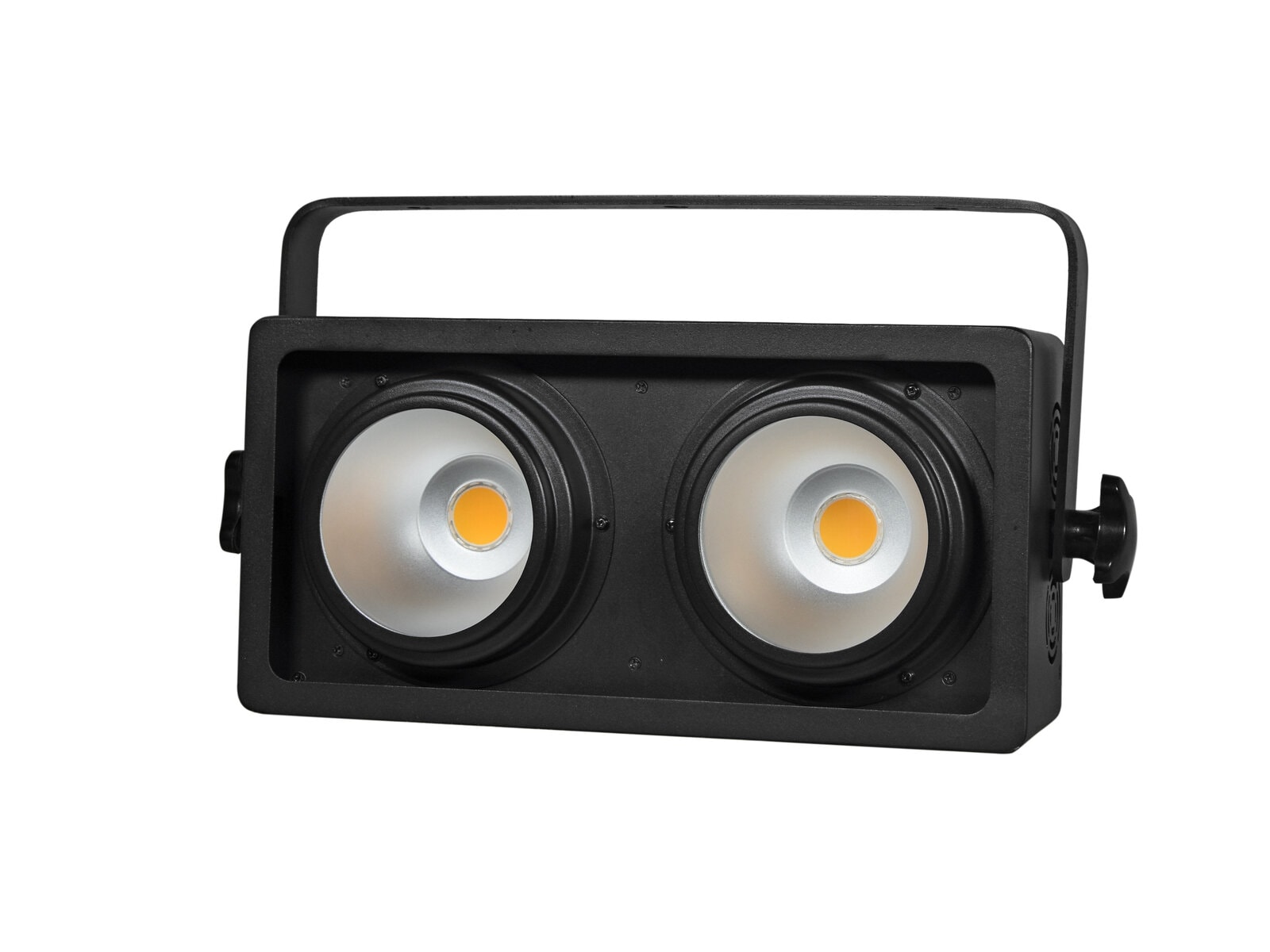

Audience blinder with 2x 100 W COB LED, warm white

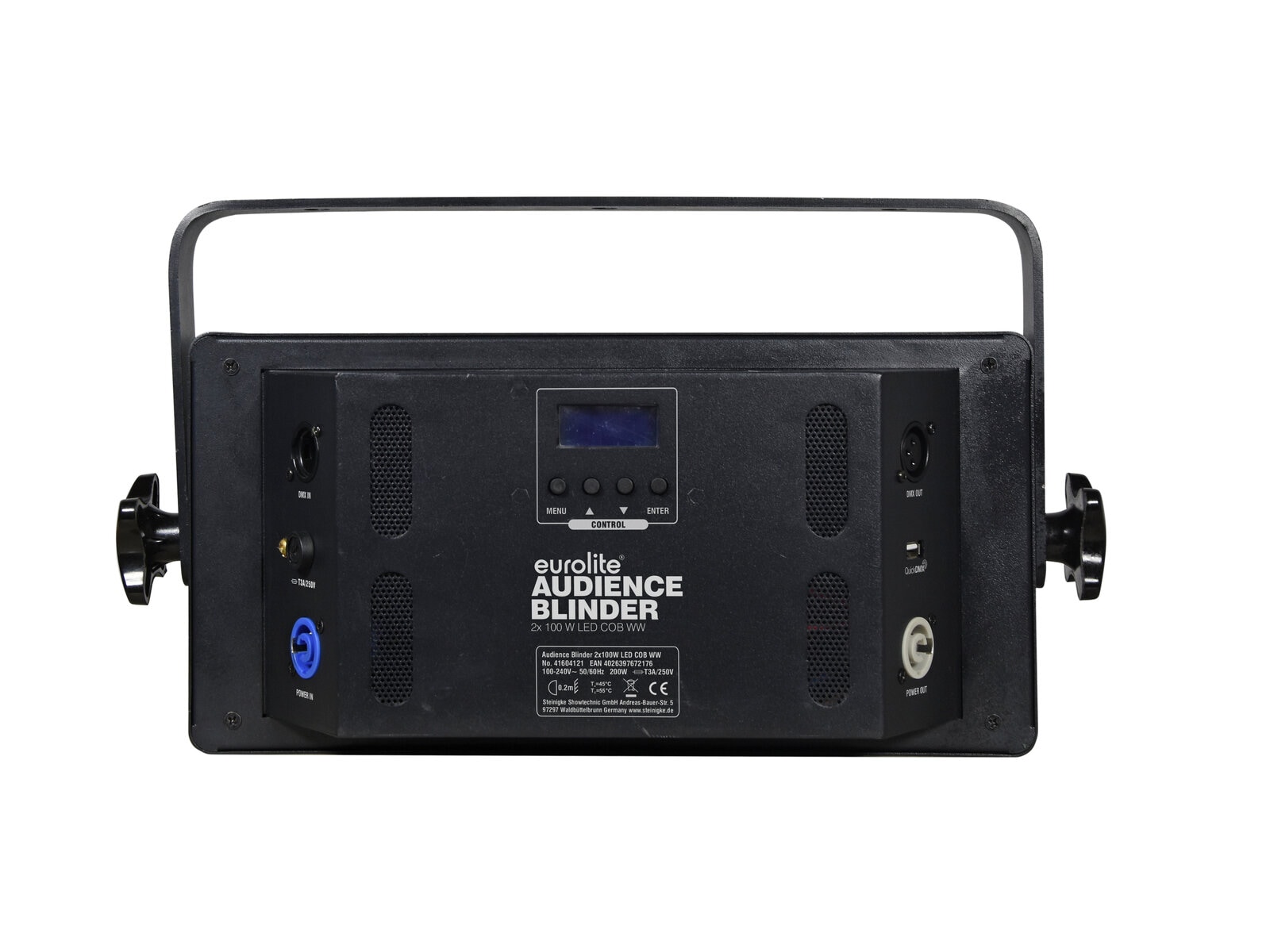

• DMX and power terminals intelligently designed for easy wiring
• 2 powerful LEDs 100 W COB (chip-on-board) warm white (WW)
  LEDs separate controlling
• Strobe effect
• 9 integrated show programs
• The device is cooled by cooling fan
• Control via stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• With a beam angle of 70°
• With Mounting bracket
• For application areas such as: Theater; sports centres/gyms; Stage
• Preprogrammed in Light Captain; Light´J
• Flicker-free
• Very high color rendering index (CRI)
• LCD display
• Mains input and output for power linking up to 8 units

Package contents

• 1 x spotlight, 1 x power cord, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
200 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
1 x P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 3 A Fuse replaceable
Lamp type:
LED lamp
LED:
2 x 100 W COB (chip-on-board) warm white (WW)
Color temperature:
3100K
Flash rate:
0 - 20 Hz
DMX channels:
2; 4; 6
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light Captain; Light´J
Beam angle:
70°
Beam angle (1/2 peak):
70°
Color rendering index (CRI):
97 Ra
Wavelength:
632 nm
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
LCD display
Material:
Metal
Dimensions:
Width: 41 cm
Depth: 15,3 cm
Height: 22,4 cm
Weight:
5,22 kg
Noise classification:
Class 2 (slight noise)
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 1,0 mm² H05VV-F
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
3 x Ø11mm
Material:
Metal, 4 mm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
