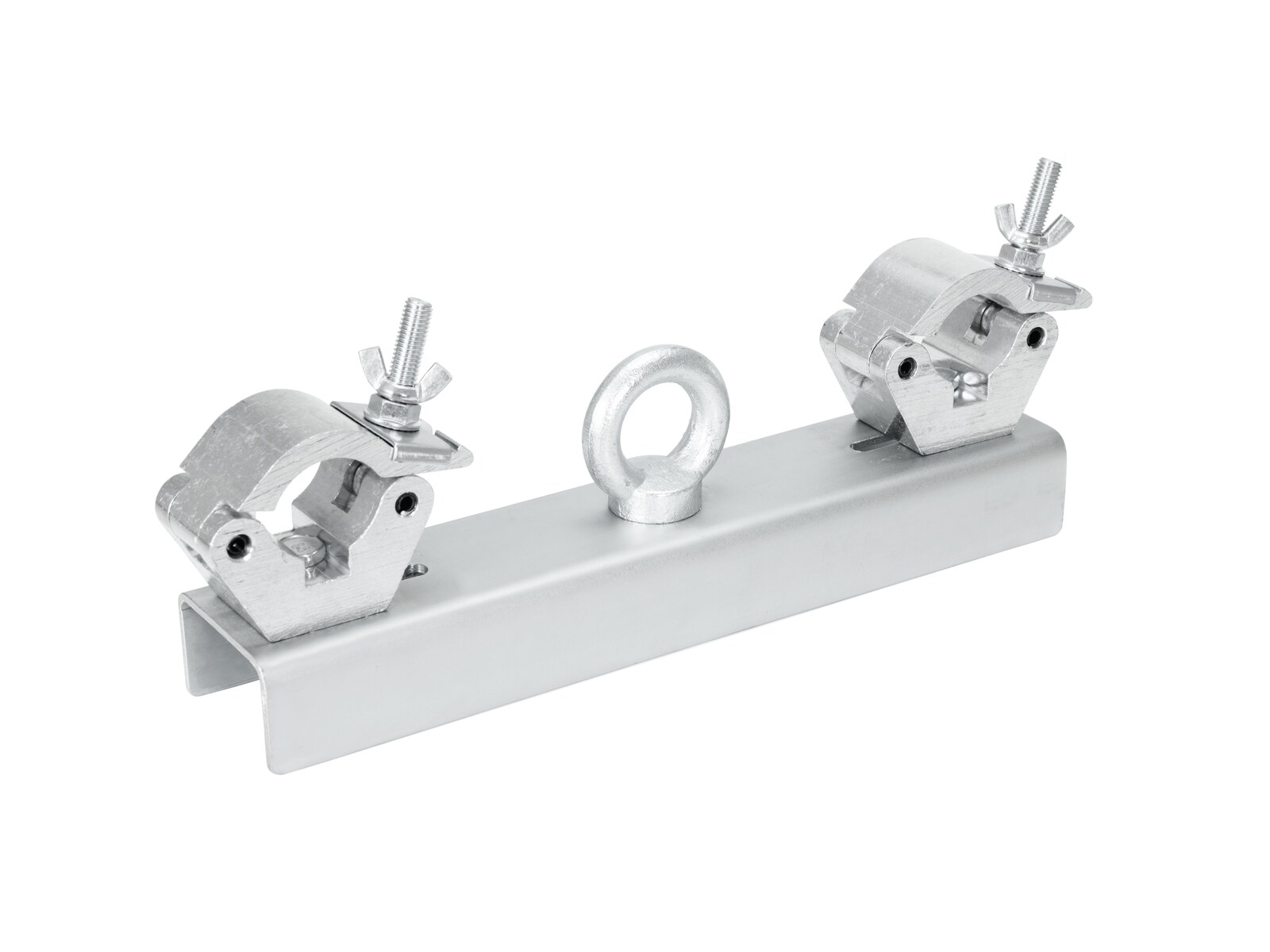

Truss mount

• With two TPC-50 clamps
• Trusspipe: 50 mm

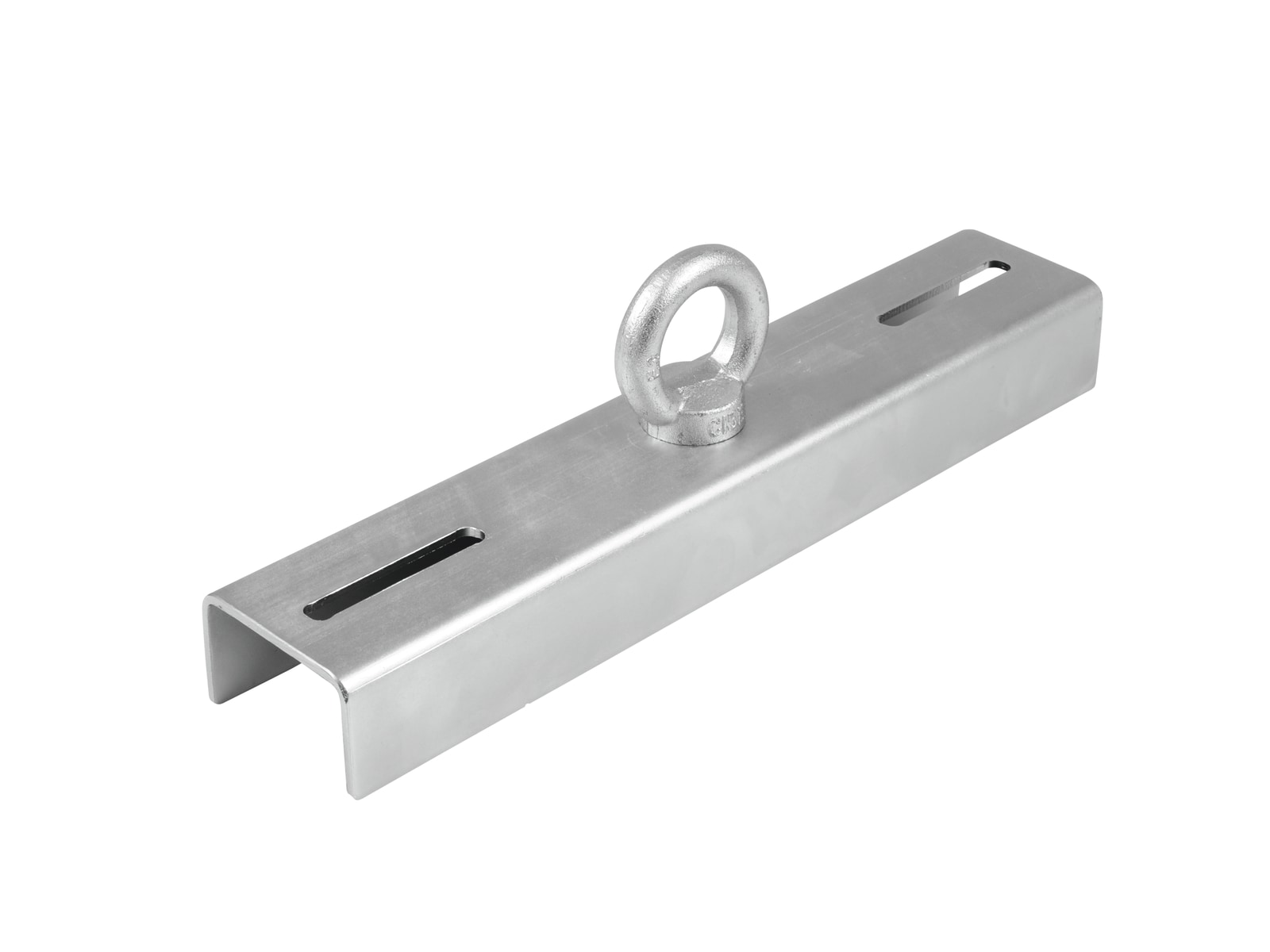

ALUTRUSS GI-1 Truss Adapter silver

Truss mount

• U-profile for hanging truss from the ceiling
• Designed for trusses from 25 to 40 cm
• Thanks to its adjustable system, just one adapter can be used for different trusses
• M20 ring bolt with washer and self-locking nut
• Made in Europe

Package contents

• 1 x device

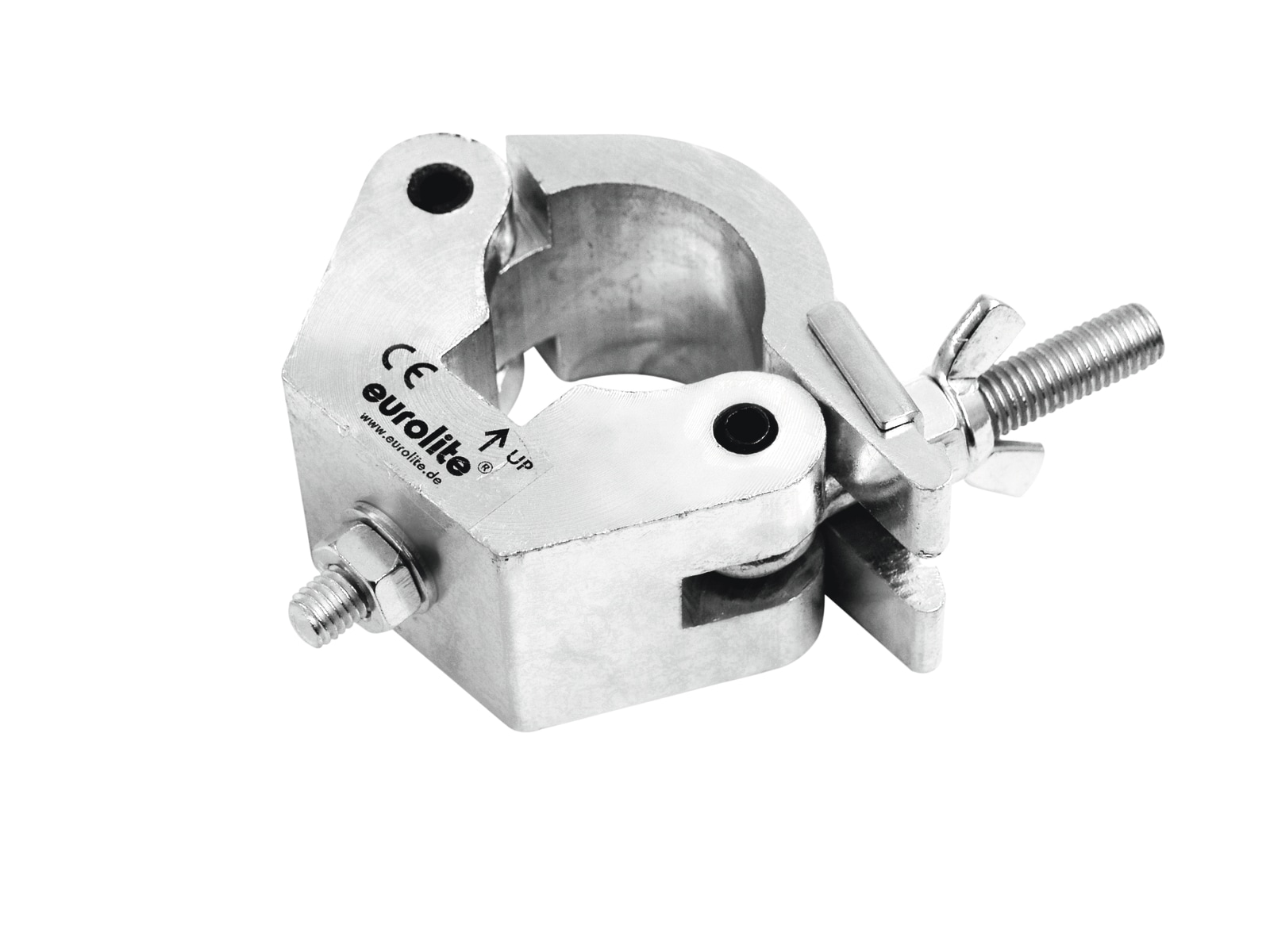

EUROLITE TPC-50 Half Coupler

Mounting coupler for 50 mm tube, maximum load WLL 800 kg

Trusspipe:
50 mm
Dimensions:
Height: 5 cm
Weight:
3,86 kg
ALUTRUSS GI-1 Truss Adapter silver
Maximum load BGV C1 (8-fold):
250 kg
Max. load WLL (4-fold):
500 kg
Material:
Steel, 3,5 mm
Color:
Alu colored
Dimensions:
Length: 40 cm
Width: 8 cm
Height: 12 cm
Weight:
2,44 kg
EUROLITE TPC-50 Half Coupler
Maximum load BGV C1 (8-fold):
400 kg
Max. load WLL (4-fold):
800 kg
Tube diameter sector:
45 - 50 mm
Material:
Aluminum
Color:
Silver
Mounting screw:
M10
Dimensions:
Length: 11 cm
Width: 5 cm
Depth: 11,50 cm
Weight:
710 g
