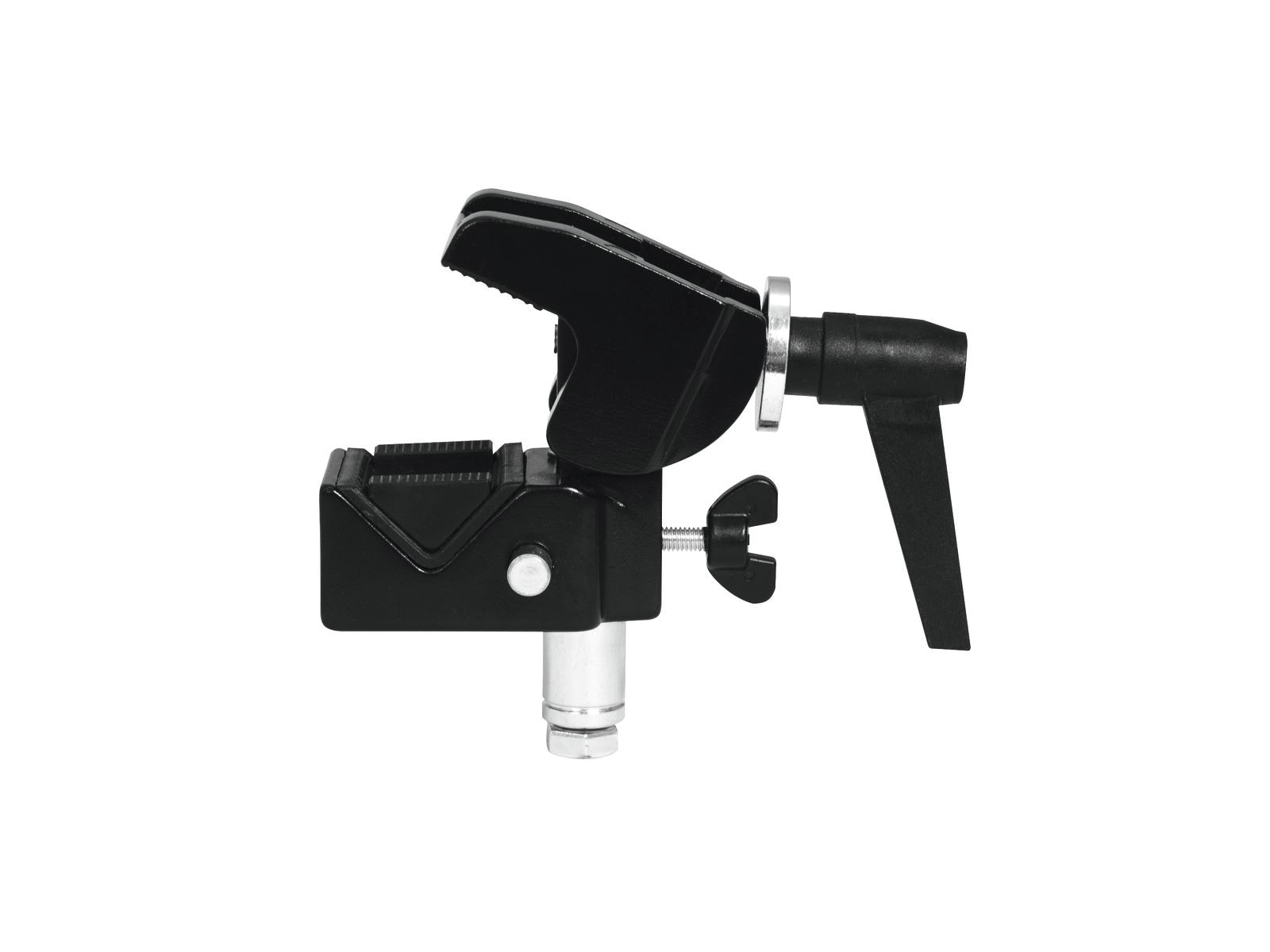

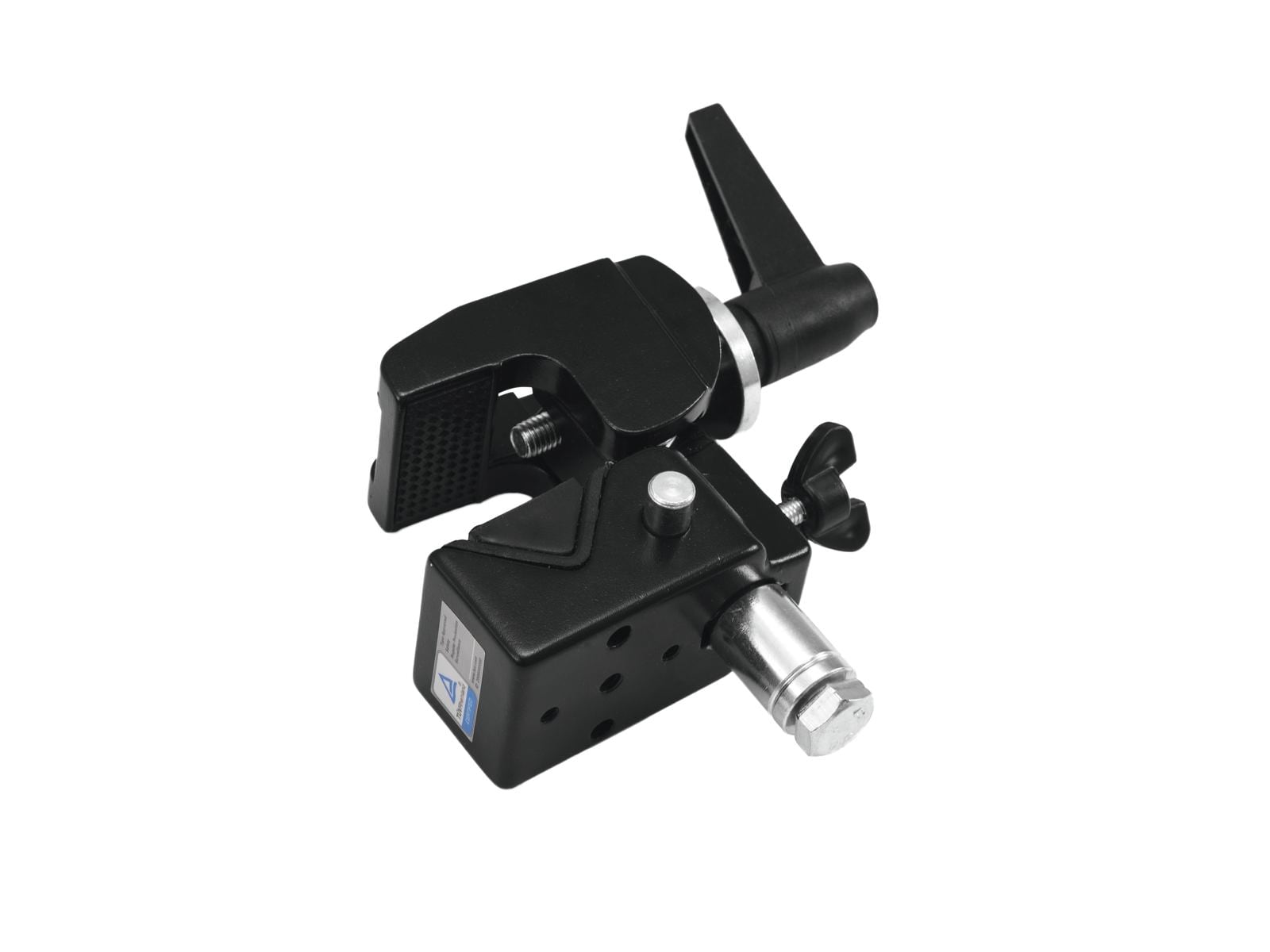

Mounting clamp for 13-55 mm tube incl. mini TV pin, maximum load WLL 15 kg

• Clamp for installing projectors, lighting effects etc. via a truss system
• Fixation: hexagonal 5/8" socket and 1x M6 thread and 2 x M5 thread (f)
• TV pin

Package contents

• 1 x device, 1 x user manual, 1 x mounting material

Maximum load BGV C1 (8-fold):
7,5 kg
Max. load WLL (4-fold):
15 kg
Tube diameter sector:
13 - 55 mm
Attachment system:
TV spigot mini Ø 16 mm
Material:
Aluminum casting
Color:
Black
Mounting screw:
M10
Dimensions:
Length: 14,50 cm
Width: 4,50 cm
Depth: 12,50 cm
Weight:
560 g
