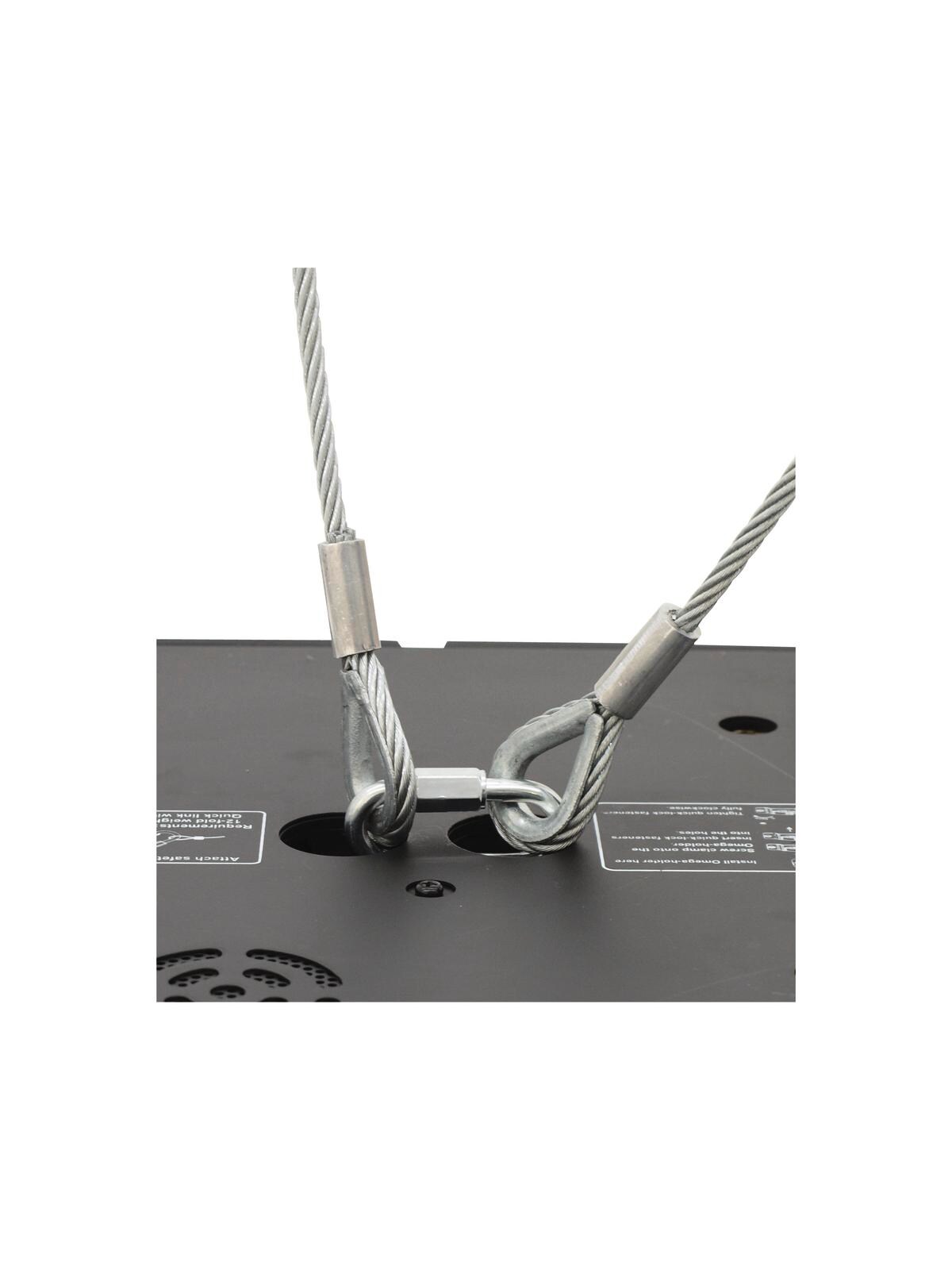

5801049C EUROLITE Steel Rope 1000x4mm black with Thimbles

Installation rope, safety bond, safety

• Round strand rope 6 x 19 with fibre core
• With two thimbles
• Suitable for installing and securing loads above persons
• 4 x 1000 mm
• WLL 175 kg
• Test report according to DIN EN 10204 as download

50301644 EUROLITE Quick Link Type A-90

Quick link

• Form A (short)
• Galvanized
• Identification number: 90
• Stamp: DIN 56927 A 90
• Test report according to DIN EN 10204 as download

5801049C EUROLITE Steel Rope 1000x4mm black with ThimblesMaximum load WLL (5-fold): 175 kg
Maximum load BGV C1 (12-fold): 70 kg
Maximum load (safety): 15 kg
Temperature range: -40° C to +100° C
Rope length: 1 m
Rope diameter: 4.00 mm
Rope type: Round strand rope
Nominal tensile strength: 1770 N/mm²
Strength classification: 1960
Diameter: 4 mm
Maximum load WLL (5-fold): 175 kg
Color: Black
Nominal tensile strenght of rope: 1770 N/mm²
Design of the core: 6 x 19 FC
Strength classification: 1960
Wire surface: Zinc-plated
Length: 100 cm
Standard: DIN EN 12385-4:2008-06, DIN 56927:2009-03
Lengthweigth: 0,0554 kg/m
Weight: 0,08 kg
50301644 EUROLITE Quick Link Type A-90Temperature range: -40° C to +100° C
Form: A - small
Dimensions: 41 x 22 mm
Maximum load WLL (5-fold): 180 kg
opening: 0-5,5 mm
Weight: 0,012 kg
Standard: DIN 56927:2009-03,
Diameter: 4 mm
