Takhögtalare 8" RCF
RCF infälld högtalare 8"
Art nr:DEMO-RCF-PL8X
581 kr
969 kr
1 st i lager (Leveranstid ca. 1-4 vardagar)
- ✓ Trygga betalsätt
- ✓ 30 dagar ångerrätt
Produktbeskrivning
FYNDHÖRNAN REA
RCF-PLX8X Helt nya i orginalkartonger finns
Two way speaker system with dome tweeter recommended for hi level speech and background-music reproduction
Music power/RMS: 40/20W
8" woofer with coaxial tweeter
Low impedance (8Ω) or 100V
Built-in multi-tapped transformer for 100/70V constant voltage connection
Body in self-extinguishing plastic (UL 94V-0) and front metal grille RAL 9003 White
IP 44 protection

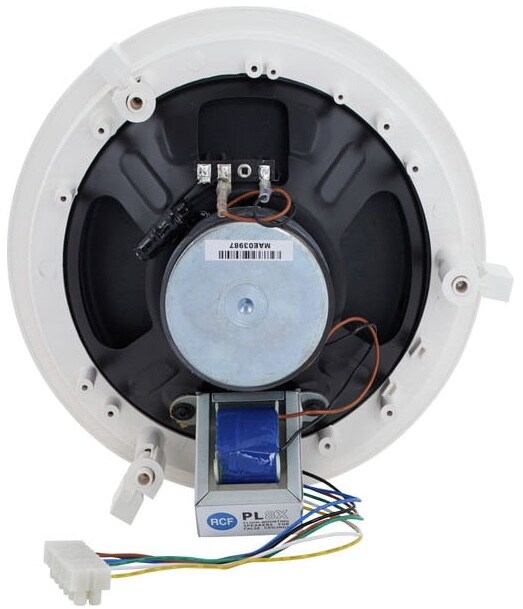

The PL8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 200 mm (8”) loudspeaker. Both have a coaxial 25 mm (1”) tweeter placed on a bridge support. The speakers are equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make it possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
60 Hz ÷ 20000 Hz
MAX SPL @ 1M:
109 dB
COVERAGE ANGLE:
80°
SYSTEM SENSITIVITY:
93 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm
POWER HANDLING:
20 W RMS
PEAK POWER HANDLING:
80 W PEAK
RECOMMENDED AMPLIFIER:
40 W
Transducers
DOME TWEETER:
Coaxial 1.0''
WOOFER:
Coaxial 8''
Input/Output section
INPUT CONNECTORS:
Euroblock
CONSTANT VOLTAGE TRANSFORMER:
70/100 V
POWER SELECTION 1 (100 V):
20 W - 500 ohm
POWER SELECTION 2 (100 V):
10 W - 1000 ohm
POWER SELECTION 3 (100 V):
5 W - 2000 ohm
POWER SELECTION 4 (100 V):
2.5 W - 4000 ohm
Standard compliance
IP PROTECTION GRADE:
IP 44
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Plastic
HARDWARE:
Plastic Material
GRILLE:
Steel
COLOR:
White - RAL 9003
Size
DEPTH:
88 mm / 3.46 inches
RECESSED DEPTH:
80 mm / 3.15 inches
DIAMETER:
247 mm / 9.72 inches
CUT OUT DIAMETER:
224 mm / 8.82 inches
WEIGHT:
1.23 kg / 2.71 lbs
