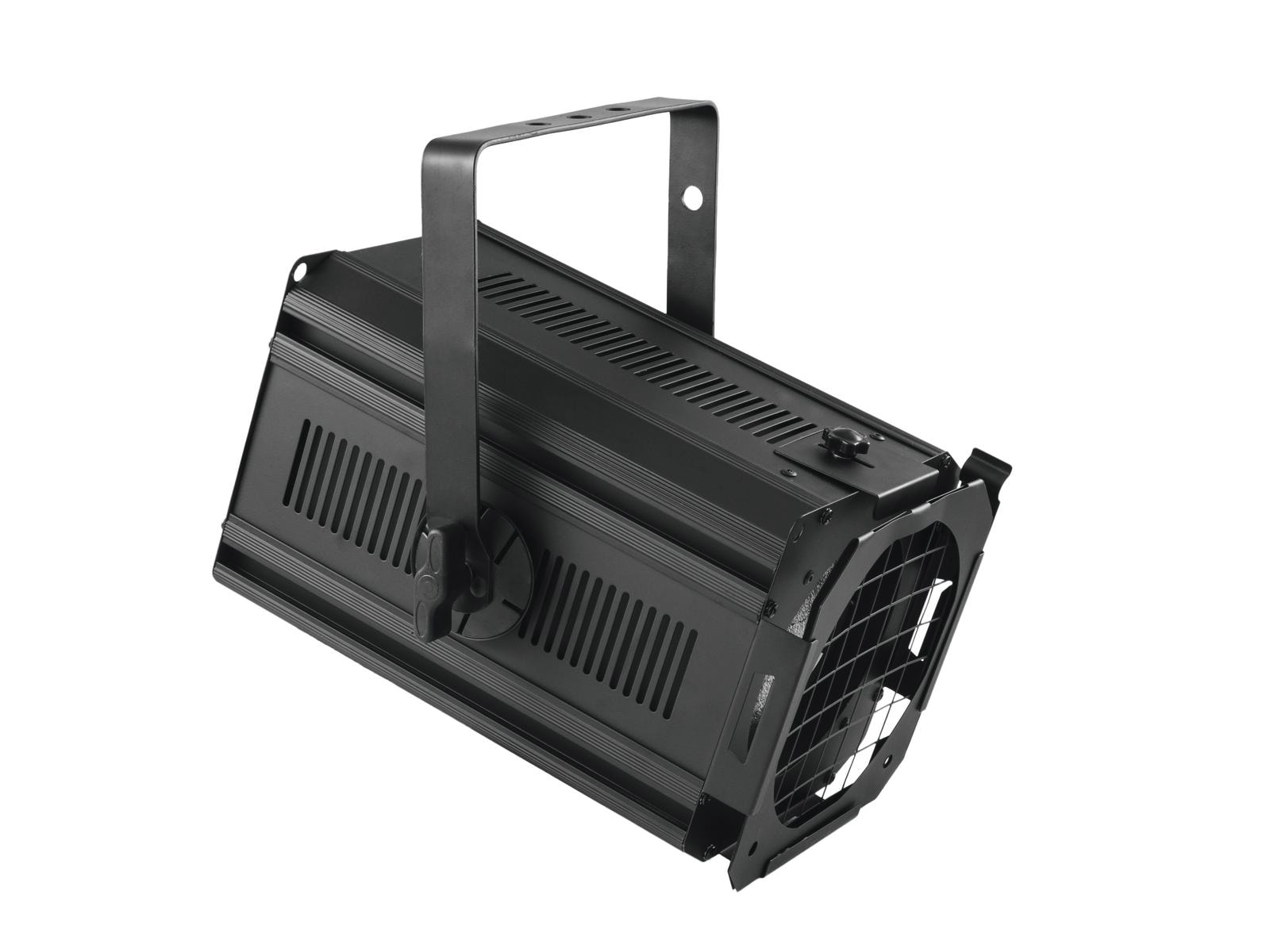

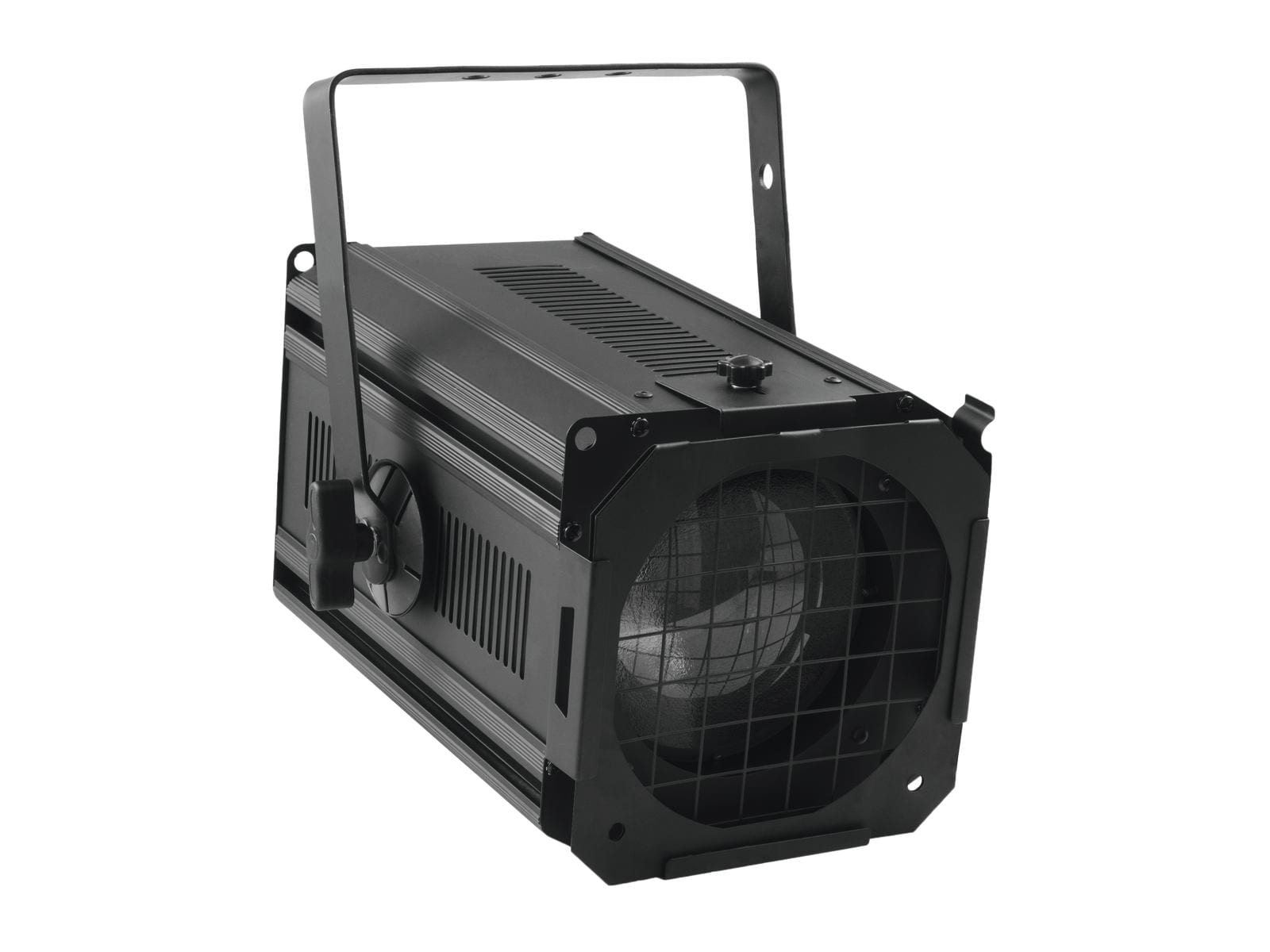

Theater spot for halogen lamps with 650 or 1000 watts power

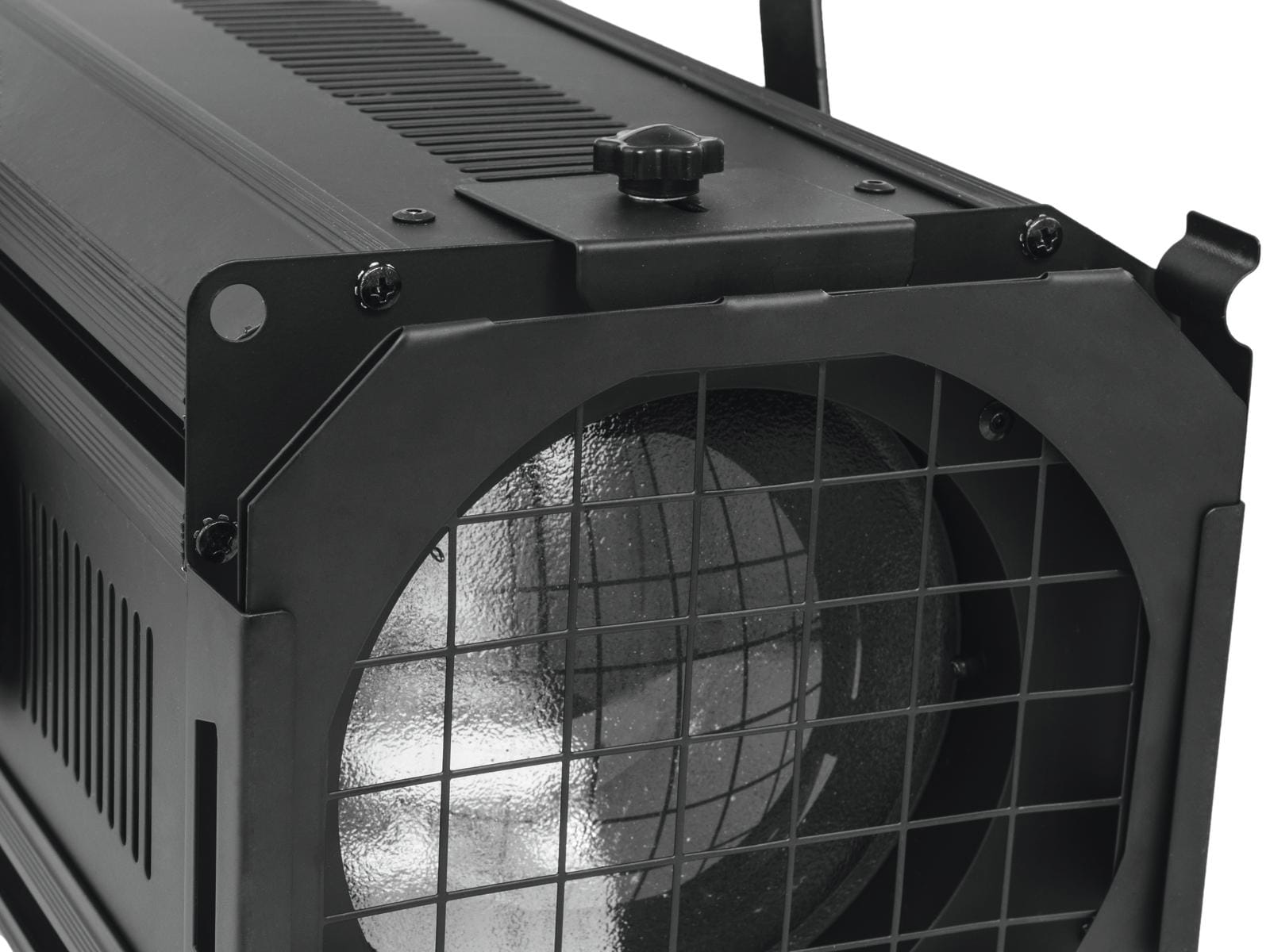

• Professional theatre spot with color filter frame and protective grille
• Impressive light output
• Robust version
• Easy lamp replacement
• Antihalo lens for punctual illumination (light inside the beam is brighter than outside)
• Focus manual
• The device is cooled by passive convection cooling
• Control via plug and play
• With a beam angle of 10° - 42°
• With Mounting bracket
• Silent operation

Package contents

• 1 x spotlight, 1 x filter frame, 1 x user manual

Power supply:
230 V AC, 50 Hz
Power consumption:
Max. 1000 W
IP classification:
IP20
Protection class:
Protection class I
Suitable lamp:
Max. 230 V/1000 W Lamp envelope GX9.5

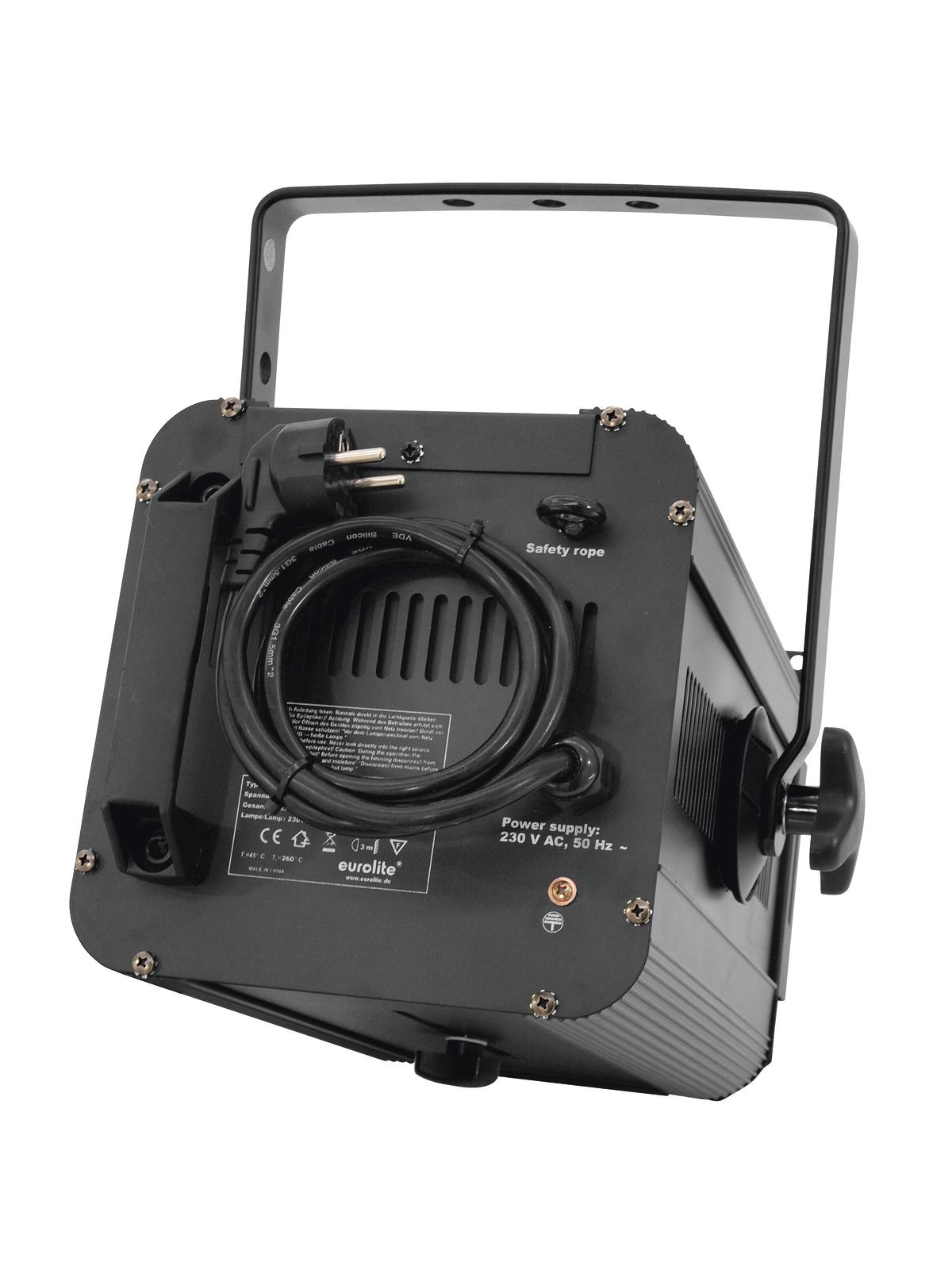

Power connection:
Fixed power supply cord with safety plug
Cable construction:
3 x 1,0 mm² H05SS-F
Cable length:
Approx. 0,9 m
Base:
GX9.5
Lamp type:
Halogen lamp
Equipment:
Focus manual
Color generation:
Via color filter frame
Cooling:
Passive convection cooling
Control:
Plug and play
Beam angle:
10° - 42°
Beam angle (1/2 peak):
10 - 40°
Beam angle (1/10 peak):
15 - 42°
Housing color:
Black
Attachment system:
Mounting bracket
Material:
Metal; aluminum
Dimensions:
Length: 37 cm
Width: 25,5 cm
Height: 34 cm
Weight:
4,60 kg
Noise classification:
Class 0 (no noise at all)
Mounting bracket
Diameter mounting holes:
4 x Ø12mm
Material:
Metal, 3 mm

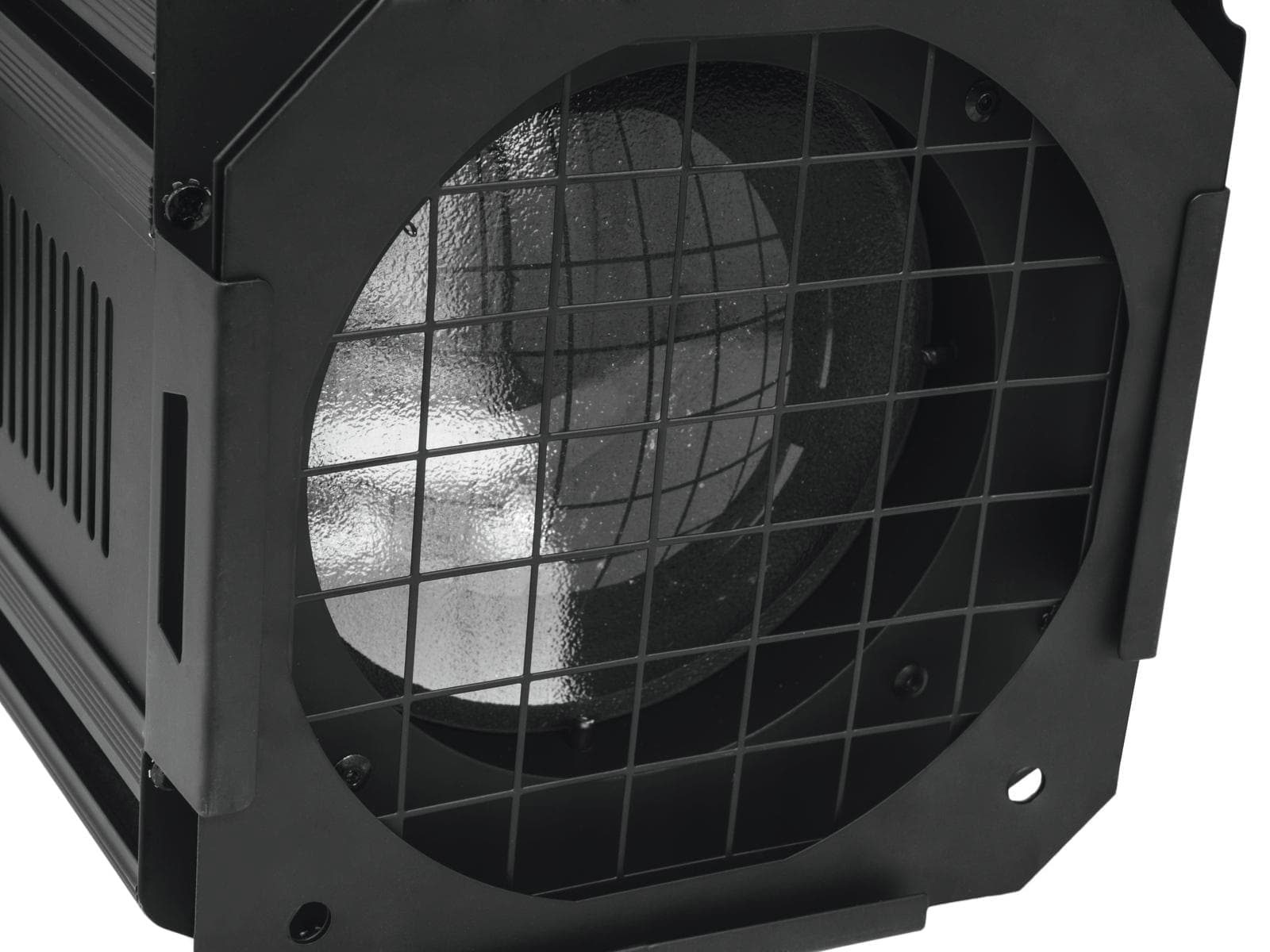

Filter frame
Diameter mounting holes:
4 x Ø8mm
Grid size:
22 x 22 mm
Material:
Metal, 0,5 mm
Color:
Black
Dimensions:
Width: 19,6 cm
Height: 19,6 cm
Diameter: Ø 17,1 cm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
