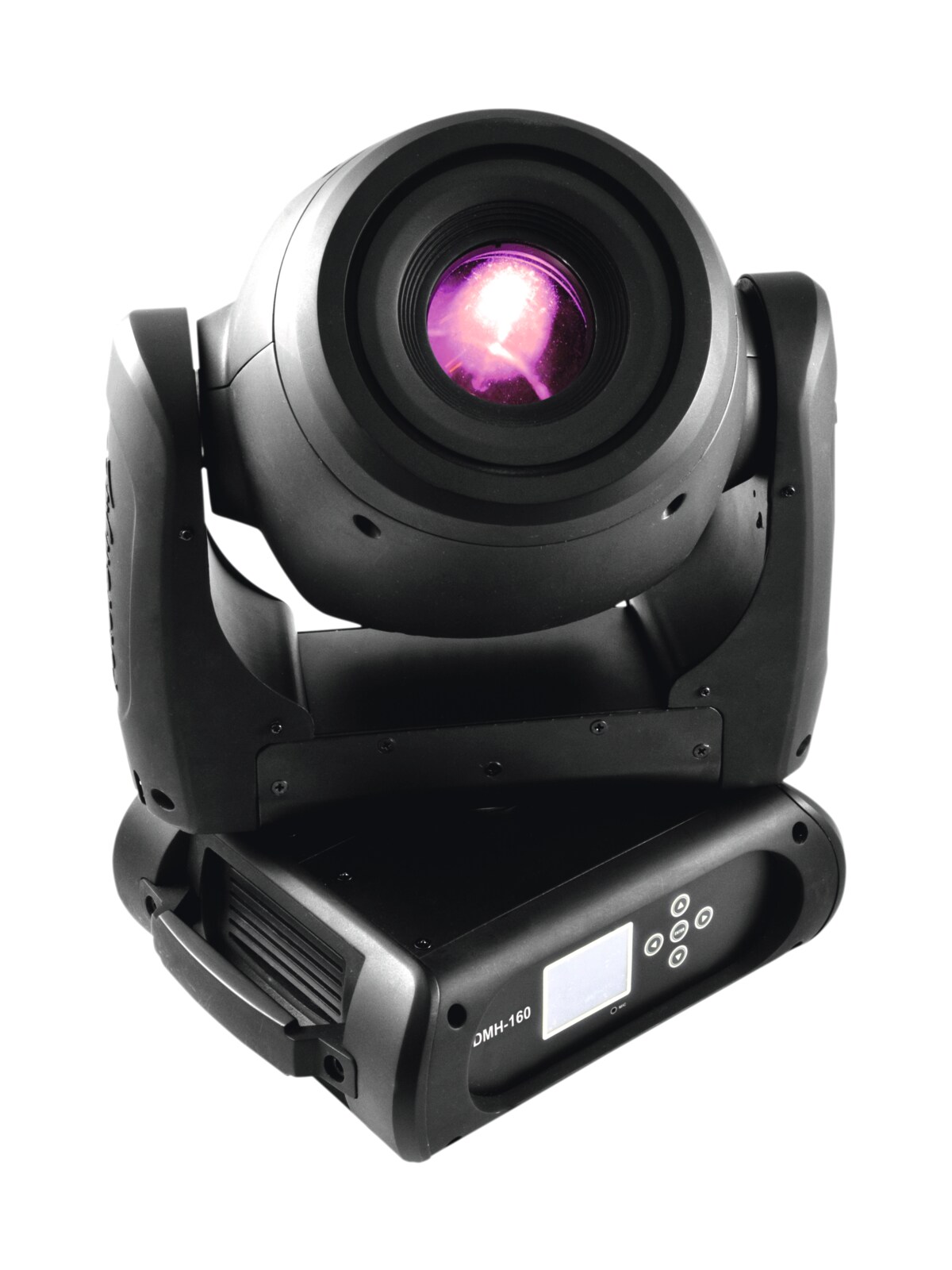

PRO moving-head with 200 W COB LED and extensive features

• Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
• The scenes can be modified via the Control Board or via an external controller and loaded into the memory
• Number of scenes can be changed individually
• 1 powerful LED 200 W COB (chip-on-board) cold white (CW)
• Positioning within 630° PAN and 270° TILT
• Iris stepless; gobo wheel with rotating gobos; gobo wheel with static gobos; Prism 3-fold; Prism 8-fold; Focus motor-driven; frost filter; color wheel
• Gobo effect; beam effect; Strobe effect

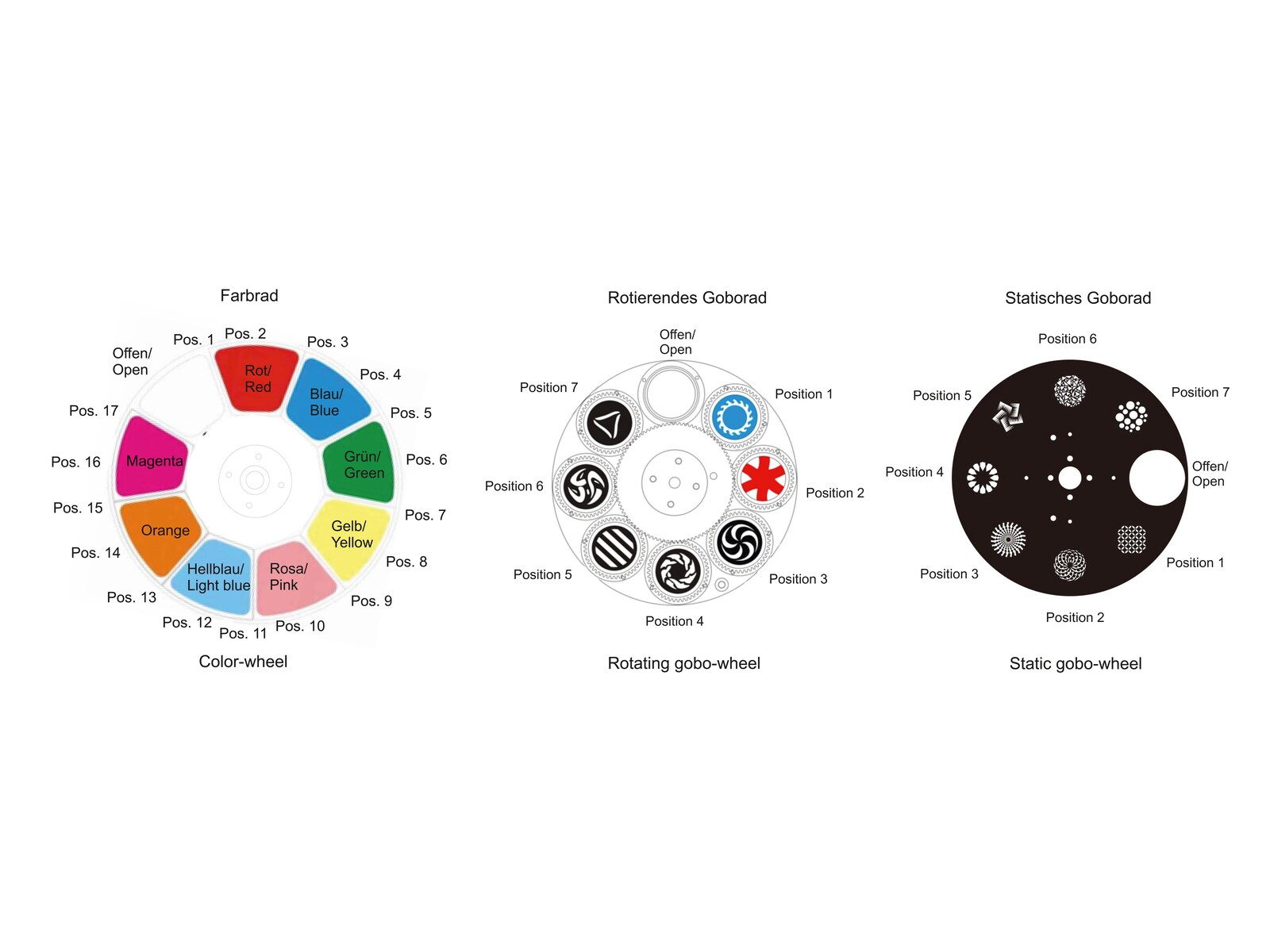

• Color wheel with 8 dichroic filters plus open
  half colors selectable, Rainbow effect with adjustable speed in both directions
• Gobo wheel with static gobos, 7 gobos and open
• Shake effect
• Gobo wheel with rotating gobos, 7 gobos and open
  gobos changeable
• Shake effect
• Gobos changeable
• Slot-in gobo system for easy gobo replacement
• The device is cooled by temperature-controlled fan
• Control via stand-alone; RDM; DMX; Sound to light via Microphone; W-DMX by wireless solution upgradeable
• Flicker-free
• With a beam angle of 11°
• LCD display,
  with battery buffering for easy controlling upgradeable
• Built with NEUTRIK connector
• Exact 16 bit resolution at Dimmer
• Pulse-width modulation variable
• Preprogrammed in LED PC-Control 512; Light Captain
• With Omega bracket
• Mains input and output for power linking up to 8 units

Package contents

• 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x xLR cable, 1 x declaration of conformity

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
285 W
IP classification:
IP20
Protection class:
Protection class I

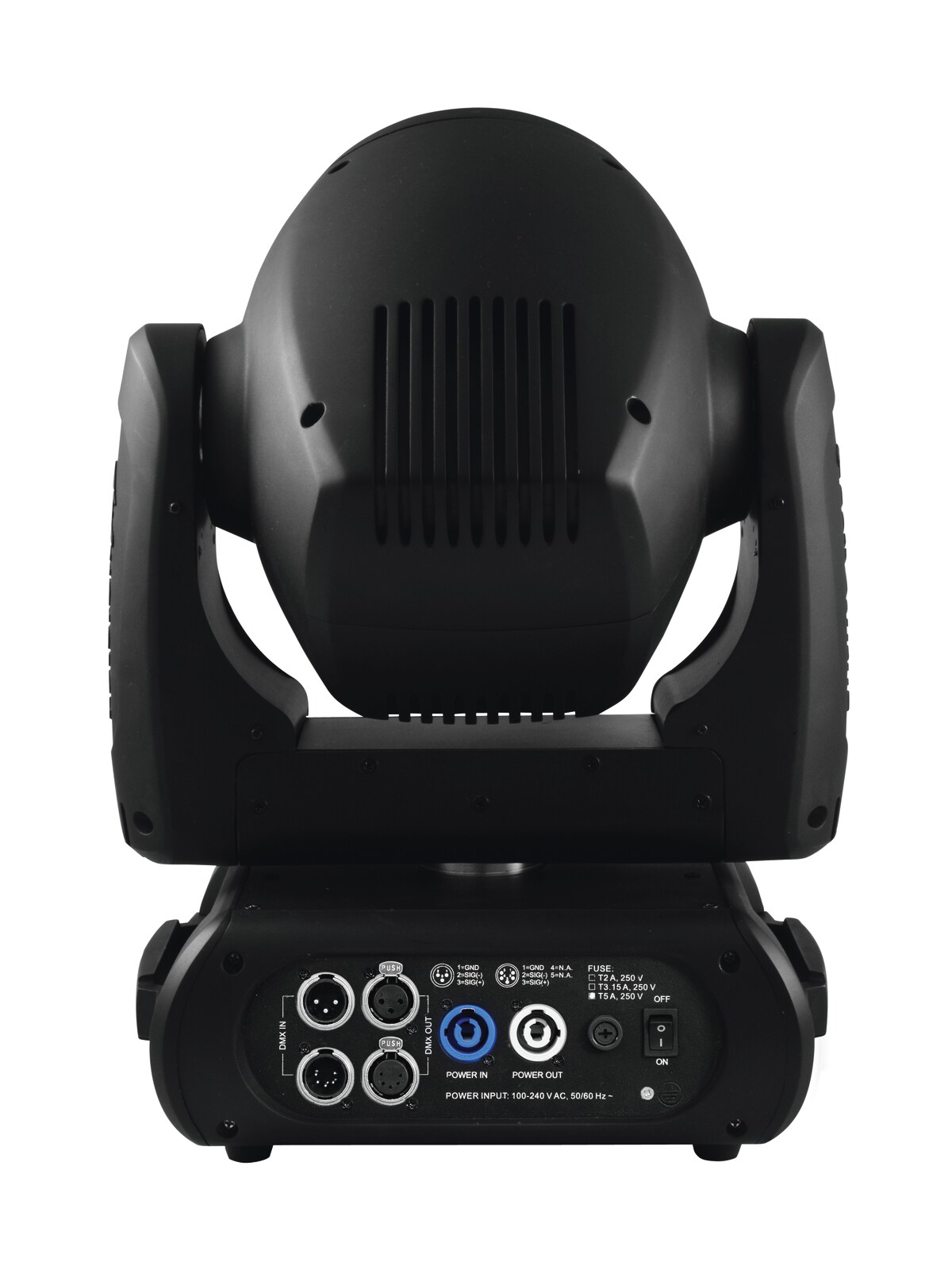

Power connection:
Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:
1 x PowerCON (gray), mounting version
Fuse:
5 x 20 mm, T 3,15 A
Lamp type:
LED lamp
LED:
1 x 200 W COB (chip-on-board) cold white (CW)
Max. TILT movement:
270°
Max. PAN movement:
630°
Equipment:
Iris stepless; gobo wheel with rotating gobos; gobo wheel with static gobos; Prism 3-fold; Prism 8-fold; Focus motor-driven; frost filter; color wheel
Color generation:
Color wheel with 8 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with static gobos, 7 gobos and open
Shake effect
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 27mm
Image diameter 22mm
Gobos changeable
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
DMX channels:
14; 16; 23; 25
DMX input:
1 x 5-pin XLR (M) mounting version
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 5-pin XLR (F) mounting version
1 x 3-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
Stand-alone; RDM; DMX; Sound to light via Microphone; W-DMX by wireless solution upgradeable
Preprogrammed in:
LED PC-Control 512; Light Captain
Beam angle:
11°
Beam angle (1/2 peak):
11°
Illuminance in Lux (lx):
Cold white (CW) 3m: 27074 lx, 6m: 6796 lx
Housing color:
Black
Attachment system:
2x Omega bracket
Display type:
LCD display battery buffering upgradeable
Use of brands:
Built with NEUTRIK connector
Color:
Black
Dimensions:
Width: 34,3 cm
Depth: 26,2 cm
Height: 44,1 cm
Weight:
15,85 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
