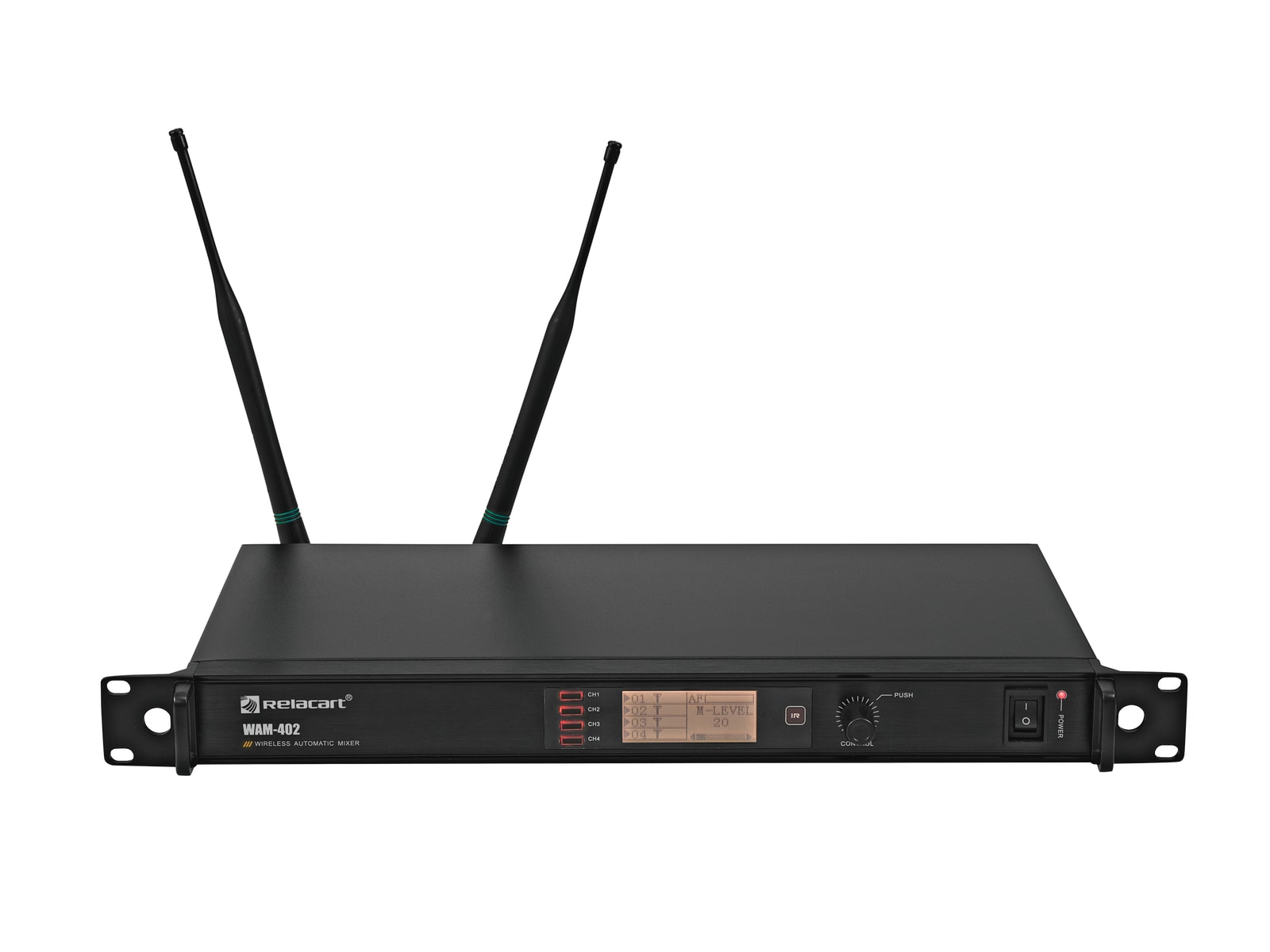

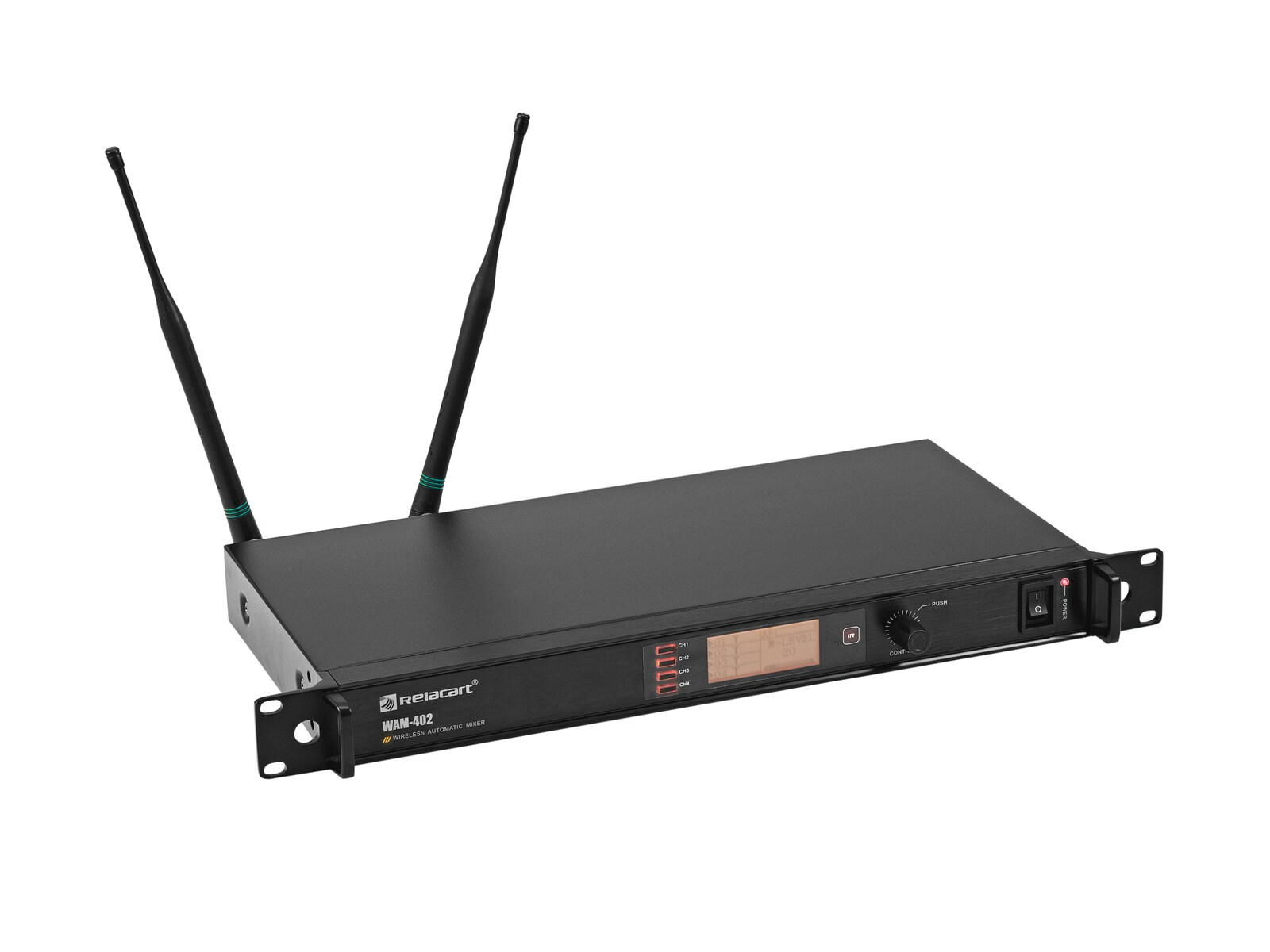

Digital UHF automatic mixer with DSP for up to 4 microphones

• Easy and error-free synchronization between receiver and transmitter via infrared signal
• Precise and noise-free microphone selection that automatically adjusts to changes in background room noise
• Eliminates acoustic feedback and background noise
• Automatic mixing technology activates only those microphones being addressed
• Number of open microphones adjustable
• Control algorithm adjusts gain automatically
• Auto mixing parameters adjustable
• 2 units can be linked for operation with 8 wireless microphones, link cables included
• Last used microphone stays activated (switchable)
• Adjustable priority circuit for each microphone
• Automatic frequency scan (AFS) finds interference-free channels
• Lock function for prevents undesired changes to settings
• LCD display
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• UHF 863 - 865 MHz License-free and approved in Europe
• The device can be connected via RS 232 to the PC
• (19") 48.3 cm rack installation 1 U

Package contents

• 1 x receiver, 1 x external mains adapter, 2 x antenna, 2 x bNC cable, 1 x xLR cable, 1 x multi-pin cable, 1 x network cable, 1 x user manual, 1 x declaration of conformity

Type:
Mixer
Power supply:
100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:
10 W
Power connection:
Mains input via Coaxial power connector (M) mounting version (provided)
Number of channels:
4
Frequency range:
65 - 16000 Hz
S/N ratio:
>100 dB
Display type:
LCD display
Control elements:
Menu, encoder, navigation keys
Status LED:
Power

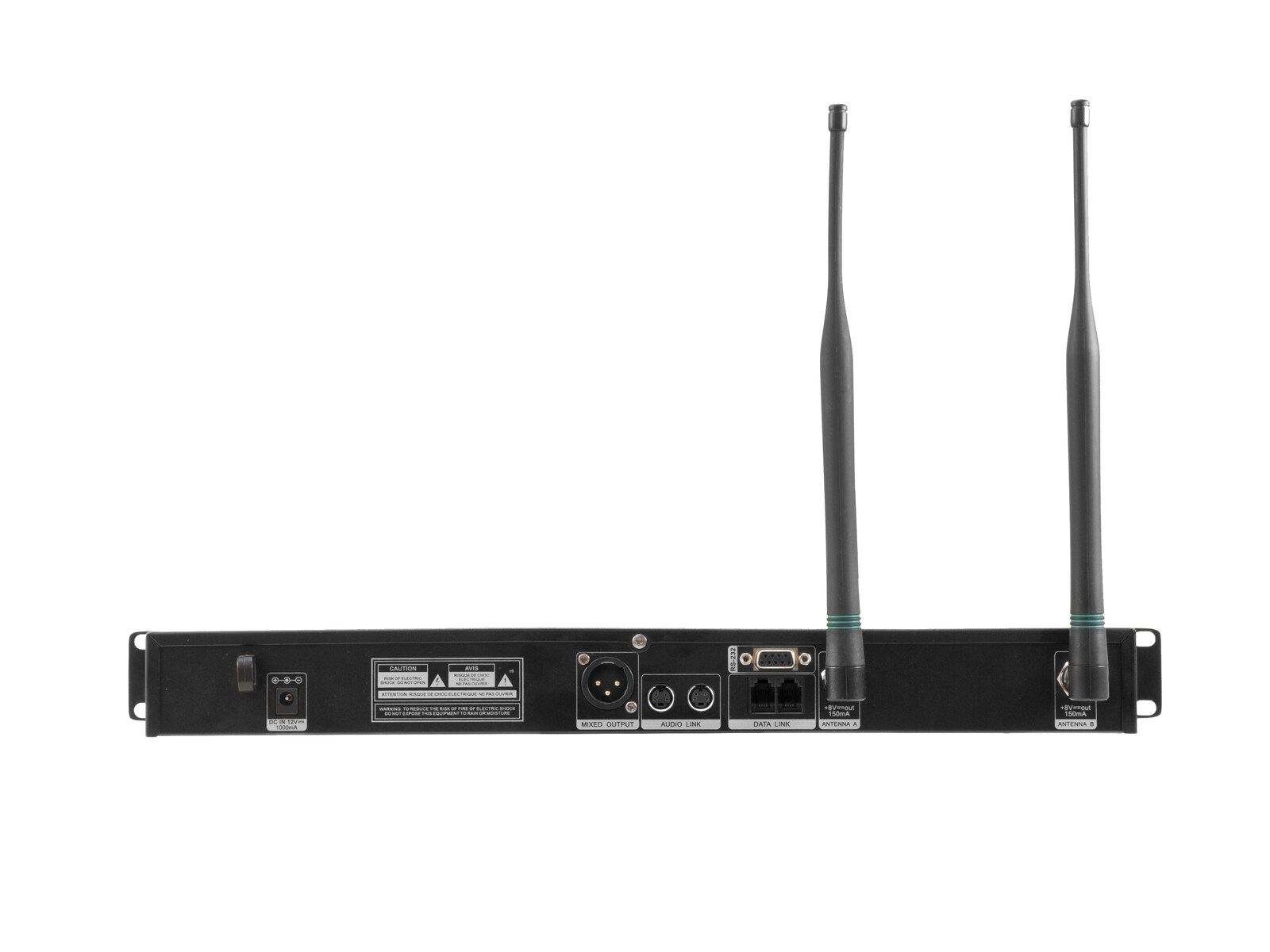

Connections:
Antenna via 2 x BNC (F) 8 V
Output: line via 1 x 3-pin XLR (M) mounting version 0,3 V
Link: for audio/data link via 2 x Mini DIN 4-pin (W) mounting version
Link: for audio/data link via 2 x RJ11 (F) mounting version
Link: 1 x DB-9 (F) mounting version
Frequency band:
UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:
90 Switchable frequencies
In 10 groups with up to 10 preset frequencies each
Modulation:
FM
Frequency stability:
± 0,001 %
Switching bandwidth:
11 MHz
Switch:
On/off switch
Diversity:
True diversity
Material:
Metal
PC connect:
Via RS 232
Housing design:
(19") 48.3 cm rack installation 1 U
Dimensions:
Width: 48,3 cm
Depth: 27,5 cm
Height: 4,4 cm
Weight:
3,16 kg
