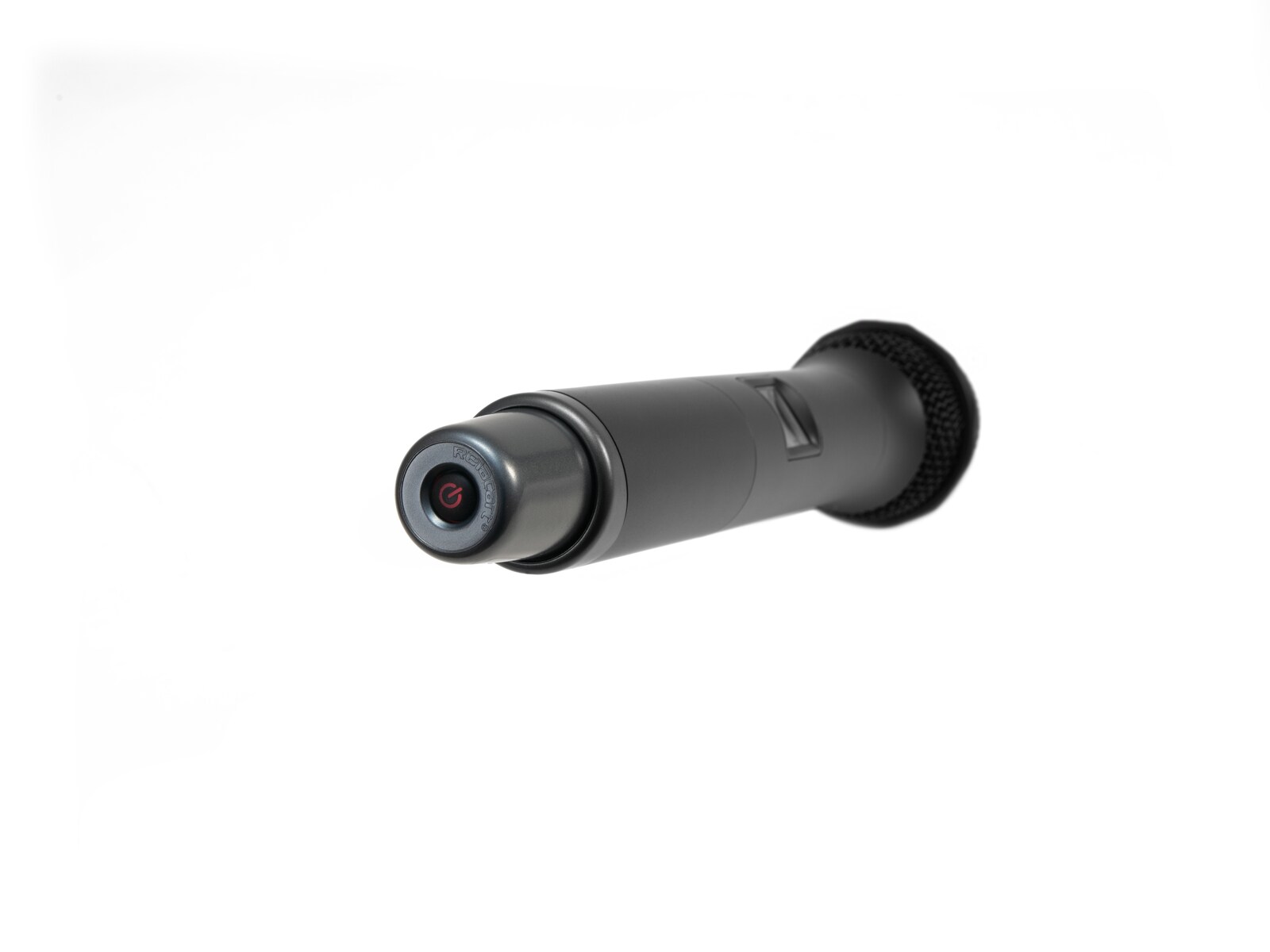

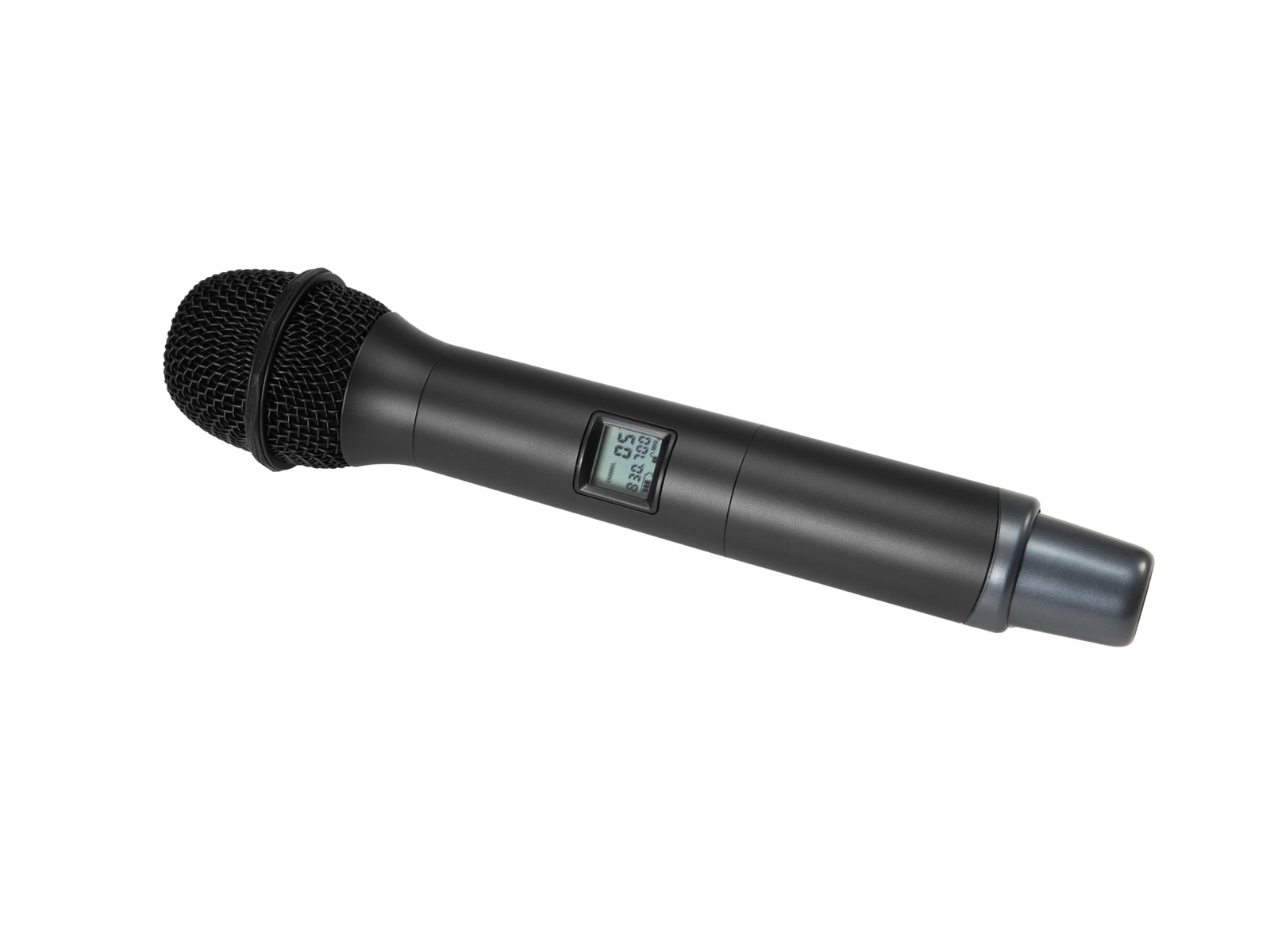

Microphone with PLL multifrequency transmitter for WAM-402, 823-832 + 863-865 MHz

• Dynamic hand-held microphone with UHF pilot tone technology (PLL)
• Ergonomic aluminum alloy housing, applicable for touring
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• RF output power Hi/Low adjustable
• Gain level Hi/Mid/Low adjustable
• Polar pattern: Cardioid
• OLED display
• Charge status indicator
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• UHF 863 - 865 MHz License-free and approved in Europe
• Operating range up to 60m

Package contents

• 1 x microphone, 1 x user manual, 1 x declaration of conformity

Type:
Hand-held transmitter
Power supply:
3 V DC
Capsule type:
Dynamic
Polar pattern:
Cardioid
Battery:
2 x Mignon (AA) (not included)
Display type:
OLED display
Display:
Charge status indicator , frequency , Chanal
Control elements:
Gain-switch (high-mid-low), Transmitter power switch (high-low)
Frequency band:
UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:
90 Switchable frequencies
In 10 groups with up to 10 preset frequencies each
Modulation:
FM
RF power output:
10 mW
Range:
Range up to 60m
Switching bandwidth:
11 MHz
Switch:
On/off/mute switch
Material:
Aluminum
Color:
Black
Dimensions:
Length: 26,5 cm
Diameter: Ø 5,6 cm
Weight:
310 g
