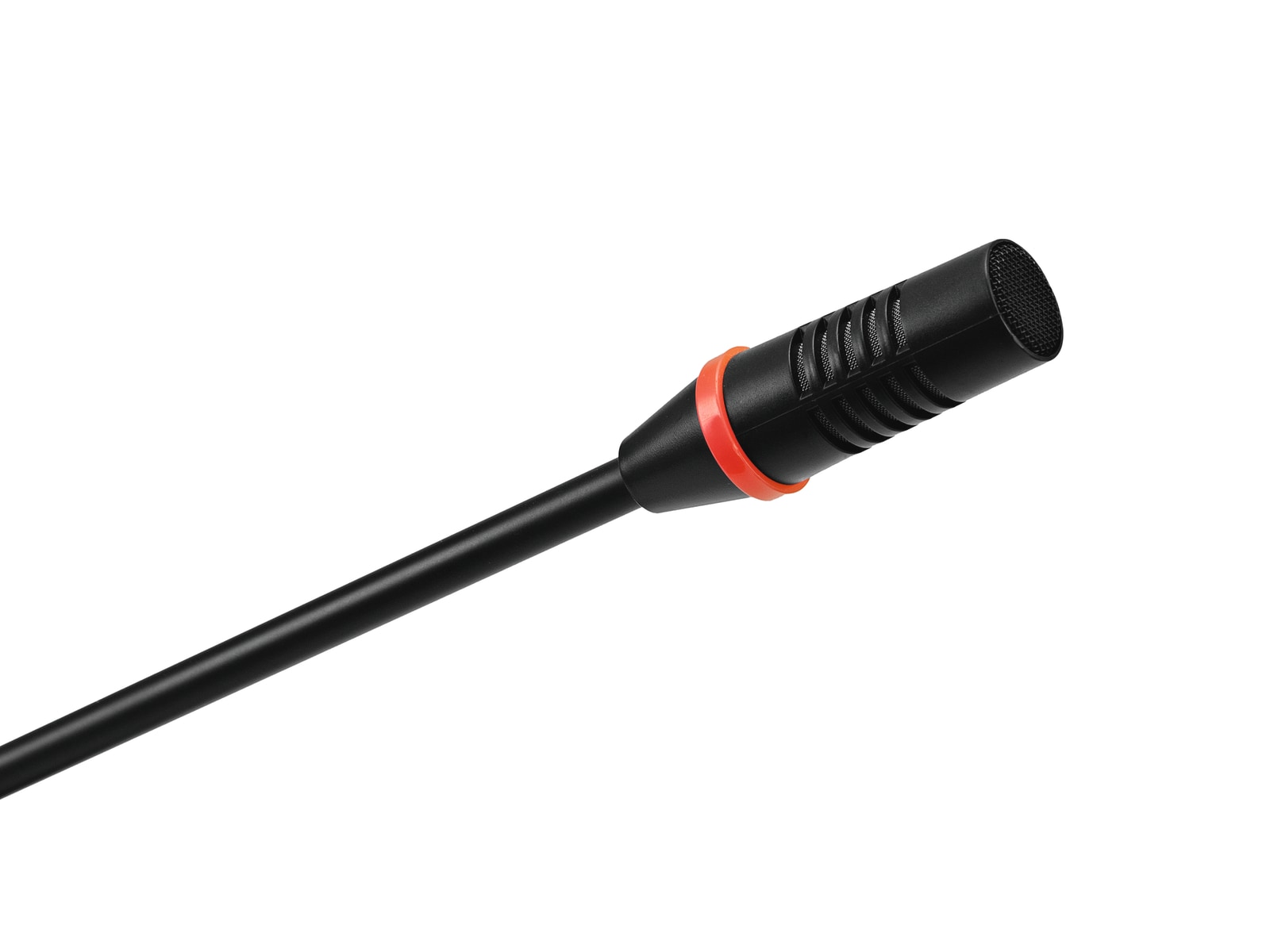

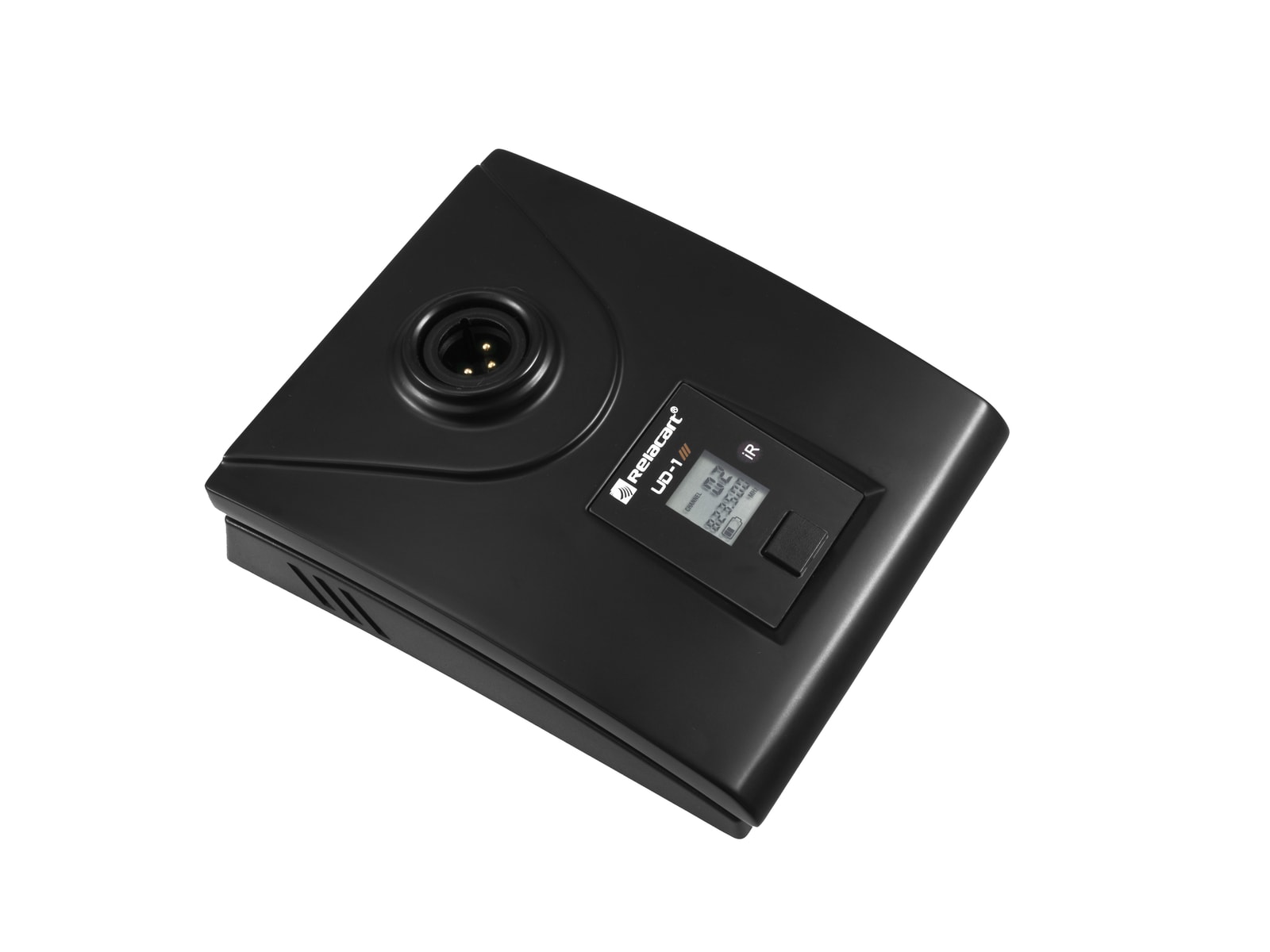

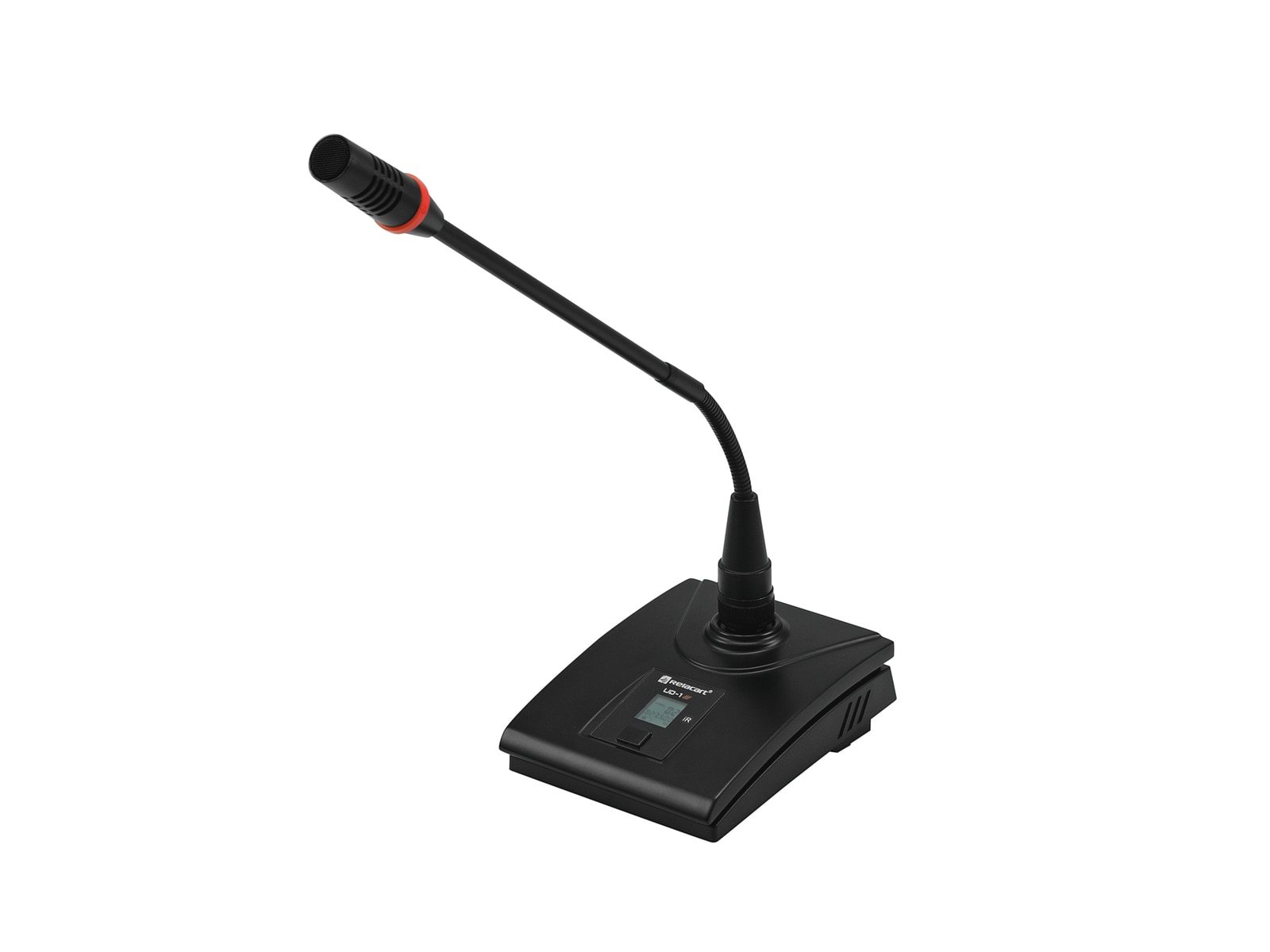

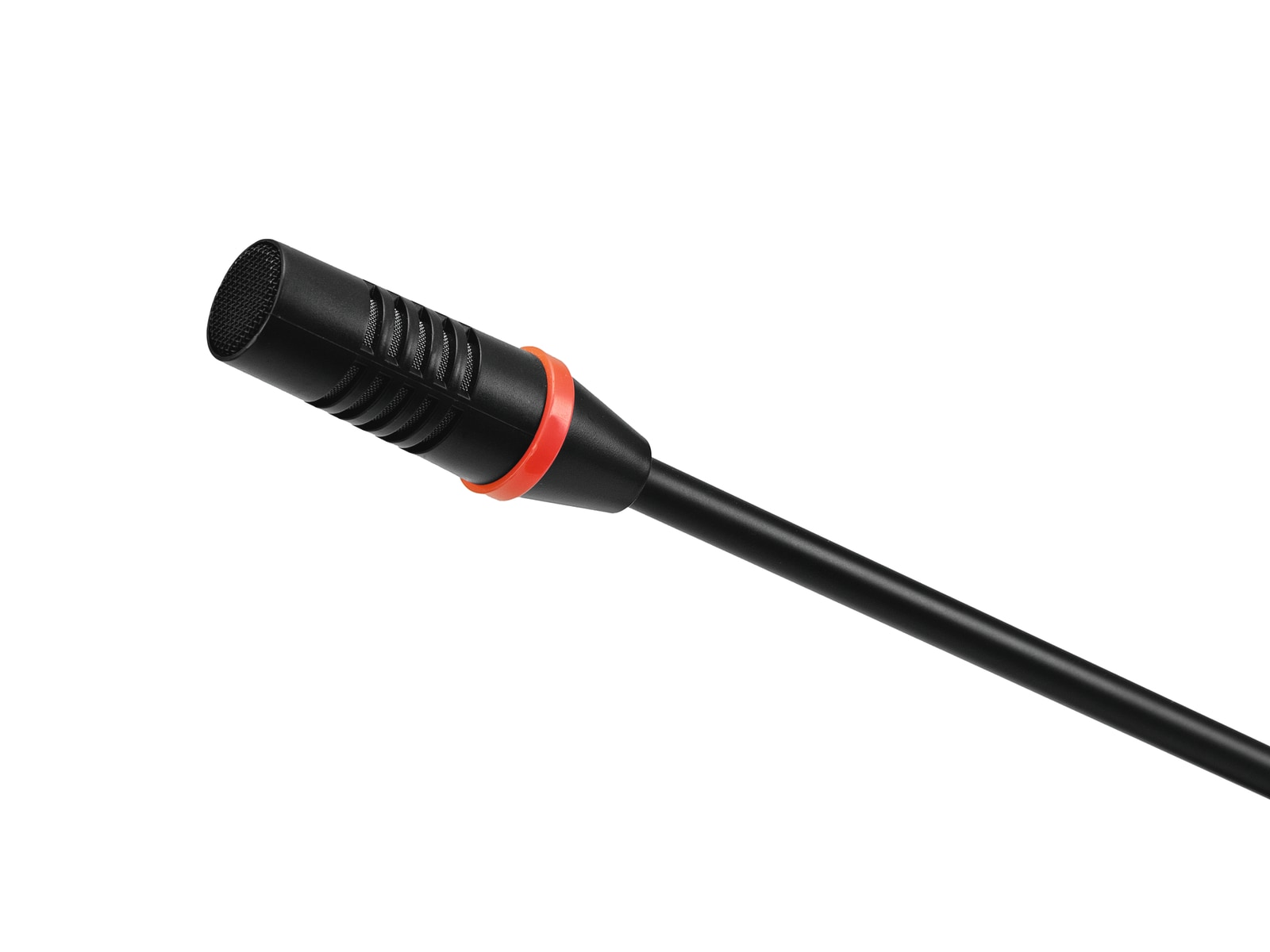

UHF gooseneck microphone for model WAM-402, 823-832 + 863-865 MHz

• Gooseneck microphone with UHF pilot tone technology (PLL)
• Parallel operation of up to 8 systems is possible without any interference
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• Gain control and low cut switch
• LCD display
• Charge status indicator
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• UHF 863 - 865 MHz License-free and approved in Europe
• Operating range up to 60m

Package contents

• 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity

Type:
Gooseneck microphone
Power supply:
3 V DC
Power connection:
Battery/battery pack
Capsule type:
Condenser
Battery:
2 x Mignon (AA) (not included)
Low cut:
120Hz, switchable
Gain:
Input: ± 10 dB
Display type:
LCD display
Display:
Charge status indicator , frequency , Chanal
Control elements:
Transmitter power switch (high-low)
Frequency band:
UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:
90 Switchable frequencies
In 10 groups with up to 10 preset frequencies each
Modulation:
FM
RF power output:
10 mW
Frequency stability:
± 0,0005 %
Range:
Range up to 60m
Switching bandwidth:
11 MHz
Switch:
On/off switch; low cut switch
Material:
Metal
Color:
Black
Dimensions:
Width: 11,5 cm
Depth: 14 cm
Height: 48,5 cm
Weight:
830 g
