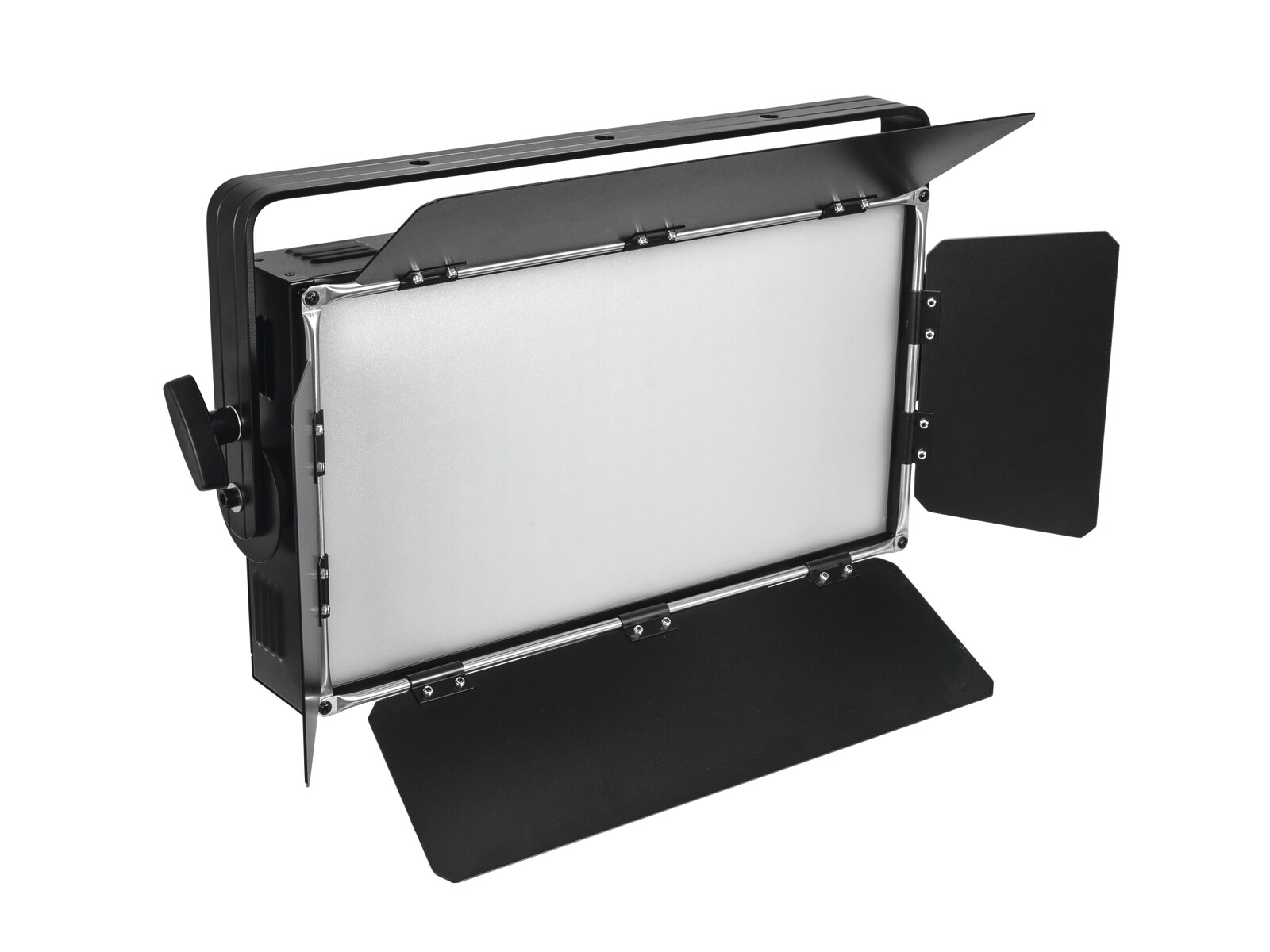

Surface light with 360 warm white LEDs and DMX

• 360 powerful LEDs 0,5 W SMD 2835 warm white (WW)
• Energy-saving, durable and environmentally friendly
• Frost filter provides a soft, homogeneous light
• 4 barn doors to avoid blinding the audience and for protection during transport
• Silent operation
• Dimmer electronic; Dimmer speed (step response) adjustable
• Strobe effect
• The device is cooled by passive convection cooling
• Control via Quick select potentiometer for brightness; DMX; Master/slave function
• Flicker-free
• With a beam angle of 120°
• Very high color rendering index (CRI)

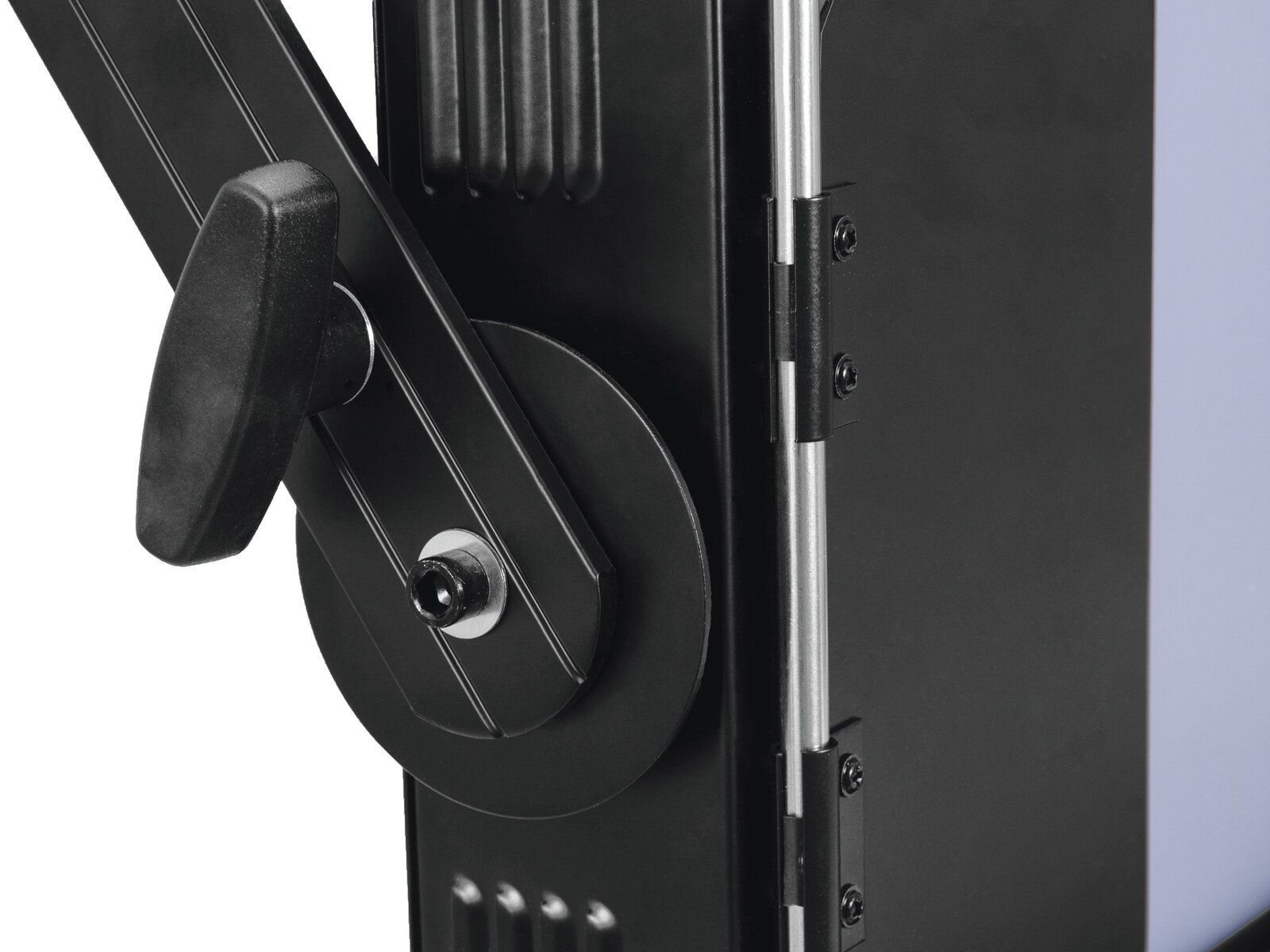

• With Mounting bracket
• LCD display
• Slim, rugged metal housing
• For application areas such as: Video and photography; Stage
• Preprogrammed in Light´J; Light Captain
• Various versions available
• Dimmable
• Mains input and output for power linking up to 8 units
• Rugged carrying handle

Package contents

• 1 x spotlight, 1 x user manual, 1 x power cord

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
130 W
IP classification:
IP20
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
IEC connector (F) mounting version
Lamp type:
LED lamp
Lamp specification:
Dimmable
LED:
360 x 0,5 W SMD 2835 warm white (WW)
Color temperature:
3200K
DMX channels:
3
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Quick select potentiometer for brightness; DMX; Master/slave function
Preprogrammed in:
Light´J; Light Captain
Beam angle:
120°
Beam angle (1/2 peak):
120°
Color rendering index (CRI):
94 Ra
Illuminance in Lux (lx):
Warm white (WW) 3m: 403 lx, 6m: 118 lx
Luminous flux:
9367 lm
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
LCD display
Carrying handle:
1 pc/pcs
Dimensions:
Width: 57 cm
Depth: 12 cm
Height: 31 cm
Weight:
6,10 kg
Noise classification:
Class 0 (no noise at all)
Energy efficiency class (A - G):
F
