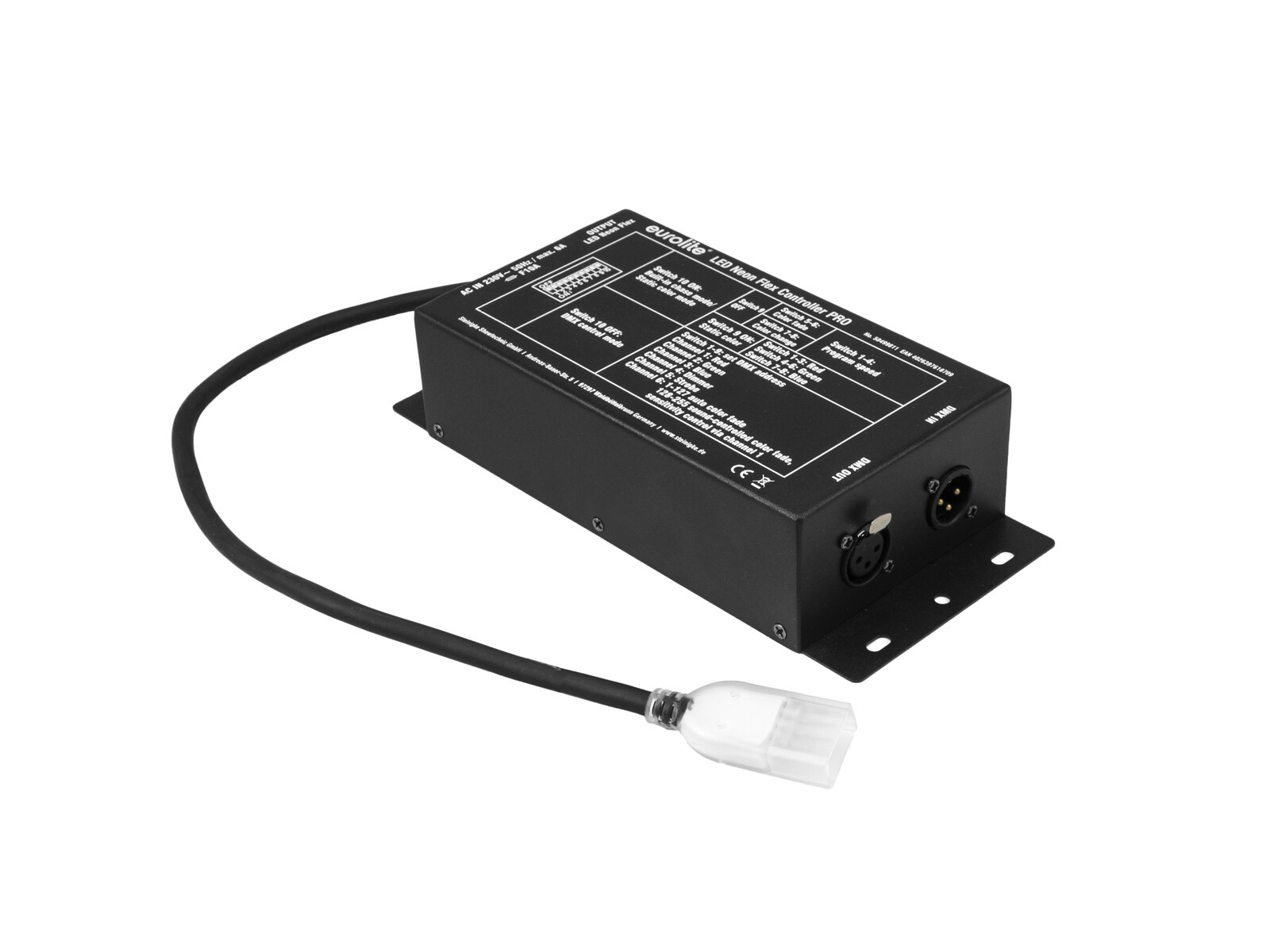

Controller with DMX interface for the RGB LED neon tube (item 50499801)

• Compact controller for the slim LED neon tube (item 50499801) via DMX
• 3 separate control channels for individual color mixing of red, green and blue LEDs

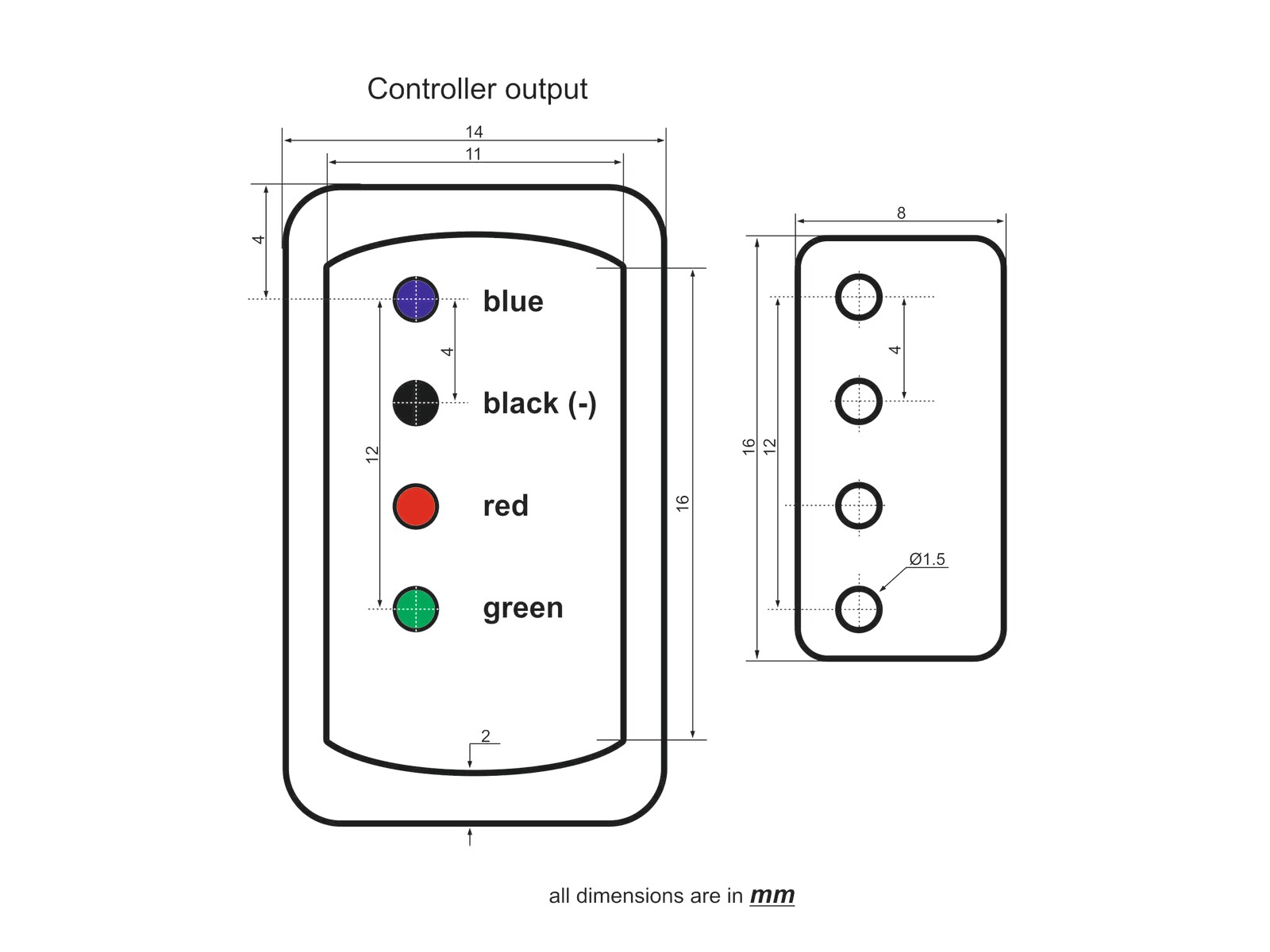

• 4-pin cable for connecting the LED neon tube
• Rugged black metal housing
• Integrated show programs
• Control via stand-alone; DMX; Sound to light via Microphone

Package contents

• 1 x device, 1 x power cord, 1 x adapter, 1 x tube, 1 x user manual

Power supply:
230 V AC, 50 Hz
Power consumption:
Max. 1380 W
Max. 460 W per channal
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug included
DMX channels:
6

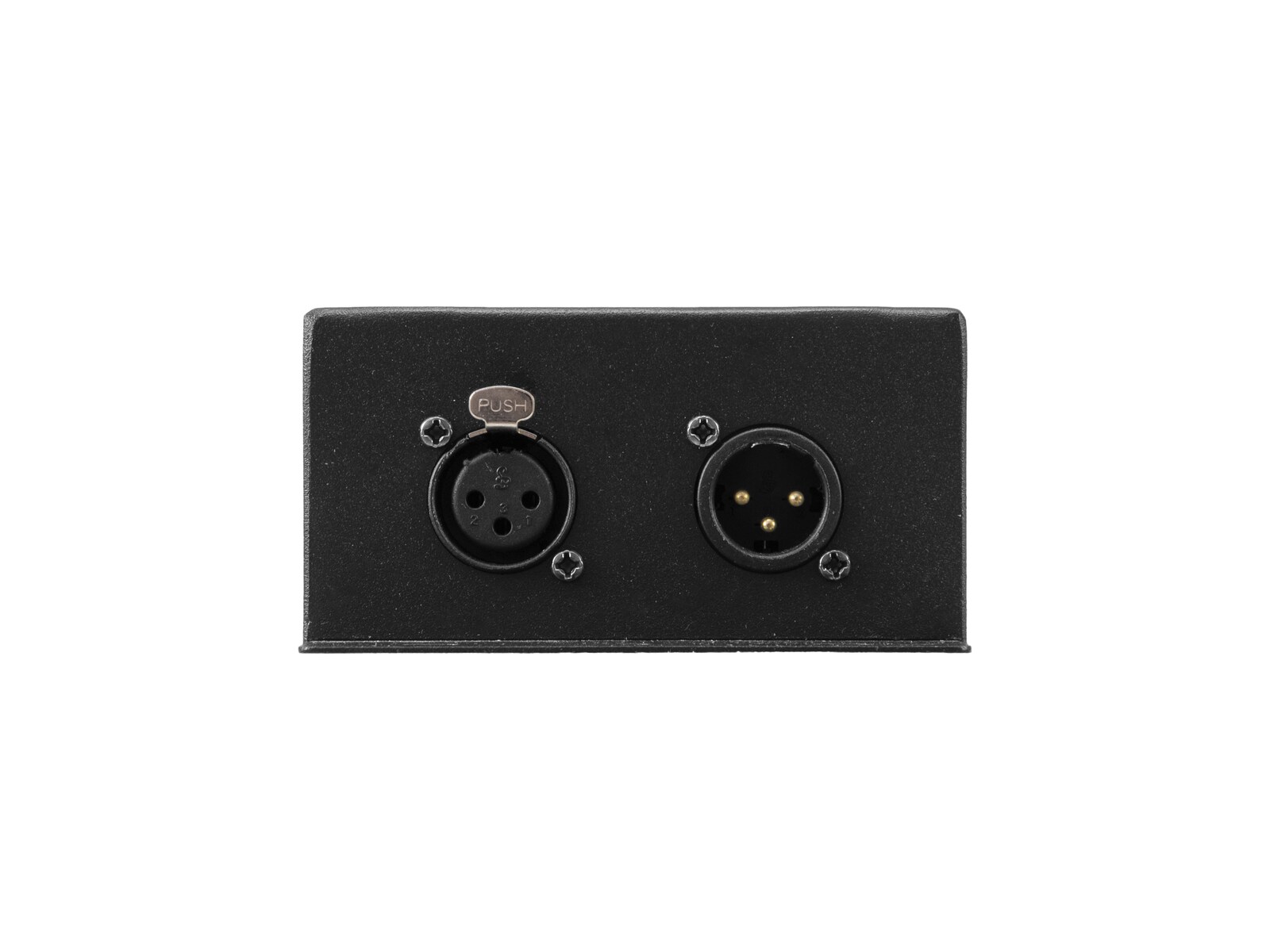

DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Control:
Stand-alone; DMX; Sound to light via Microphone
Housing color:
Black matte
Diameter mounting holes:
6 x Ø5mm
Dimensions:
Width: 22,5 cm
Depth: 10 cm
Height: 5 cm
Weight:
1,17 kg
Power cord
Cable construction:
3 x 1,5 mm² H05VV-F
Cable length:
Approx. 1,2 m
