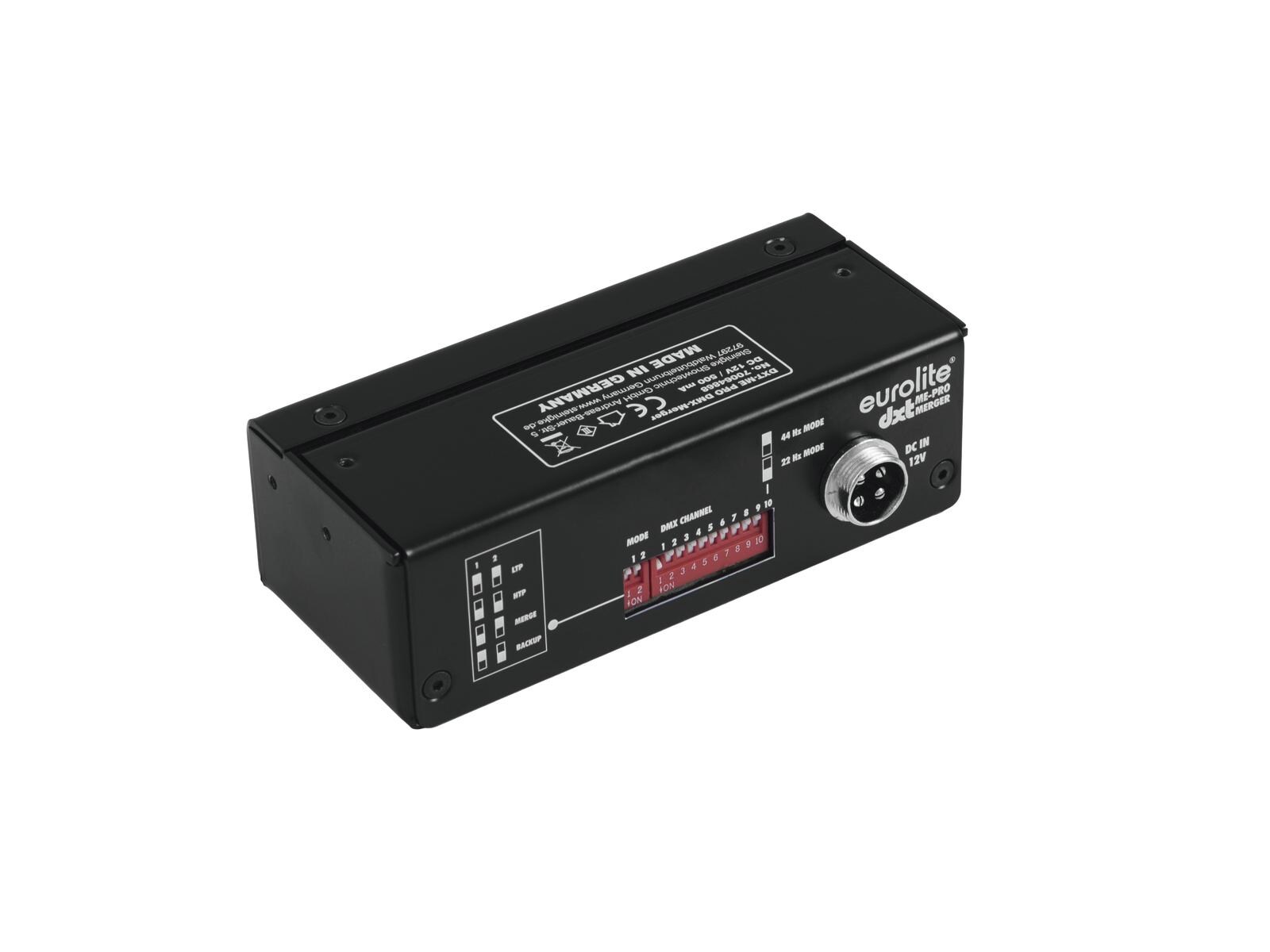

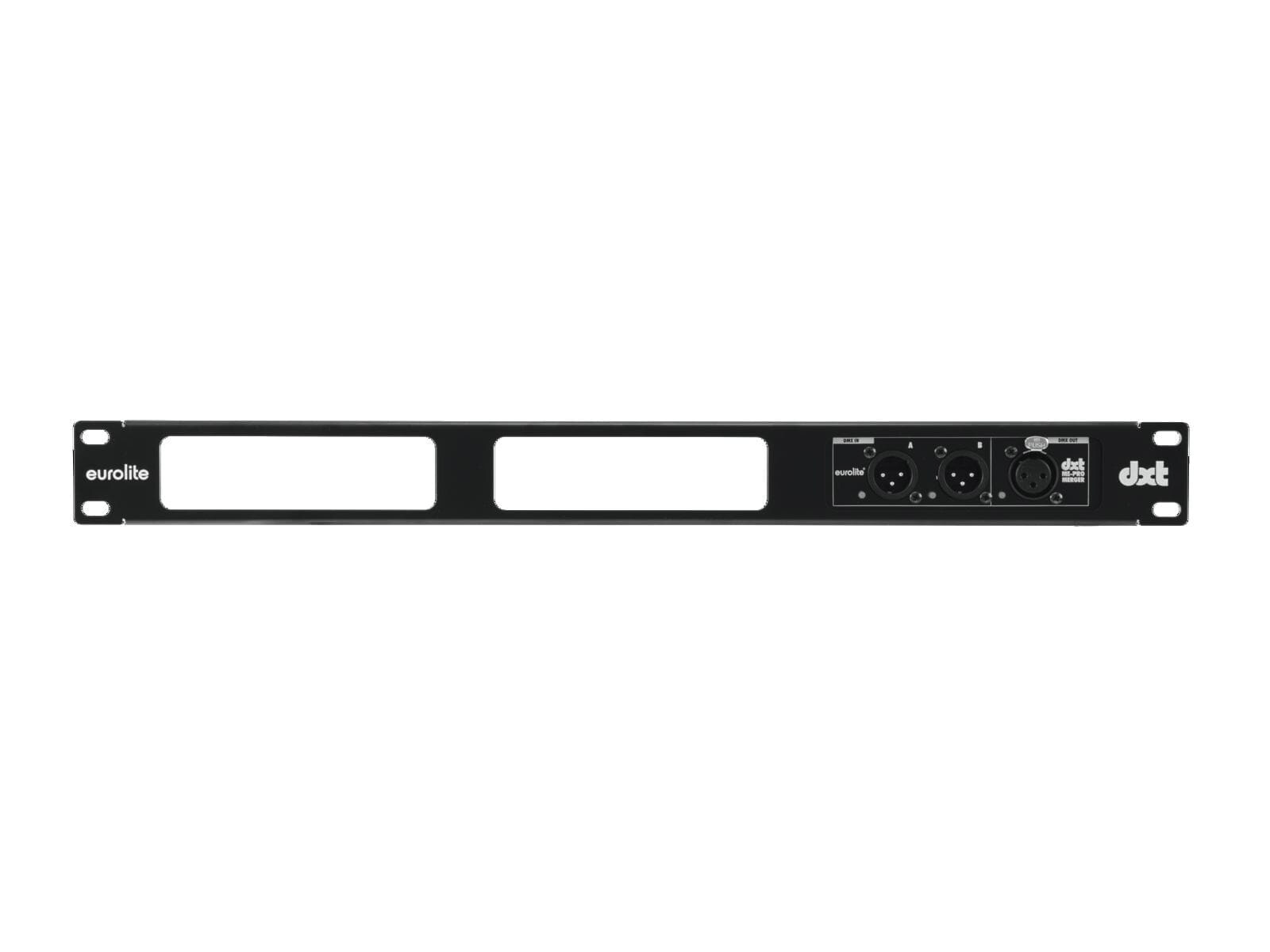

PRO DMX merger to combine 2 DMX signals into 1

• Pro DMX merger with 2 DMX inputs and 1 DMX output
• Enables two separate consoles to control one DMX system

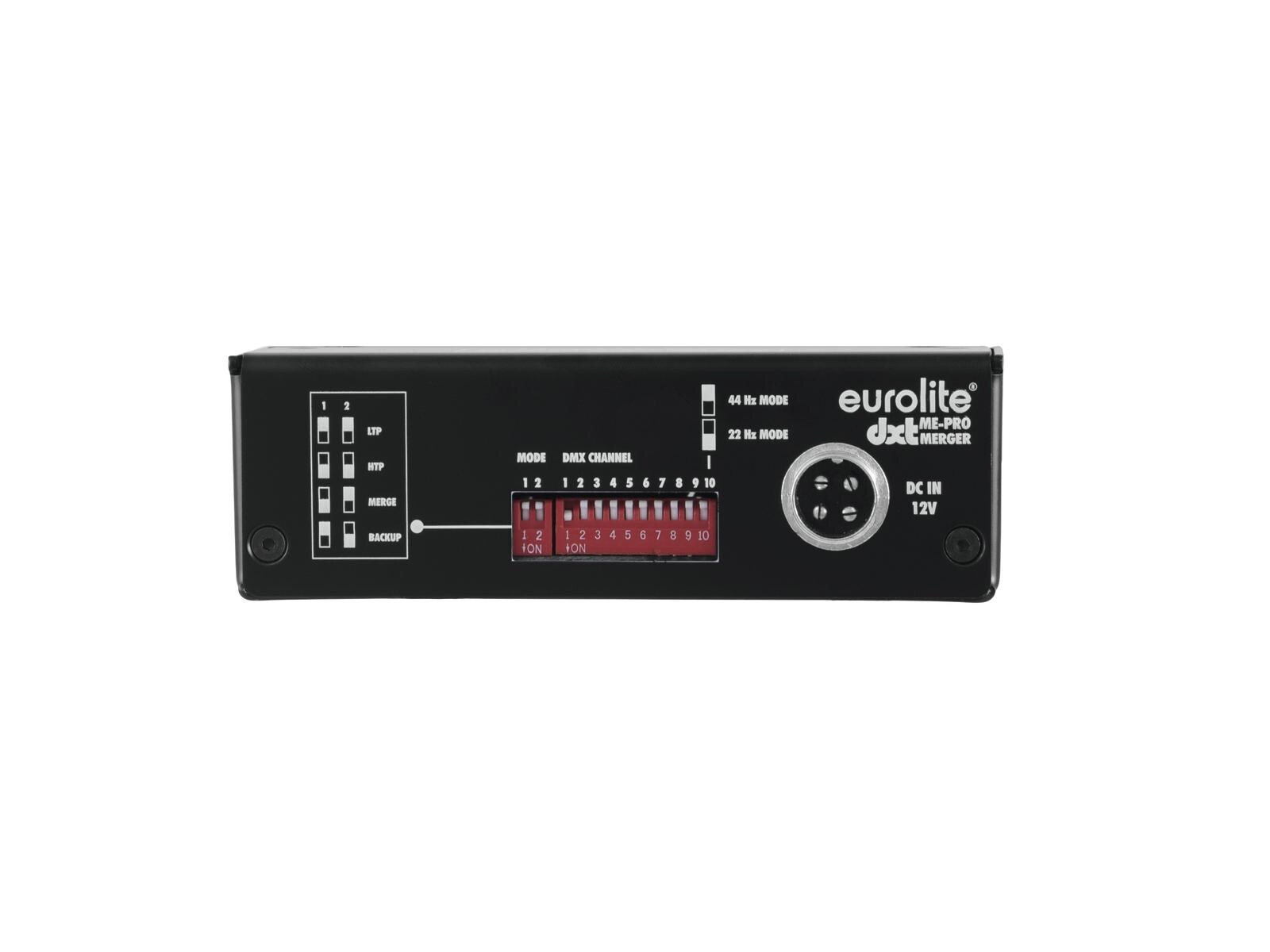

• DMX modes: LTP, HTP, merge or backup
• Input B can be set to a start address (offset)
• LED indicator for valid DMX signals
• Selectable output frequency 22 Hz/44 Hz
• Built with NEUTRIK connector
• Made in Germany
• For application areas such as: Stage

Power supply:
100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:
1 W
Power connection:

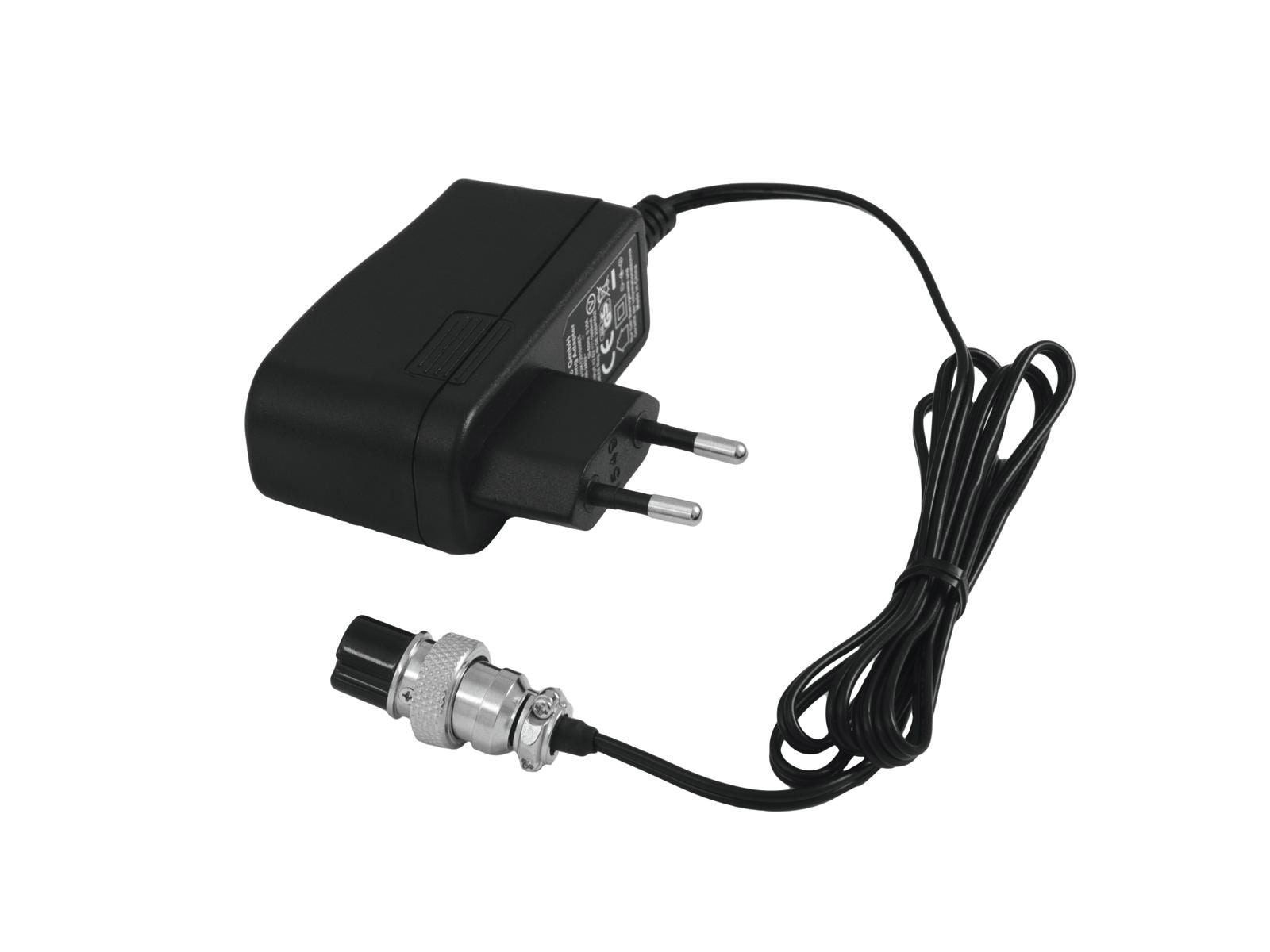

Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided)

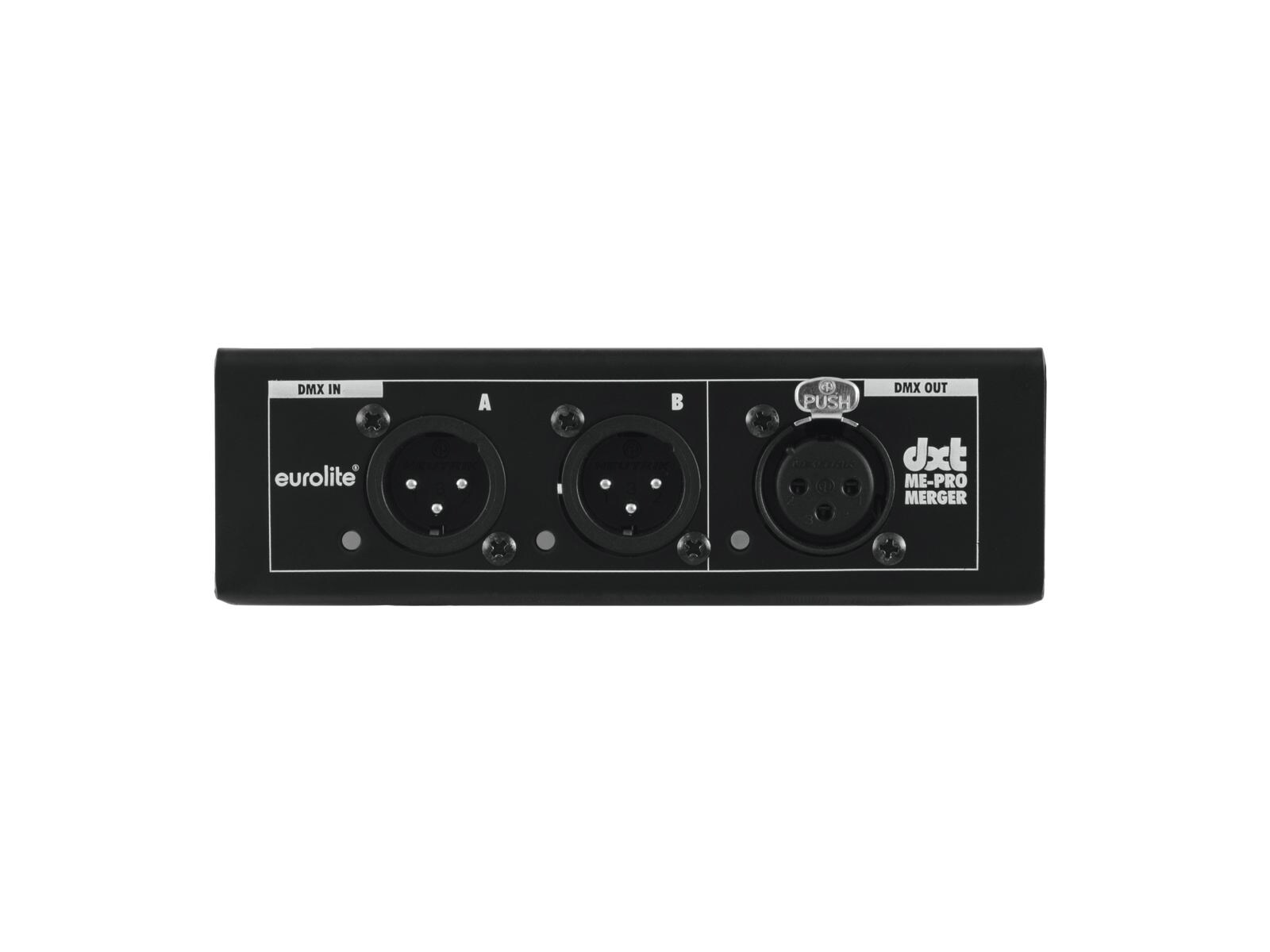

DMX input:
2 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Use of brands:
Built with NEUTRIK connector
Dimensions:
Width: 13 cm
Depth: 7 cm
Height: 4,1 cm
Weight:
500 g
