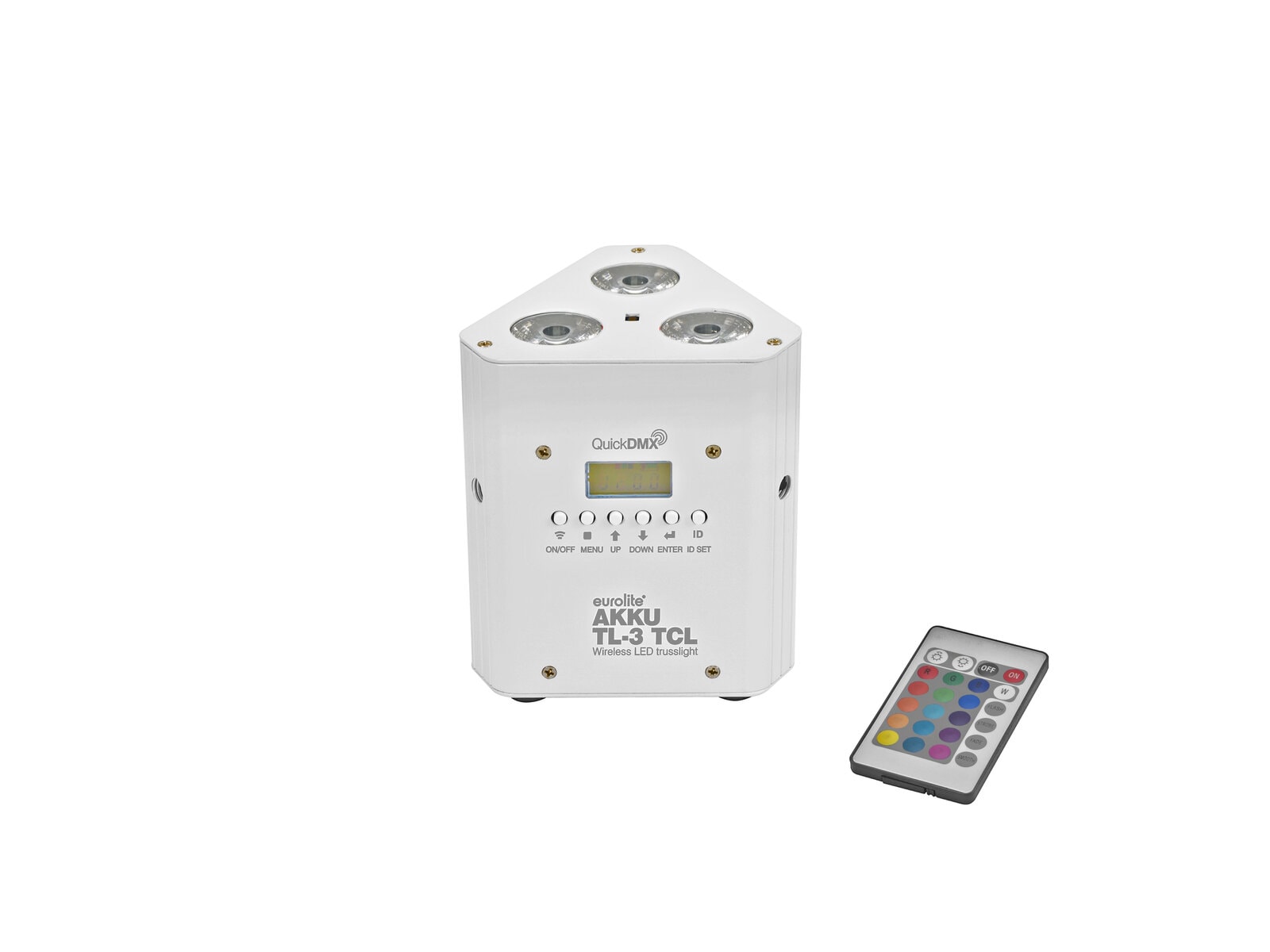

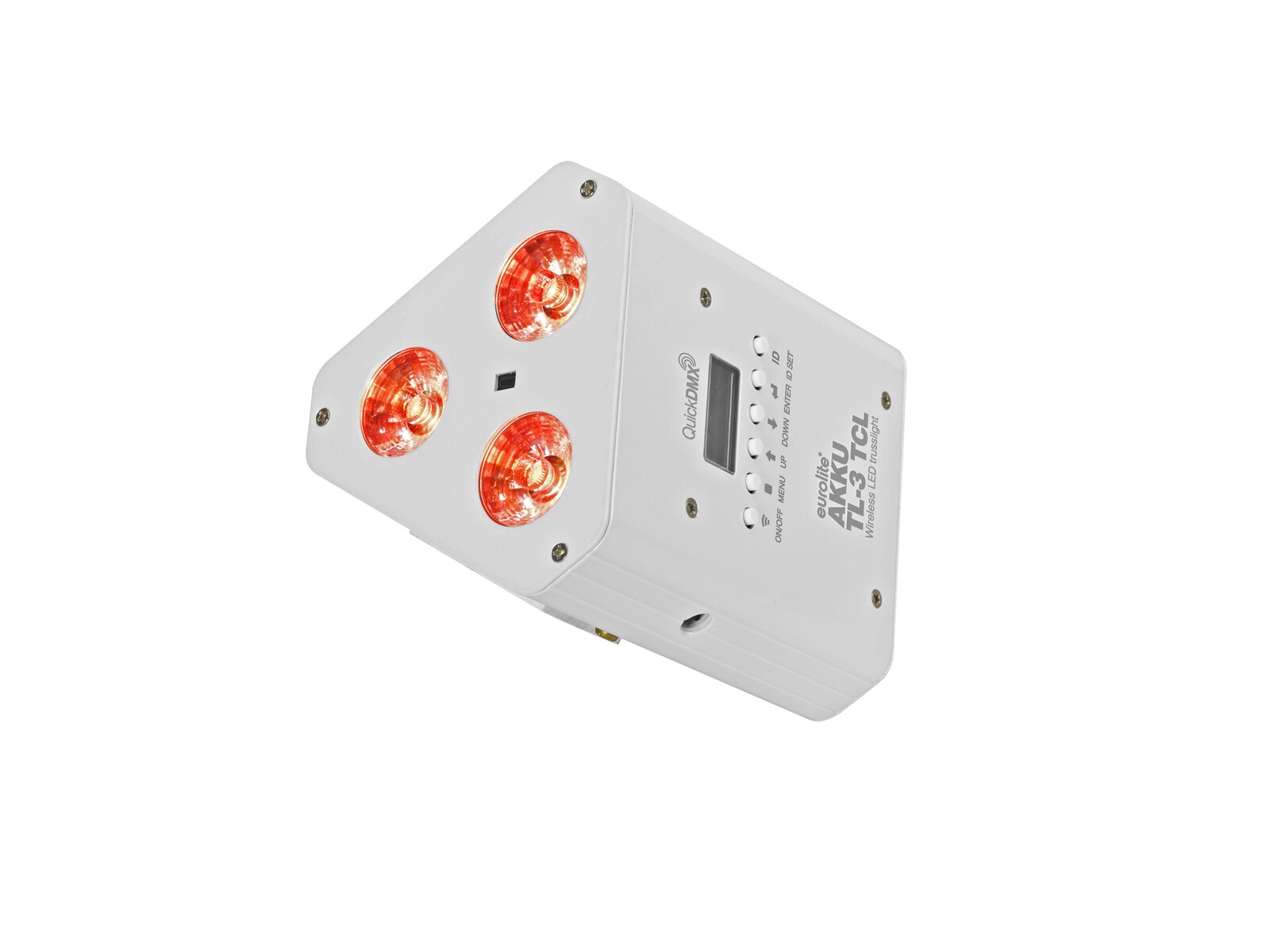

Spot for lighting within trussing, 3 x 3 W 3in1 LED, QuickDMX transceiver

• Compact and bright
• Ideal for ALUTRUSS DECOLOCK DQ3 3-point system
• Integrated QuickDMX transceiver for wireless DMX control
• Threaded inserts for suspended installation
• Battery operation up to 16h depending on program used
• 3 powerful LEDs 3 W high-power 3in1 TCL RGB (homogenous color mix)
• Dimmer electronic; color blend stepless; color change adjustable; Dimmer speed (step response) adjustable
• Strobe effect
• The device is cooled by passive convection cooling
• Control via IR remote control; DMX; QuickDMX; Sound to light via Microphone; stand-alone
• Flicker-free
• With a beam angle of 11°
• For application areas such as: Small lender; Wedding/gala/events; Trade fair and shop fitting; Stage
• Preprogrammed in Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
• Silent operation
• Cordless, flexible and versatile
• Mains input and output for power linking up to 8 units

Package contents

• 1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x declaration of conformity

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
25 W
IP classification:
IP20

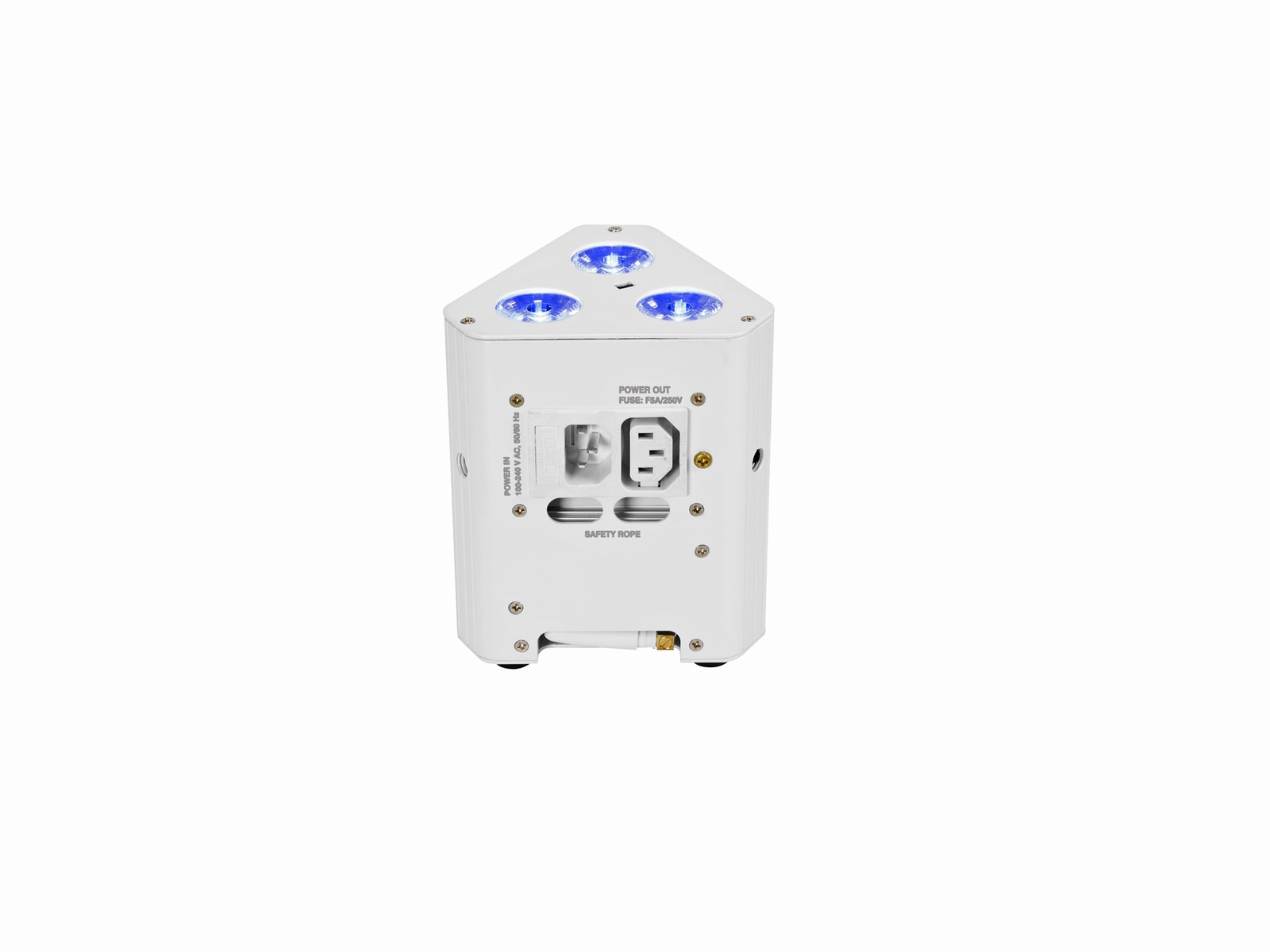

Power connection:
Battery/battery pack
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length:
Approx. 1,2 m
Power output:
1 x IEC connector (F) mounting version
Battery pack type:
1 x lithium ion 11,1 V, 4400 mAh, 48,84 Wh
Battery pack:
Battery operation up to 16h depending on program used
Recharging time 3h
Lamp type:
LED lamp
LED:
3 x 3 W high-power 3in1 TCL RGB (homogenous color mix)
Flash rate:
0 - 23 Hz
DMX channels:
3; 5; 8

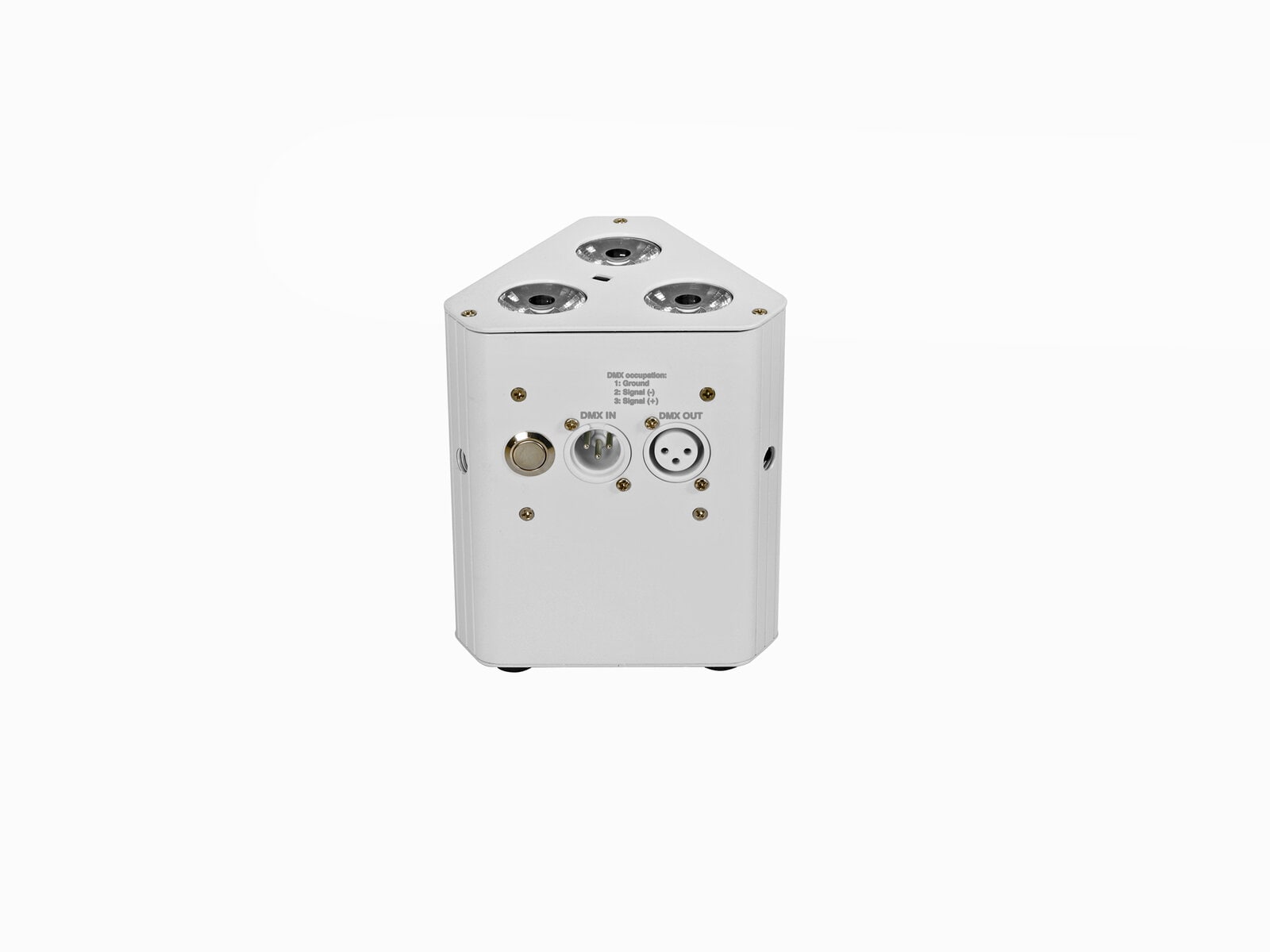

DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
IR remote control; DMX; QuickDMX; Sound to light via Microphone; stand-alone
Preprogrammed in:
Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
Beam angle:
11°
Beam angle (1/2 peak):
11°
Beam angle (1/10 peak):
24°
Housing color:
White
Carrier frequency:
2,4 GHz
Dimensions:
Width: 12,1 cm
Depth: 10,8 cm
Height: 14,5 cm
Weight:
1,30 kg
Noise classification:
Class 0 (no noise at all)
Remote control
Battery:
1 x Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
