Class D multi-channel PA amplifier with SMPS, 4 x 1100 W RMS (4 ohms), 4 x 650 W RMS (8 ohms)

• 4-channel PA amplifier with class D circuitry
• Low weight and height due to integrated switch mode power supply
• Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
• 3 operating modes can be selected (stereo, parallel or bridged)
• Level control per channel
• Input sensitivity adjustable
• LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
• Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
• Speaker outputs via lockable Speaker plugs
• Rugged steel chassis with aluminum front panel
• Highly efficient Air flow from front to rear
• The device is cooled by temperature-controlled fan
• (19") 48.3 cm rack installation 2 U

Package contents

• 1 x amplifier, 1 x power cord, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
830 W 1/8 power
Output power:
4 x 1100 W RMS (4 ohms)
4 x 650 W RMS (8 ohms)
2 x 2000 W RMS bridged (8 ohms)
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>100 dB
THD:
10 V/µs
Damping factor:
>500
Crosstalk:
>65 dB
Control elements:
Power switch, mode switch (stereo/parallel/bridged), level control per channel, Input sensitivity switch
Controls:
Softstart; overheat; overload; short-circuit; progressive volume; VHF; limiter
Status LED:
Power, level meter, clip, protect

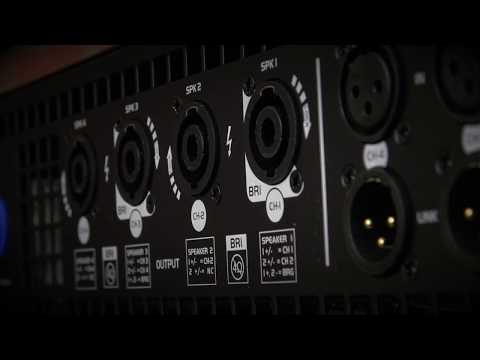

Connections:
Input: line via 4 x 3-pin XLR
Output: line via 4 x 3-pin XLR
Output: speaker via 4 x speaker built-in socket (F)
Input sensitivity:
0,775 V; 1,0 V; 1,81 V , switchable; 32 dB; 37 dB; 39,3 dB , switchable
Housing design:
(19") 48.3 cm rack installation 2 U
Dimensions:
Width: 48,3 cm
Depth: 46,1 cm
Height: 8,9 cm
Weight:
9,50 kg
